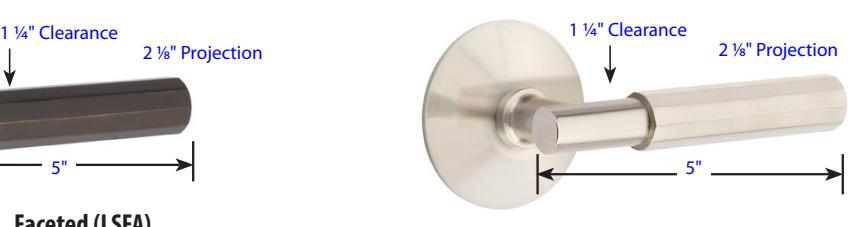

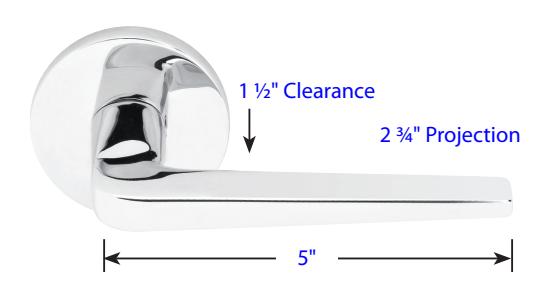

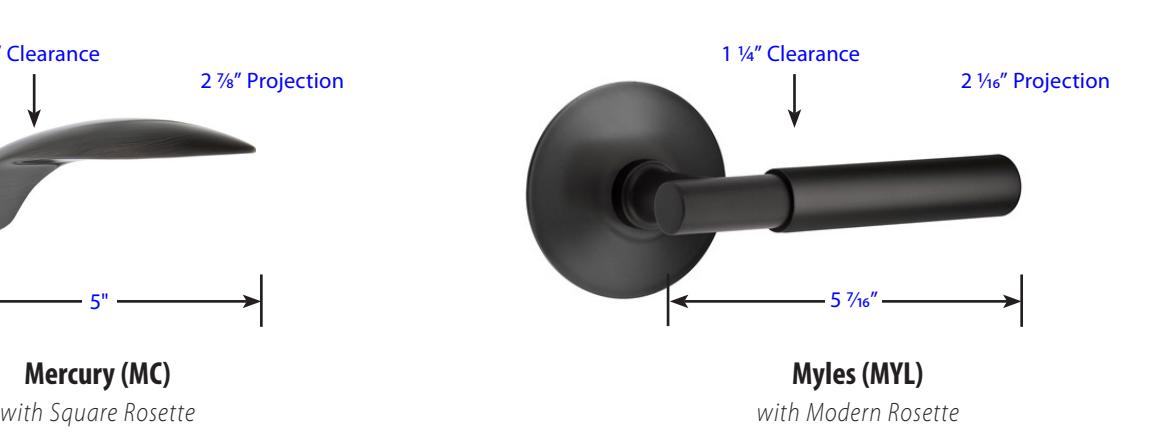

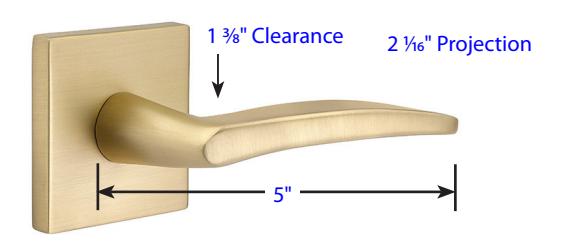

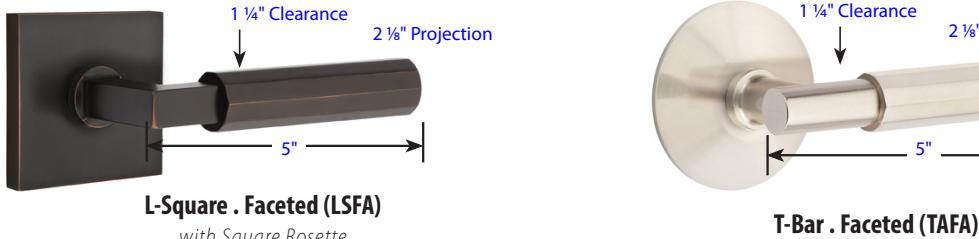

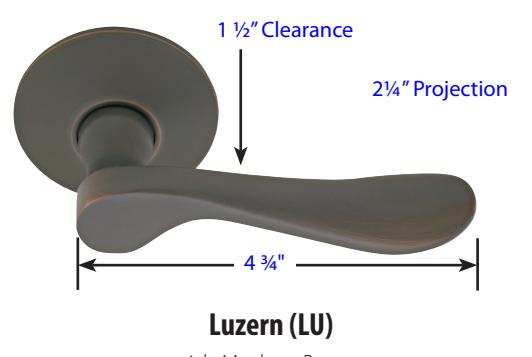

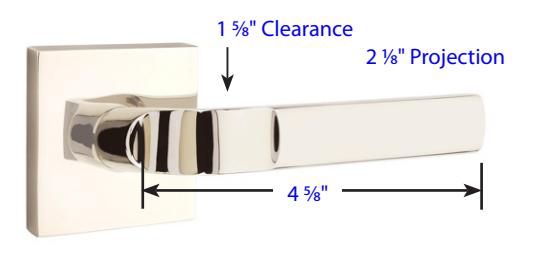

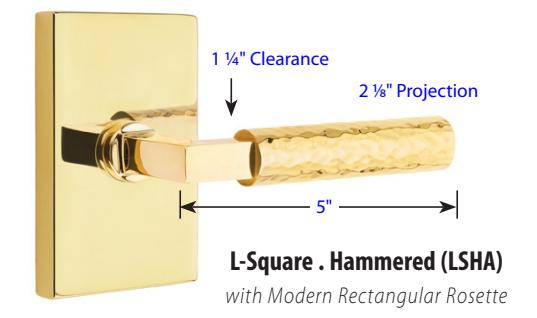

with Square Rosette with Modern Rosette

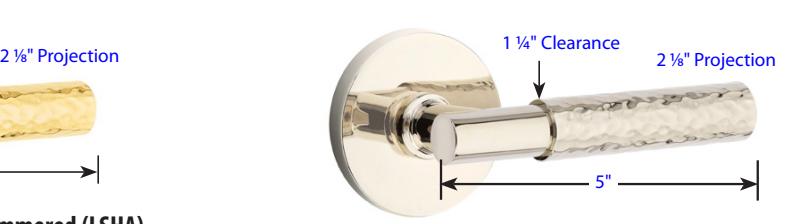

T-Bar . Hammered (TAHA)

with Disk Rosette

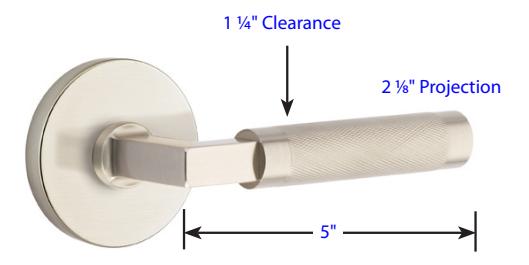

L-Square . Knurled (LSKN)

with Disk Rosette

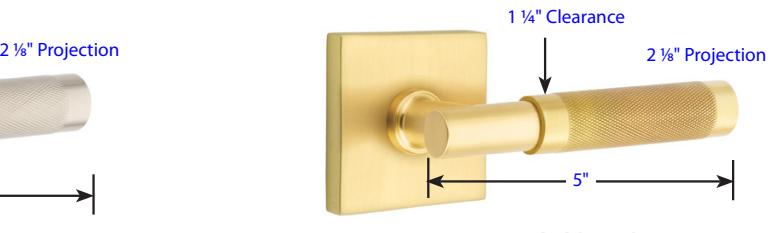

T-Bar . Knurled (TAKN)

with Square Rosette

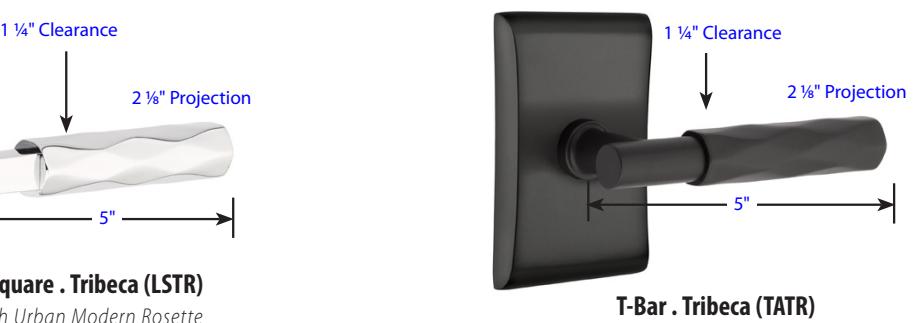

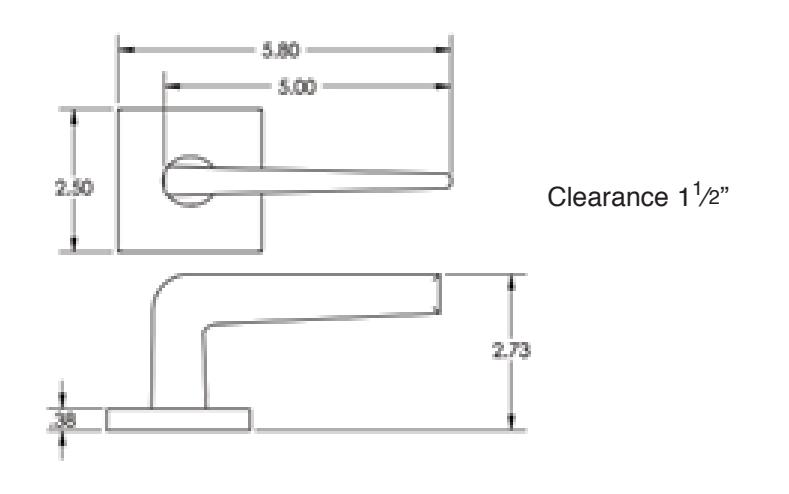

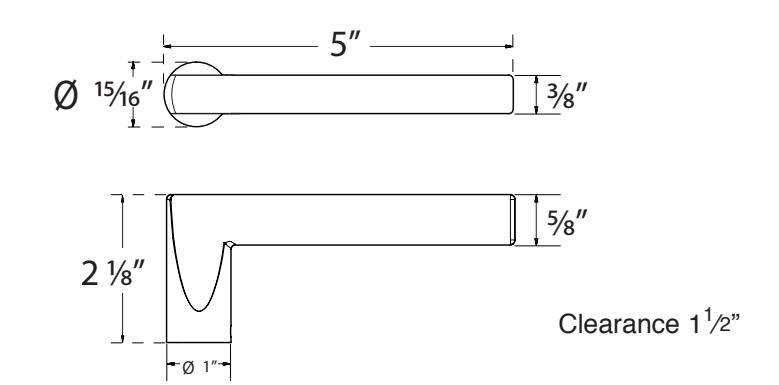

L-Square . Tribeca (LSTR)

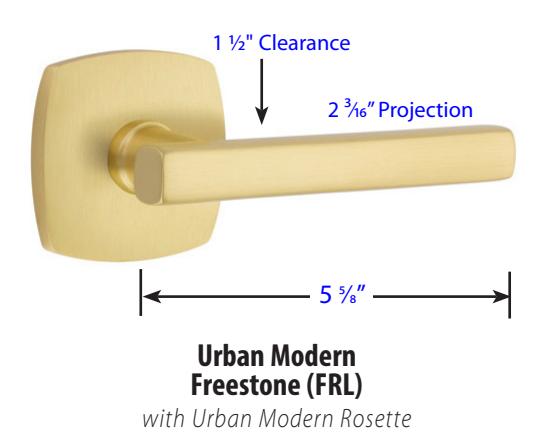

with Urban Modern Rosette

with Neos Rosette

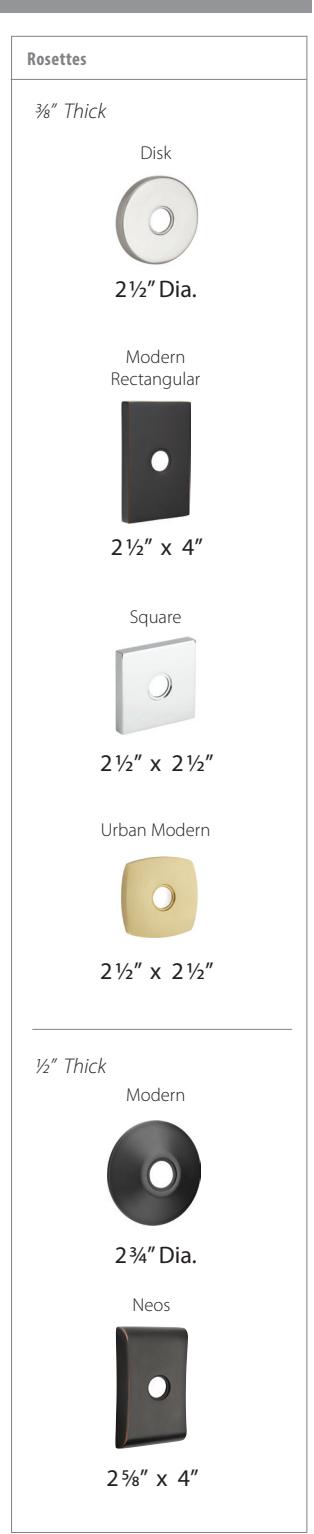

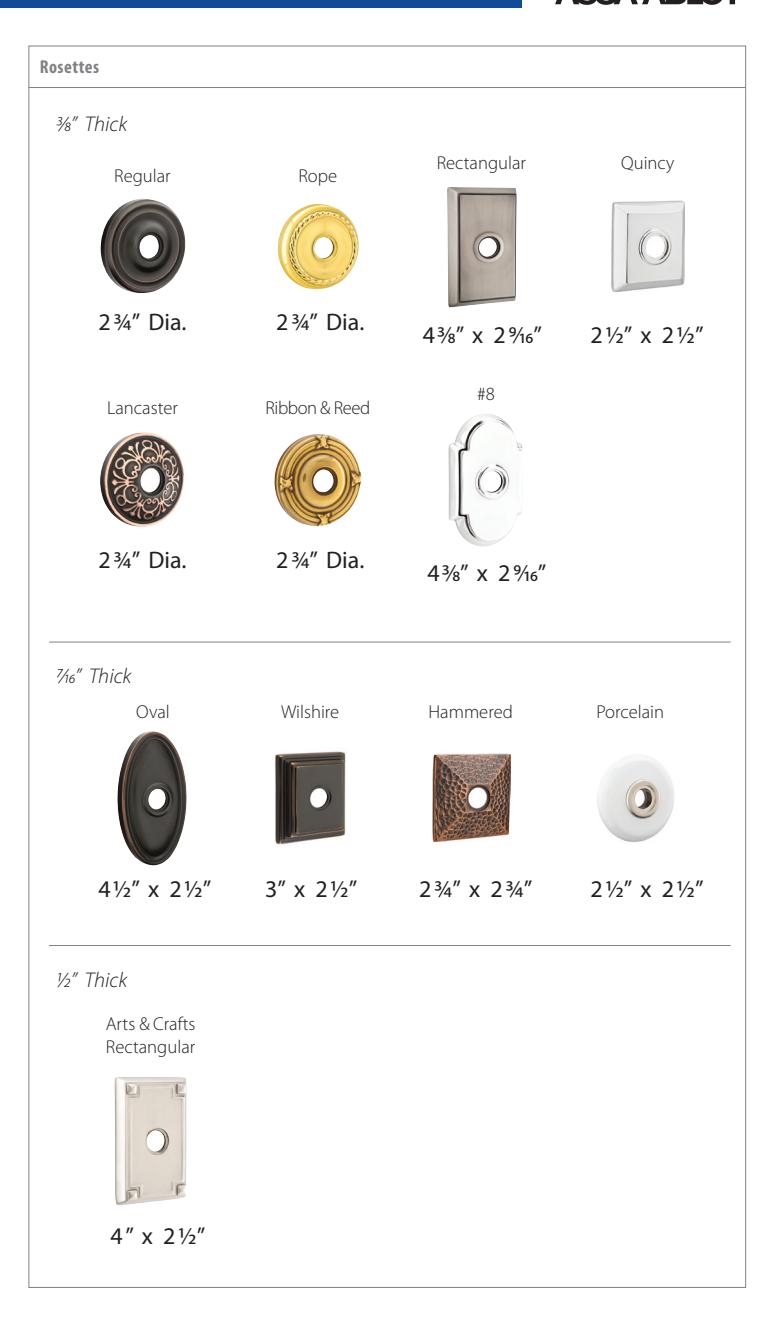

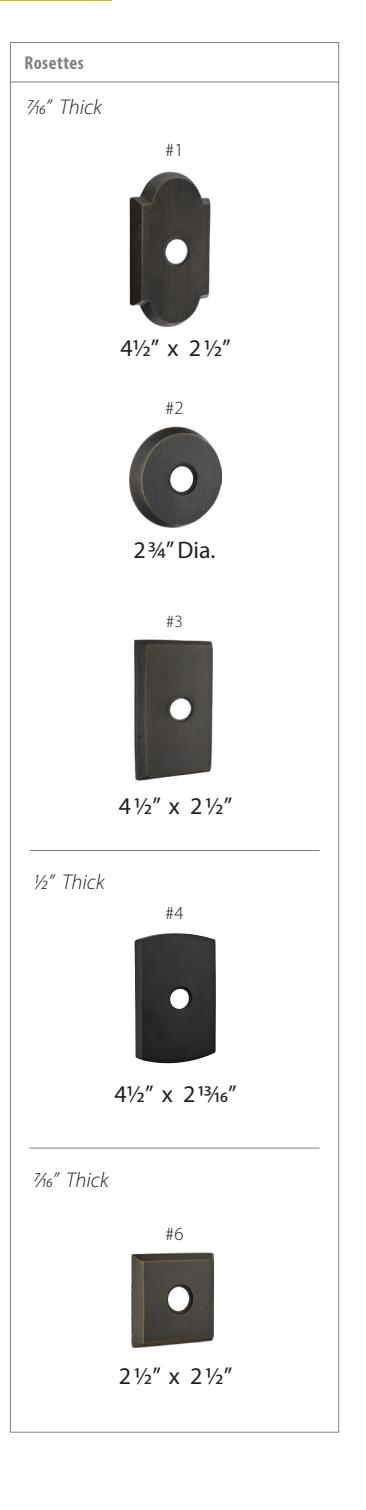

See page 5 for rosette specification.

• Standard Door Thickness: 11⁄4"- 2" Standard Components:
• Privacy Pin (for privacy sets)
• Inside Passage Half Spindle
• 11⁄2" Rosette Screws
• Full-Lip Strike Plate

• Extended Door Thickness: 2"- 21⁄2" Extended Components:
• Privacy Pin w/ Extension (for privacy sets)
• Long Inside Passage Half Spindle
• 2" Rosette Screws
• Extended Full-Lip Strike Plate

• Extended Door Thickness: 21⁄2"- 3" Extended Components:
• Privacy Pin w/ Extension (for privacy sets)
• Extra Long Inside Passage Half Spindle
• 21⁄2" Rosette Screws
• Extended Full-Lip Strike Plate

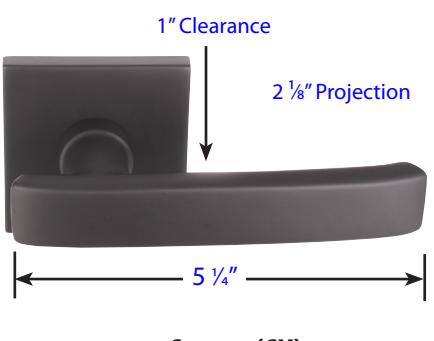

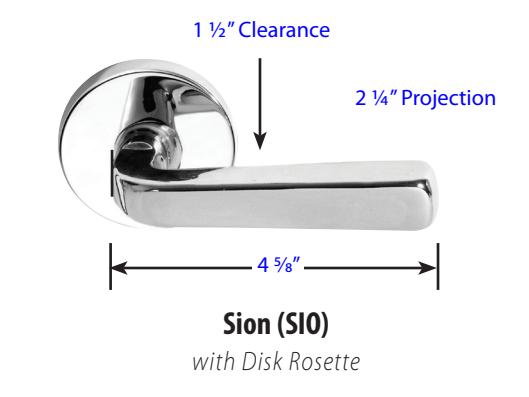

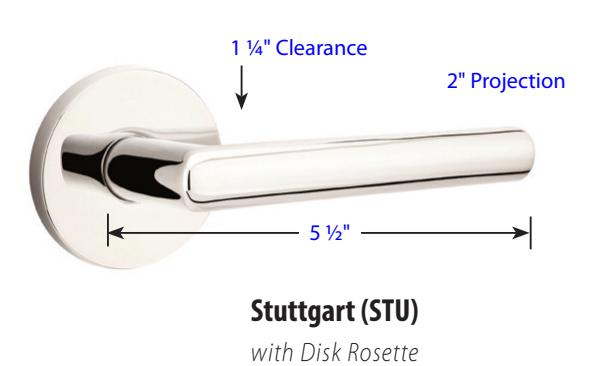

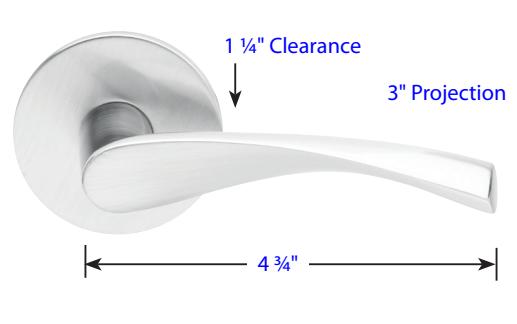

Aireon (A) Argos (AG) with Modern Rosette with Modern Rectangular Rosette

Athena (ATN)

with Square Rosette with Disk Rosette

Aston (AST)

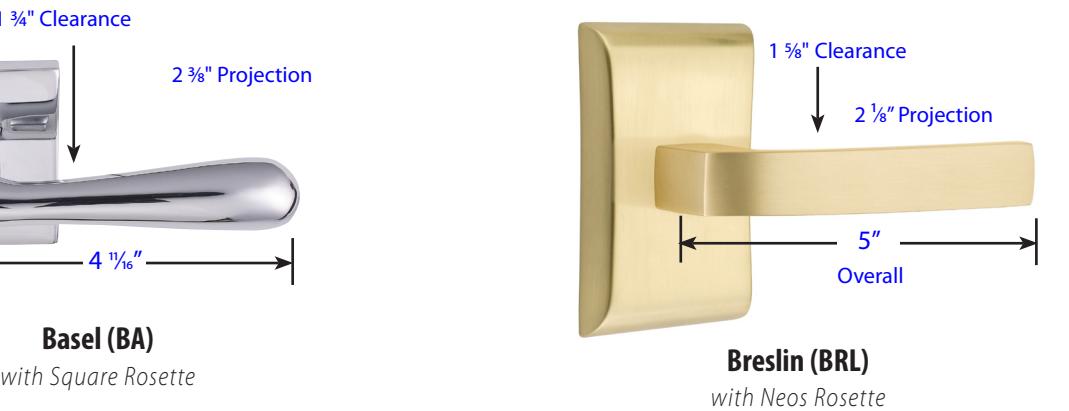

Basel (BA) 4 11⁄16" 1 3/4" Clearance 2 3/8" Projection

See page 5 for rosette specification.

• Standard Door Thickness: 11⁄4"- 2" Standard Components:
• Privacy Pin (for privacy sets)
• Inside Passage Half Spindle
• 11⁄2" Rosette Screws
• Full-Lip Strike Plate

• Extended Door Thickness: 2"- 21⁄2" Extended Components:
• Privacy Pin w/ Extension (for privacy sets)
• Long Inside Passage Half Spindle
• 2" Rosette Screws
• Extended Full-Lip Strike Plate

• Extended Door Thickness: 21⁄2"- 3" Extended Components:
• Privacy Pin w/ Extension (for privacy sets)
• Extra Long Inside Passage Half Spindle
• 21⁄2" Rosette Screws
• Extended Full-Lip Strike Plate

Dumont (DT)

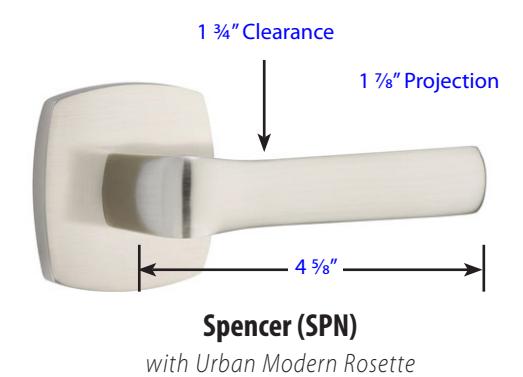

with Urban Modern Rosette

Geneva (GV)

with Square Rosette

Helios (HLO)

with Square Rosette

Hercules (HEC)

with Modern Rectangular Rosette

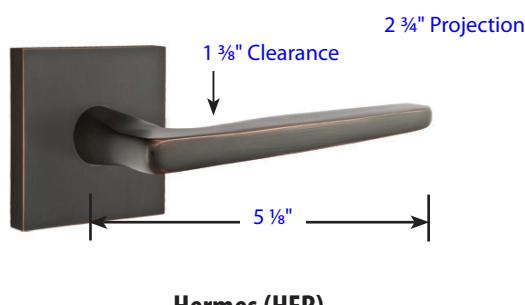

Hermes (HER)

with Square Rosette

with Modern Rosette

See page 5 for rosette specification.

• Standard Door Thickness: 11⁄4"- 2" Standard Components:
• Privacy Pin (for privacy sets)
• Inside Passage Half Spindle
• 11⁄2" Rosette Screws
• Full-Lip Strike Plate

• Extended Door Thickness: 2"- 21⁄2" Extended Components:
• Privacy Pin w/ Extension (for privacy sets)
• Long Inside Passage Half Spindle
• 2" Rosette Screws
• Extended Full-Lip Strike Plate

• Extended Door Thickness: 21⁄2"- 3" Extended Components:
• Privacy Pin w/ Extension (for privacy sets)
• Extra Long Inside Passage Half Spindle
• 21⁄2" Rosette Screws
• Extended Full-Lip Strike Plate

Poseidon (POS) with Square Rosette

See page 5 for rosette specification.

• Standard Door Thickness: 11⁄4"- 2" Standard Components:
• Privacy Pin (for privacy sets)
• Inside Passage Half Spindle
• 11⁄2" Rosette Screws
• Full-Lip Strike Plate

• Extended Door Thickness: 2"- 21⁄2" Extended Components:
• Privacy Pin w/ Extension (for privacy sets)
• Long Inside Passage Half Spindle
• 2" Rosette Screws
• Extended Full-Lip Strike Plate

• Extended Door Thickness: 21⁄2"- 3" Extended Components:
• Privacy Pin w/ Extension (for privacy sets)
• Extra Long Inside Passage Half Spindle
• 21⁄2" Rosette Screws
• Extended Full-Lip Strike Plate

Triton (TRT)

with Disk Rosette

• Standard Door Thickness: 11⁄4"- 2" Standard Components:
• Privacy Pin (for privacy sets)
• Inside Passage Half Spindle
• 11⁄2" Rosette Screws
• Full-Lip Strike Plate

• Extended Door Thickness: 2"- 21⁄2" Extended Components:
• Privacy Pin w/ Extension (for privacy sets)
• Long Inside Passage Half Spindle
• 2" Rosette Screws
• Extended Full-Lip Strike Plate

• Extended Door Thickness: 21⁄2"- 3" Extended Components:
• Privacy Pin w/ Extension (for privacy sets)
• Extra Long Inside Passage Half Spindle
• 21⁄2" Rosette Screws
• Extended Full-Lip Strike Plate

See page 5 for rosette specification.

Door Thickness Specifications

• Standard Door Thickness: 11/4" 2" Standard Components:
• Privacy Pin (for privacy sets)
• Inside Passage Half Spindle
• 11/2" Rosette Screws
• Full-Lip Strike Plate

• Extended Door Thickness: 2"- 21/2" Extended Components:
• Privacy Pin w/ Extension (for privacy sets)
• Long Inside Passage Half Spindle
• 2" Rosette Screws

with Modern Rosette

• Extended Full-Lip Strike Plate
• Extended Door Thickness: 2½"- 3" Extended Components:
• Privacy Pin w/ Extension (for privacy sets)
• Extra Long Inside Passage Half Spindle
• 21/2" Rosette Screws

with Square Rosette

• Extended Full-Lip Strike Plate

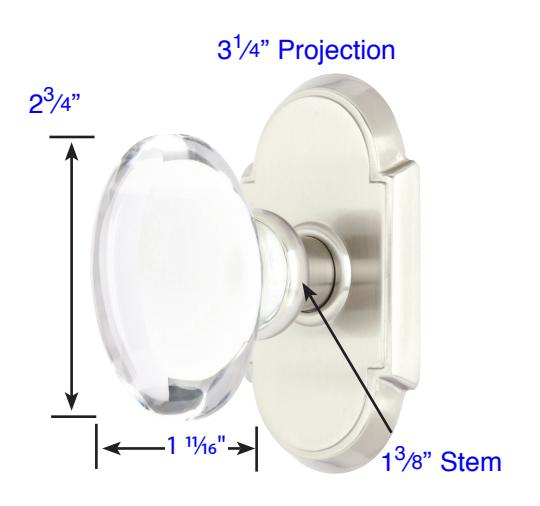

23 ⁄4" Dia. 31 ⁄4" Projection 1 11/16" ¹³ ⁄8" Stem

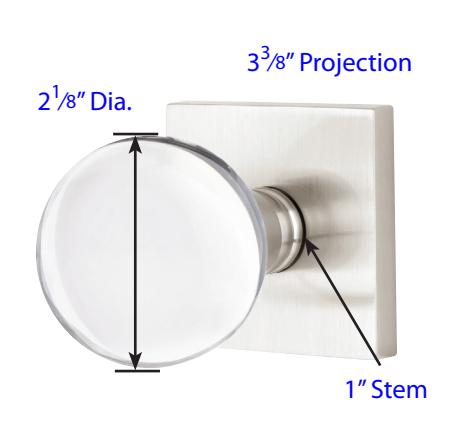

Bristol - Modern (BL) with Square Rosette

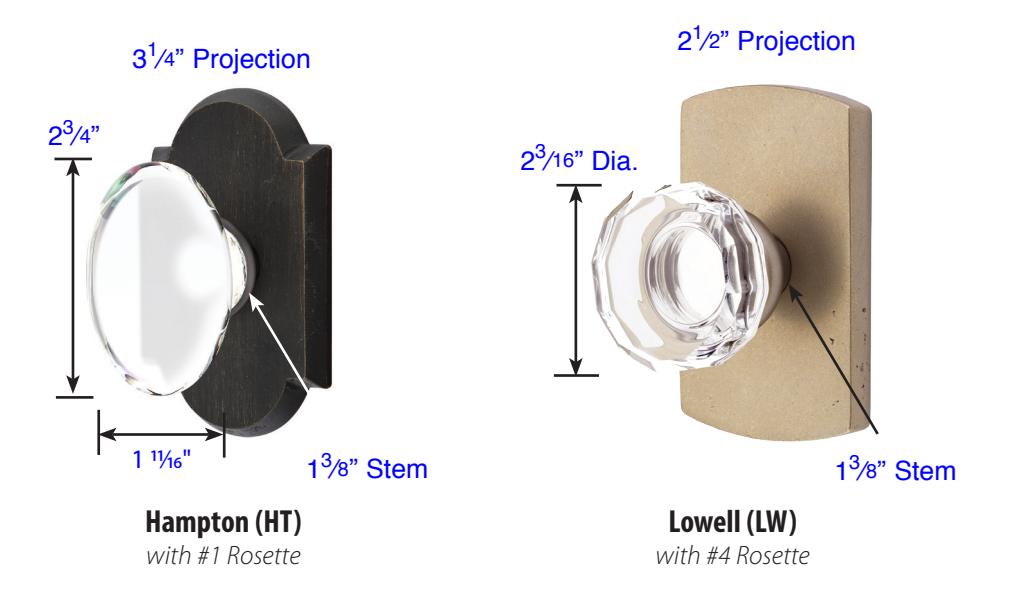

Hampton - Modern (HT) with Neos Rosette

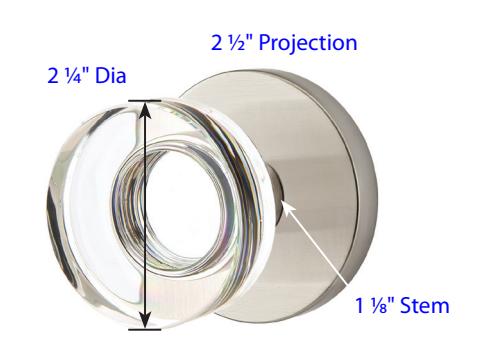

Modern Disc Crystal (MDC)

with Disk Rosette

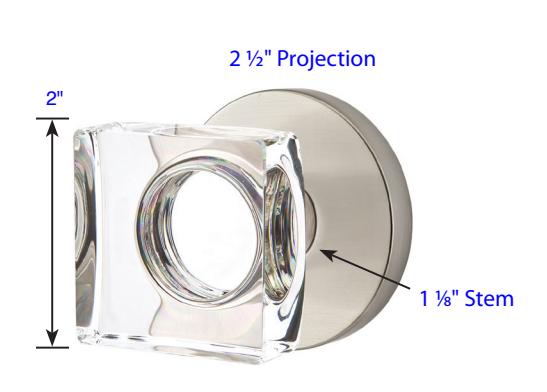

Modern Square Crystal (MSC) with Disk Rosette

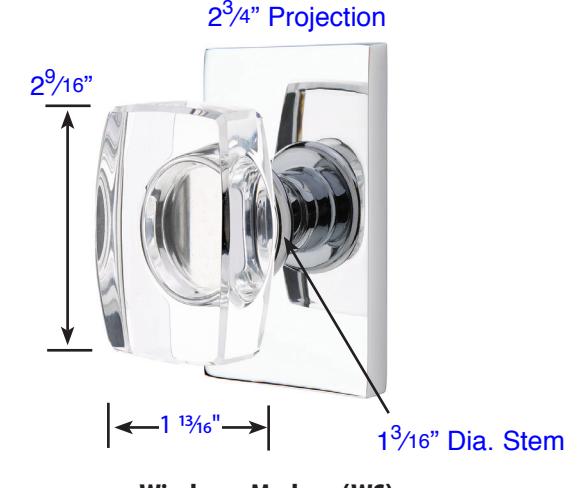

Windsor - Modern (WS) with Modern Rectangular Rosette

See page 5 rosette specification.

• Standard Door Thickness: 1-1⁄4"- 2" Standard Components:
• Privacy Pin (for privacy sets)
• Inside Passage Half Spindle
• 1-1⁄2" Rosette Screws
• Full-Lip Strike Plate

• Extended Door Thickness: 2"- 2-1⁄2" Extended Components:
• Privacy Pin w/ Extension (for privacy sets)
• Long Inside Passage Half Spindle
• 2" Rosette Screws
• Extended Full-Lip Strike Plate

• Extended Door Thickness: 2-1⁄2"- 3" Extended Components:
• Privacy Pin w/ Extension (for privacy sets)
• Extra Long Inside Passage Half Spindle
• 2-1⁄2" Rosette Screws
• Extended Full-Lip Strike Plate

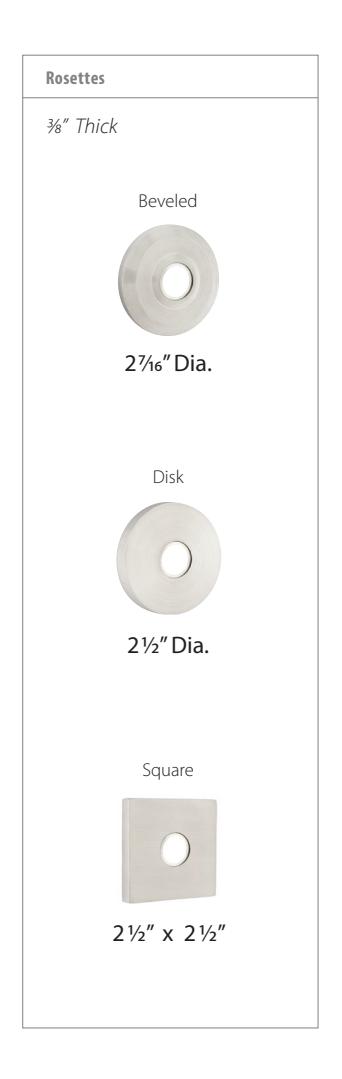

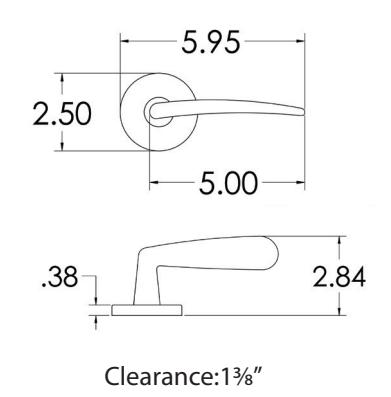

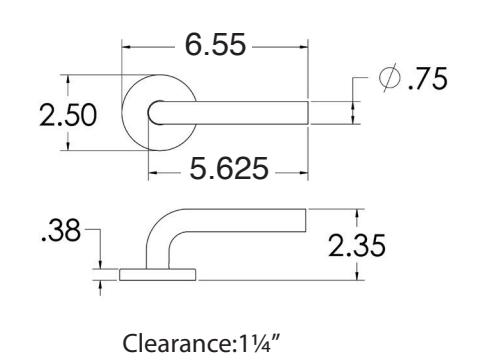

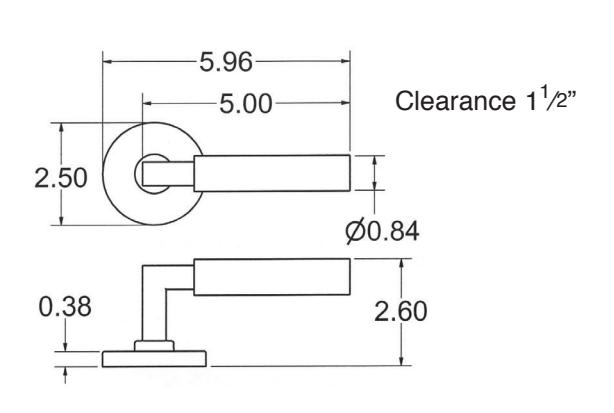

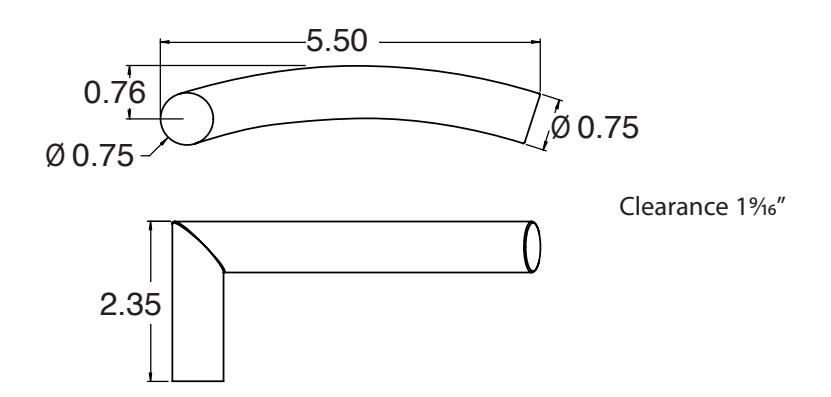

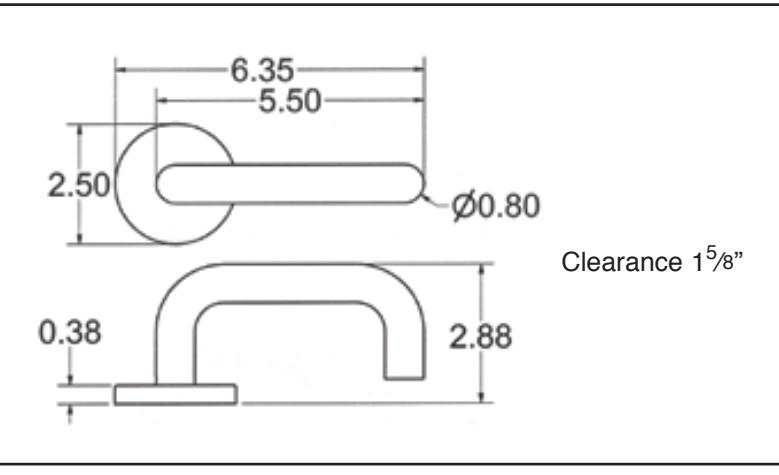

See page 11 for rosette specification.

• Standard Door Thickness: 13⁄8"- 2" Standard Components:
• Privacy Pin (for privacy sets)
• Inside Passage Half Spindle
• 11⁄2" Socket Head Machine Screws
• Full-Lip Strike Plate

• Extended Door Thickness: 2"- 21⁄2" Extended Components:
• Privacy Pin w/ Extension (for privacy sets)
• Long Inside Passage Half Spindle • 2" Socket Head Machine Screws
• Extended Full-Lip Strike Plate
• Extended Door Thickness: 21⁄2"- 23⁄4" Extended Components:
• Privacy Pin w/ Extension (for privacy sets)
• Long Inside Passage Half Spindle • 21⁄2" Socket Head Machine Screws
• Extended Full-Lip Strike Plate

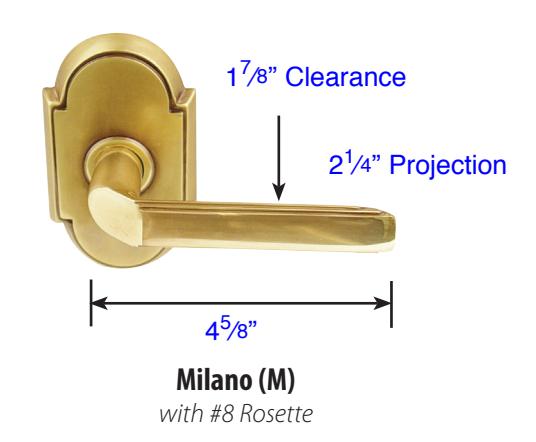

See page 11 for rosette specification.

• Standard Door Thickness: 13⁄8"- 2" Standard Components:
• Privacy Pin (for privacy sets)
• Inside Passage Half Spindle
• 11⁄2" Socket Head Machine Screws
• Full-Lip Strike Plate

• Extended Door Thickness: 2"- 21⁄2" Extended Components:
• Privacy Pin w/ Extension (for privacy sets)
• Long Inside Passage Half Spindle • 2" Socket Head Machine Screws
• Extended Full-Lip Strike Plate
• Extended Door Thickness: 21⁄2"- 23⁄4" Extended Components:
• Privacy Pin w/ Extension (for privacy sets)
• Long Inside Passage Half Spindle
• 21⁄2" Socket Head Machine Screws
• Extended Full-Lip Strike Plate

See page 11 for rosette specification.

• Standard Door Thickness: 13⁄8"- 2" Standard Components:
• Privacy Pin (for privacy sets)
• Inside Passage Half Spindle
• 11⁄2" Socket Head Machine Screws
• Full-Lip Strike Plate

• Extended Door Thickness: 2"- 21⁄2" Extended Components:
• Privacy Pin w/ Extension (for privacy sets)
• Long Inside Passage Half Spindle
• 2" Socket Head Machine Screws
• Extended Full-Lip Strike Plate
• Extended Door Thickness: 21⁄2"- 23⁄4" Extended Components:
• Privacy Pin w/ Extension (for privacy sets)
• Long Inside Passage Half Spindle
• 21⁄2" Socket Head Machine Screws
• Extended Full-Lip Strike Plate

Functions:

Passage: Lever operates from either side of door.

Privacy: Push button on the interior engages privacy. Turning the inside lever releases

privacy and retracts latchbolt.

Dummy Pair: Surface mounted on threaded spindle. Requires no door prep.

Door Prep Specifications:

• Fits standard door prep--21⁄8" face bore & 1"edge bore.
• Fits a range of door thickness from 13⁄8" to 2". Thicker doors--please specify.

Latches:

• 28º retraction
• 7MM hub
• Split spindles
• 23⁄8" backset standard
• 23⁄4" backset available--please specify
• Stainless steel nosebolt

Strike & Face Plates:

• Strike Plate--11⁄2"W x 21⁄4"H
• Face Plate--1"W x 21⁄4"H
• Full Lip strike is standard
• "T" strike optional--please specify
• Strike & faceplates are square cornered

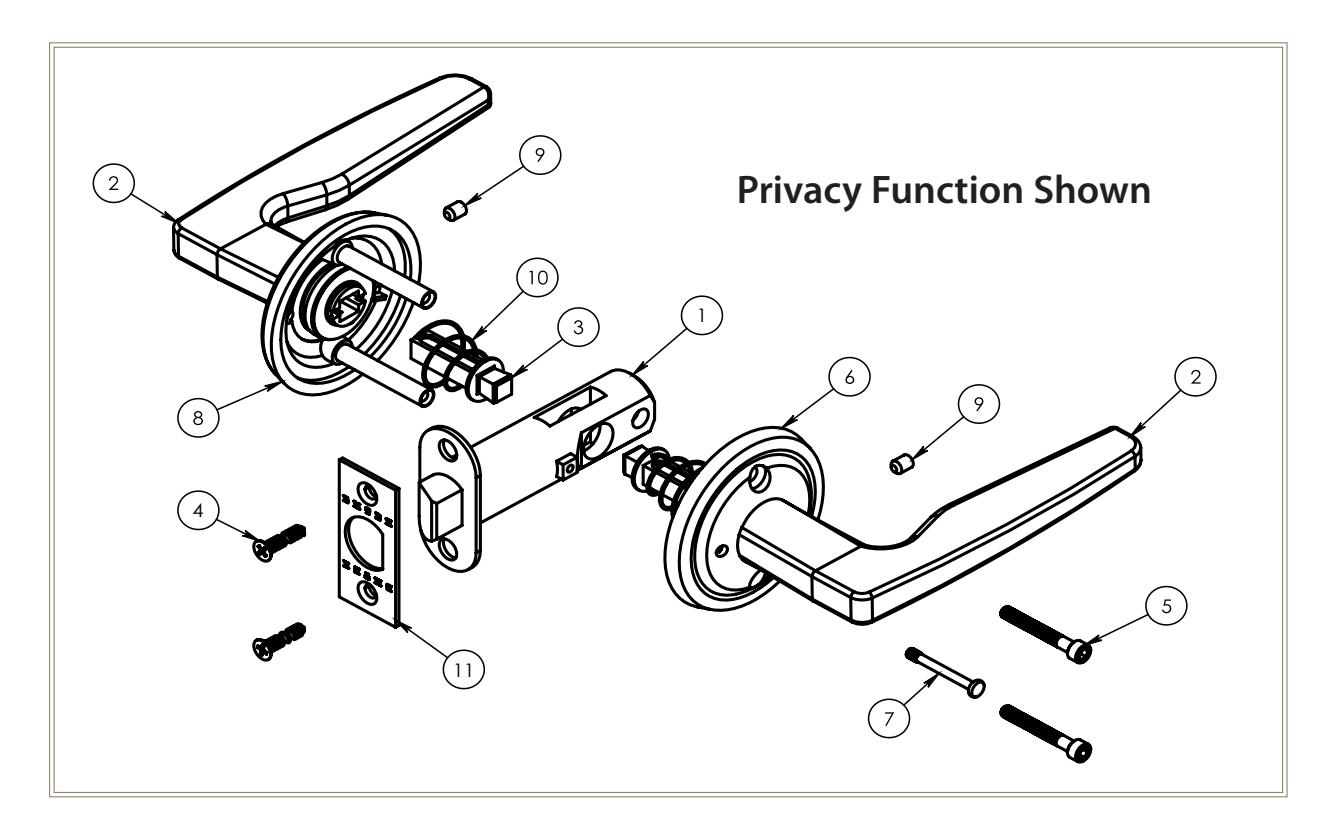

Legend

• 1) Latch (Passage/Privacy)
• 2) Lever Handles
• 3) Spindles
• 4) Face Plate Wood Screws
• 5) Socket Hex Head Machine Screws
• 6) Inside Rosette
• 7) Privacy Pin (for Privacy Sets)
• 8) Outside Rosette
• 9) Set Screws
• 10) Spindle Spring
• 11) Latch Face Plate

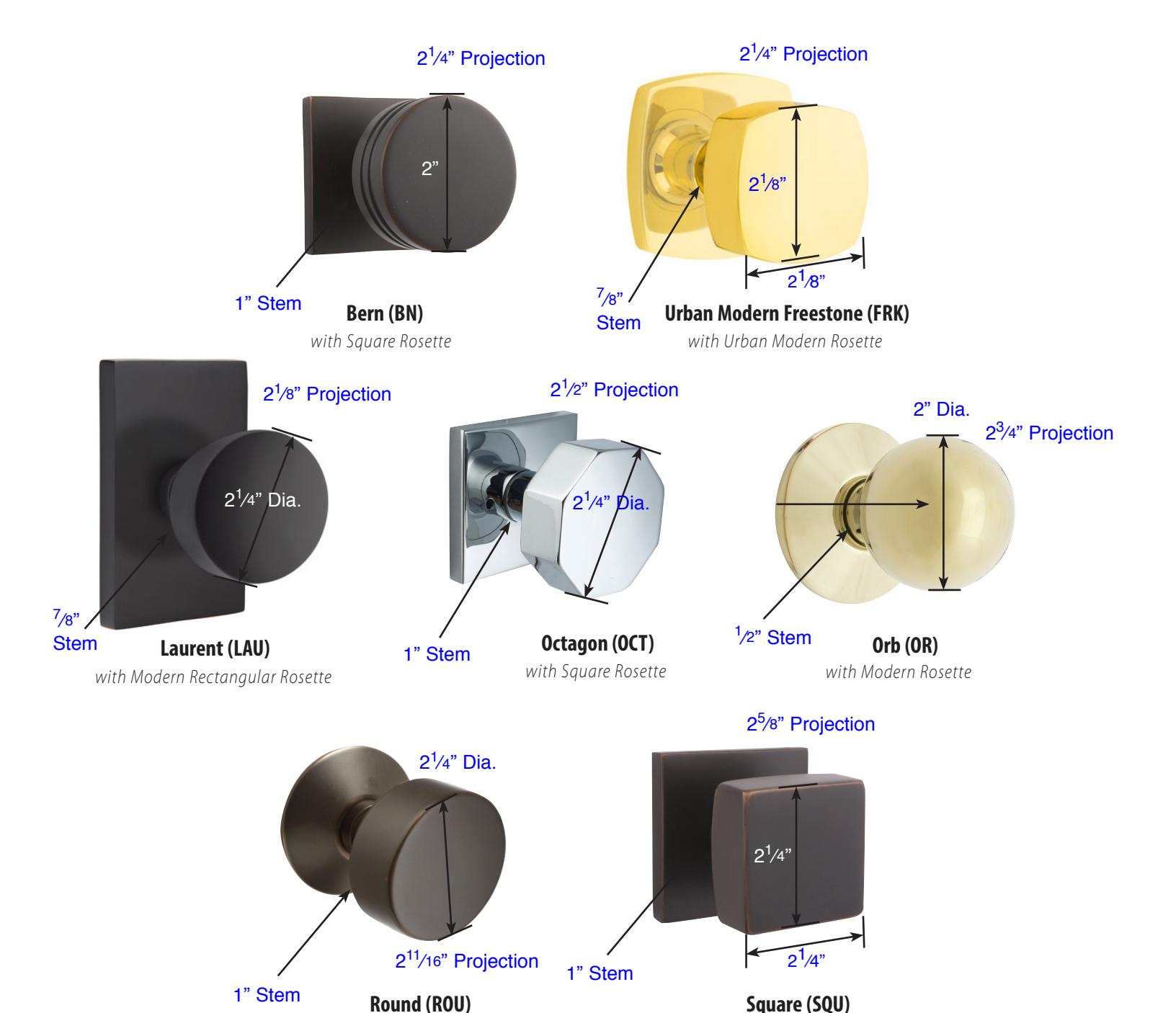

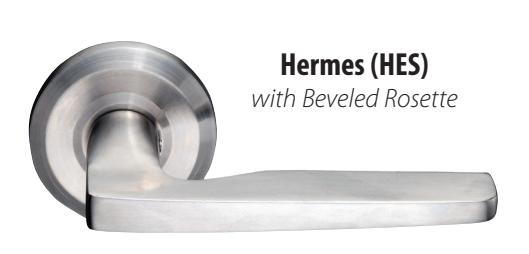

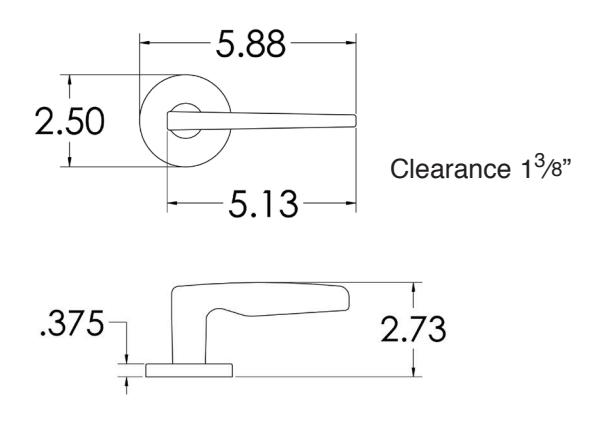

Round (RNK)

with Square Rosette

21 ⁄2" Projection

Octagon (OK)

with Beveled Rosette

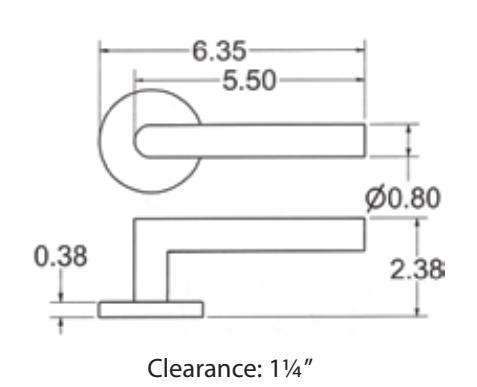

• Standard Door Thickness: 13⁄8"- 2" Standard Components:
• Privacy Pin (for privacy sets)
• Inside Passage Half Spindle
• 11⁄2" Socket Head Machine Screws
• Full-Lip Strike Plate

• Extended Door Thickness: 2"- 21⁄2" Extended Components:
• Privacy Pin w/ Extension (for privacy sets)
• Long Inside Passage Half Spindle
• 2" Socket Head Machine Screws • Extended Full-Lip Strike Plate
• Extended Door Thickness: 21⁄2"- 23⁄4" Extended Components:
• Privacy Pin w/ Extension (for privacy sets)
• Long Inside Passage Half Spindle
• 21⁄2" Socket Head Machine Screws
• Extended Full-Lip Strike Plate

See page 14 for rosette specification.

• Standard Door Thickness: 11⁄4"- 2" Standard Components:
• Privacy Pin (for privacy sets)
• Inside Passage Half Spindle
• 11⁄2" Rosette Screws
• Full-Lip Strike Plate

• Extended Door Thickness: 2"- 21⁄2" Extended Components:
• Privacy Pin w/ Extension (for privacy sets)
• Long Inside Passage Half Spindle
• 2" Rosette Screws
• Extended Full-Lip Strike Plate
• Extended Door Thickness: 21⁄2"- 3" Extended Components:
• Privacy Pin w/ Extension (for privacy sets)
• Extra Long Inside Passage Half Spindle
• 21⁄2" Rosette Screws
• Extended Full-Lip Strike Plate

See page 14 for rosette specification.

Door Thickness Specifications

• Standard Door Thickness: 11⁄4"- 2" Standard Components:
• Privacy Pin (for privacy sets)
• Inside Passage Half Spindle
• 11⁄2" Rosette Screws
• Full-Lip Strike Plate

• Extended Door Thickness: 2"- 21⁄2" Extended Components:
• Privacy Pin w/ Extension (for privacy sets)
• Long Inside Passage Half Spindle
• 2" Rosette Screws
• Extended Full-Lip Strike Plate
• Extended Door Thickness: 21⁄2"- 3" Extended Components:
• Privacy Pin w/ Extension (for privacy sets)
• Extra Long Inside Passage Half Spindle
• 21⁄2" Rosette Screws
• Extended Full-Lip Strike Plate

Emtek Products, Inc. 15250 Stafford St. City of Industry, CA 91744 Tel: 800.356.2741 Fax: 800.577.5771 www.emtek.com

BRASS DESIGNER PASSAGE/PRIVACY LEVERSETS AMERICAN HERITAGE

Technical Specifications

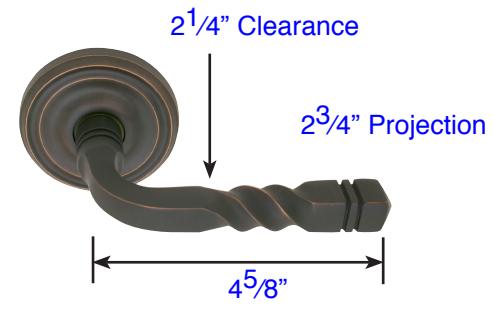

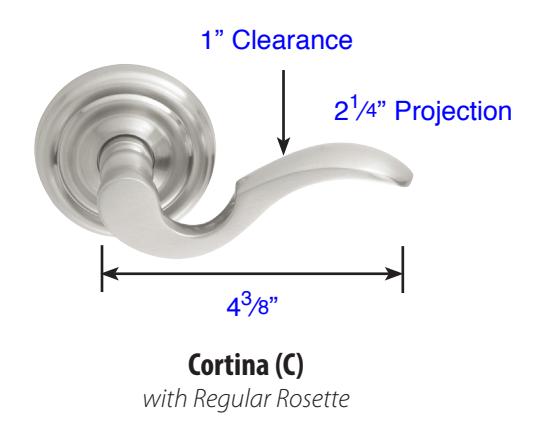

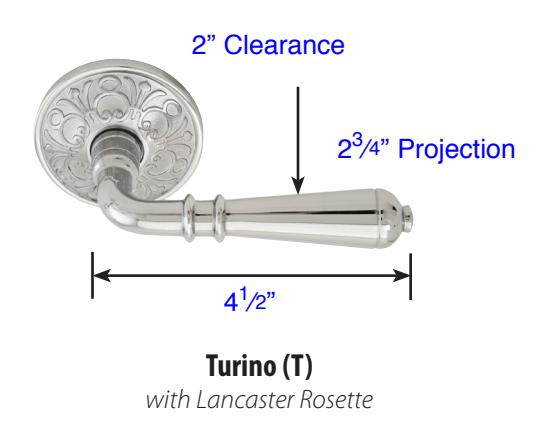

Santa Fe (SF)

with Regular Rosette

Wembley (WM) with Regular Rosette

1⁄2" Clearance

• Standard Door Thickness: 11⁄4"- 2" Standard Components:
• Privacy Pin (for privacy sets)
• Inside Passage Half Spindle
• 11⁄2" Rosette Screws
• Full-Lip Strike Plate

• Extended Door Thickness: 2"- 21⁄2" Extended Components:
• Privacy Pin w/ Extension (for privacy sets)
• Long Inside Passage Half Spindle
• 2" Rosette Screws
• Extended Full-Lip Strike Plate
• Extended Door Thickness: 21⁄2"- 3" Extended Components:
• Privacy Pin w/ Extension (for privacy sets)
• Extra Long Inside Passage Half Spindle
• 21⁄2" Rosette Screws
• Extended Full-Lip Strike Plate

See page 14 for rosette specification.

• Standard Door Thickness: 11⁄4"- 2" Standard Components:
• Privacy Pin (for privacy sets)
• Inside Passage Half Spindle
• 11⁄2" Rosette Screws
• Full-Lip Strike Plate

• Extended Door Thickness: 2"- 21⁄2" Extended Components:
• Privacy Pin w/ Extension (for privacy sets)
• Long Inside Passage Half Spindle
• 2" Rosette Screws
• Extended Full-Lip Strike Plate
• Extended Door Thickness: 21⁄2"- 3" Extended Components:
• Privacy Pin w/ Extension (for privacy sets)
• Extra Long Inside Passage Half Spindle
• 21⁄2" Rosette Screws
• Extended Full-Lip Strike Plate

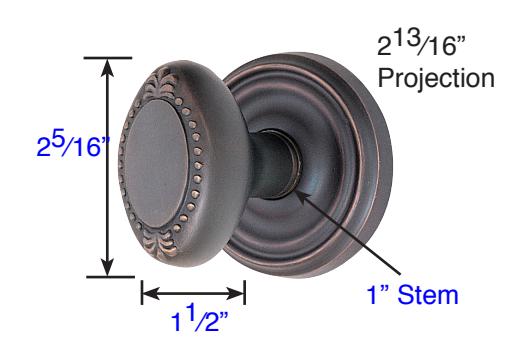

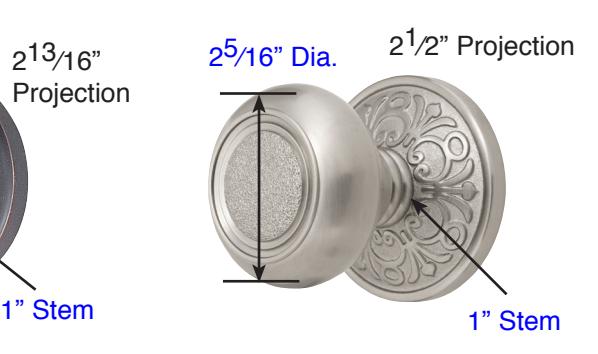

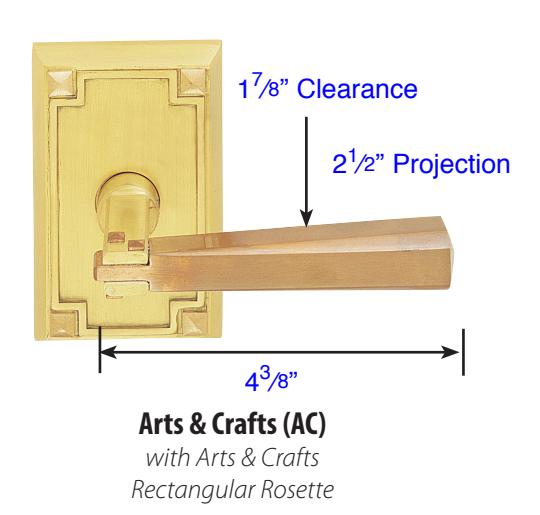

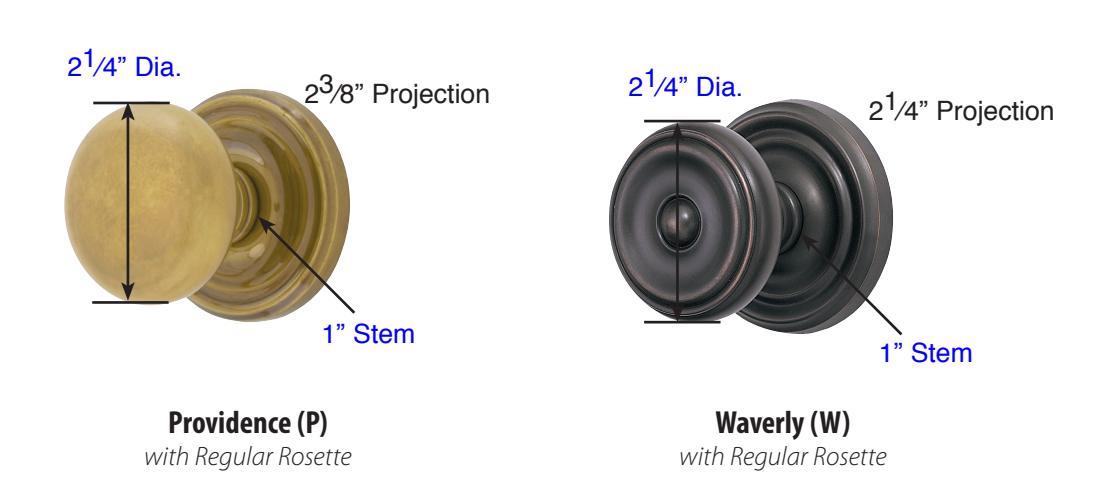

Beaded Egg (BE) with Regular Rosette

Belmont (BT) with Lancaster Rosette

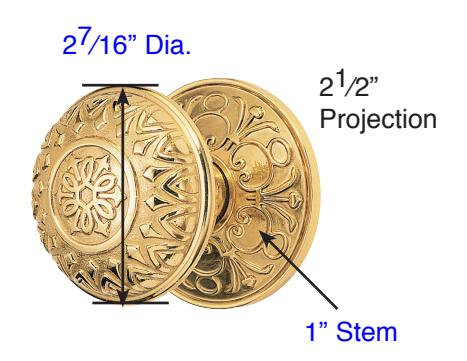

Lancaster (LN) with Lancaster Rosette

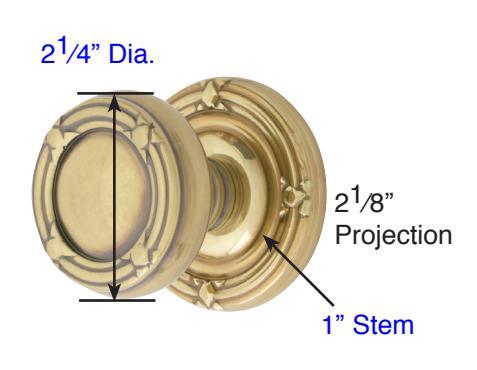

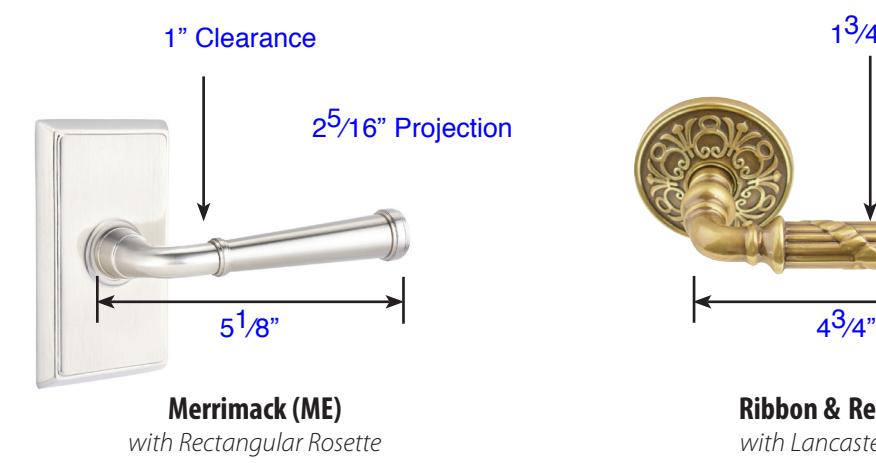

Ribbon & Reed (RBK) with Ribbon & Reed Rosette

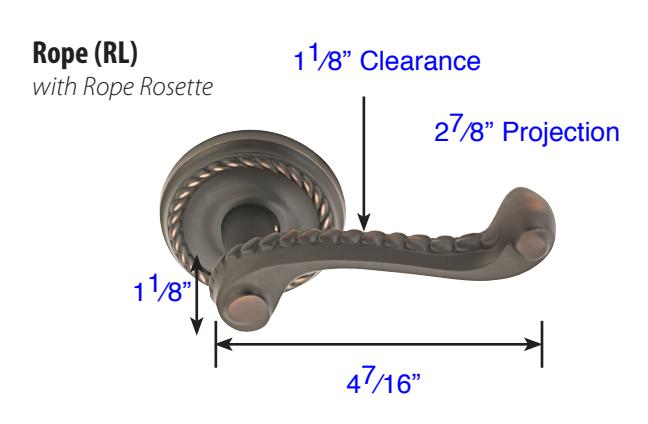

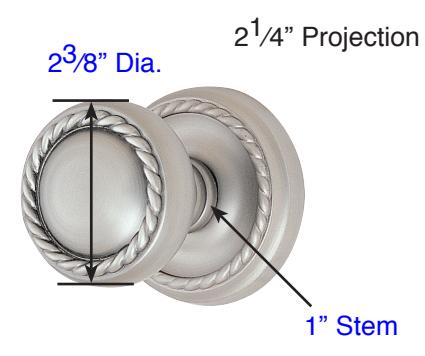

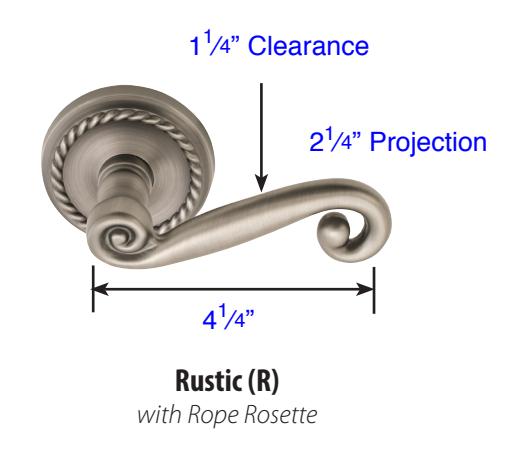

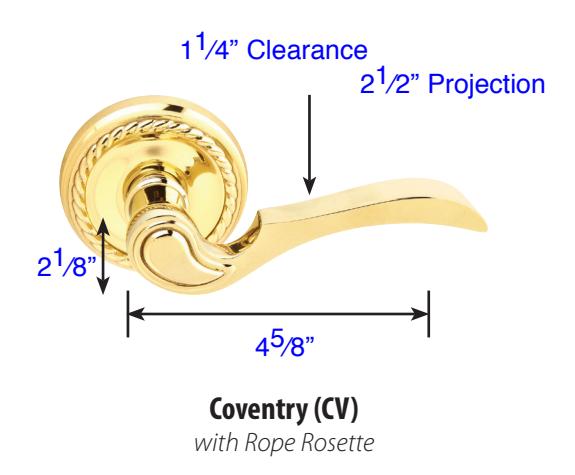

Rope (RK) with Rope Rosette

Victoria (V) with Rope Rosette

See page 14 for rosette specification.

• Standard Door Thickness: 11⁄4"- 2" Standard Components:
• Privacy Pin (for privacy sets)
• Inside Passage Half Spindle
• 11⁄2" Rosette Screws
• Full-Lip Strike Plate

• Extended Door Thickness: 2"- 21⁄2" Extended Components:
• Privacy Pin w/ Extension (for privacy sets)
• Long Inside Passage Half Spindle
• 2" Rosette Screws
• Extended Full-Lip Strike Plate
• Extended Door Thickness: 21⁄2"- 3" Extended Components:
• Privacy Pin w/ Extension (for privacy sets)
• Extra Long Inside Passage Half Spindle
• 21⁄2" Rosette Screws
• Extended Full-Lip Strike Plate

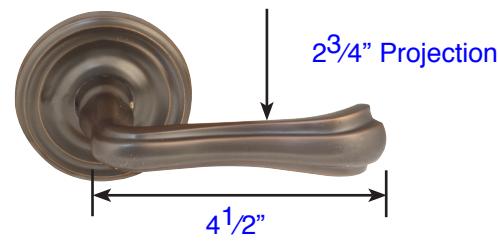

23 ⁄4" Projection

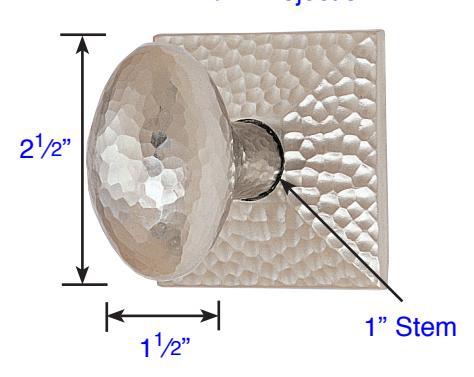

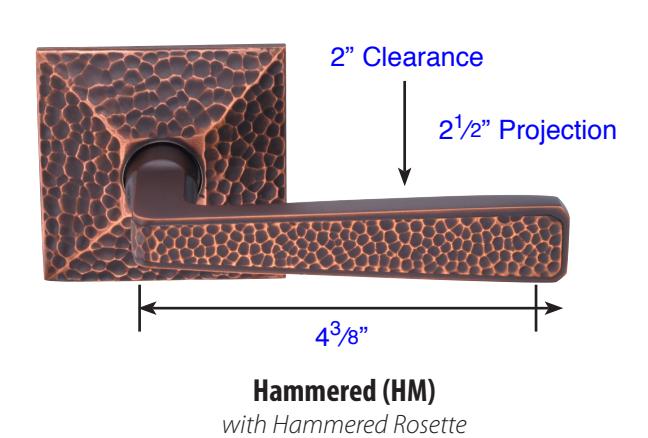

Hammered Egg (HE) with Hammered Rosette

See page 14 for rosette specification.

• Standard Door Thickness: 11⁄4"- 2" Standard Components:
• Privacy Pin (for privacy sets)
• Inside Passage Half Spindle
• 11⁄2" Rosette Screws
• Full-Lip Strike Plate

• Extended Door Thickness: 2"- 21⁄2" Extended Components:
• Privacy Pin w/ Extension (for privacy sets)
• Long Inside Passage Half Spindle
• 2" Rosette Screws
• Extended Full-Lip Strike Plate
• Extended Door Thickness: 21⁄2"- 3" Extended Components:
• Privacy Pin w/ Extension (for privacy sets)
• Extra Long Inside Passage Half Spindle
• 21⁄2" Rosette Screws
• Extended Full-Lip Strike Plate

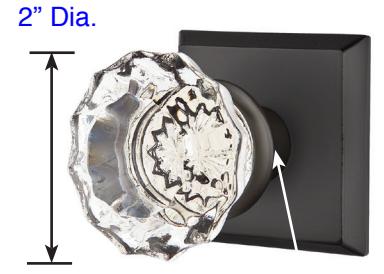

Astoria Clear (AS) with Rope Rosette

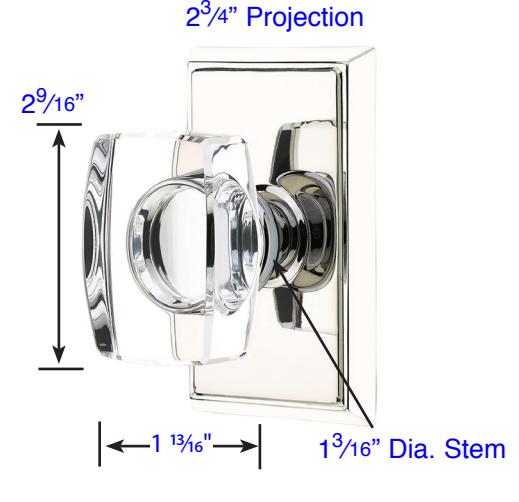

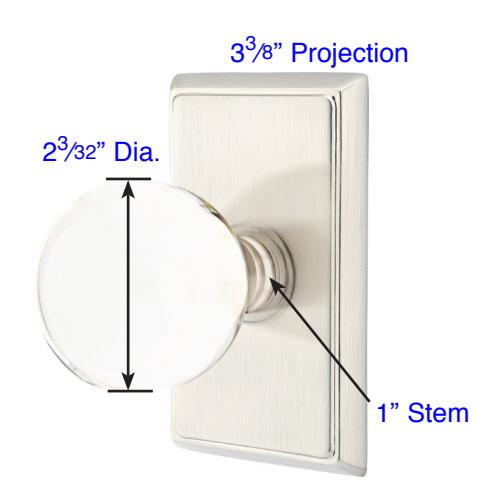

Bristol (BL) with Rectangular Rosette

Diamond (CK) with Regular Rosette

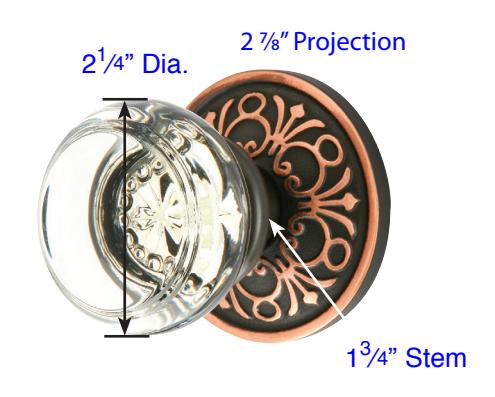

Georgetown (GT) with Lancaster Rosette

See page 14 for rosette specification.

Door Thickness Specifications

• Standard Door Thickness: 11⁄4"- 2" Standard Components:
• Privacy Pin (for privacy sets)
• Inside Passage Half Spindle
• 11⁄2" Rosette Screws
• Full-Lip Strike Plate

• Extended Door Thickness: 2"- 21⁄2" Extended Components:
• Privacy Pin w/ Extension (for privacy sets)
• Long Inside Passage Half Spindle • 2" Rosette Screws
• Extended Full-Lip Strike Plate
• Extended Door Thickness: 21⁄2"- 3" Extended Components:
• Privacy Pin w/ Extension (for privacy sets)
• Extra Long Inside Passage Half Spindle
• 21⁄2" Rosette Screws
• Extended Full-Lip Strike Plate

Emtek Products, Inc. 15250 Stafford St. City of Industry, CA 91744 Tel: 800.356.2741 Fax: 800.577.5771 www.emtek.com

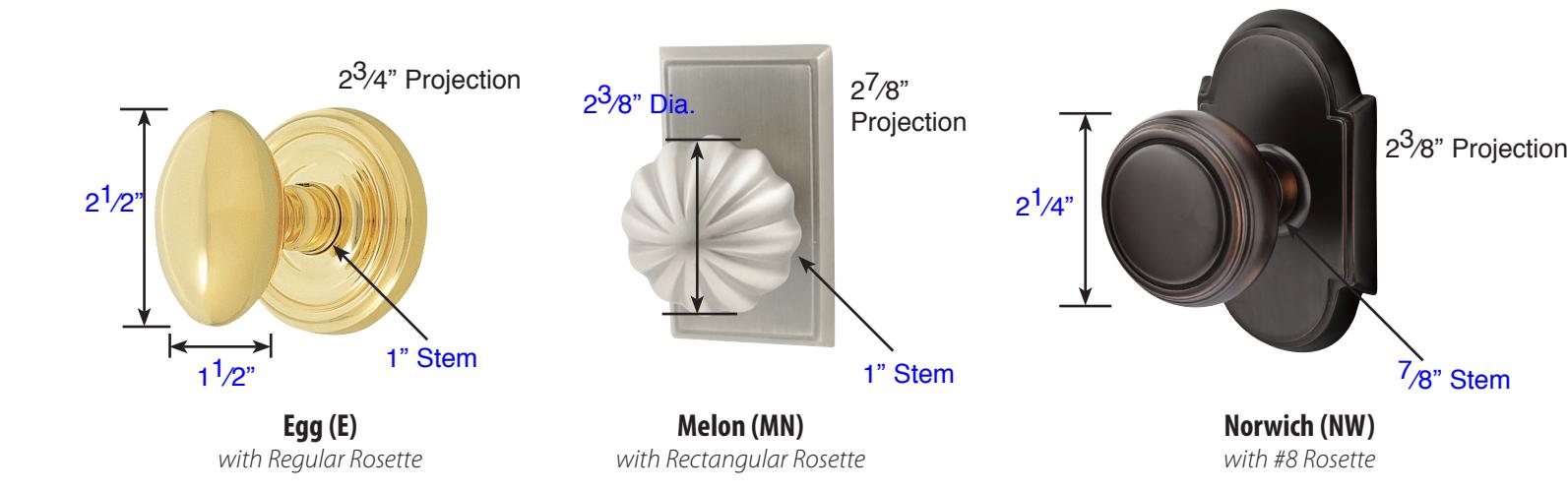

Hampton (HT) with #8 Rosette

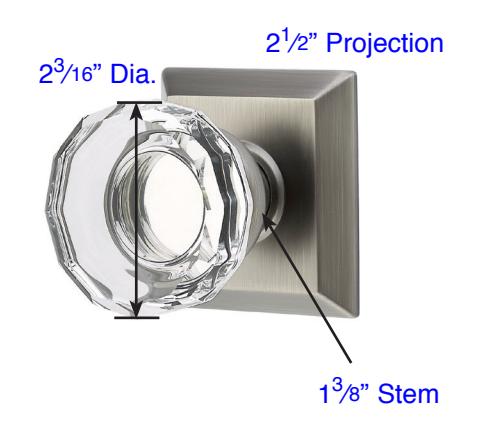

Lowell Crystal (LW) with Quincy Rosette

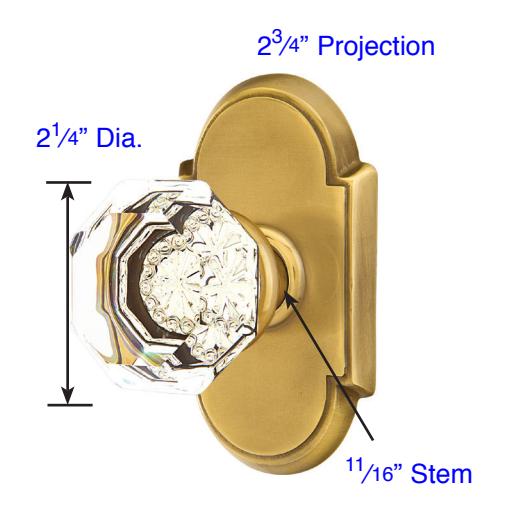

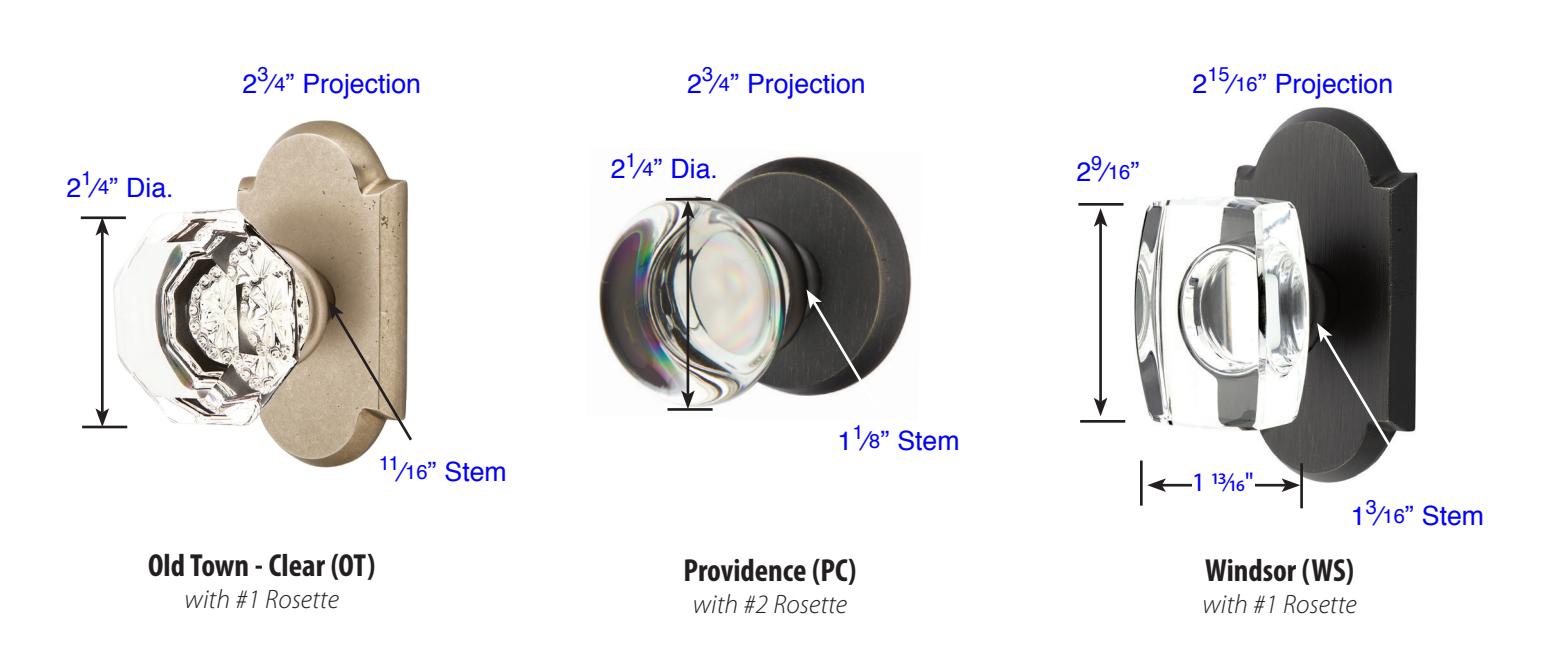

Old Town - Clear (OT) with #8 Rosette

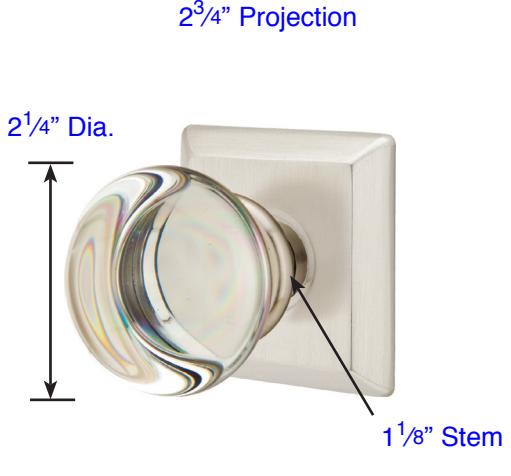

Providence Crystal (PC) with Quincy Rosette

Windsor (WS) with Rectangular Rosette

See page 14 for rosette specification.

• Standard Door Thickness: 11⁄4"- 2" Standard Components:
• Privacy Pin (for privacy sets)
• Inside Passage Half Spindle
• 11⁄2" Rosette Screws
• Full-Lip Strike Plate

• Extended Door Thickness: 2"- 21⁄2" Extended Components:
• Privacy Pin w/ Extension (for privacy sets)
• Long Inside Passage Half Spindle
• 2" Rosette Screws
• Extended Full-Lip Strike Plate
• Extended Door Thickness: 21⁄2"- 3" Extended Components:
• Privacy Pin w/ Extension (for privacy sets)
• Extra Long Inside Passage Half Spindle
• 21⁄2" Rosette Screws
• Extended Full-Lip Strike Plate

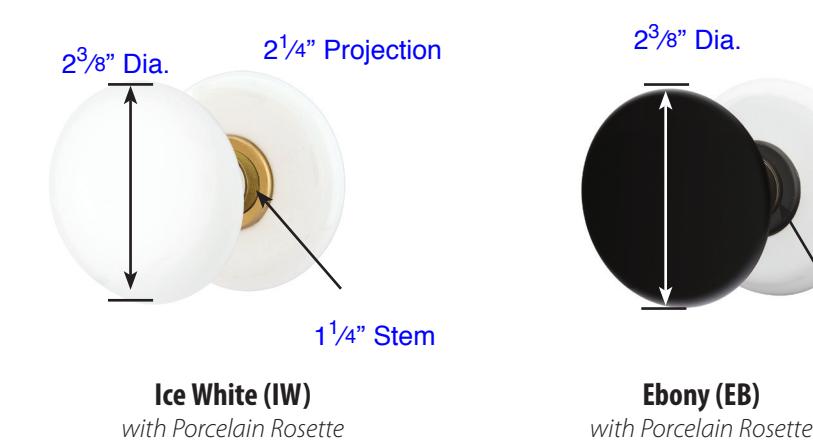

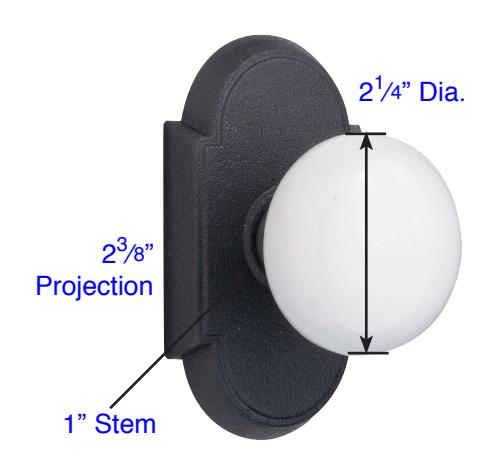

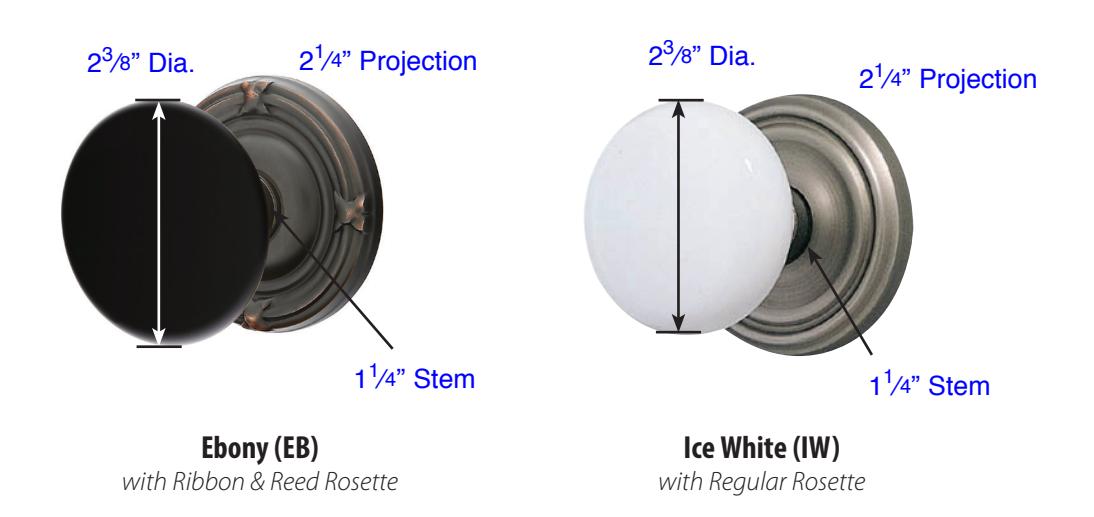

PORCELAIN KNOBSETS WITH PORCELAIN ROSETTES

PORCELAIN KNOBSETS WITH BRASS ROSETTES

See page 14 for rosette specification.

Door Thickness Specifications

• Standard Door Thickness: 11⁄4"- 2" Standard Components:
• Privacy Pin (for privacy sets)
• Inside Passage Half Spindle
• 11⁄2" Rosette Screws
• Full-Lip Strike Plate

• Extended Door Thickness: 2"- 21⁄2" Extended Components:
• Privacy Pin w/ Extension (for privacy sets)
• Long Inside Passage Half Spindle
• 2" Rosette Screws
• Extended Full-Lip Strike Plate
• Extended Door Thickness: 21⁄2"- 3" Extended Components:
• Privacy Pin w/ Extension (for privacy sets)
• Extra Long Inside Passage Half Spindle
• 21⁄2" Rosette Screws

21

11

⁄4" Stem

⁄4" Projection

• Extended Full-Lip Strike Plate

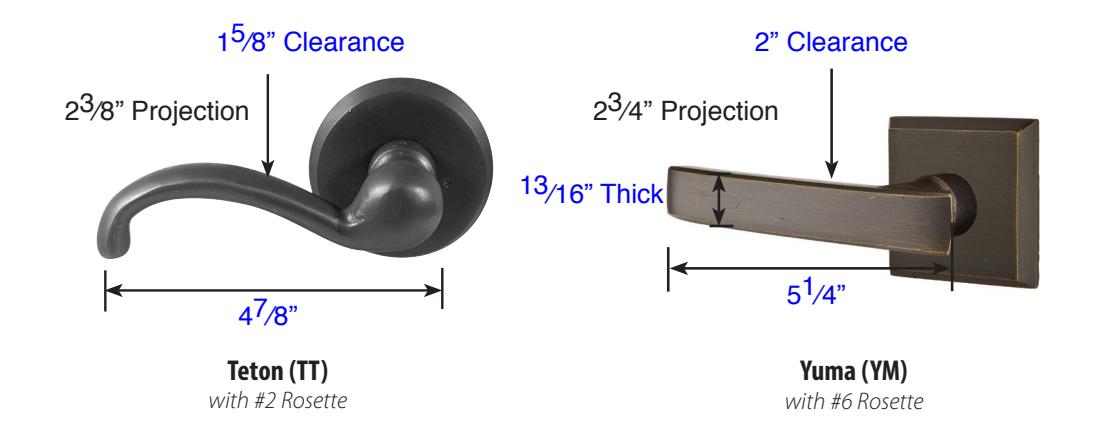

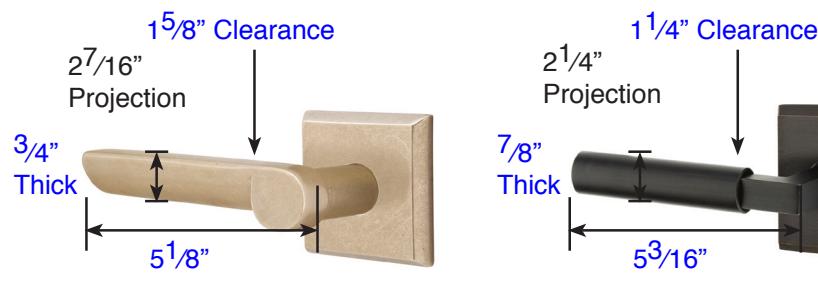

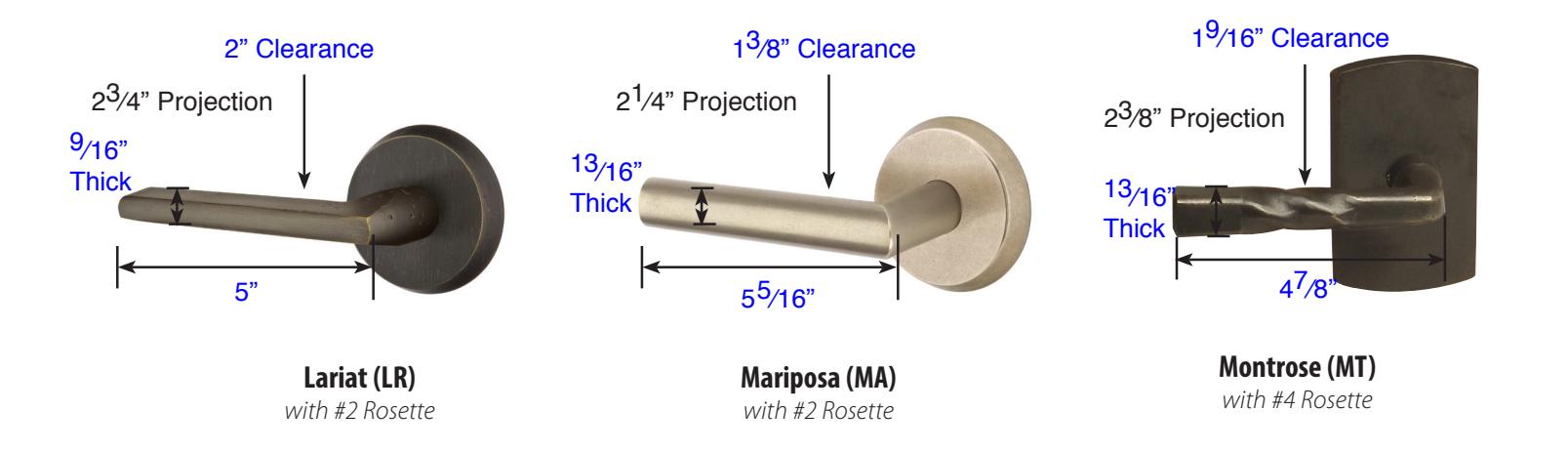

Projection 51⁄8" 53⁄16" 7⁄8" Thick

21⁄4"

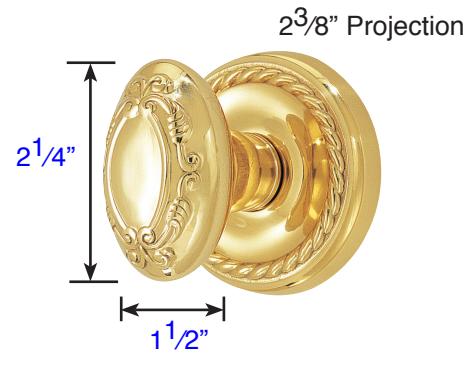

23⁄8" Projection 19⁄16" Clearance 47⁄8" 13⁄16" Thick

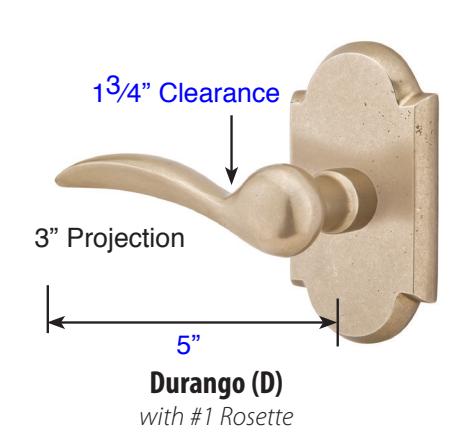

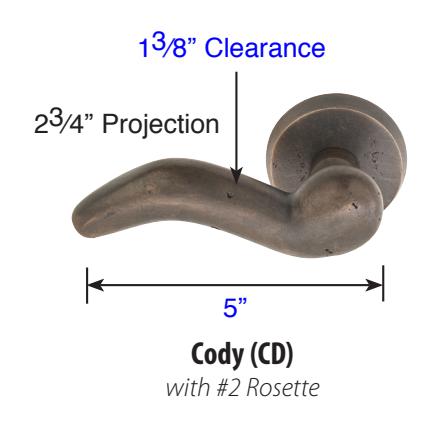

Aurora (AR) with #6 Rosette

Bryce (BR) with #6 Rosette

Cimarron (CR) with #2 Rosette

See page 25 for rosette specification.

• Standard Door Thickness: 13⁄8"- 2" Standard Components:
• Privacy Pin (for privacy sets)
• Inside Passage Half Spindle
• 11⁄2" Rosette Screws
• Full-Lip Strike Plate

• Extended Door Thickness: 2"- 21⁄2" Extended Components:
• Privacy Pin w/ Extension (for privacy sets)
• Long Inside Passage Half Spindle
• 2" Rosette Screws
• Extended Full-Lip Strike Plate
• Extended Door Thickness: 21⁄2"- 3" Extended Components:
• Privacy Pin w/ Extension (for privacy sets)
• Extra Long Inside Passage Half Spindle
• 21⁄2" Rosette Screws
• Extended Full-Lip Strike Plate

See page 22 for rosette specification.

• Standard Door Thickness: 1³/8"- 2" Standard Components:
• Privacy Pin (for privacy sets)
• Inside Passage Half Spindle
• 1¹/2" Rosette Screws
• Full-Lip Strike Plate

• Extended Door Thickness: 2"- 2¹/2" Extended Components:
• Long Inside Passage Half Spindle
• 2" Rosette Screws
• Extended Full-Lip Strike Plate
• Extended Door Thickness: 2¹/2"- 3" Extended Components:
• Privacy Pin w/ Extension (for privacy sets) Privacy Pin w/ Extension (for privacy sets)
  • Extra Long Inside Passage Half Spindle
  • 2¹/2" Rosette Screws
  • Extended Full-Lip Strike Plate

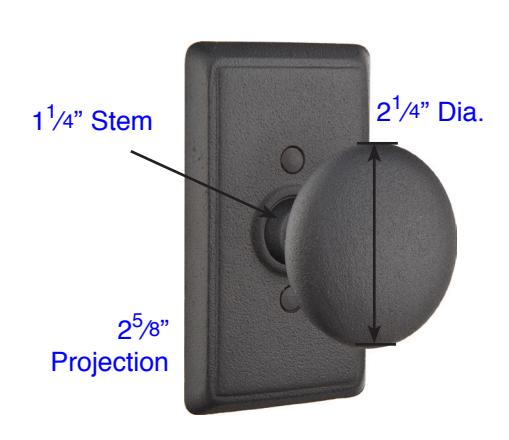

11⁄4" Stem 23⁄8" Dia.

23⁄4" Projection

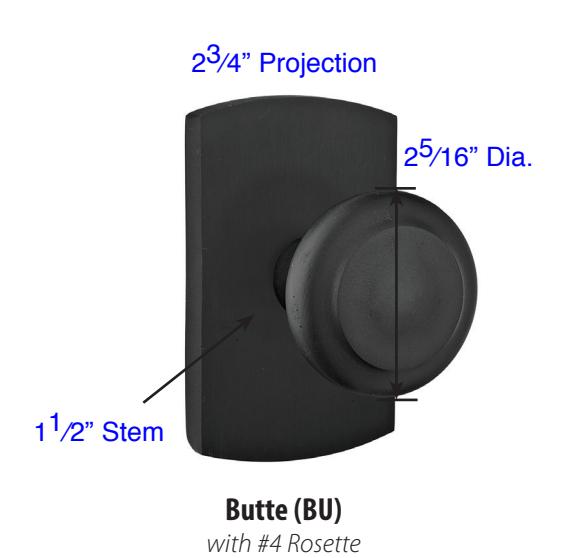

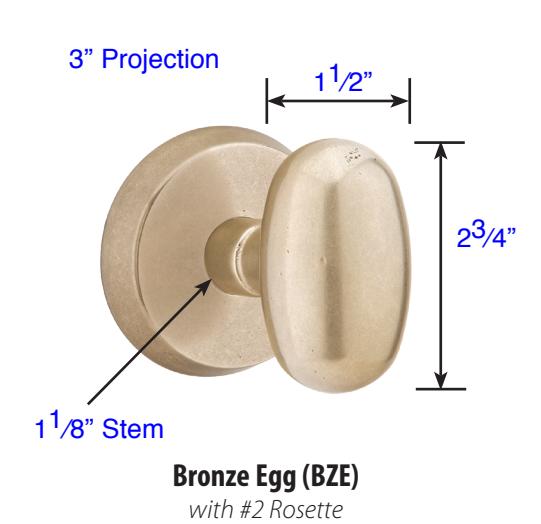

Round (BZRN) with #2 Rosette

Winchester (WC) with #2 Rosette

• Standard Door Thickness: 13⁄8"- 2" Standard Components:
• Privacy Pin (for privacy sets)
• Inside Passage Half Spindle
• 11⁄2" Rosette Screws
• Full-Lip Strike Plate

• Extended Door Thickness: 2"- 21⁄2" Extended Components:
• Privacy Pin w/ Extension (for privacy sets)
• Long Inside Passage Half Spindle
• 2" Rosette Screws
• Extended Full-Lip Strike Plate
• Extended Door Thickness: 21⁄2"- 3" Extended Components:
• Privacy Pin w/ Extension (for privacy sets)
• Extra Long Inside Passage Half Spindle
• 21⁄2" Rosette Screws
• Extended Full-Lip Strike Plate

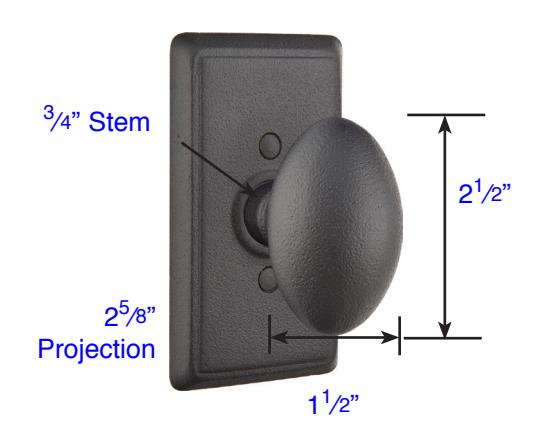

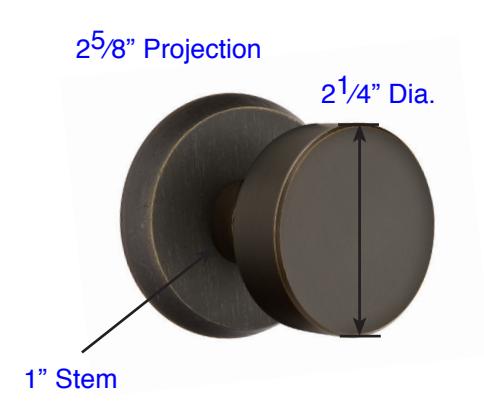

25 ⁄8" Projection

¹¹ ⁄16" Stem

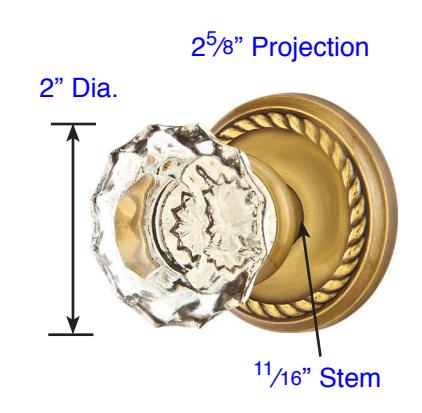

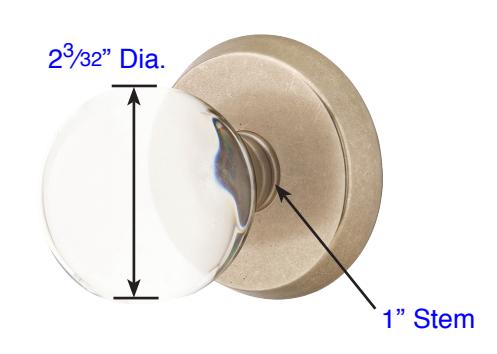

Astoria (AS) with #6 Rosette

33 ⁄8" Projection

Bristol (BL) with #2 Rosette

23 ⁄4" Projection

¹¹ ⁄16" Stem

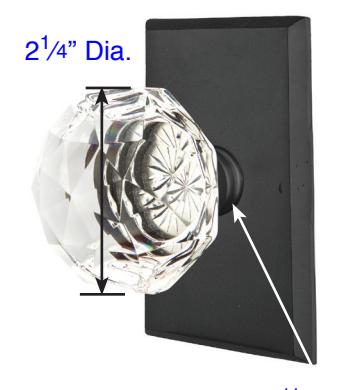

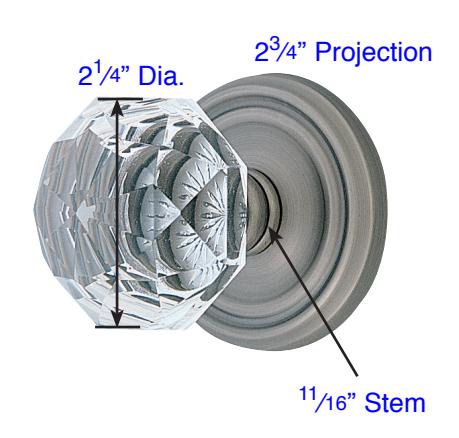

Diamond Crystal (CK) with #3 Rosette

2 7/8" Projection

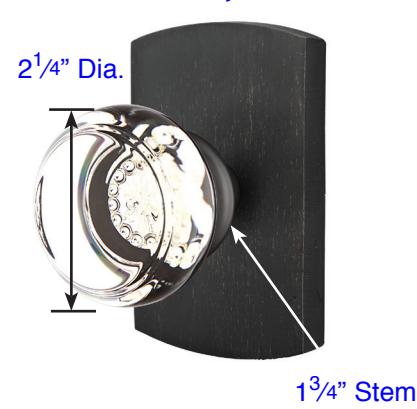

Georgetown (GT) with #4 Rosette

See page 25 for rosette specification.

• Standard Door Thickness: 11⁄4"- 2" Standard Components:
• Privacy Pin (for privacy sets)
• Inside Passage Half Spindle
• 11⁄2" Rosette Screws
• Full-Lip Strike Plate

• Extended Door Thickness: 2"- 21⁄2" Extended Components:
• Privacy Pin w/ Extension (for privacy sets)
• Long Inside Passage Half Spindle
• 2" Rosette Screws
• Extended Full-Lip Strike Plate
• Extended Door Thickness: 21⁄2"- 3" Extended Components:
• Privacy Pin w/ Extension (for privacy sets)
• Extra Long Inside Passage Half Spindle
• 21⁄2" Rosette Screws
• Extended Full-Lip Strike Plate

See page 22 for rosette specification.

• Standard Door Thickness: 11⁄4"- 2" Standard Components:
• Privacy Pin (for privacy sets)
• Inside Passage Half Spindle
• 11⁄2" Rosette Screws
• Full-Lip Strike Plate

• Extended Door Thickness: 2"- 21⁄2" Extended Components:
• Privacy Pin w/ Extension (for privacy sets)
• Long Inside Passage Half Spindle
• 2" Rosette Screws
• Extended Full-Lip Strike Plate
• Extended Door Thickness: 21⁄2"- 3" Extended Components:
• Privacy Pin w/ Extension (for privacy sets)
• Extra Long Inside Passage Half Spindle
• 21⁄2" Rosette Screws
• Extended Full-Lip Strike Plate

• Standard Door Thickness: 13⁄8"- 2" Standard Components:
• Privacy Pin (for privacy sets)
• Inside Passage Half Spindle
• 11⁄2" Rosette Screws
• Full-Lip Strike Plate

• Extended Door Thickness: 2"- 21⁄4" Extended Components:
• Privacy Pin w/ Extension (for privacy sets)
• Long Inside Passage Half Spindle
• 2" Rosette Screws
• Extended Full-Lip Strike Plate
• Extended Door Thickness: 21⁄4"- 3" Extended Components:
• Privacy Pin w/ Extension (for privacy sets)
  • Extra Long Inside Passage Half Spindle
• 21⁄2" Rosette Screws
• Extended Full-Lip Strike Plate

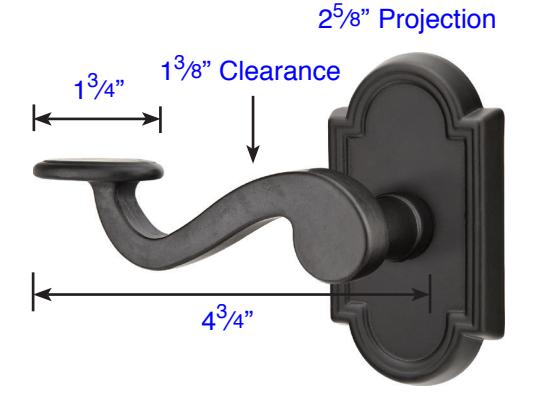

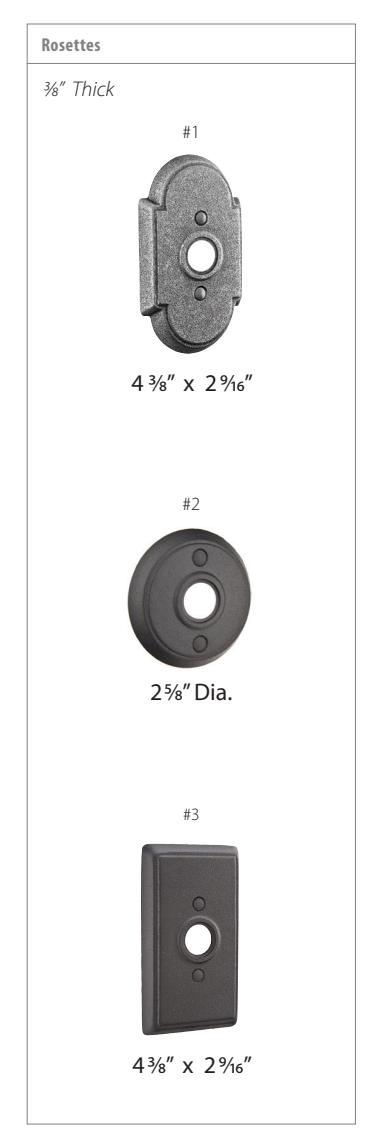

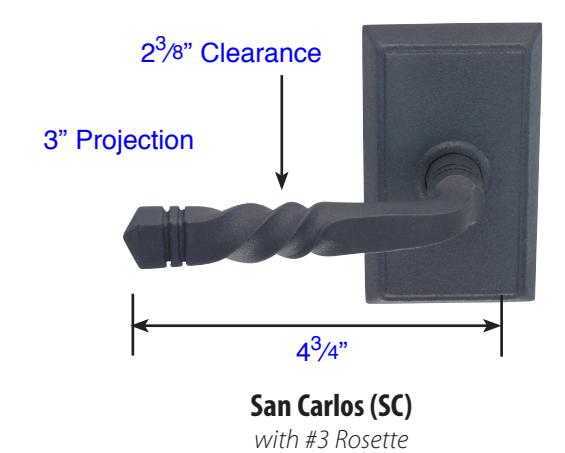

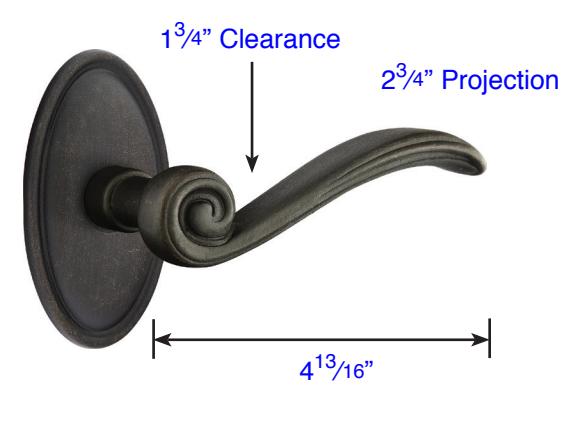

Jamestown (J) with #3 Rosette

Savannah (SV) with #3 Rosette

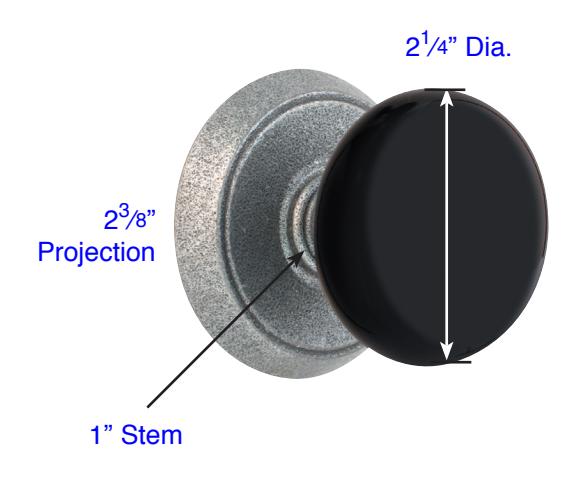

Madison Black (MB) with #2 Rosette

Madison Ivory (MI) with #1 Rosette

See page 28 for rosette specification.

Door Thickness Specifications

• Standard Door Thickness: 13⁄8"- 2" Standard Components:
• Privacy Pin (for privacy sets)
• Inside Passage Half Spindle
• 11⁄2" Rosette Screws
• Full-Lip Strike Plate

• Extended Door Thickness: 2"- 21⁄4" Extended Components:
• Privacy Pin w/ Extension (for privacy sets)
• Long Inside Passage Half Spindle
• 2" Rosette Screws
• Extended Full-Lip Strike Plate
• Extended Door Thickness: 21⁄4"- 3" Extended Components:
• Privacy Pin w/ Extension (for privacy sets)
• Extra Long Inside Passage Half Spindle
• 21⁄2" Rosette Screws
• Extended Full-Lip Strike Plate

Emtek Products, Inc. 15250 Stafford St. City of Industry, CA 91744 Tel: 800.356.2741 Fax: 800.577.5771 www.emtek.com

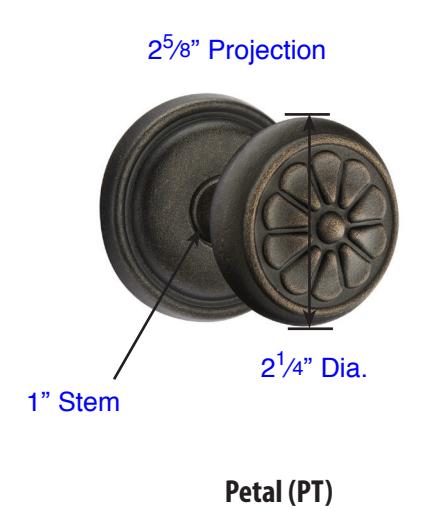

Medici (MDI) with #14 Rosette

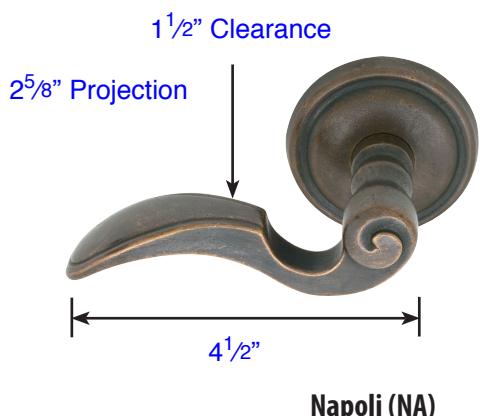

Napoli (NA) with #12 Rosette

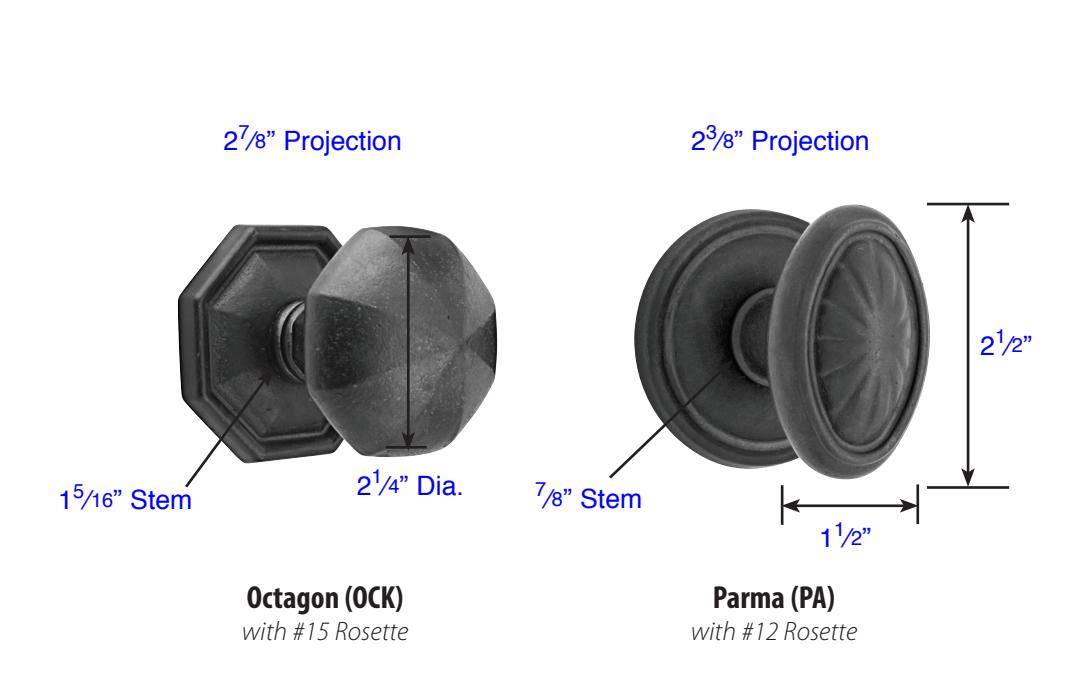

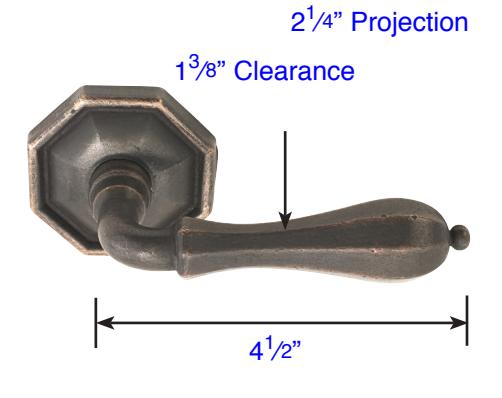

Octagon (OCL) with #15 Rosette

Padua (PD) with #11 Rosette

See page 31 for rosette specification.

• Standard Door Thickness: 13⁄8"- 2" Standard Components:
• Privacy Pin (for privacy sets)
• Inside Passage Half Spindle
• 11⁄2" Rosette Screws
• Full-Lip Strike Plate

• Extended Door Thickness: 2"- 21⁄2" Extended Components:
• Privacy Pin w/ Extension (for privacy sets)
• Long Inside Passage Half Spindle
• 2" Rosette Screws
• Extended Full-Lip Strike Plate
• Extended Door Thickness: 21⁄2"- 3" Extended Components:
• Privacy Pin w/ Extension (for privacy sets)
• Extra Long Inside Passage Half Spindle
• 21⁄2" Rosette Screws
• Extended Full-Lip Strike Plate

Rosettes

#11 #14 #12 #15 7/16" Thick 25/8" Dia. 41/2" x 21/2" 41/2" x 2 3/8" 2 1/2" x 21/2"

Door Thickness Specifications

• Standard Door Thickness: 13⁄8"- 2" Standard Components:
• Privacy Pin (for privacy sets)
• Inside Passage Half Spindle
• 11⁄2" Rosette Screws
• Full-Lip Strike Plate

• Extended Door Thickness: 2"- 21⁄2" Extended Components:
• Privacy Pin w/ Extension (for privacy sets)
• Long Inside Passage Half Spindle
• 2" Rosette Screws
• Extended Full-Lip Strike Plate

with #12 Rosette

• Extended Door Thickness: 21⁄2"- 3" Extended Components:
• Privacy Pin w/ Extension (for privacy sets)
• Extra Long Inside Passage Half Spindle
• 21⁄2" Rosette Screws
• Extended Full-Lip Strike Plate

TS-PP REV19 2/11/2019

with Hibiscus Color Insert Trinidad Rosette

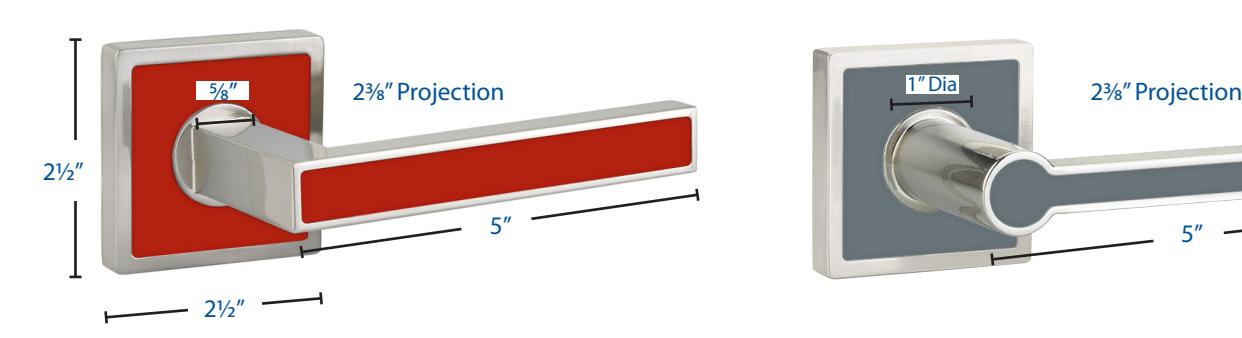

Aruba (AB) Cayman (CM)

with Graphite Grey Color Insert Trinidad Rosette

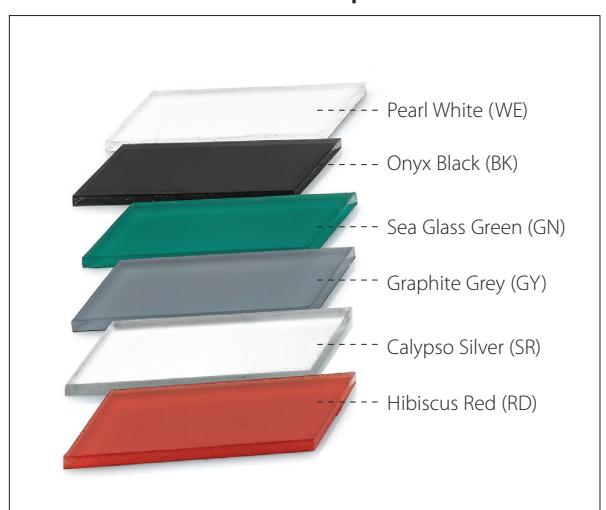

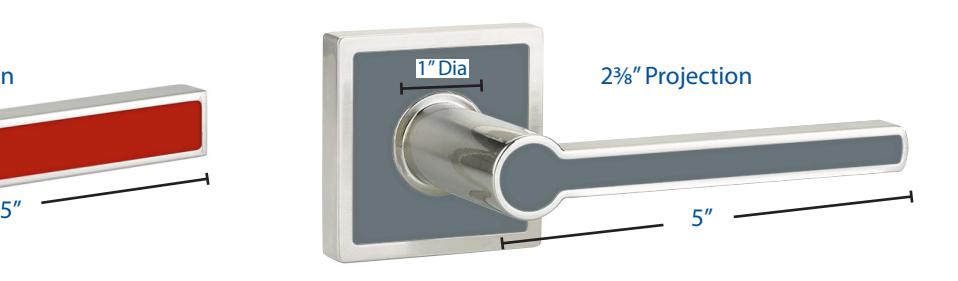

Color Insert Options

• Standard Door Thickness: 11⁄4"- 2" Standard Components:
• Privacy Pin (for privacy sets)
• Inside Passage Half Spindle
• 11⁄2" Rosette Screws
• Full-Lip Strike Plate

• Extended Door Thickness: 2"- 21⁄2" Extended Components:
• Privacy Pin w/ Extension (for privacy sets)
• Long Inside Passage Half Spindle
• 2" Rosette Screws
• Extended Full-Lip Strike Plate

• Extended Door Thickness: 21⁄2"- 3" Extended Components:
• Privacy Pin w/ Extension (for privacy sets)
• Extra Long Inside Passage Half Spindle
• 21⁄2" Rosette Screws
• Extended Full-Lip Strike Plate
