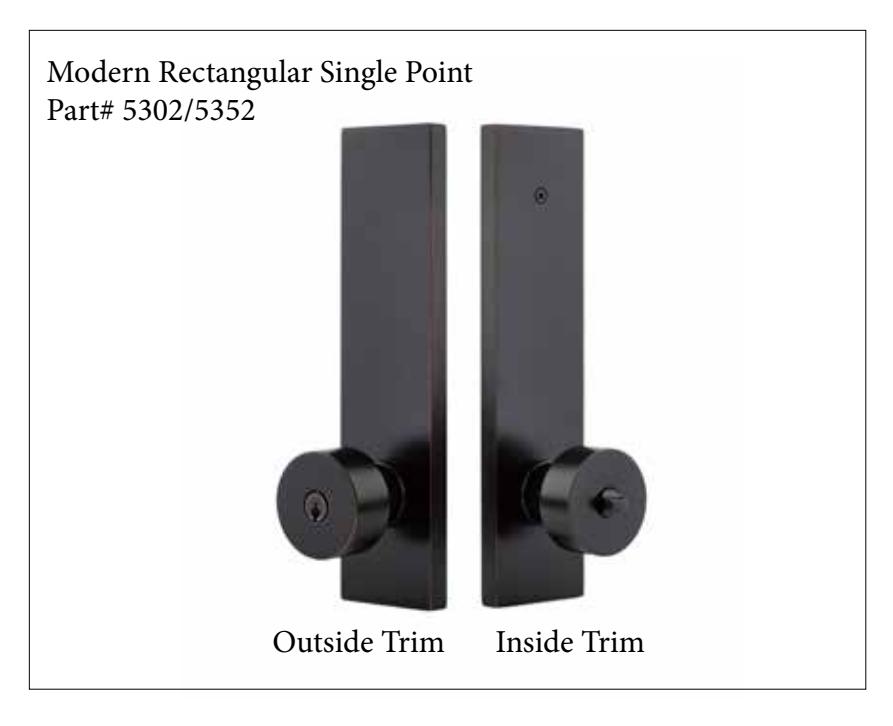

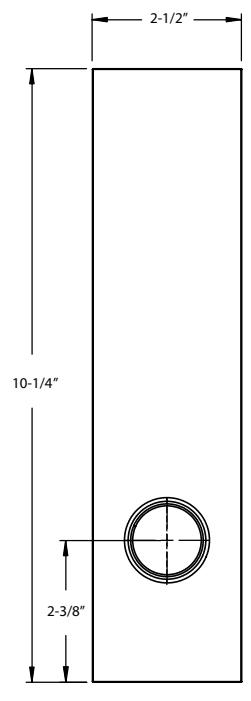

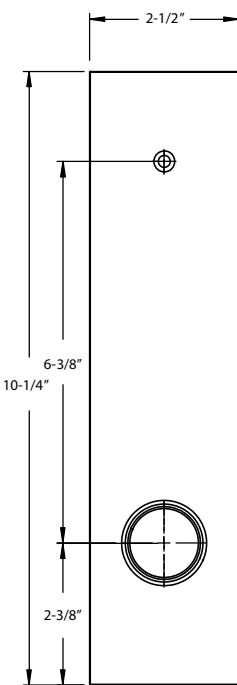

Door Thickness Specifications

Standard Door Thickness:1 1/4" - 2"

Standard Components:

• Inside Passage Half Spindle
• 1" Wood Screws
• Threaded Tubes & Machine Screws Supplied upon request for Hollow-Core Doors
• Full-Lip Strike Plate

Extended Door Thickness: 1 3/4" - 2 1/4"

Extended Components:

• Long Inside Passage Half Spindle
• 1"Wood Screws
• Threaded Tubes & Machine Screws Supplied upon request for Hollow-Core Doors
• 2 1/2" Deadbolt Mounting Screws
• Extended Full-Lip Strike Plate

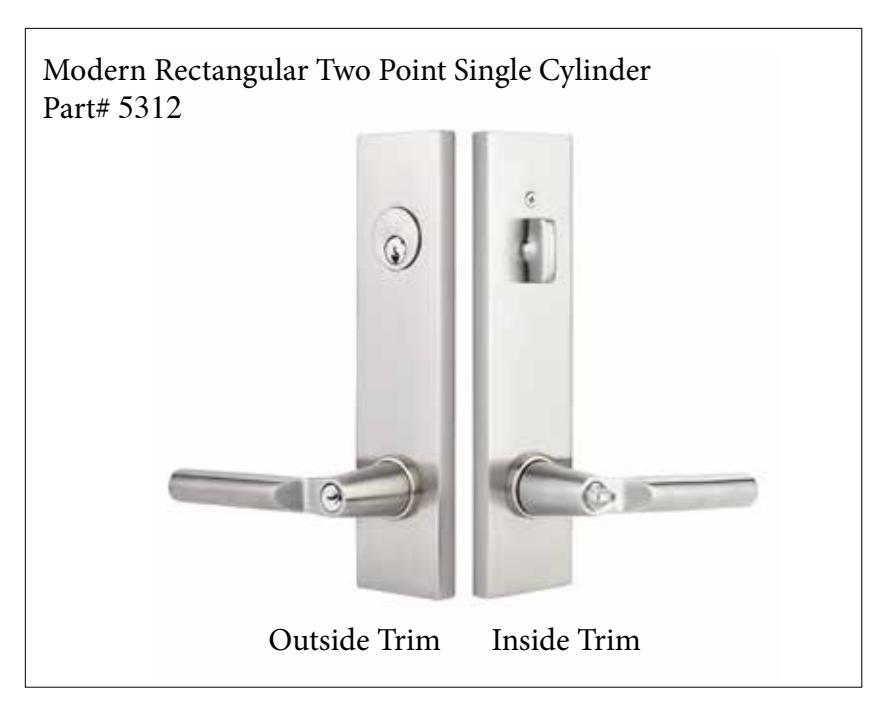

Door Thickness Specifications

Standard Door Thickness:1 1⁄4- 1 3/4"

Standard Components:

• Single Cylinder Tailpiece
• Inside Passage Half Spindle
• 1" Wood Screws
• Threaded Tubes & Machine Screws Supplied upon request for Hollow-Core Doors
• 2 1/4" Deadbolt Mounting Screws
• Full-Lip Strike Plate
• Deadbolt Strike Plate

Extended Door Thickness: 1 3/4"- 2 1⁄4"

Extended Components:

• Long Single Cylinder Tailpiece
• Long Inside Passage Half Spindle
• 1" Wood Screws
• Threaded Tubes & Machine Screws Supplied upon request for Hollow-Core Doors
• 2 1/2" Deadbolt Mounting Screws
• Extended Full-Lip Strike Plate
• Deadbolt Strike Plate

Extended Door Thickness: 2 1⁄4"- 2 3/4"

Extended Components:

• Extra Long Single Cylinder Tailpiece
• Extra Long Inside Passage Half Spindle
• 1" Wood Screws
• Threaded Tubes & Machine Screws Supplied upon request for Hollow-Core Doors
• 3" & 3 1/2" Deadbolt Mounting Screws
• Extended Full-Lip Strike Plate
• Deadbolt Strike Plate

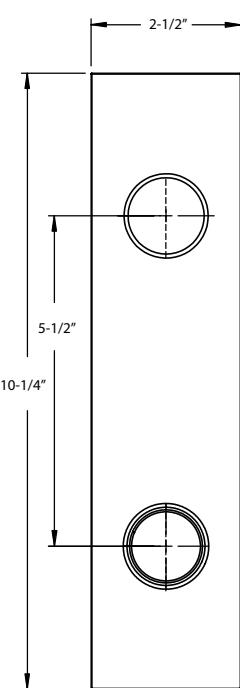

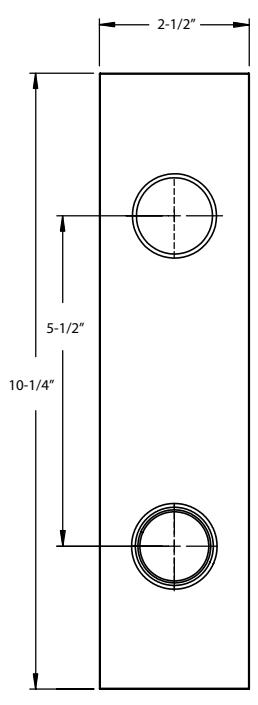

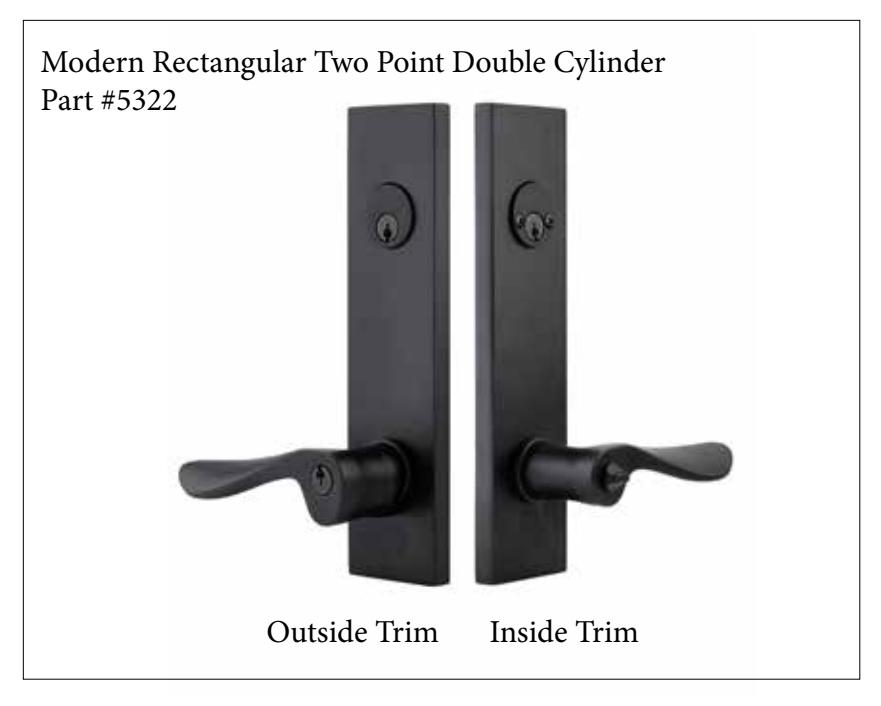

Door Thickness Specifications

Standard Door Thickness:1 5⁄8 - 1 3/4"

Standard Components:

• Double Cylinder Tailpiece
• Inside Passage Half Spindle
• 1" Wood Screws
• Threaded Tubes & Machine Screws Supplied upon request for Hollow-Core Doors
• 3" Deadbolt Mounting Screws
• Full-Lip Strike Plate
• Deadbolt Strike Plate

Extended Door Thickness: 1 3/4"- 2 1⁄2"

Extended Components:

• Long Double Cylinder Tailpiece
• Long Inside Passage Half Spindle
• 1" Wood Screws
• Threaded Tubes & Machine Screws

Supplied upon request for Hollow-Core Doors

• 3 1/2" Deadbolt Mounting Screws
• Extended Full-Lip Strike Plate
• Deadbolt Strike Plate
