Emtek Dimensions Door Thickness Specifications for Electronic Keypad Deadbolts and Leversets

Open the original PDF document

View PDF

EMPowered™

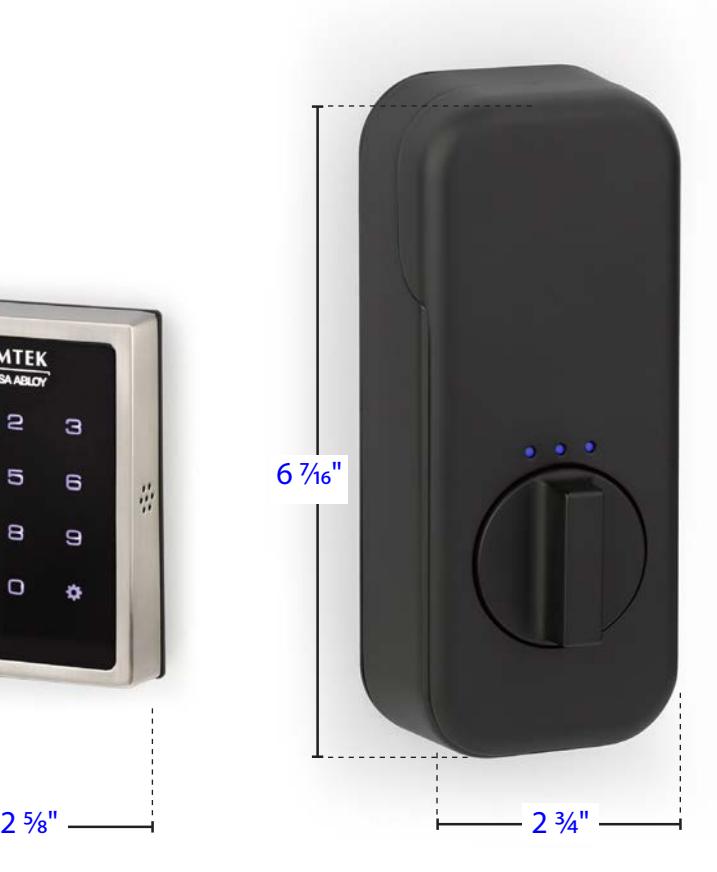

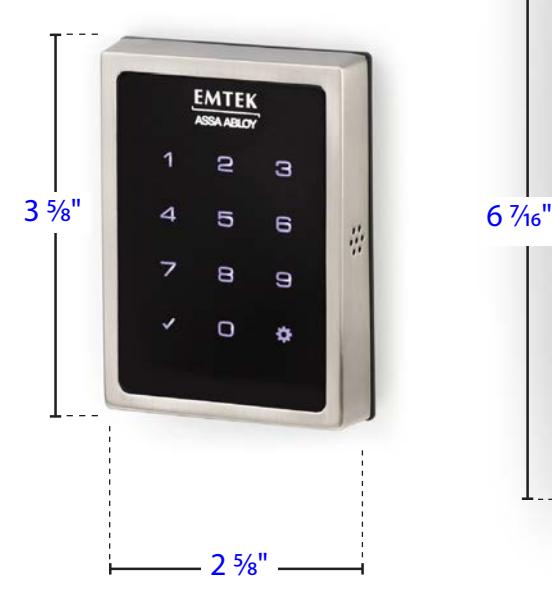

Exterior Projection: 3/4" Interior Projection: 1 1/2" Projection with Thumbturn: 2 1/8"

EMPowered™ Product Features:

  • Standard door prep 21⁄8" bore.
  • Fits standard door thickness of 11⁄2" to 21⁄4".
  • Complete set includes both 23⁄8" and 23⁄4" latches, strike plates and 4 AA batteries.
  • EMPowered Deadbolt only available with square corner latch face plate.
  • Tapered Deadbolt
  • Emtek's standard mechanical and finish warranties along with a 1 year warranty on electronic components.

BACKLIT KEYPAD - Keypad wakes with a touch and includes numbers that won't wear off.

OPTIONAL SETTINGS - Customized auto re-lock, privacy mode and tamper alarms with the lock settings.

MOTORIZED DEADBOLT - Quiet motor with tapered deadbolt to accommodate misaligned doors.

SIMPLE INSTALLATION - Replaces existing deadbolt with just a screwdriver.

WEATHER PROTECTED - Rubber gasket increases protection against outdoor environments.

MANAGE CODES - Create up to 25 user PIN codes to share with friends and family. Unlimited codes with Connected by August.

EMPowered™ SMART Lock Features:

CONTROL FROM ANYWHERE - Includes the August Connect Wi-Fi Bridge so you can lock and unlock from anywhere using your August app.

SHARE ACCESS - Grant access to your home for the people you trust. Give permanent/temporary access or set a unique access schedule.

24/7 HISTORY - See who comes and goes with smartphone notifications and a 24/7 access history in the app.

USE YOUR VOICE - Works with the three leading voice assistants; Amazon Alexa, Google Assistant and Siri.

COMES WITH AUGUST DOORSENSE™ - Know if your door is not only locked or unlocked but also closed or opened.

WORKS WITH AUGUST DOORBELLS - See who's at your door and unlock the door right from your August app.

AUTO-LOCK - Never worry if your door is locked again. Auto-Lock can be set for immediate or on a timer for as short as 30 sec or as long as 30 min.

AUTO UN-LOCK - Auto-Unlock knows when you arrive and unlocks the door as you approach. Never fumble for keys again.

EMTOUCH™

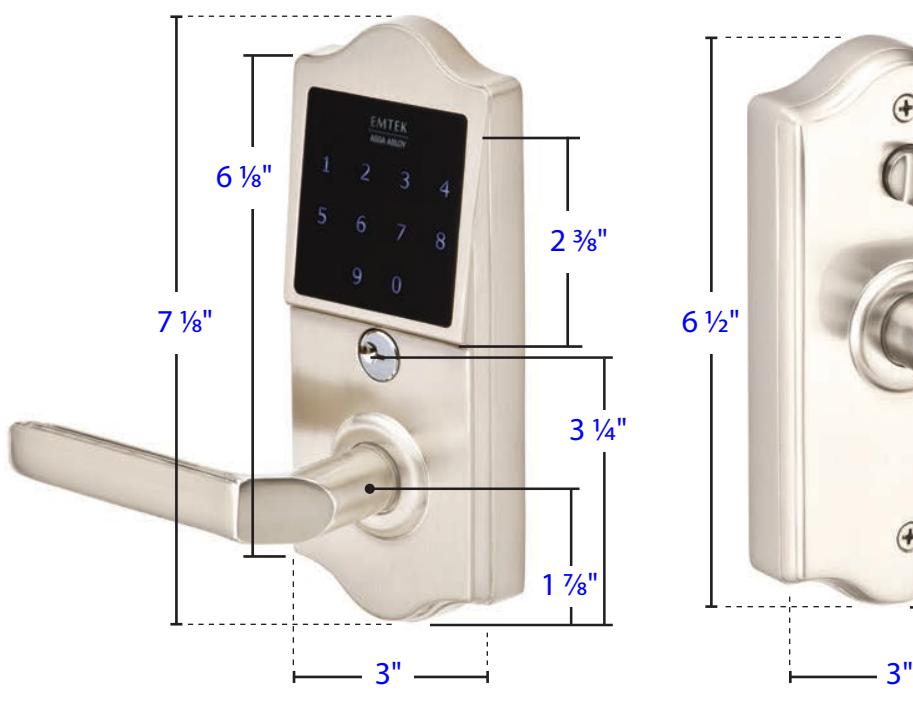

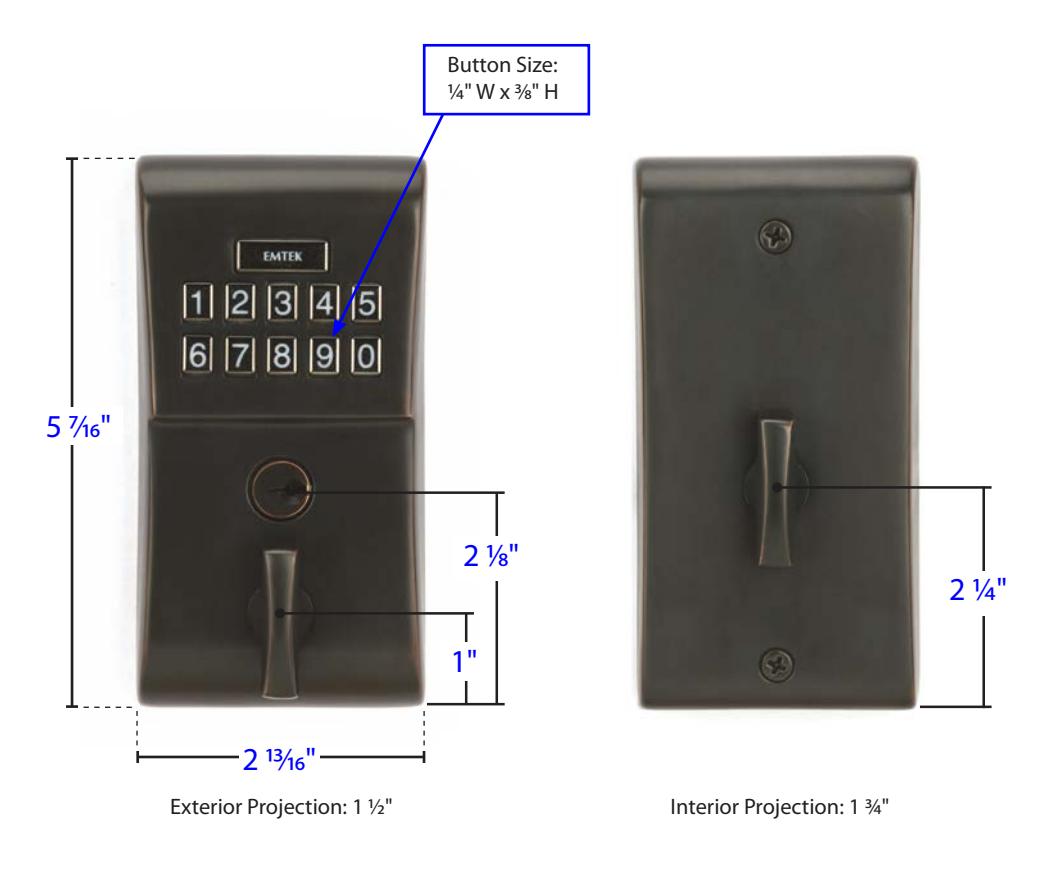

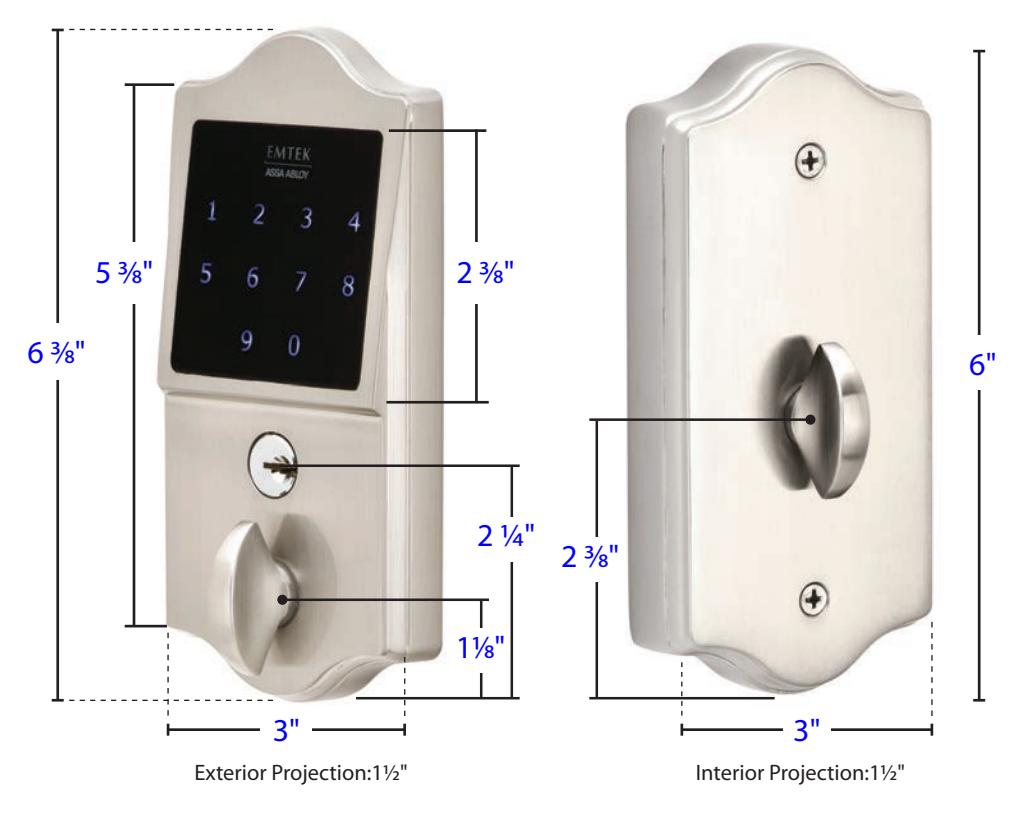

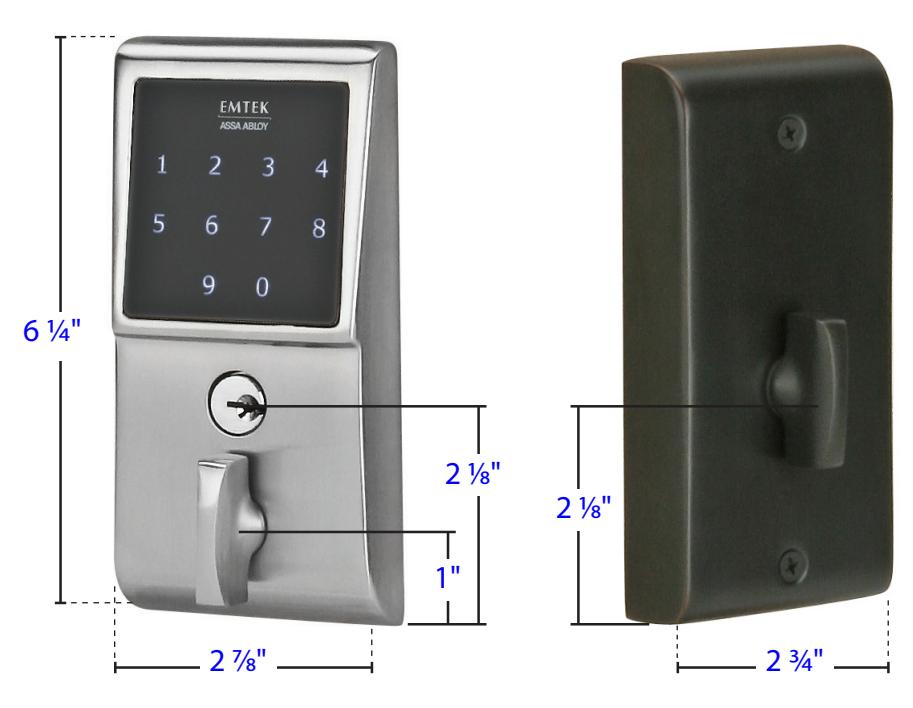

Exterior Projection: 1 1/2" Interior Projection: 1 3/4"

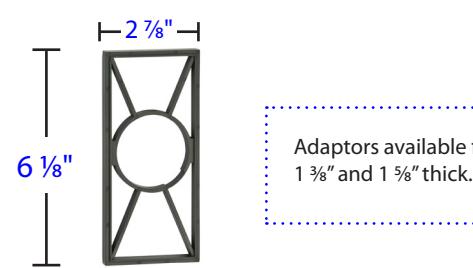

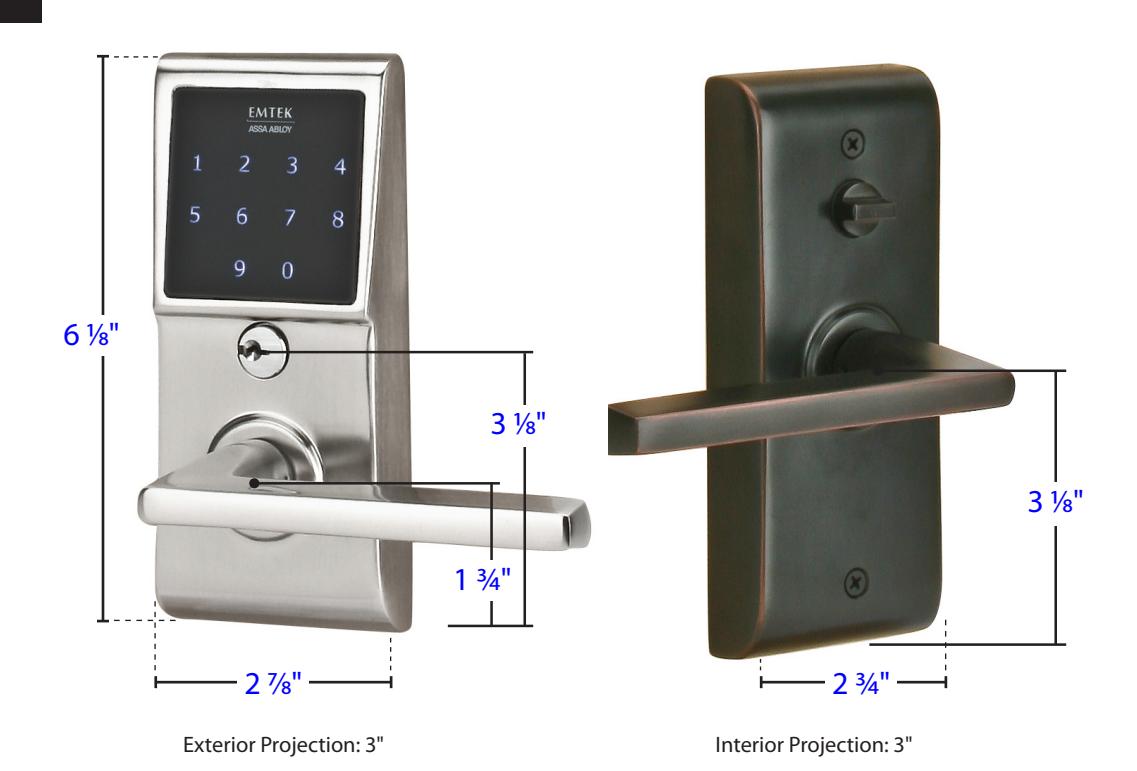

Adaptors available for leversets to fit doors between

  • Fits any door between 13⁄4" to 21⁄4" thick with a 21/8" bore standard door prep.
  • Installs easily with only a Phillips head screwdriver.
  • Easy to use installation and programming instructions included.
  • Factory programmed with 2 unique, secure user codes for use right out of the box.
  • Can be programmed with up to 20 user codes of your choice.
  • Codes can be added and deleted.
  • Easy lock operation, simply push the Emtek button and turn the exterior thumb turn to lock.
  • Easy unlock operation, enter the 4 digit code and turn the exterior thumb turn.
  • Programming changes can be made easily using the keypad.
  • Sleek keypad has a protective coating to prevent wear patterns.
  • Illuminated keypad for easy and quick operation after dark.
  • Low battery indicator lets you know when it's time to change the battery.
  • Emtek's standard mechanical and finish warranties along with a 2 year warranty on electronic components.

EMTOUCH™

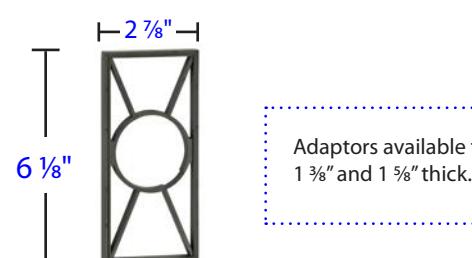

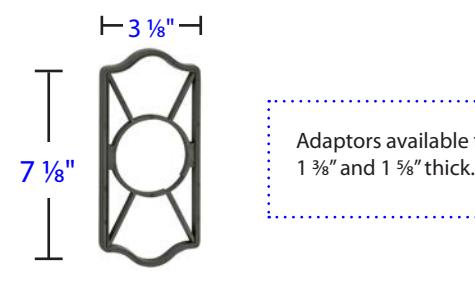

Adaptors available for leversets to fit doors between

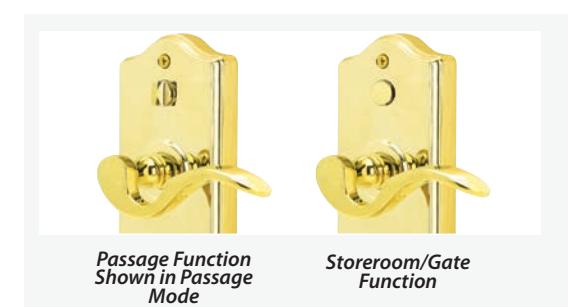

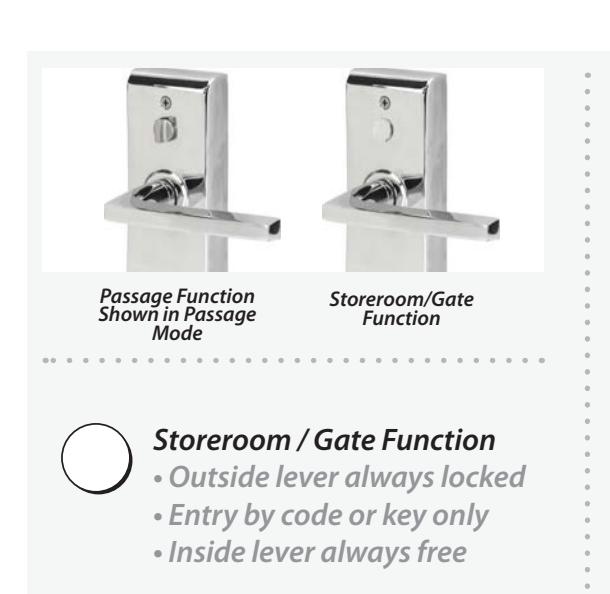

Storeroom / Gate Function

  • Outside lever always locked
  • Entry by code or key only
  • Inside lever always free

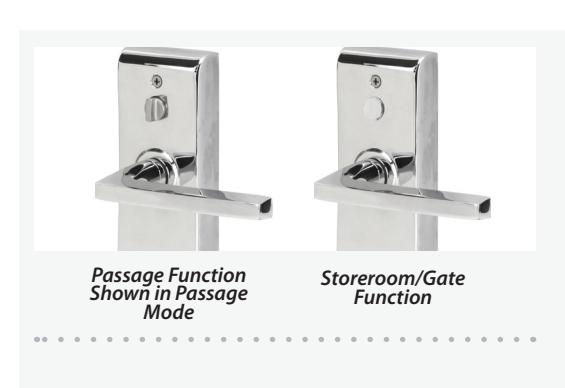

Passage Function in Locked Mode

  • Outside lever always locked
  • Entry by code or key only
  • Inside lever always free

Passage Function in Passage Mode

  • Outside lever always free
  • Entry by operating lever, no code or key required.
  • Inside lever always free

ELECTRONIC KEYPAD DEADBOLT LOCKSET AMERICAN HERITAGE

Technical Specifications

EMTOUCH™ CLASSIC

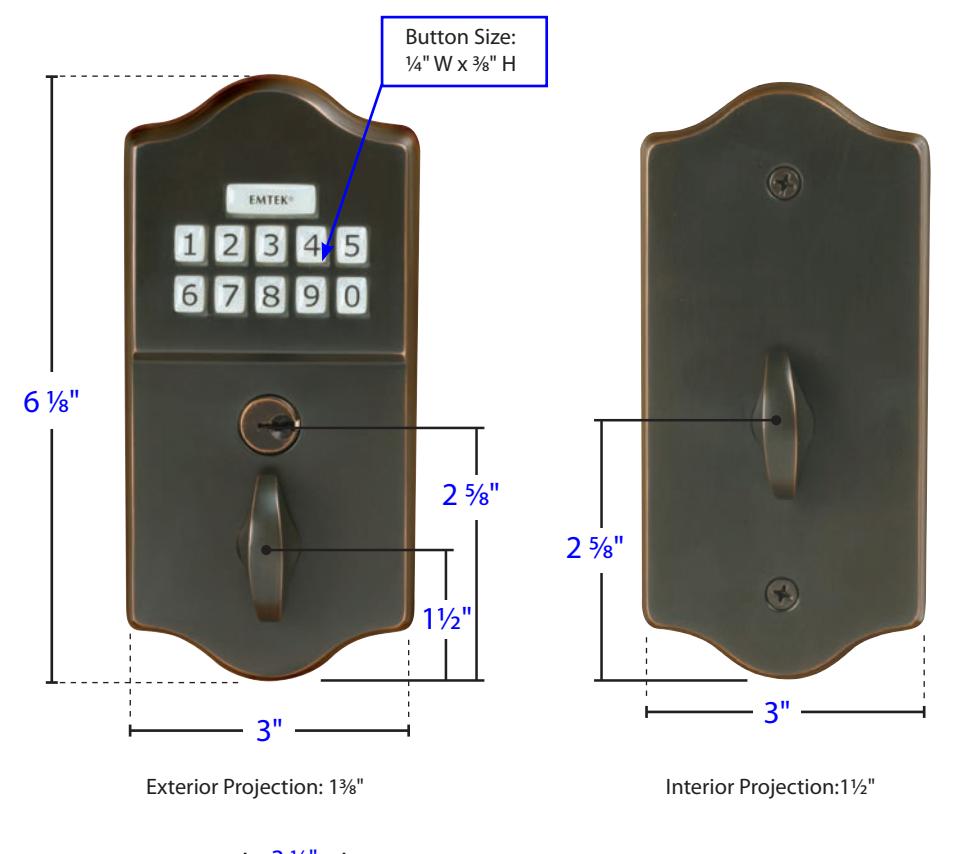

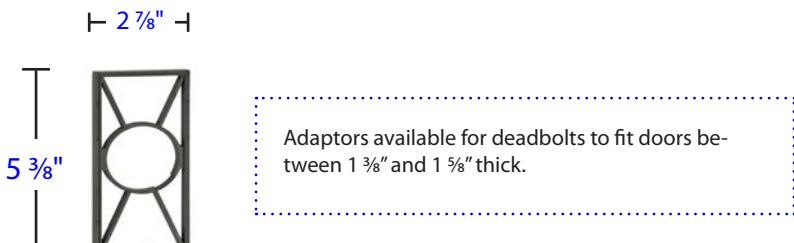

Adaptors available for deadbolts to fit doors be-

  • Fits any door between 13⁄4" to 21⁄4" thick with a 21/8" bore standard door prep.
  • Installs easily with only a Phillips head screwdriver.
  • Easy to use installation and programming instructions included.
  • Factory programmed with 2 unique, secure user codes for use right out of the box.
  • Can be programmed with up to 20 user codes of your choice.
  • Codes can be added and deleted.
  • Easy lock operation, simply push the Emtek button and turn the exterior thumb turn to lock.
  • Easy unlock operation, enter the 4 digit code and turn the exterior thumb turn.
  • Programming changes can be made easily using the keypad.
  • Sleek keypad has a protective coating to prevent wear patterns.
  • Illuminated keypad for easy and quick operation after dark.
  • Low battery indicator lets you know when it's time to change the battery.
  • Emtek's standard mechanical and finish warranties along with a 2 year warranty on electronic components.

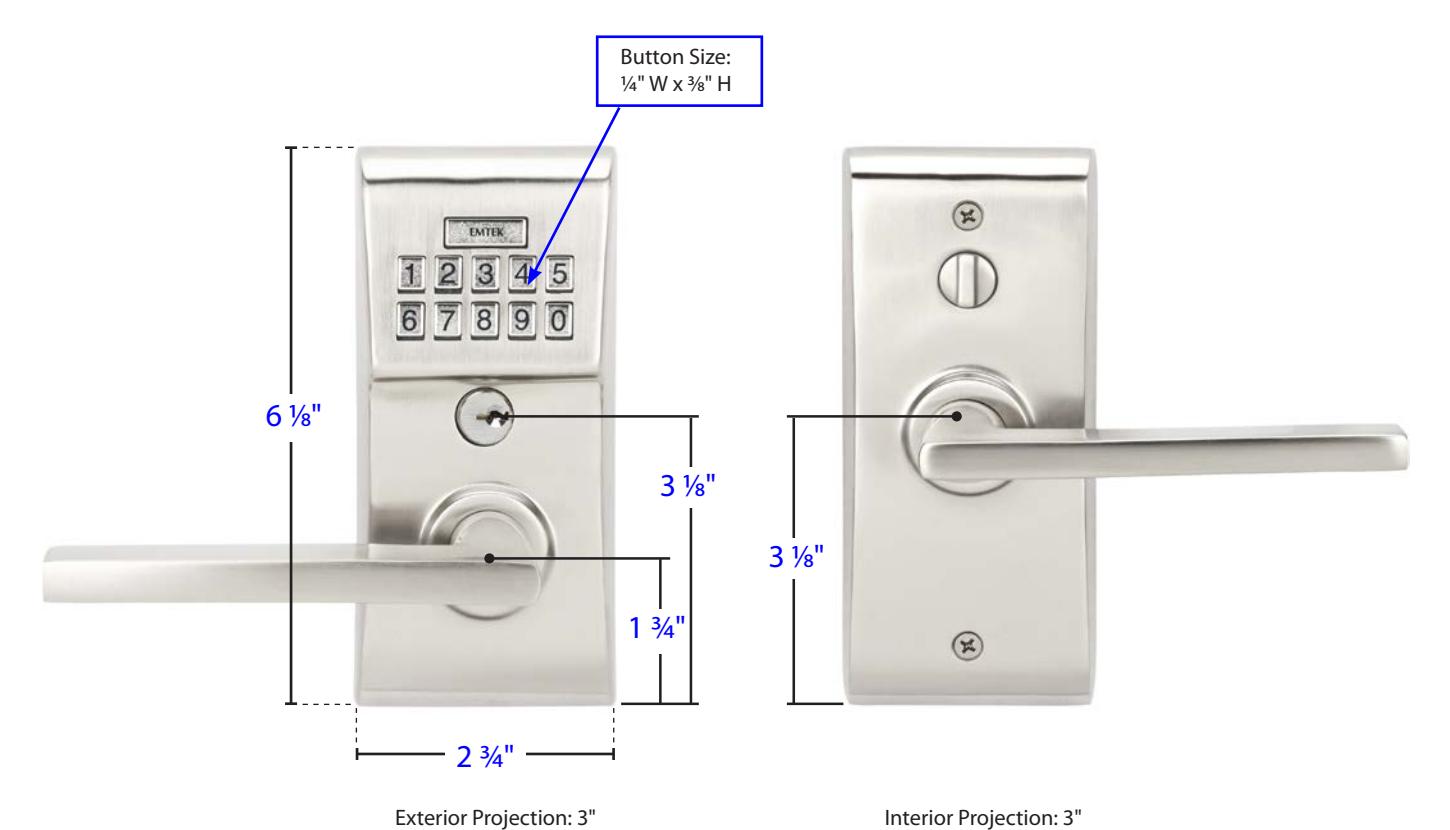

ELECTRONIC KEYPAD LEVERSET AMERICAN HERITAGE

Technical Specifications

EMTOUCH™ CLASSIC

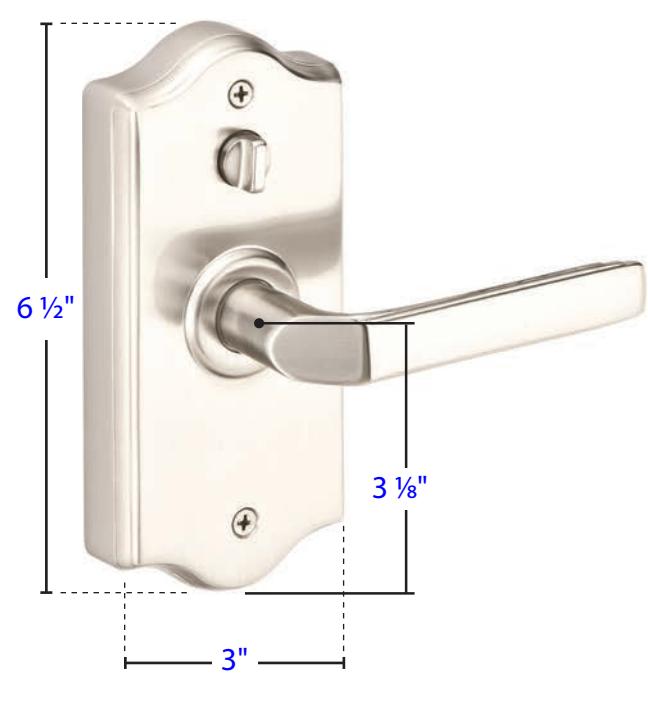

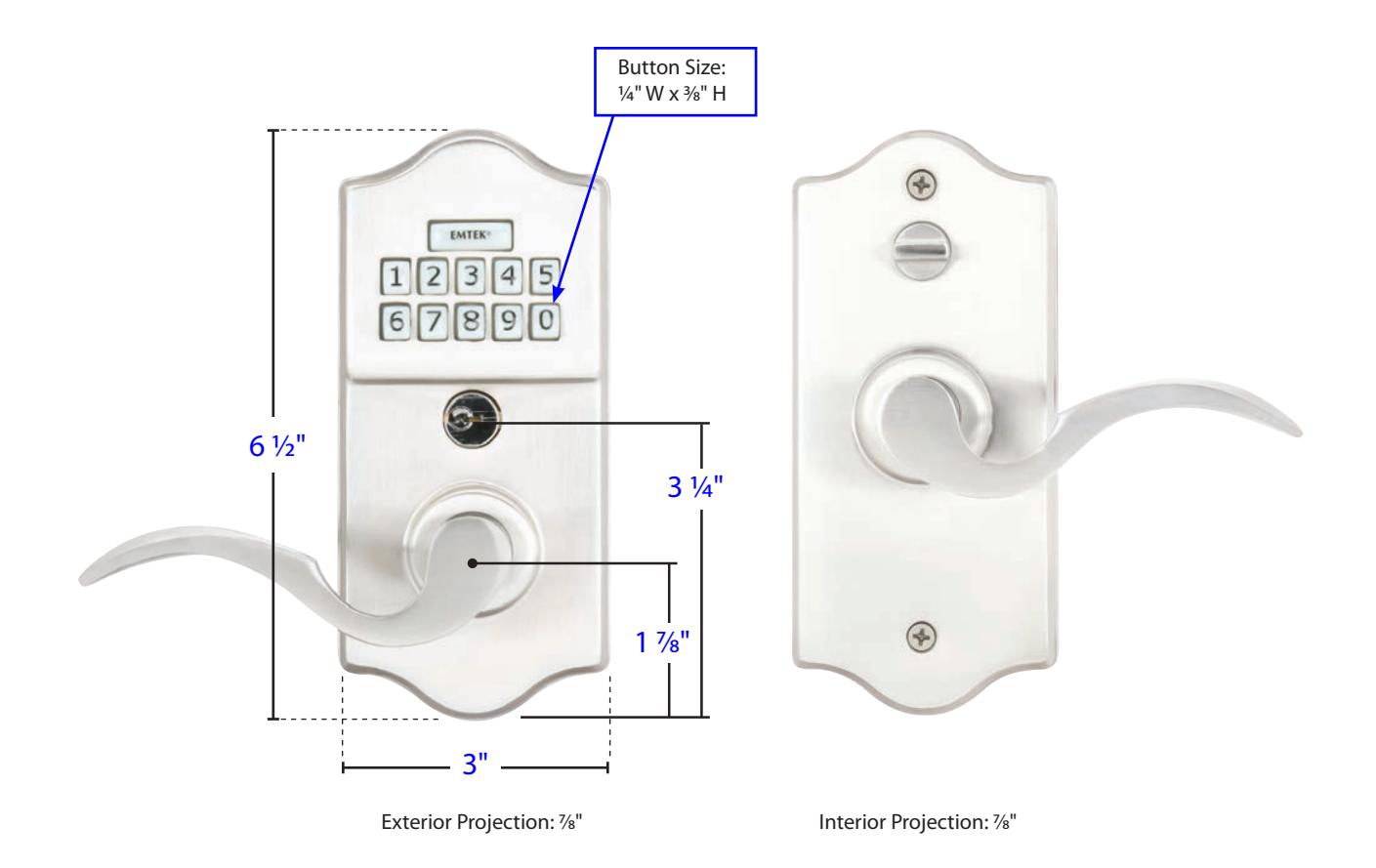

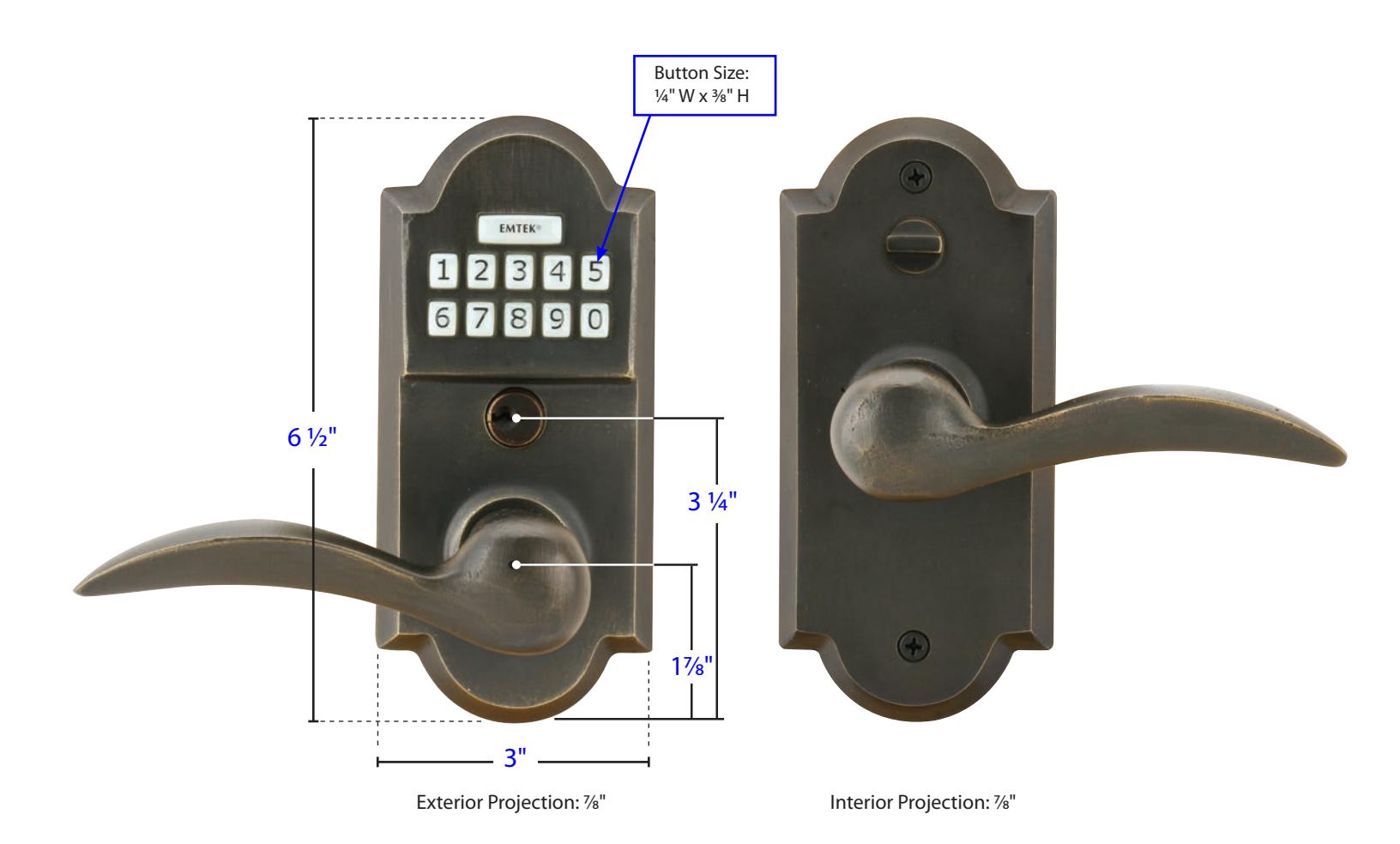

Exterior Projection: 31/4" Interior Projection: 31/8"

Adaptors available for leversets to fit doors between

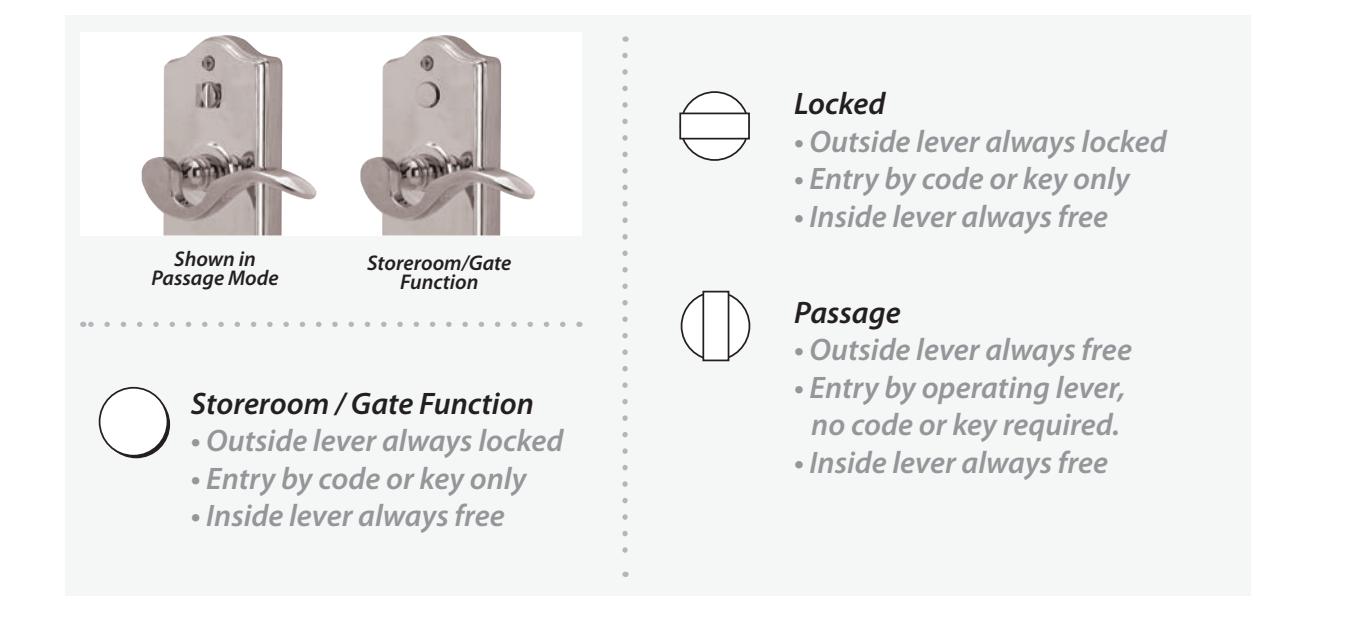

Storeroom / Gate Function

  • Outside lever always locked
  • Entry by code or key only
  • Inside lever always free

Passage Function in Locked Mode

  • Outside lever always locked
  • Entry by code or key only
  • Inside lever always free

Passage Function in Passage Mode

  • Outside lever always free
  • Entry by operating lever, no code or key required.
  • Inside lever always free

  • Fits any door between 13⁄4" to 21⁄4" thick with a 21/8" bore standard door prep.
  • Installs easily with only a Phillips head screwdriver.
  • Easy to use installation and programming instructions included.
  • Factory programmed with 2 unique, secure user codes for use right out of the box.
  • Can be programmed with up to 20 user codes of your choice.
  • Codes can be added and deleted.
  • Easy lock operation, simply push the Emtek button and turn the exterior thumb turn to lock.
  • Easy unlock operation, enter the 4 digit code and turn the exterior thumb turn.
  • Programming changes can be made easily using the keypad.
  • Sleek keypad has a protective coating to prevent wear patterns.
  • Illuminated keypad for easy and quick operation after dark.
  • Low battery indicator lets you know when it's time to change the battery.
  • Emtek's standard mechanical and finish warranties along with a 2 year warranty on electronic components.

Adaptors available for leversets to fit doors between

Passage Function in Locked Mode

  • Outside lever always locked
  • Entry by code or key only
  • Inside lever always free

Passage Function in Passage Mode

  • Outside lever always free
  • Entry by operating lever, no code or key required.
  • Inside lever always free

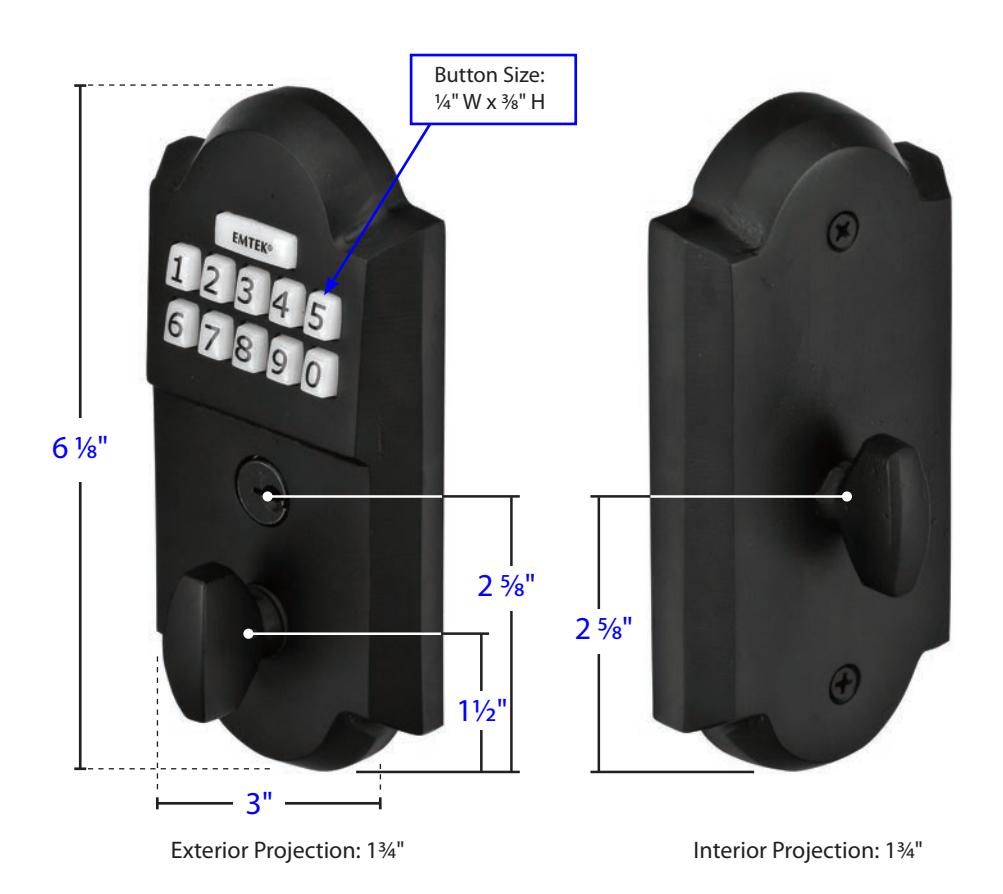

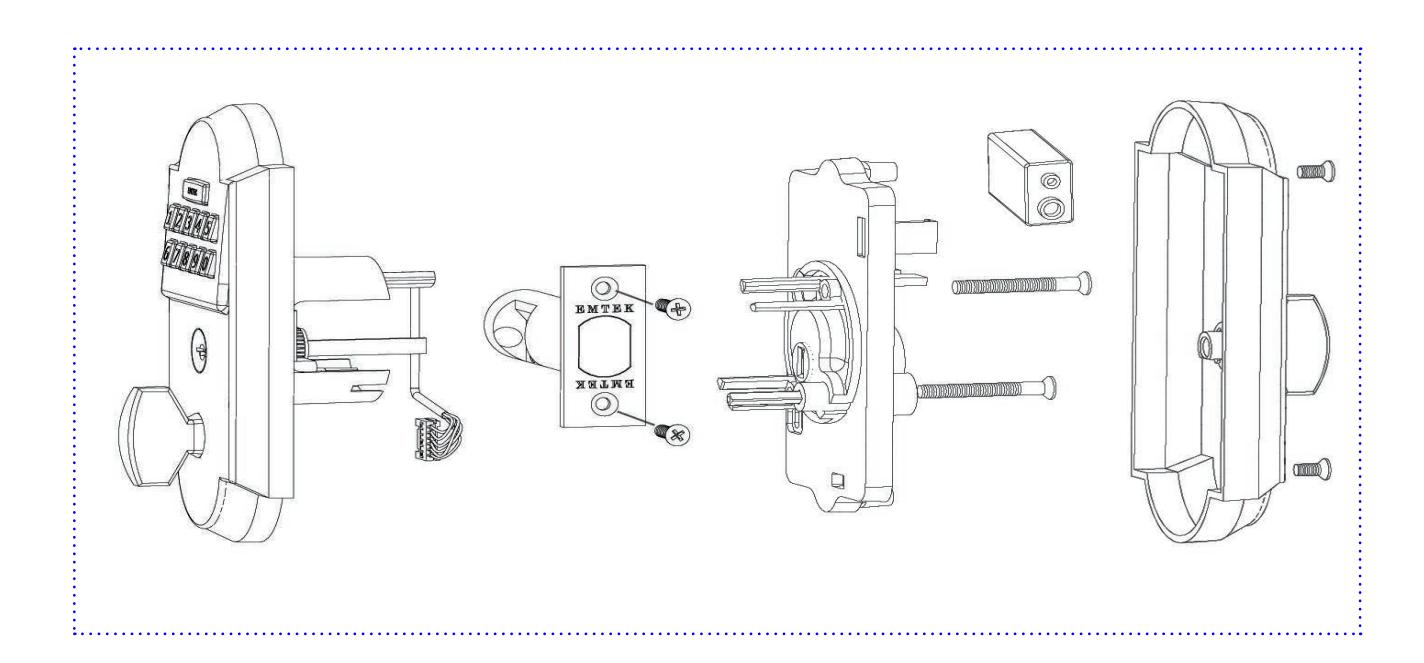

Adaptors available for deadbolts to fit doors be-

  • Fits any door between 13⁄4" to 21⁄4" thick with a 21/8" bore standard door prep.
  • Installs easily with only a Phillips head screwdriver.
  • Easy to use installation and programming instructions included.
  • Factory programmed with 2 unique, secure user codes for use right out of the box.
  • Can be programmed with up to 20 user codes of your choice.
  • Codes can be added and deleted.
  • Easy lock operation, simply push the Emtek button and turn the exterior thumb turn to lock.
  • Easy unlock operation, enter the 4 digit code and turn the exterior thumb turn.
  • Programming changes can be made easily using the keypad.
  • Keypad has a protective coating to prevent wear patterns.
  • Illuminated keypad for easy and quick operation after dark.
  • Low battery indicator lets you know when it's time to change the battery.
  • Emtek's standard mechanical and finish warranties along with a 2 year warranty on electronic components.

Technical Specifications

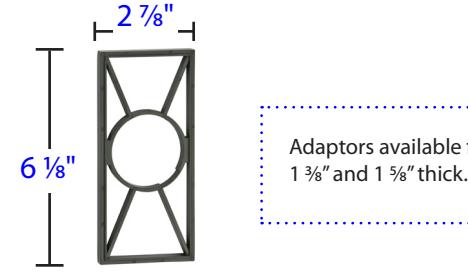

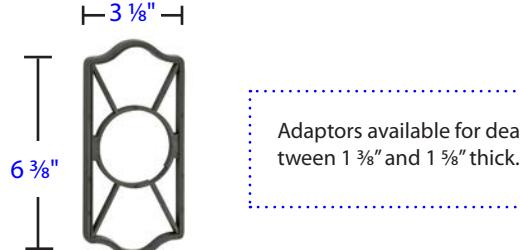

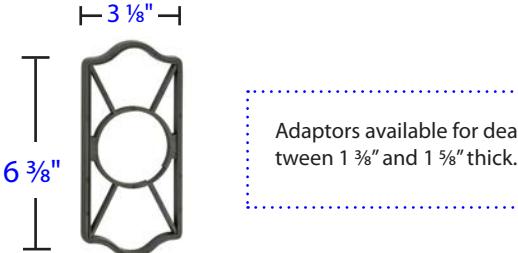

Adaptors available for leversets to fit doors between 1 3/8" and 1 5/8" thick.

Product Features for both Deadbolt & Lever Locksets:

  • Fits any door between 13⁄4" to 21⁄4" thick with a 21/8" bore standard door prep.
  • Installs easily with only a Phillips head screwdriver.
  • Easy to use installation and programming instructions included.
  • Factory programmed with 2 unique, secure user codes for use right out of the box.
  • Can be programmed with up to 20 user codes of your choice.
  • Programming changes can be made easily using the keypad.
  • Keypad has a protective coating to prevent wear patterns.
  • Illuminated keypad for easy and quick operation after dark.
  • Low battery indicator lets you know when it's time to change the battery.
  • Emtek's standard mechanical and finish warranties along with a 2 year warranty on electronic components.

Door Thickness Specifications - Electronic Keypad Deadbolts & Leversets

EMTouch™, Modern, Classic Keypad Locks

Deadbolt

  • Standard Door Thickness: 1<sup>3</sup>/4" 2<sup>1</sup>/4" Standard Components: • 8-32 x 1 <sup>1</sup>/2" Mounting Screws • Schlage Cylinder w/ 1 <sup>1</sup>/2" Tailpiece Deadbolt Strike Plate
  • Narrow Door Thickness: 1^3/8" 1^5/8" Narrow Components:
  • Extension Plate**

  • Extended Door Thickness: Greater than 2<sup>1</sup>/4" Extended Components:
  • Not Available

EMTouch™, Modern, Classic Keypad Locks

Leverset

  • Standard Door Thickness: 1<sup>3</sup>/4" 2<sup>1</sup>/4" Standard Components:
  • 8-32 x 1<sup>1</sup>/2" Mounting Screws
  • Schlage Cylinder w/ 3/8" Lever Lock Tailpiece
  • Full-Lip Strike Plate*
  • *Extended Full Lip Strike Plate is used on doors greater than 2" thick
  • Narrow Door Thickness: 1<sup>3</sup>/8"- 1<sup>5</sup>/8" Narrow Components:
  • Extension Plate**

  • Extended Door Thickness: Greater than 2^{1/4''} Extended Components:
  • Not Available

**Extension Plate is not available with bronze trim

TS-EL REV19 04/05/2019

** Extension Plate is not available with bronze trim
