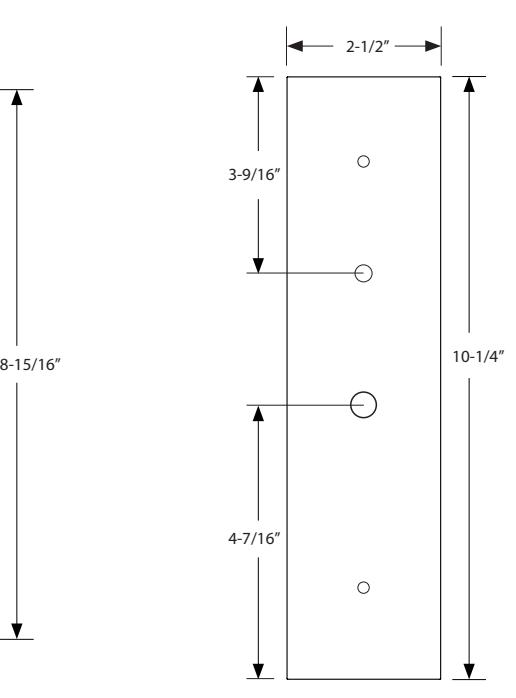

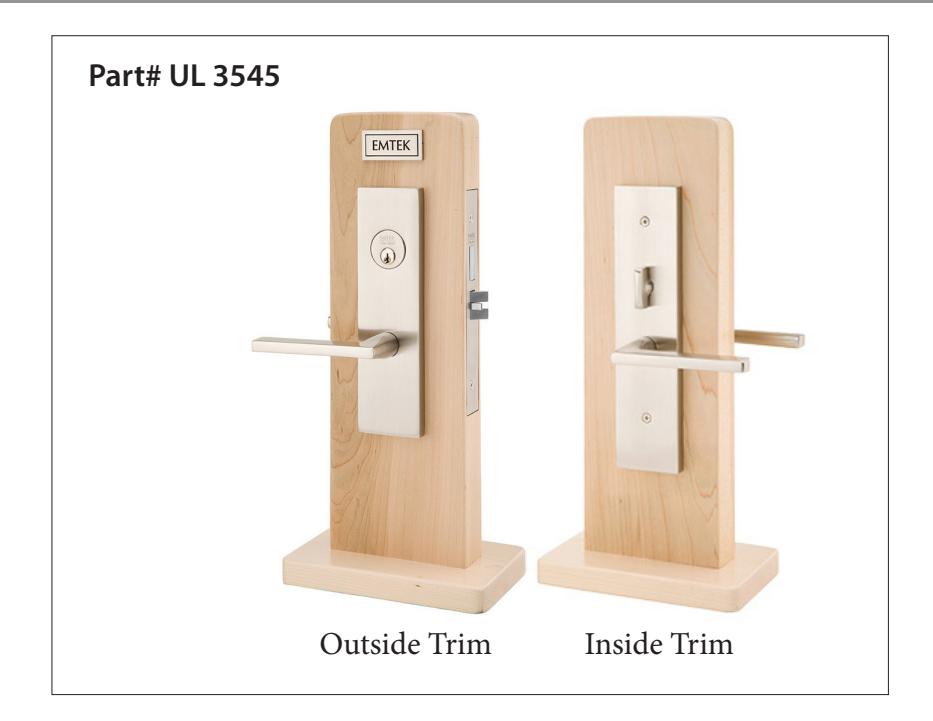

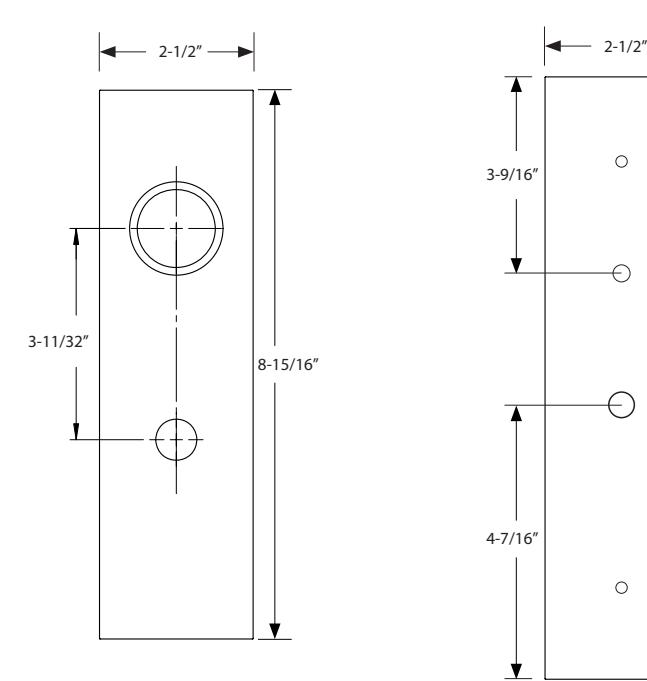

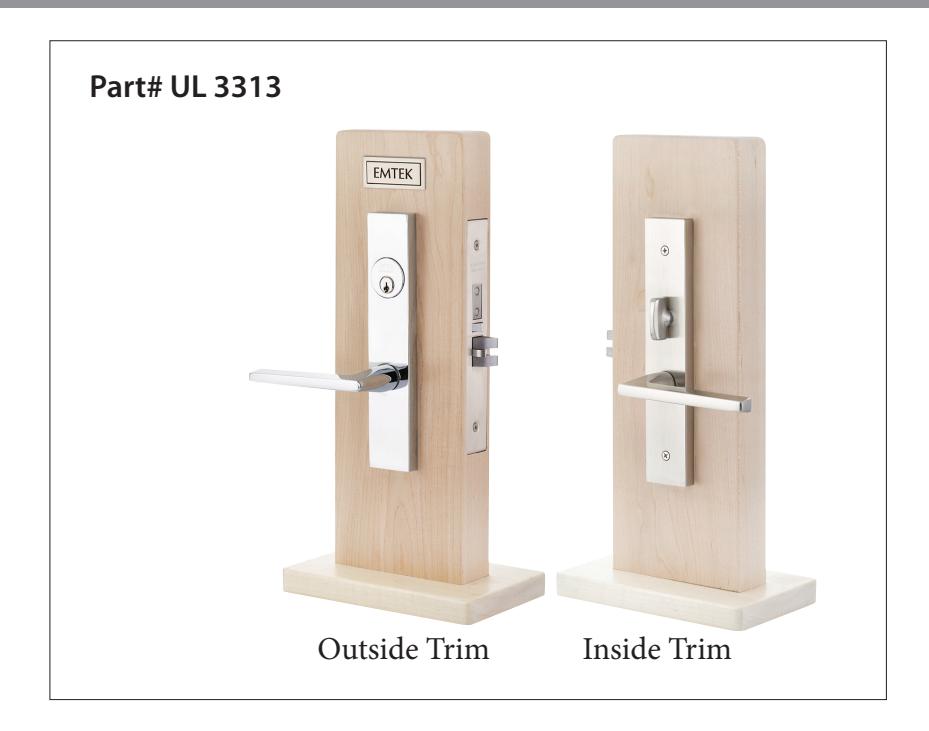

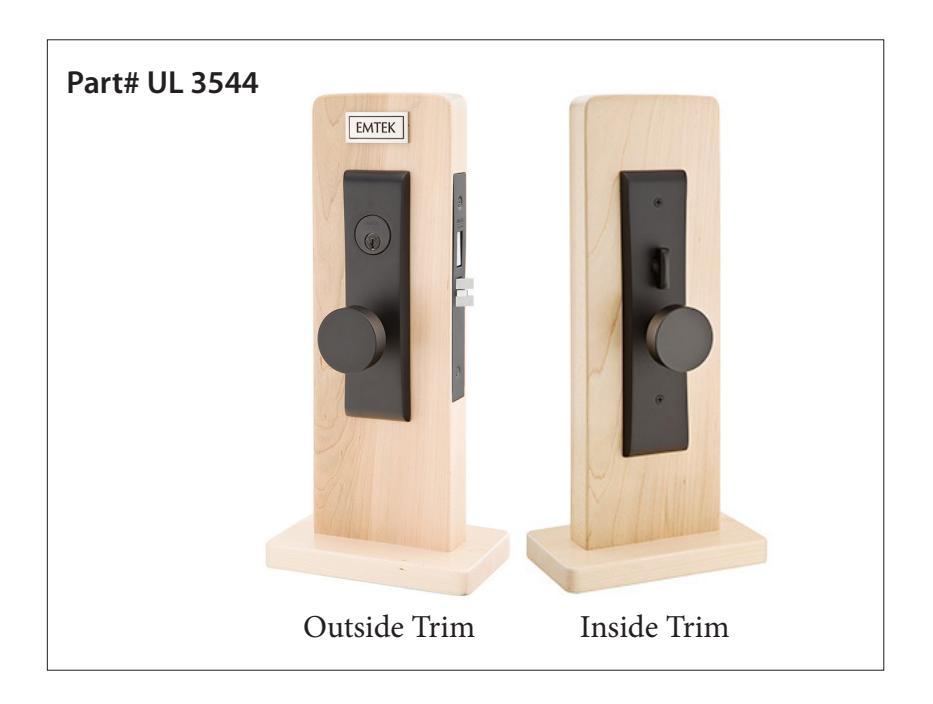

MORMONT MORTISE

UL Mortise Knob by Knob, Lever by Lever Entry Sets

Door Thickness Specifications

Standard Door Thickness: 1-3/4"

Standard Components:

  • 1-3⁄8 " Threaded Cylinder
  • 2" Long Spindle
  • 2" Top Rosette Screw
  • 1-1⁄2" Bottom Rosette Screw
  • Thumbpress
  • Strikeplate

Extended Door Thickness: 1-7/8"- 2-1/4"

Extended Components:

  • 1-1⁄2" Threaded Cylinder
  • 2" Long Spindle
  • 2-1⁄2" Top Rosette Screw
  • 2" Bottom Rosette Screw
  • Thumbpress
  • Strikeplate

Extended Door Thickness: 2-3/8"- 2-3/4"

  • 1-3⁄4"Threaded Cylinder
  • 2-1⁄4"Long Spindle
  • 2-1⁄2"Top Rosette Screw
  • 2" Bottom Rosette Screw
  • Extended Thumbpress
  • Extended Strikeplate

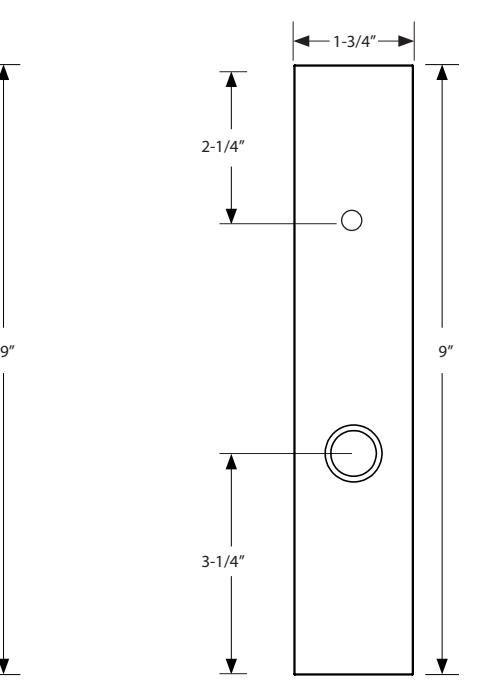

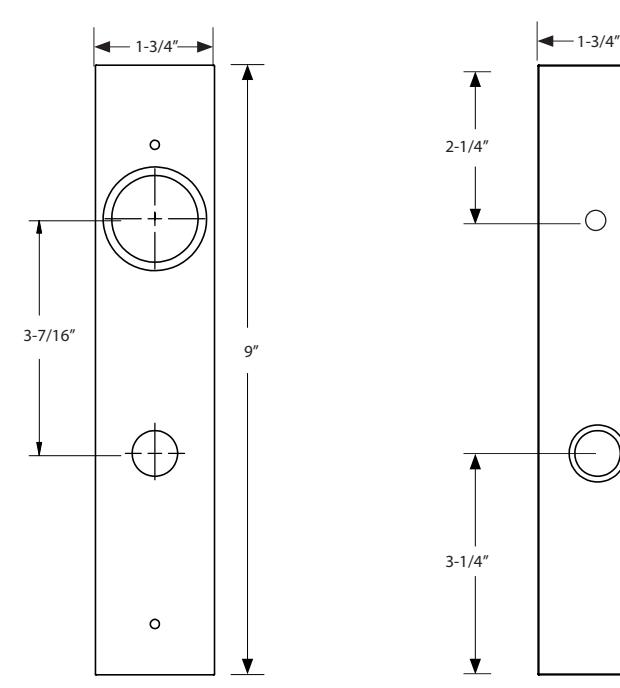

BRISBANE MORTISE

UL Mortise Knob by Knob, Lever by Lever Entry Sets

Door Thickness Specifications

Standard Door Thickness: 1-3/4"

Standard Components:

  • 1-3⁄8 " Threaded Cylinder
  • 2" Long Spindle
  • 2" Top Rosette Screw
  • 1-1⁄2" Bottom Rosette Screw
  • Thumbpress
  • Strikeplate

Extended Door Thickness: 1-7/8"- 2-1/4"

Extended Components:

  • 1-1⁄2" Threaded Cylinder
  • 2" Long Spindle
  • 2-1⁄2" Top Rosette Screw
  • 2" Bottom Rosette Screw
  • Thumbpress
  • Strikeplate

Extended Door Thickness: 2-3/8"- 2-3/4"

  • 1-3⁄4"Threaded Cylinder
  • 2-1⁄4"Long Spindle
  • 2-1⁄2"Top Rosette Screw
  • 2" Bottom Rosette Screw
  • Extended Thumbpress
  • Extended Strikeplate

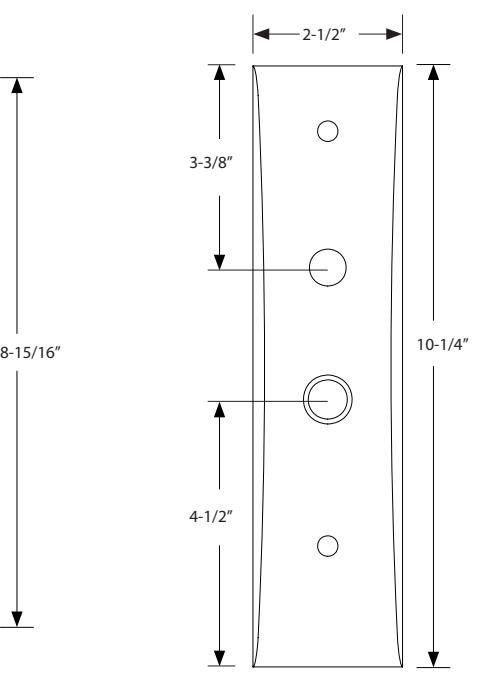

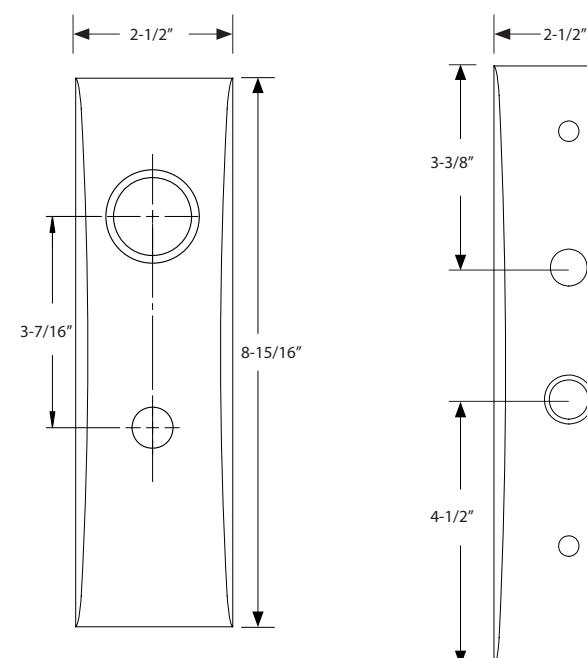

ARTEMIS MORTISE

UL Mortise Knob by Knob, Lever by Lever Entry Sets

Door Thickness Specifications

Standard Door Thickness: 1-3/4" Standard Components:

  • 1-3⁄8 " Threaded Cylinder
  • 2" Long Spindle
  • 2" Top Rosette Screw
  • 1-1⁄2"Bottom Rosette Screw
  • Thumbpress
  • Strikeplate

Extended Door Thickness: 1-7/8"- 2-1/4"

Extended Components:

  • 1-1⁄2" Threaded Cylinder
  • 2" Long Spindle
  • 2-1⁄2"Top Rosette Screw
  • 2" Bottom Rosette Screw
  • Thumbpress
  • Strikeplate

Extended Door Thickness: 2-3/8"- 2-3/4"

  • 1-3⁄4" Threaded Cylinder
  • 2-1⁄4" Long Spindle
  • 2-1⁄2" Top Rosette Screw
  • 2" Bottom Rosette Screw
  • Extended Thumbpress
  • Extended Strikeplate

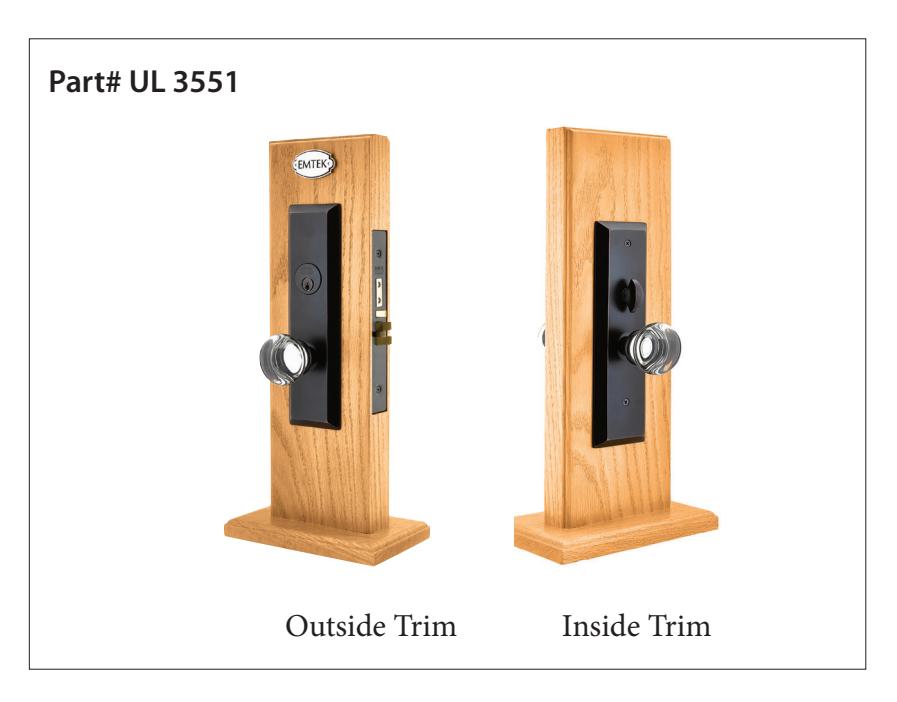

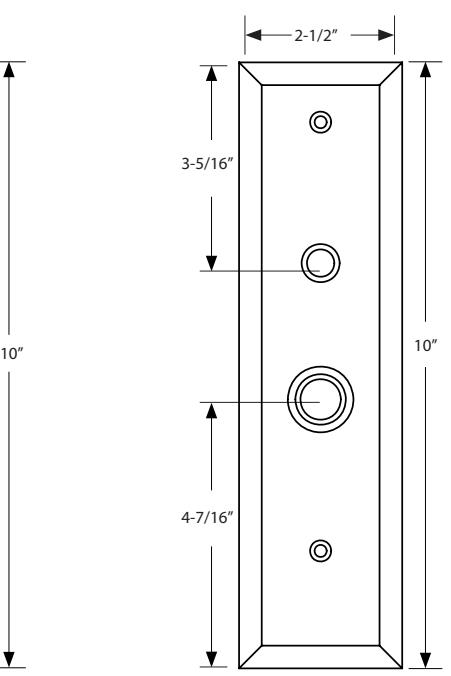

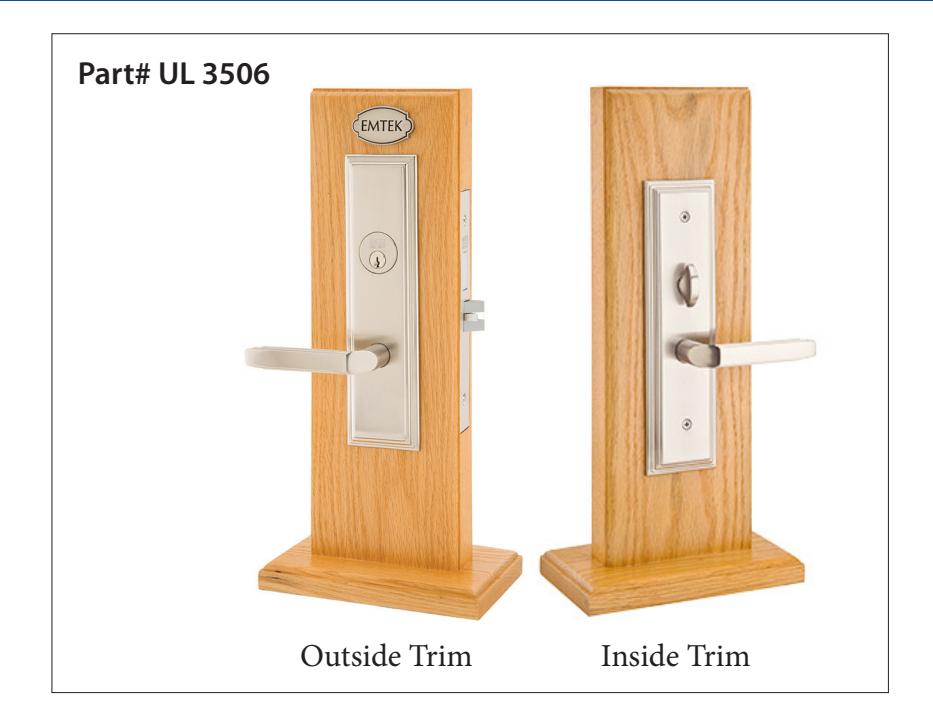

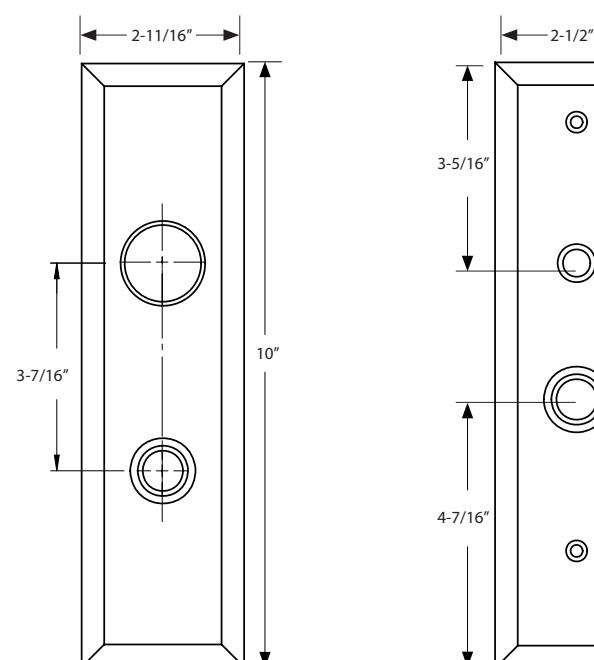

HARRISON MORTISE

UL Mortise Knob by Knob, Lever by Lever Entry Sets

Door Thickness Specifications

Standard Door Thickness: 1-3/4" Standard Components:

  • 1-3⁄8 " Threaded Cylinder
  • 2" Long Spindle
  • 2" Top Rosette Screw
  • 1-1⁄2"Bottom Rosette Screw
  • Thumbpress
  • Strikeplate

Extended Door Thickness: 1-7/8"- 2-1/4"

Extended Components:

  • 1-1⁄2" Threaded Cylinder
  • 2" Long Spindle
  • 2-1⁄2"Top Rosette Screw
  • 2" Bottom Rosette Screw
  • Thumbpress
  • Strikeplate

Extended Door Thickness: 2-3/8"- 2-3/4"

  • 1-3⁄4" Threaded Cylinder
  • 2-1⁄4" Long Spindle
  • 2-1⁄2" Top Rosette Screw
  • 2" Bottom Rosette Screw
  • Extended Thumbpress
  • Extended Strikeplate

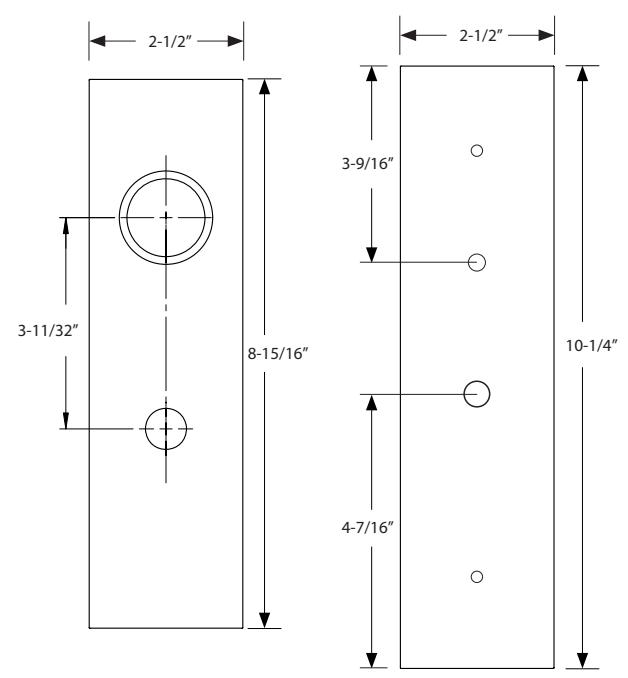

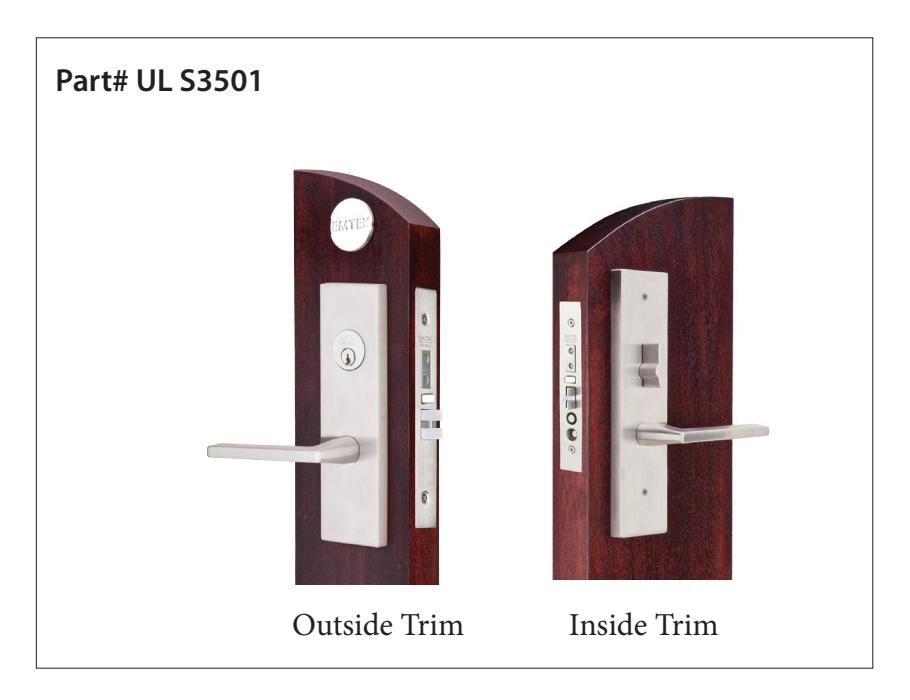

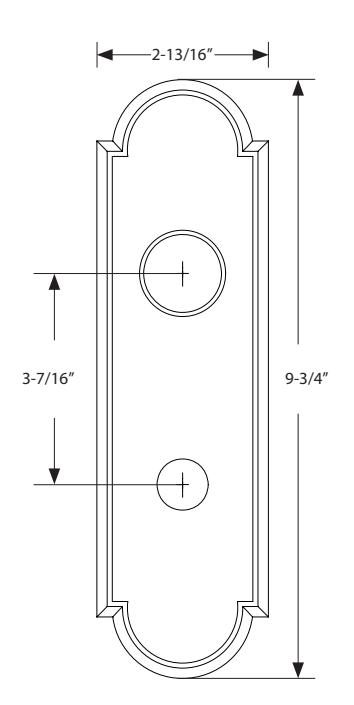

MORMONT STAINLESS STEEL MORTISE

UL Mortise Knob by Knob, Lever by Lever Entry Sets

Door Thickness Specifications

Standard Door Thickness: 1-3/4" Standard Components:

• 1-3⁄8 " Threaded Cylinder

  • 2" Long Spindle
  • 2" Top Rosette Screw
  • 1-1⁄2" Bottom Rosette Screw
  • Thumbpress
  • Strikeplate

Extended Door Thickness: 1-7/8"- 2-1/4"

Extended Components:

  • 1-1⁄2" Threaded Cylinder
  • 2" Long Spindle
  • 2-1⁄2" Top Rosette Screw
  • 2" Bottom Rosette Screw
  • Thumbpress
  • Strikeplate

Extended Door Thickness: 2-3/8"- 2-3/4"

  • 1-3⁄4"Threaded Cylinder
  • 2-1⁄4"Long Spindle
  • 2-1⁄2"Top Rosette Screw
  • 2" Bottom Rosette Screw
  • Extended Thumbpress
  • Extended Strikeplate

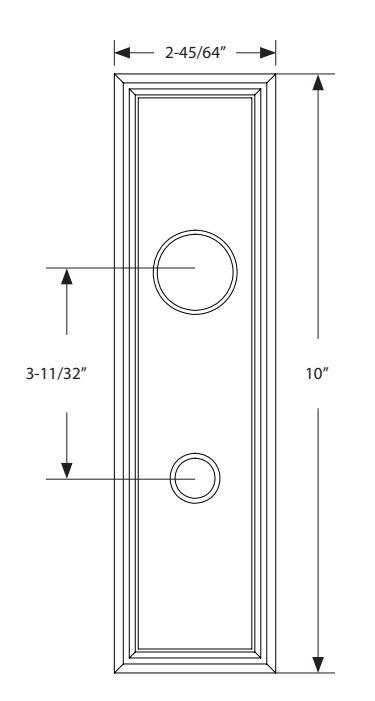

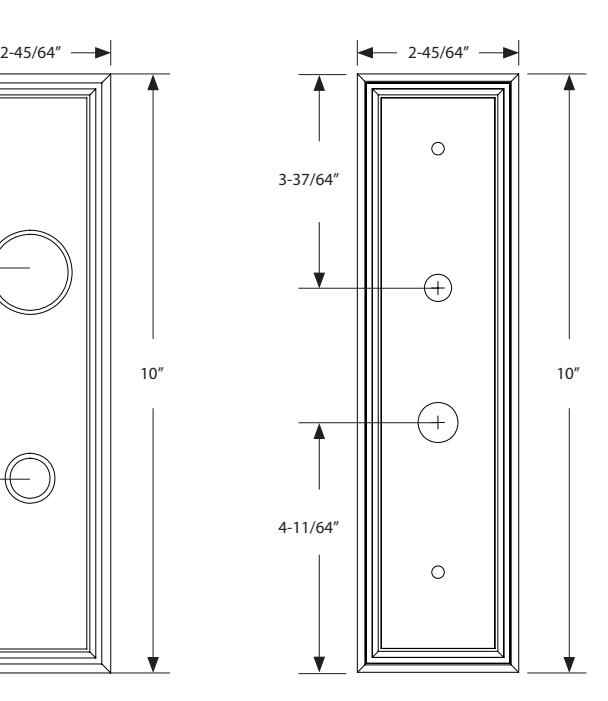

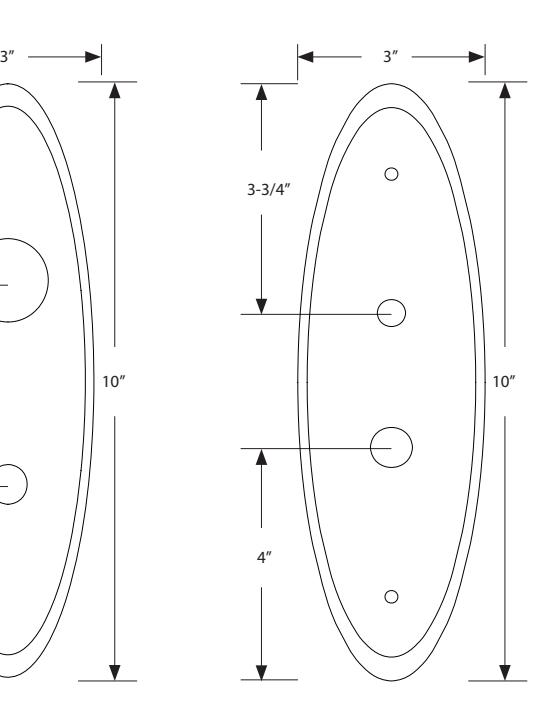

MANHATTAN MORTISE

UL Mortise Knob by Knob, Lever by Lever Entry Sets Technical Specifications

Door Thickness Specifications

Standard Door Thickness: 1-3/4"

Standard Components:

  • 1-3⁄8 " Threaded Cylinder
  • 2" Long Spindle
  • 2" Top Rosette Screw
  • 1-1⁄2" Bottom Rosette Screw
  • Thumbpress
  • Strikeplate

Extended Door Thickness: 1-7/8"- 2-1/4"

Extended Components:

  • 1-1⁄2" Threaded Cylinder
  • 2" Long Spindle
  • 2-1⁄2" Top Rosette Screw
  • 2" Bottom Rosette Screw
  • Thumbpress
  • Strikeplate

Extended Door Thickness: 2-3/8"- 2-3/4"

  • 1-3⁄4"Threaded Cylinder
  • 2-1⁄4"Long Spindle
  • 2-1⁄2"Top Rosette Screw
  • 2" Bottom Rosette Screw
  • Extended Thumbpress
  • Extended Strikeplate

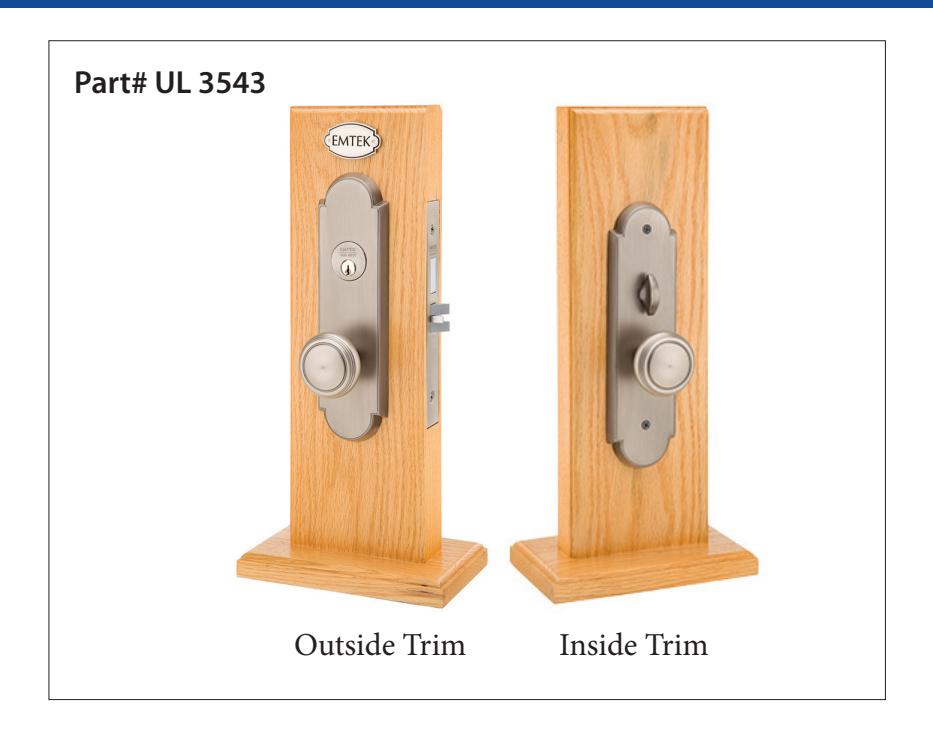

CHARLESTON MORTISE

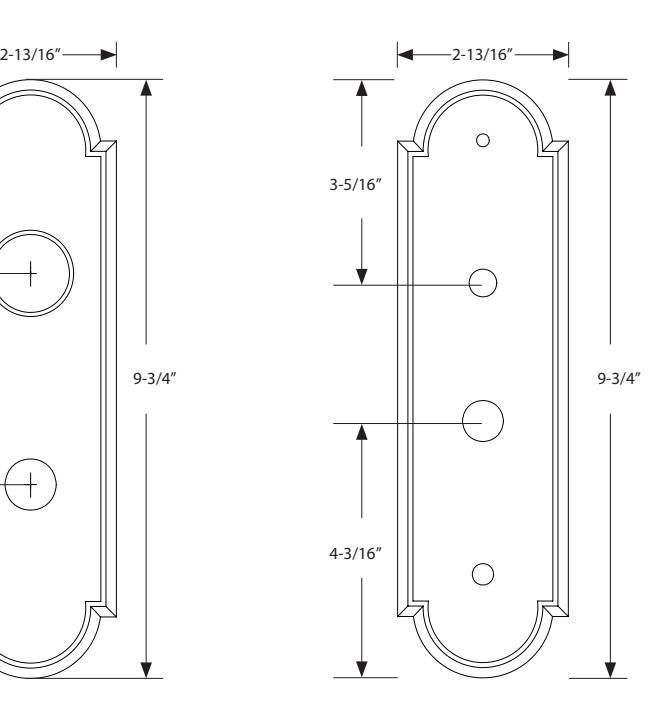

UL Mortise Knob by Knob, Lever by Lever Entry Sets Technical Specifications

Door Thickness Specifications

Standard Door Thickness: 1-3/4"

Standard Components: • 1-3⁄8 " Threaded Cylinder

  • 2" Long Spindle
  • 2" Top Rosette Screw
  • 1-1⁄2" Bottom Rosette Screw
  • Thumbpress
  • Strikeplate

Extended Door Thickness: 1-7/8"- 2-1/4"

Extended Components:

  • 1-1⁄2" Threaded Cylinder
  • 2" Long Spindle
  • 2-1⁄2" Top Rosette Screw
  • 2" Bottom Rosette Screw
  • Thumbpress
  • Strikeplate

Extended Door Thickness: 2-3/8"- 2-3/4"

  • 1-3⁄4"Threaded Cylinder
  • 2-1⁄4"Long Spindle
  • 2-1⁄2"Top Rosette Screw
  • 2" Bottom Rosette Screw
  • Extended Thumbpress
  • Extended Strikeplate

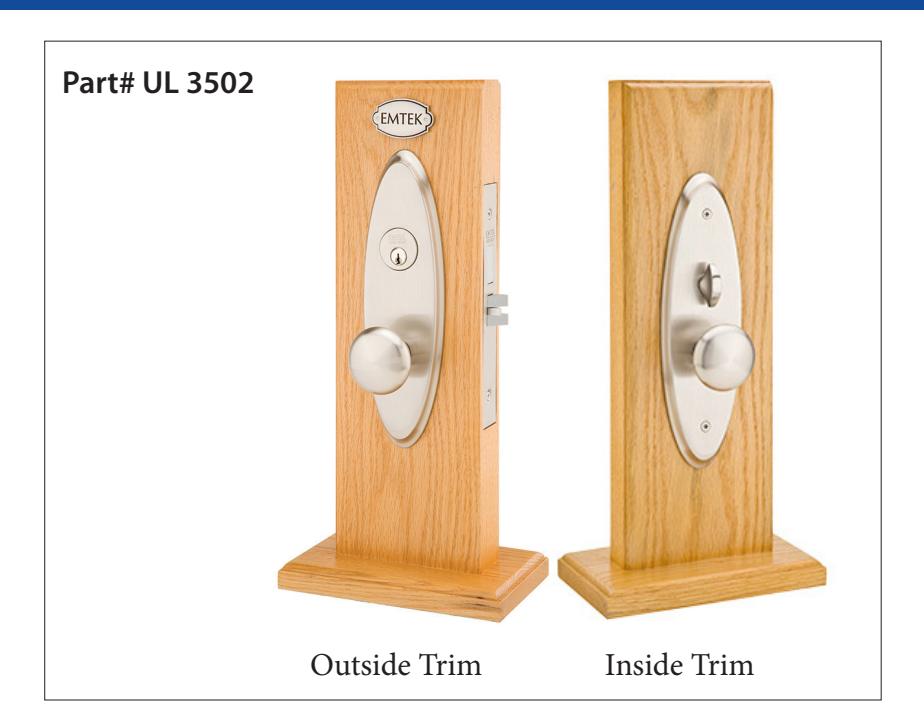

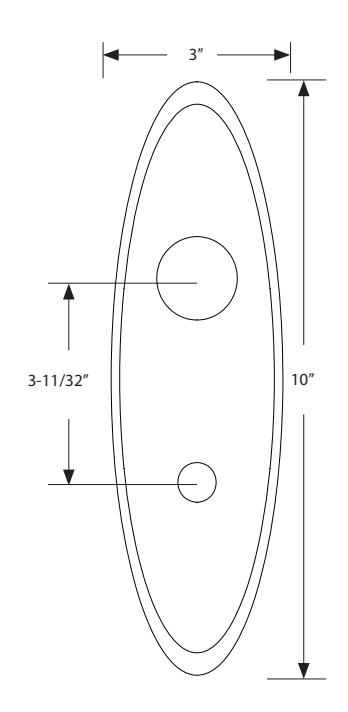

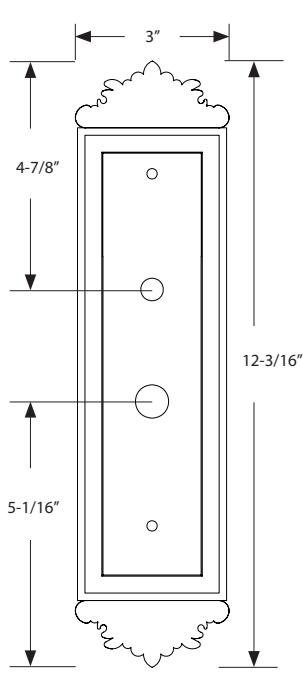

MEMPHIS MORTISE

UL Mortise Knob by Knob, Lever by Lever Entry Sets Technical Specifications

Door Thickness Specifications

Standard Door Thickness: 1-3/4" Standard Components:

  • 1-3⁄8 " Threaded Cylinder
  • 2" Long Spindle
  • 2" Top Rosette Screw
  • 1-1⁄2"Bottom Rosette Screw
  • Thumbpress
  • Strikeplate

Extended Door Thickness: 1-7/8"- 2-1/4"

Extended Components:

  • 1-1⁄2" Threaded Cylinder
  • 2" Long Spindle
  • 2-1⁄2"Top Rosette Screw
  • 2" Bottom Rosette Screw
  • Thumbpress
  • Strikeplate

Extended Door Thickness: 2-3/8"- 2-3/4"

  • 1-3⁄4" Threaded Cylinder
  • 2-1⁄4" Long Spindle
  • 2-1⁄2" Top Rosette Screw
  • 2" Bottom Rosette Screw
  • Extended Thumbpress
  • Extended Strikeplate

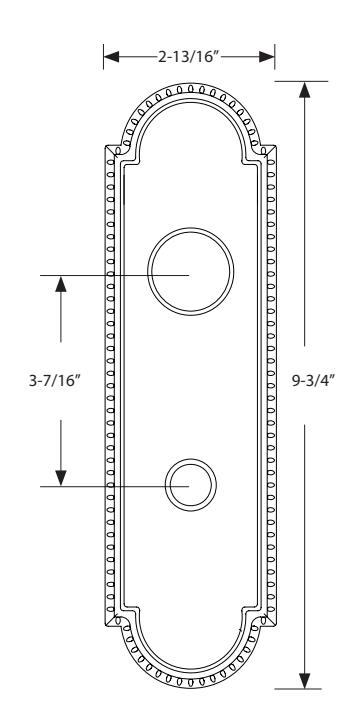

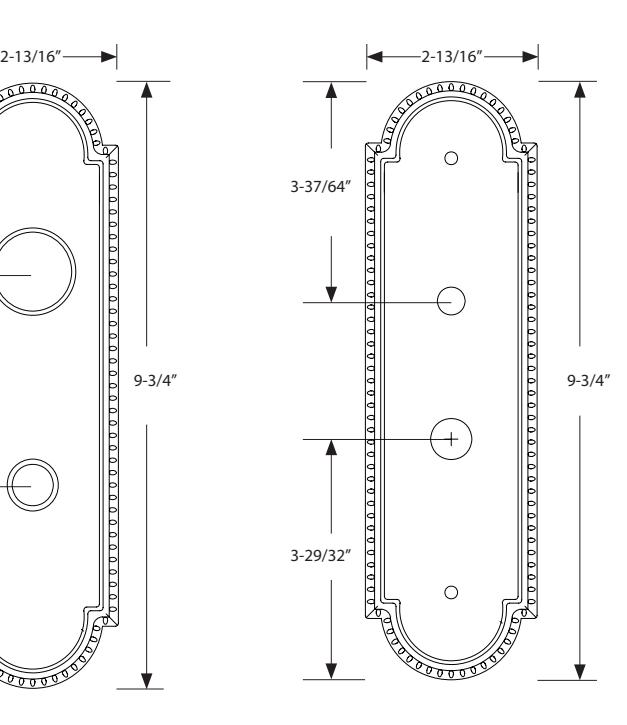

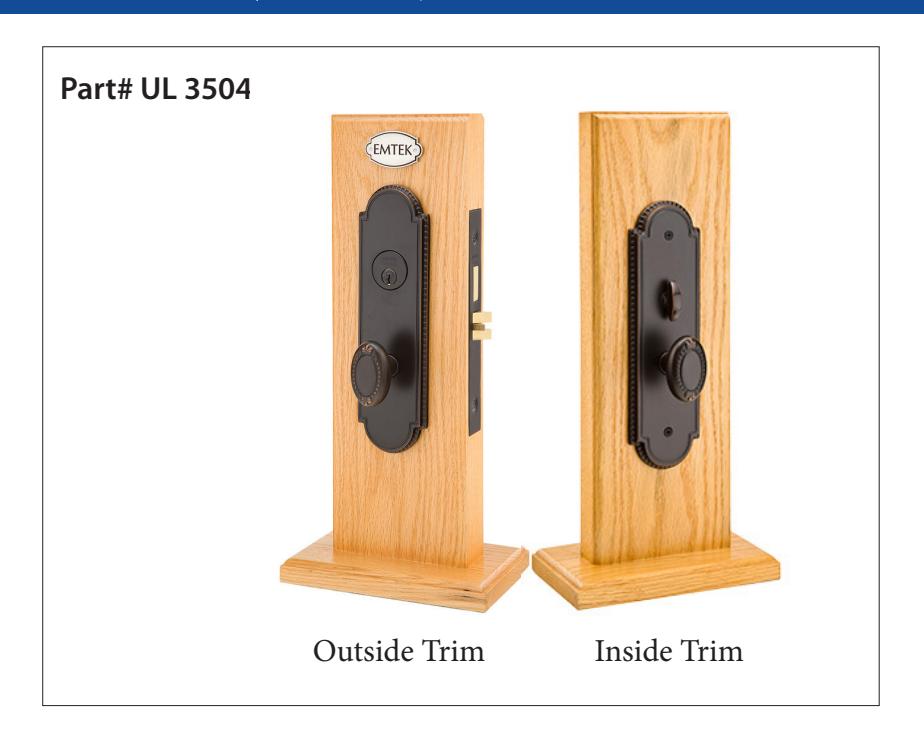

HAMILTON MORTISE

UL Mortise Knob by Knob, Lever by Lever Entry Sets Technical Specifications

Door Thickness Specifications

Standard Door Thickness: 1-3/4" Standard Components:

  • 1-3⁄8 " Threaded Cylinder
  • 2" Long Spindle
  • 2" Top Rosette Screw
  • 1-1⁄2"Bottom Rosette Screw
  • Thumbpress
  • Strikeplate

Extended Door Thickness: 1-7/8"- 2-1/4"

Extended Components:

  • 1-1⁄2" Threaded Cylinder
  • 2" Long Spindle
  • 2-1⁄2"Top Rosette Screw
  • 2" Bottom Rosette Screw
  • Thumbpress
  • Strikeplate

Extended Door Thickness: 2-3/8"- 2-3/4"

  • 1-3⁄4" Threaded Cylinder
  • 2-1⁄4" Long Spindle
  • 2-1⁄2" Top Rosette Screw
  • 2" Bottom Rosette Screw
  • Extended Thumbpress
  • Extended Strikeplate

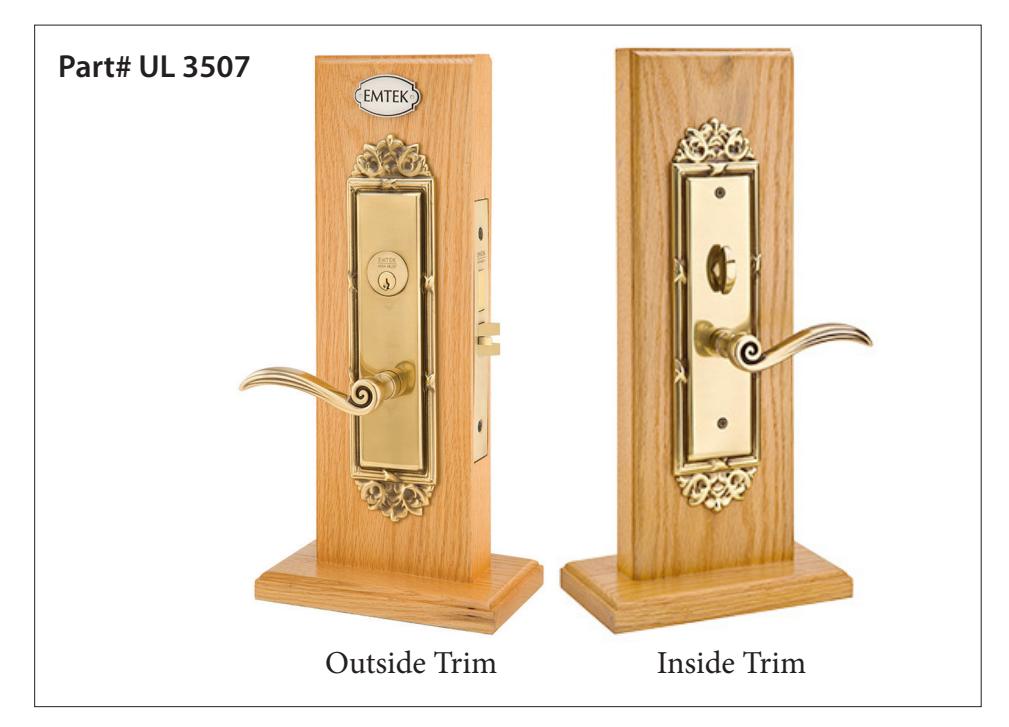

REGENCY MORTISE

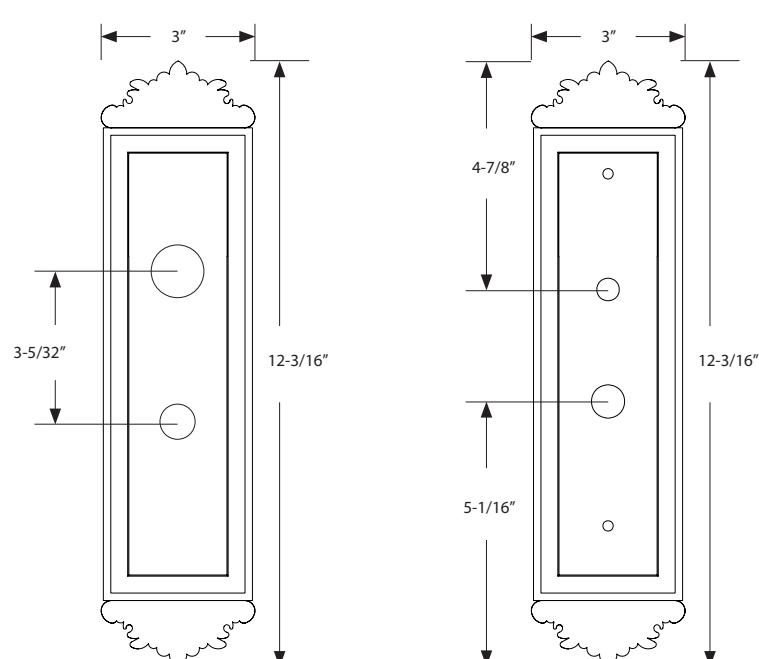

UL Mortise Knob by Knob, Lever by Lever Entry Sets Technical Specifications

Door Thickness Specifications

Standard Door Thickness: 1-3/4" Standard Components:

  • 1-3⁄8 " Threaded Cylinder
  • 2" Long Spindle
  • 2" Top Rosette Screw
  • 1-1⁄2" Bottom Rosette Screw
  • Thumbpress
  • Strikeplate

Extended Door Thickness: 1-7/8"- 2-1/4"

Extended Components:

  • 1-1⁄2" Threaded Cylinder
  • 2" Long Spindle
  • 2-1⁄2" Top Rosette Screw
  • 2" Bottom Rosette Screw
  • Thumbpress
  • Strikeplate

Extended Door Thickness: 2-3/8"- 2-3/4"

  • 1-3⁄4"Threaded Cylinder
  • 2-1⁄4"Long Spindle
  • 2-1⁄2"Top Rosette Screw
  • 2" Bottom Rosette Screw
  • Extended Thumbpress
  • Extended Strikeplate

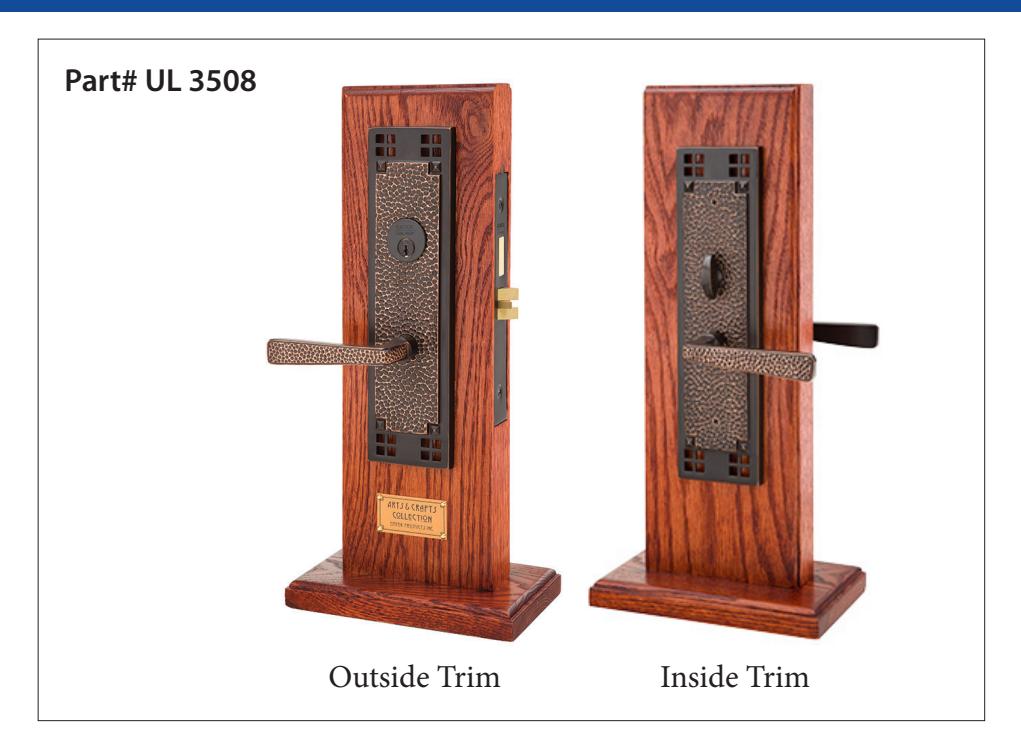

CRAFTMAN MORTISE

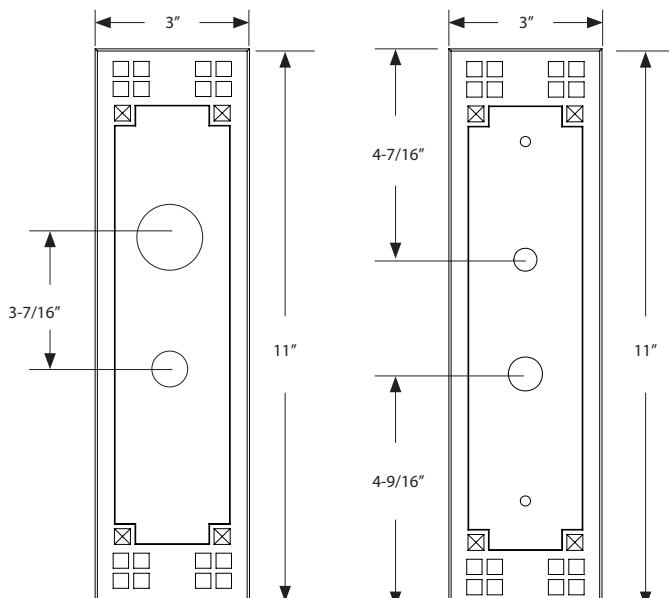

UL Mortise Knob by Knob, Lever by Lever Entry Sets Technical Specifications

Door Thickness Specifications

Standard Door Thickness: 1-3/4" Standard Components:

  • 1-3⁄8 " Threaded Cylinder
  • 2" Long Spindle
  • 2" Top Rosette Screw
  • 1-1⁄2"Bottom Rosette Screw
  • Thumbpress
  • Strikeplate

Extended Door Thickness: 1-7/8"- 2-1/4"

Extended Components:

  • 1-1⁄2" Threaded Cylinder
  • 2" Long Spindle
  • 2-1⁄2"Top Rosette Screw
  • 2" Bottom Rosette Screw
  • Thumbpress
  • Strikeplate

Extended Door Thickness: 2-3/8"- 2-3/4"

  • 1-3⁄4" Threaded Cylinder
  • 2-1⁄4" Long Spindle
  • 2-1⁄2" Top Rosette Screw
  • 2" Bottom Rosette Screw
  • Extended Thumbpress
  • Extended Strikeplate

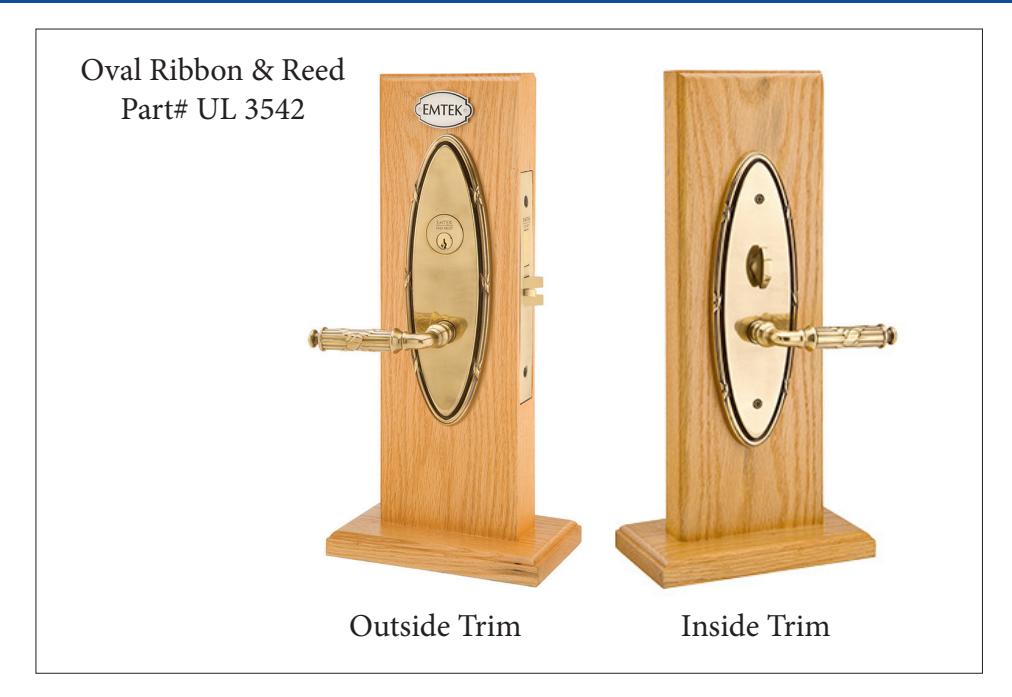

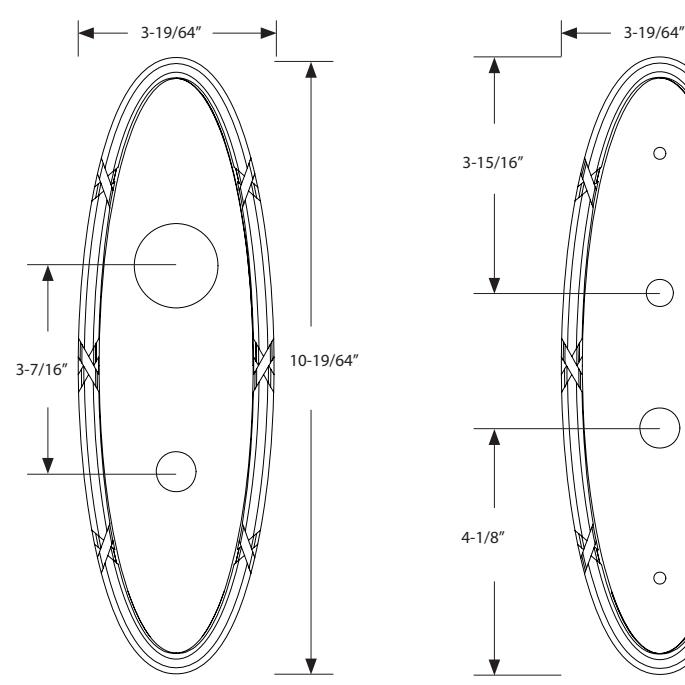

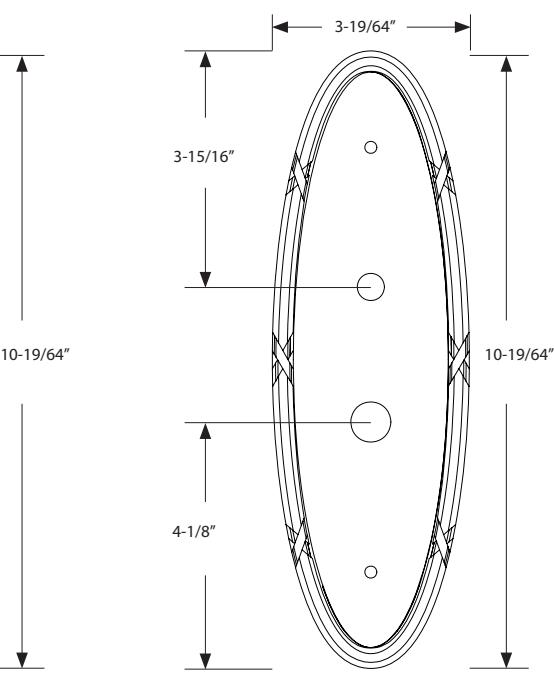

Door Thickness Specifications

Standard Door Thickness: 1-3/4" Standard Components:

  • 1-3⁄8 " Threaded Cylinder
  • 2" Long Spindle
  • 2" Top Rosette Screw
  • 1-1⁄2" Bottom Rosette Screw
  • Thumbpress
  • Strikeplate

Extended Door Thickness: 1-7/8"- 2-1/4"

Extended Components:

  • 1-1⁄2" Threaded Cylinder
  • 2" Long Spindle
  • 2-1⁄2" Top Rosette Screw
  • 2" Bottom Rosette Screw
  • Thumbpress
  • Strikeplate

Extended Door Thickness: 2-3/8"- 2-3/4"

  • 1-3⁄4"Threaded Cylinder
  • 2-1⁄4"Long Spindle
  • 2-1⁄2"Top Rosette Screw
  • 2" Bottom Rosette Screw
  • Extended Thumbpress
  • Extended Strikeplate

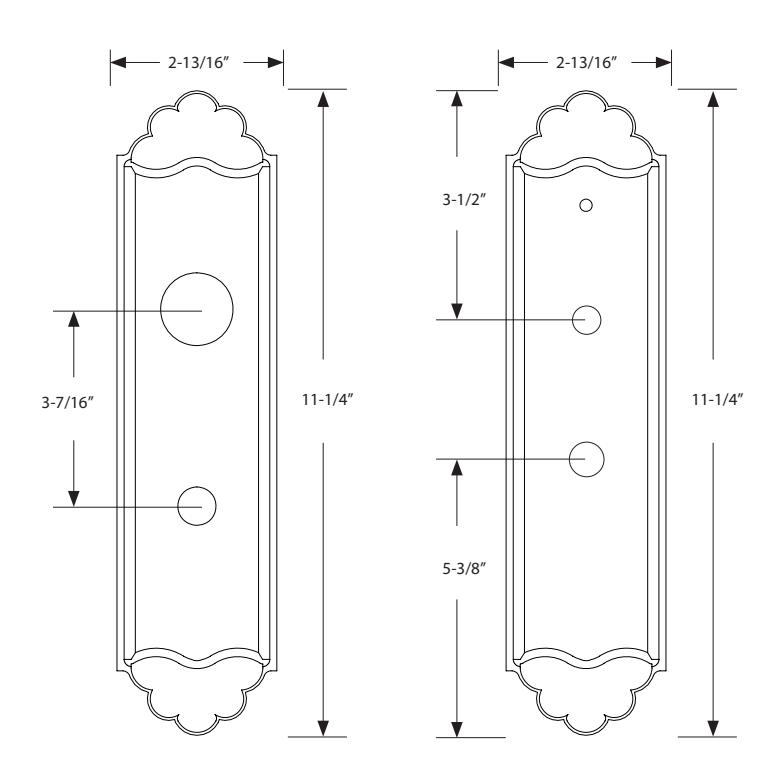

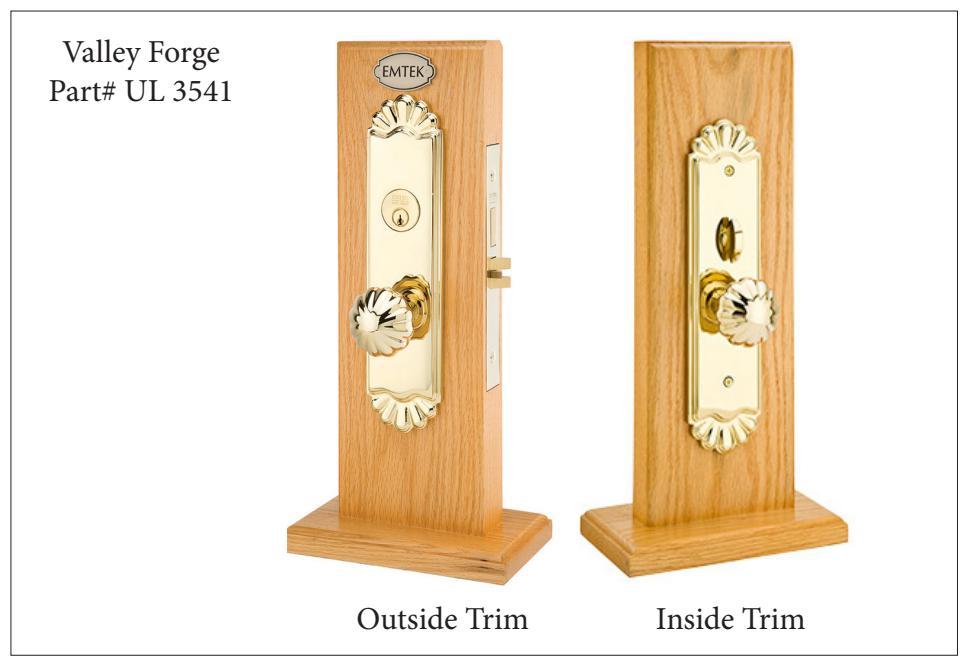

Standard Door Thickness: 1-3/4" Standard Components:

  • 1-3⁄8 " Threaded Cylinder
  • 2" Long Spindle
  • 2" Top Rosette Screw
  • 1-1⁄2"Bottom Rosette Screw
  • Thumbpress
  • Strikeplate

Extended Door Thickness: 1-7/8"- 2-1/4"

Door Thickness Specifications

Extended Components:

  • 1-1⁄2" Threaded Cylinder
  • 2" Long Spindle
  • 2-1⁄2"Top Rosette Screw
  • 2" Bottom Rosette Screw
  • Thumbpress
  • Strikeplate

Extended Door Thickness: 2-3/8"- 2-3/4"

  • 1-3⁄4" Threaded Cylinder
  • 2-1⁄4" Long Spindle
  • 2-1⁄2" Top Rosette Screw
  • 2" Bottom Rosette Screw
  • Extended Thumbpress
  • Extended Strikeplate

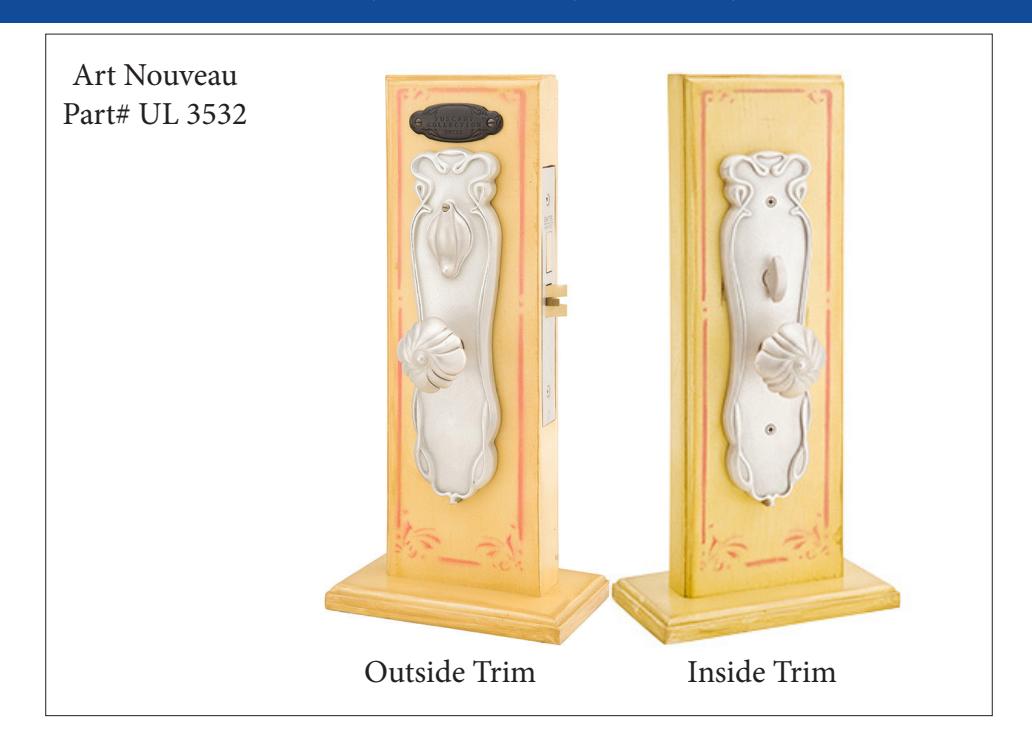

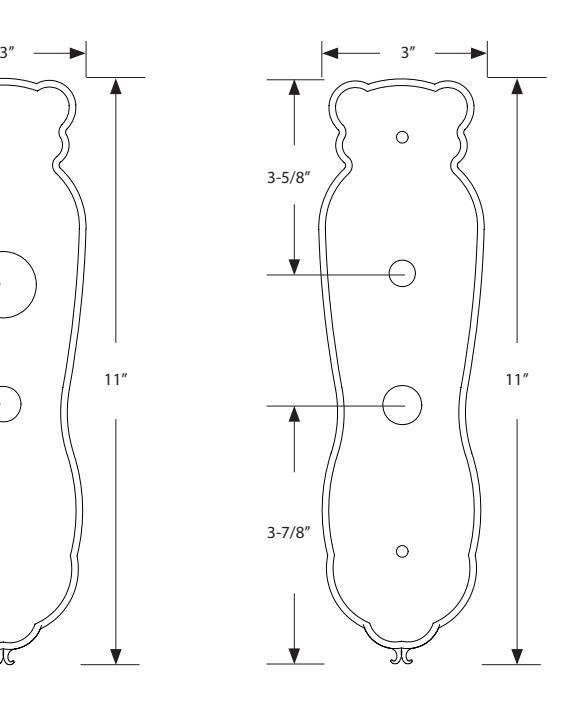

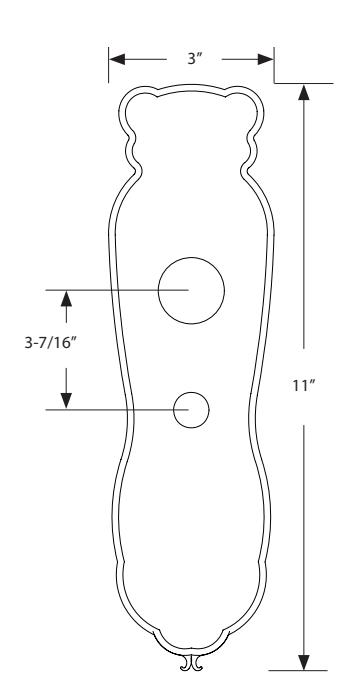

Door Thickness Specifications

Standard Door Thickness: 1-3/4" Standard Components:

  • 1-3⁄8 " Threaded Cylinder
  • 2" Long Spindle
  • 2" Top Rosette Screw
  • 1-1⁄2"Bottom Rosette Screw
  • Thumbpress
  • Strikeplate

Extended Door Thickness: 1-7/8"- 2-1/4"

Extended Components:

  • 1-1⁄2" Threaded Cylinder
  • 2" Long Spindle
  • 2-1⁄2"Top Rosette Screw
  • 2" Bottom Rosette Screw
  • Thumbpress
  • Strikeplate

Extended Door Thickness: 2-3/8"- 2-3/4"

  • 1-3⁄4" Threaded Cylinder
  • 2-1⁄4" Long Spindle
  • 2-1⁄2" Top Rosette Screw
  • 2" Bottom Rosette Screw
  • Extended Thumbpress
  • Extended Strikeplate

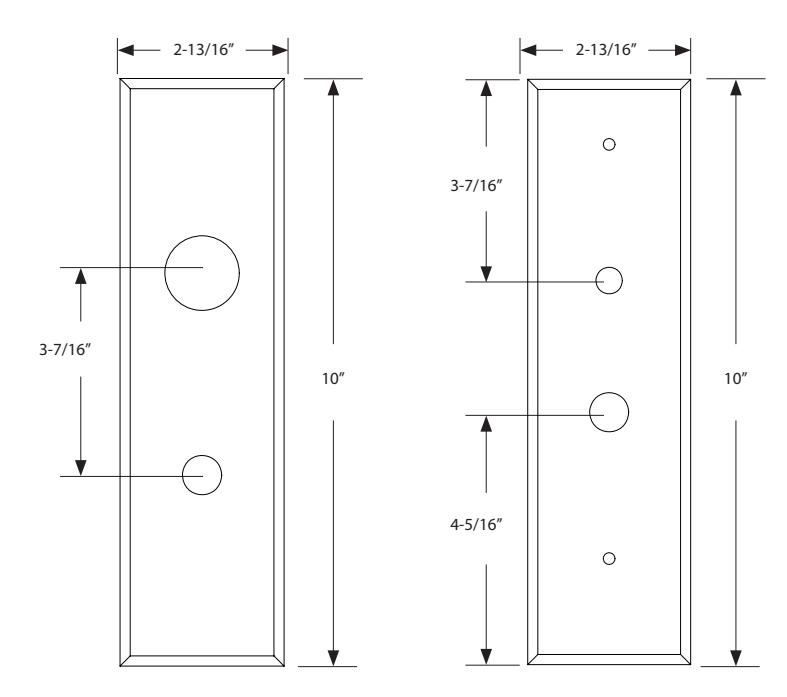

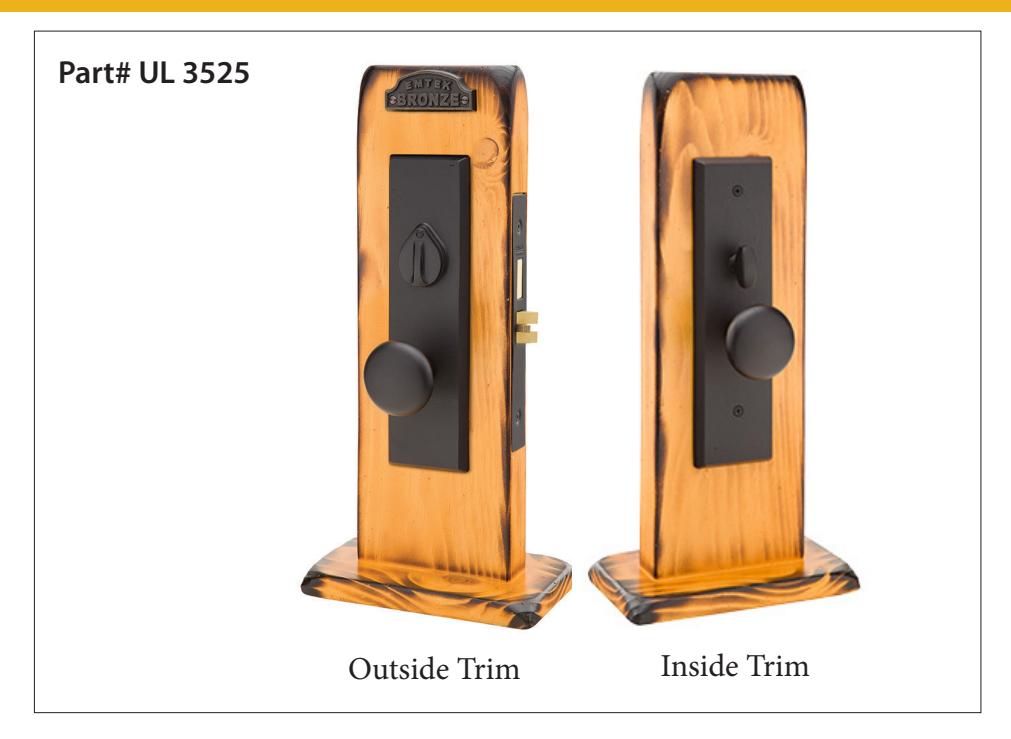

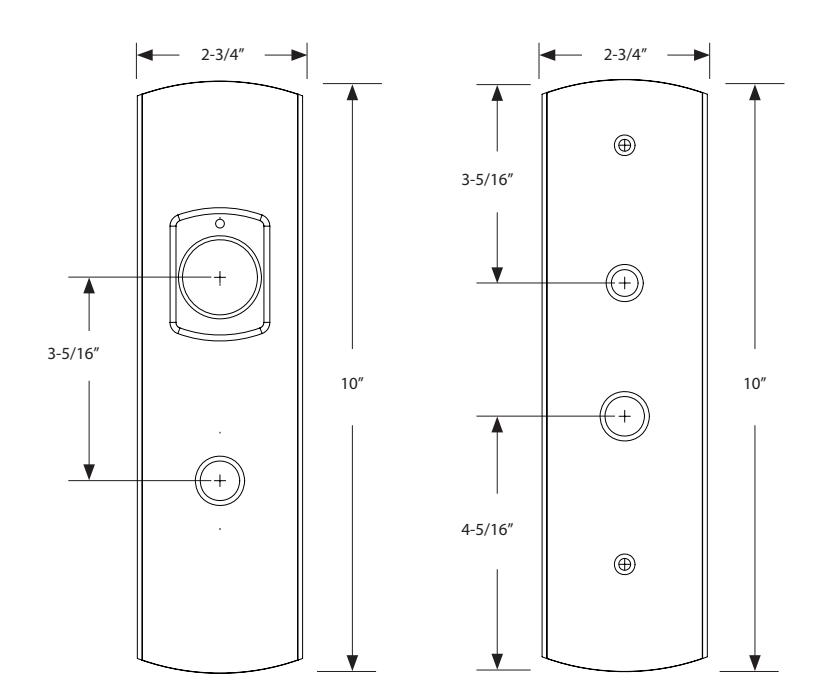

RECTANGULAR MORTISE

Standard Door Thickness: 1-3/4"

Standard Components:

  • 1-3⁄8 " Threaded Cylinder
  • 2" Long Spindle
  • 2" Top Rosette Screw
  • 1-1⁄2" Bottom Rosette Screw
  • Thumbpress
  • Strikeplate

Door Thickness Specifications

Extended Door Thickness: 1-7/8"- 2-1/4"

Extended Components:

  • 1-1⁄2" Threaded Cylinder
  • 2" Long Spindle
  • 2-1⁄2" Top Rosette Screw
  • 2" Bottom Rosette Screw
  • Thumbpress
  • Strikeplate

Extended Door Thickness: 2-3/8"- 2-3/4"

  • 1-3⁄4"Threaded Cylinder
  • 2-1⁄4"Long Spindle
  • 2-1⁄2"Top Rosette Screw
  • 2" Bottom Rosette Screw
  • Extended Thumbpress
  • Extended Strikeplate

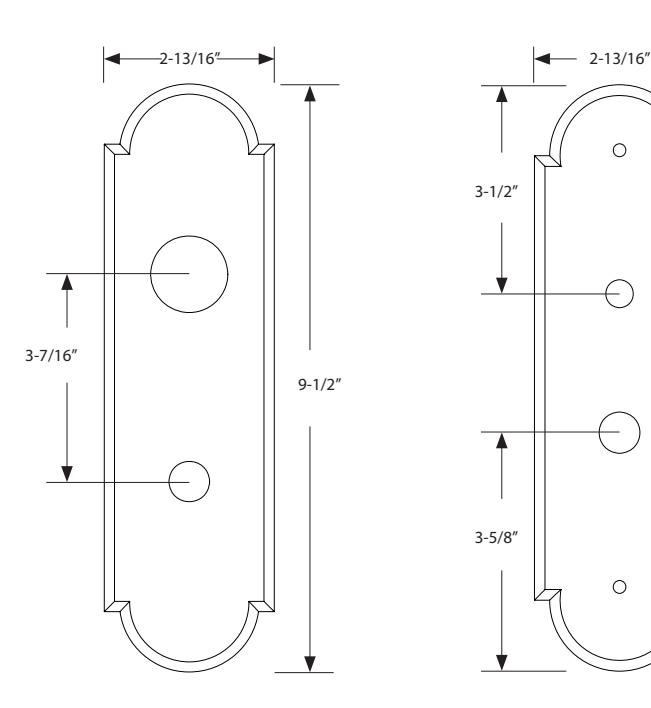

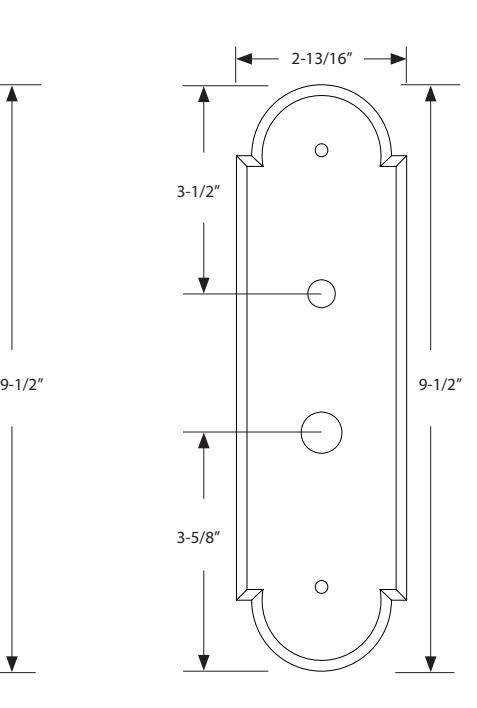

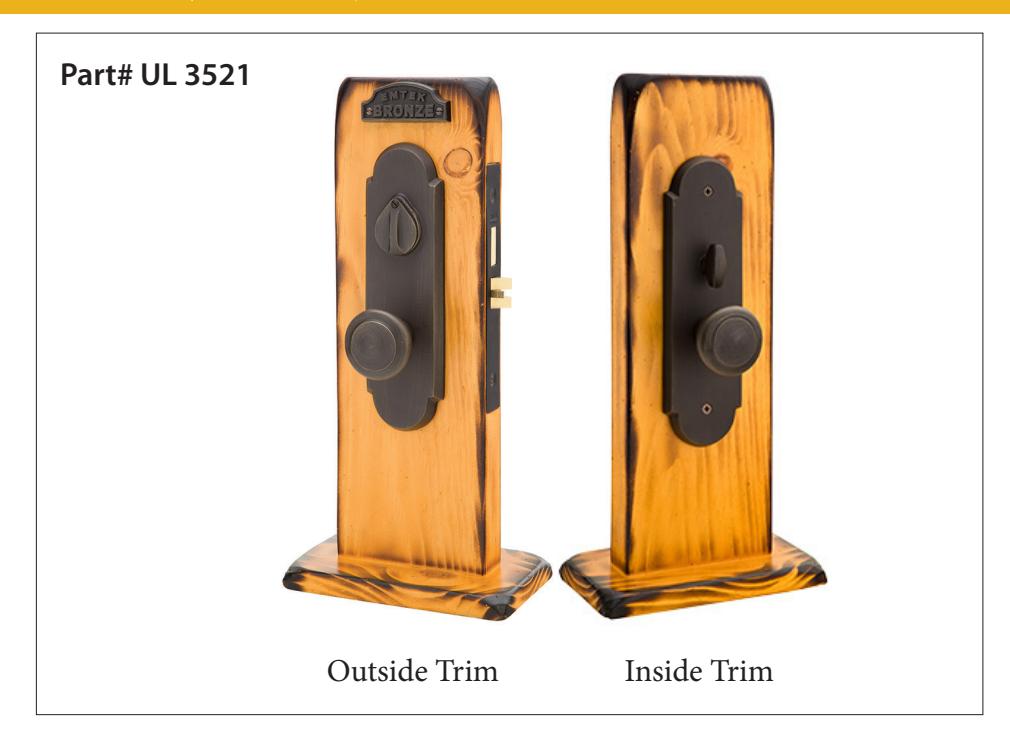

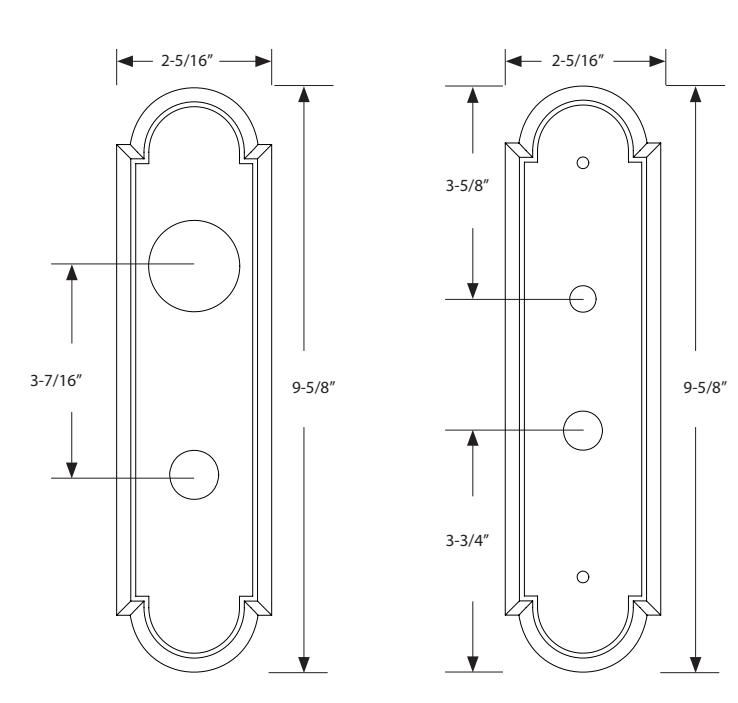

CHEYENNE MORTISE

Door Thickness Specifications

Standard Door Thickness: 1-3/4"

Standard Components:

  • 1-3⁄8 " Threaded Cylinder
  • 2" Long Spindle
  • 2" Top Rosette Screw
  • 1-1⁄2" Bottom Rosette Screw
  • Thumbpress
  • Strikeplate

Extended Door Thickness: 1-7/8"- 2-1/4"

Extended Components:

  • 1-1⁄2" Threaded Cylinder
  • 2" Long Spindle
  • 2-1⁄2" Top Rosette Screw
  • 2" Bottom Rosette Screw
  • Thumbpress
  • Strikeplate

Extended Door Thickness: 2-3/8"- 2-3/4"

  • 1-3⁄4"Threaded Cylinder
  • 2-1⁄4"Long Spindle
  • 2-1⁄2"Top Rosette Screw
  • 2" Bottom Rosette Screw
  • Extended Thumbpress
  • Extended Strikeplate

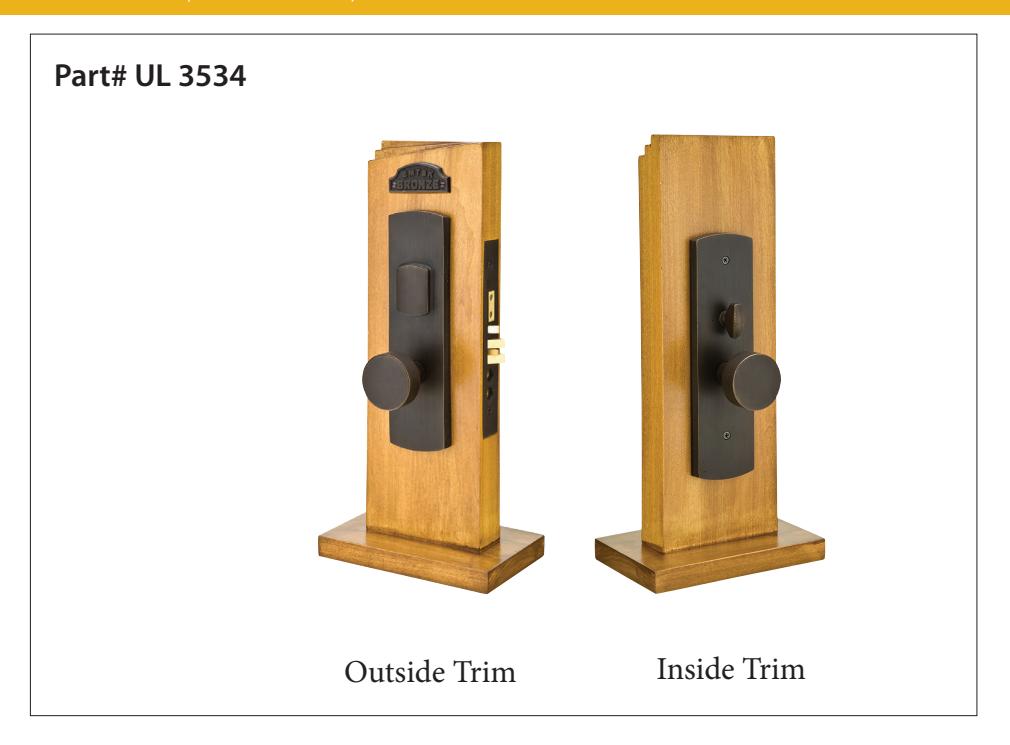

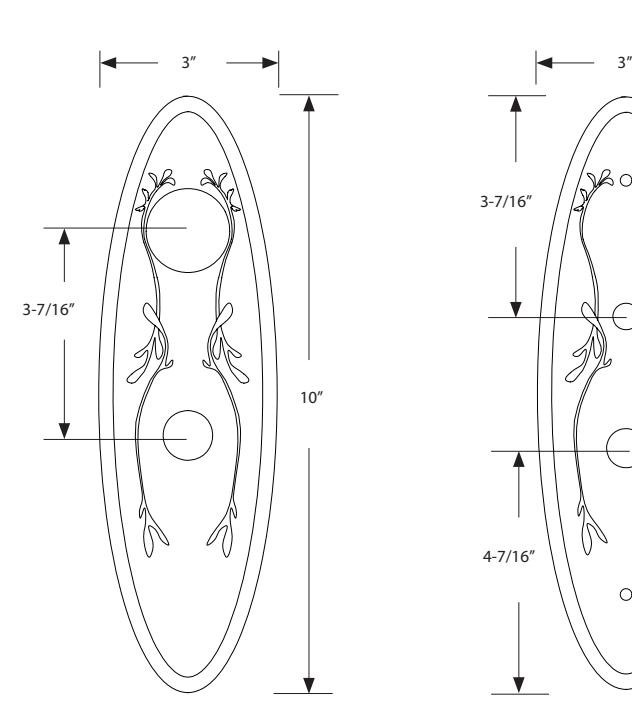

HAILEY MORTISE

Door Thickness Specifications

Standard Door Thickness: 1-3/4" Standard Components:

  • 1-3⁄8 " Threaded Cylinder
  • 2" Long Spindle
  • 2" Top Rosette Screw
  • 1-1⁄2"Bottom Rosette Screw
  • Thumbpress
  • Strikeplate

Extended Door Thickness: 1-7/8"- 2-1/4"

Extended Components:

  • 1-1⁄2" Threaded Cylinder
  • 2" Long Spindle
  • 2-1⁄2"Top Rosette Screw
  • 2" Bottom Rosette Screw
  • Thumbpress
  • Strikeplate

Extended Door Thickness: 2-3/8"- 2-3/4"

  • 1-3⁄4" Threaded Cylinder
  • 2-1⁄4" Long Spindle
  • 2-1⁄2" Top Rosette Screw
  • 2" Bottom Rosette Screw
  • Extended Thumbpress
  • Extended Strikeplate

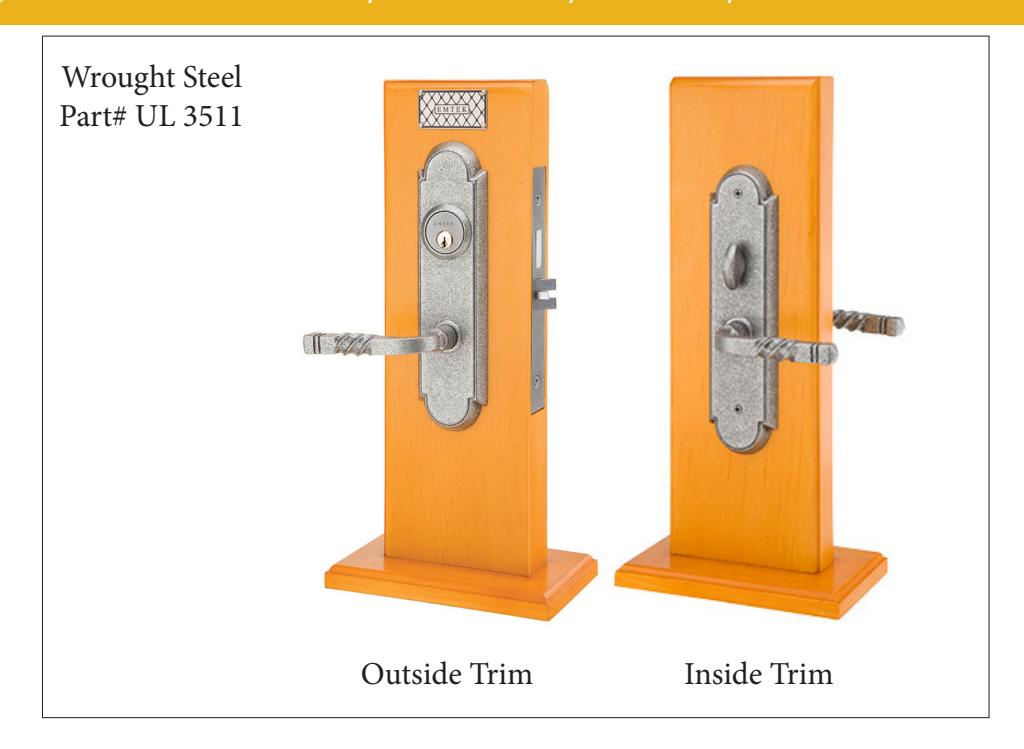

Standard Door Thickness: 1-3/4" Standard Components:

  • 1-3⁄8 " Threaded Cylinder
  • 2" Long Spindle
  • 2" Top Rosette Screw
  • 1-1⁄2"Bottom Rosette Screw
  • Thumbpress
  • Strikeplate

Extended Door Thickness: 1-7/8"- 2-1/4"

Door Thickness Specifications

Extended Components:

  • 1-1⁄2" Threaded Cylinder
  • 2" Long Spindle
  • 2-1⁄2"Top Rosette Screw
  • 2" Bottom Rosette Screw
  • Thumbpress
  • Strikeplate

Extended Door Thickness: 2-3/8"- 2-3/4"

  • 1-3⁄4" Threaded Cylinder
  • 2-1⁄4" Long Spindle
  • 2-1⁄2" Top Rosette Screw
  • 2" Bottom Rosette Screw
  • Extended Thumbpress
  • Extended Strikeplate

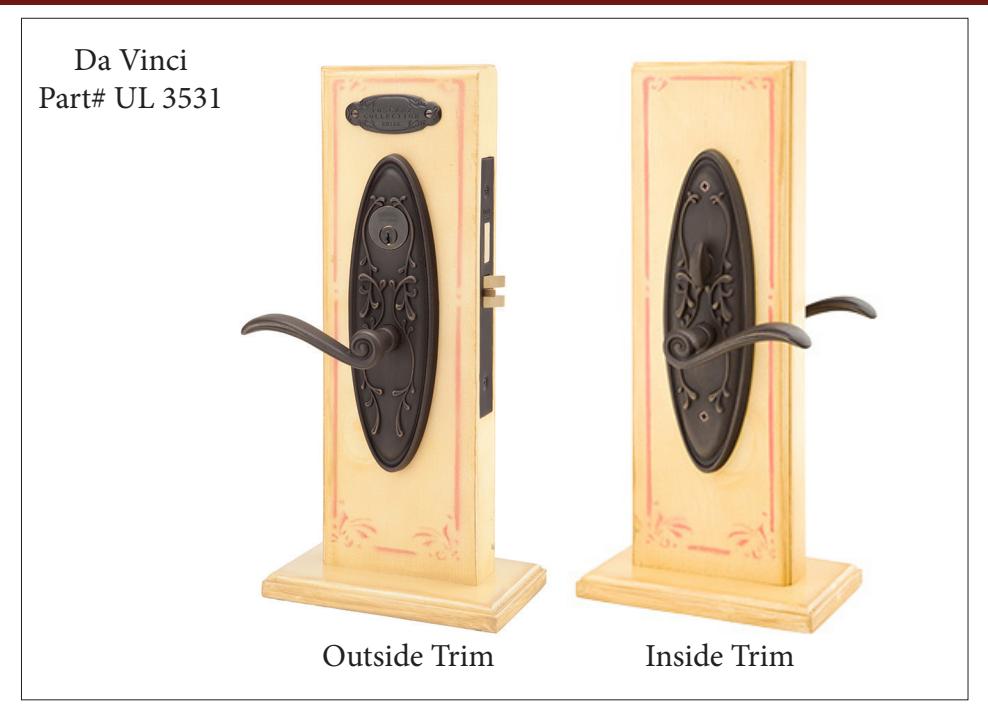

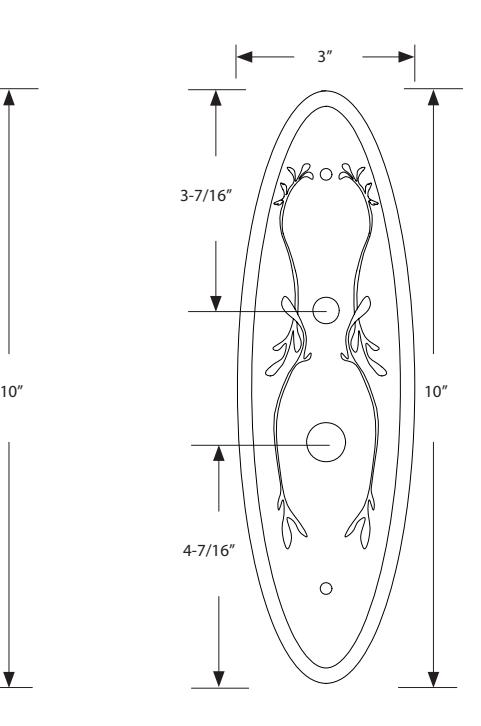

DA VINCI MORTISE

UL Mortise Knob by Knob, Lever by Lever Entry Sets Technical Specifications

Door Thickness Specifications

Standard Door Thickness: 1-3/4"

Standard Components:

  • 1-3⁄8 " Threaded Cylinder
  • 2" Long Spindle
  • 2" Top Rosette Screw
  • 1-1⁄2" Bottom Rosette Screw
  • Thumbpress
  • Strikeplate

Extended Door Thickness: 1-7/8"- 2-1/4"

Extended Components:

  • 1-1⁄2" Threaded Cylinder
  • 2" Long Spindle
  • 2-1⁄2" Top Rosette Screw
  • 2" Bottom Rosette Screw
  • Thumbpress
  • Strikeplate

Extended Door Thickness: 2-3/8"- 2-3/4"

  • 1-3⁄4"Threaded Cylinder
  • 2-1⁄4"Long Spindle
  • 2-1⁄2"Top Rosette Screw
  • 2" Bottom Rosette Screw
  • Extended Thumbpress
  • Extended Strikeplate

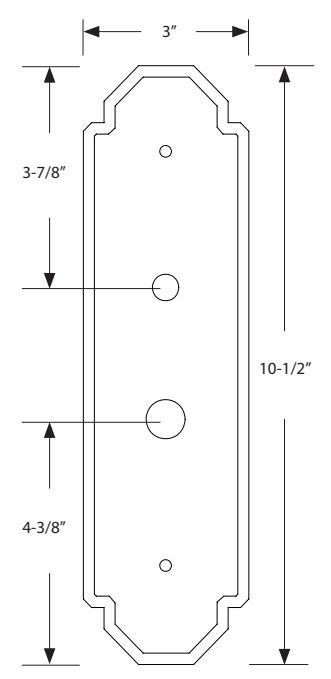

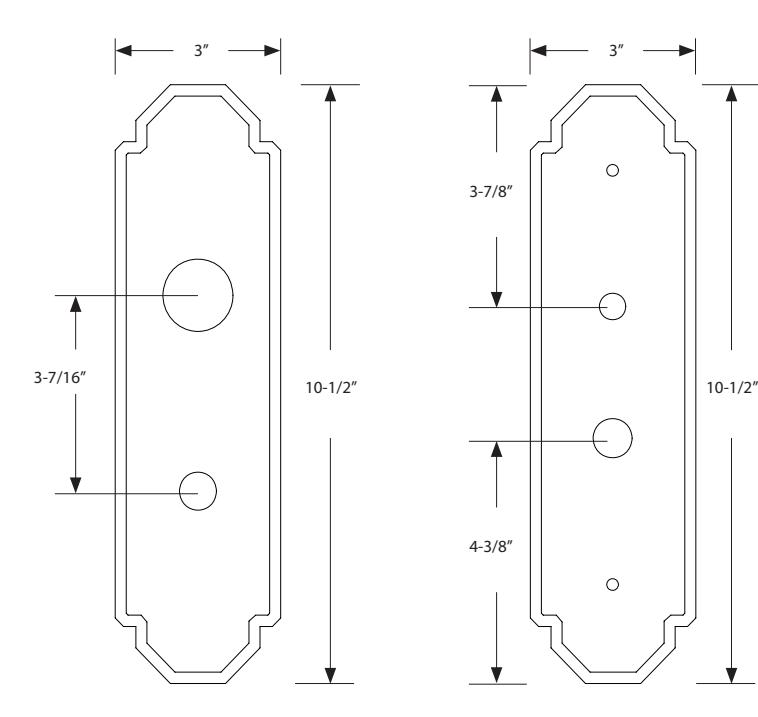

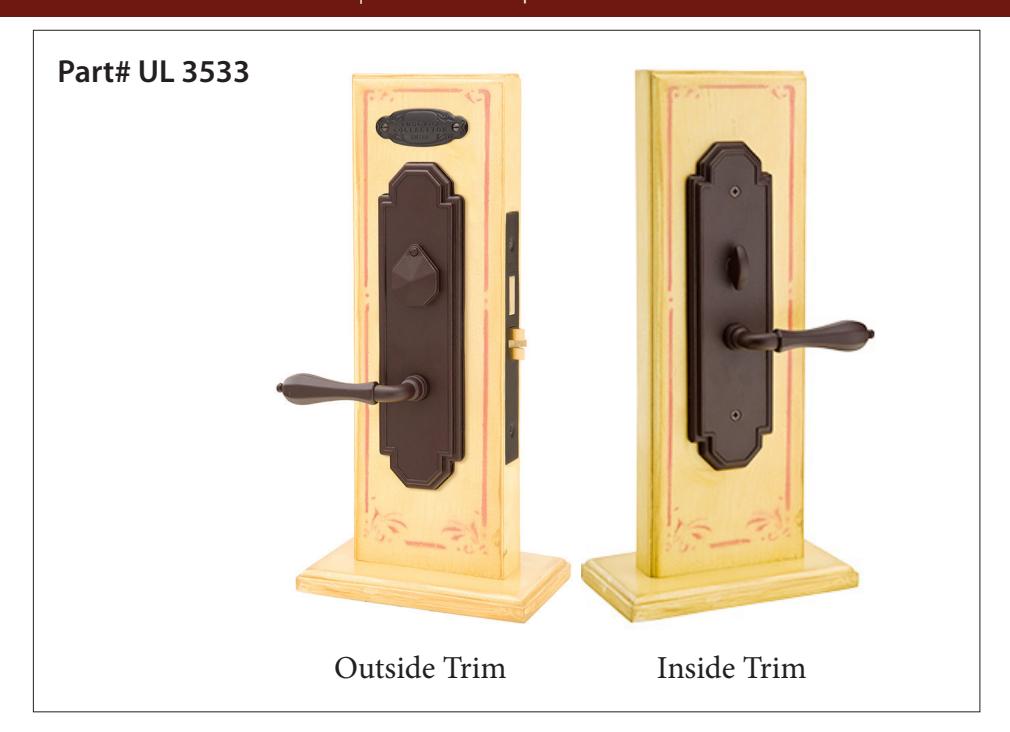

OCTAGON MORTISE

UL Mortise Knob by Knob, Lever by Lever Entry Sets Technical Specifications

Door Thickness Specifications

Standard Door Thickness: 1-3/4" Standard Components:

  • 1-3⁄8 " Threaded Cylinder
  • 2" Long Spindle
  • 2" Top Rosette Screw
  • 1-1⁄2"Bottom Rosette Screw
  • Thumbpress
  • Strikeplate

Extended Door Thickness: 1-7/8"- 2-1/4"

Extended Components:

  • 1-1⁄2" Threaded Cylinder
  • 2" Long Spindle
  • 2-1⁄2"Top Rosette Screw
  • 2" Bottom Rosette Screw
  • Thumbpress
  • Strikeplate

Extended Door Thickness: 2-3/8"- 2-3/4"

  • 1-3⁄4" Threaded Cylinder
  • 2-1⁄4" Long Spindle
  • 2-1⁄2" Top Rosette Screw
  • 2" Bottom Rosette Screw
  • Extended Thumbpress
  • Extended Strikeplate
