Emtek Deadbolts Dimensions Door Thickness Specifications

STAINLESS STEEL DEADBOLT SPECIFICATIONS

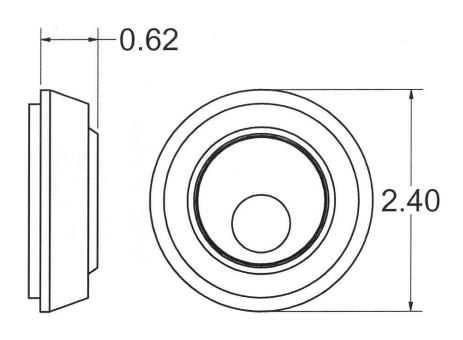

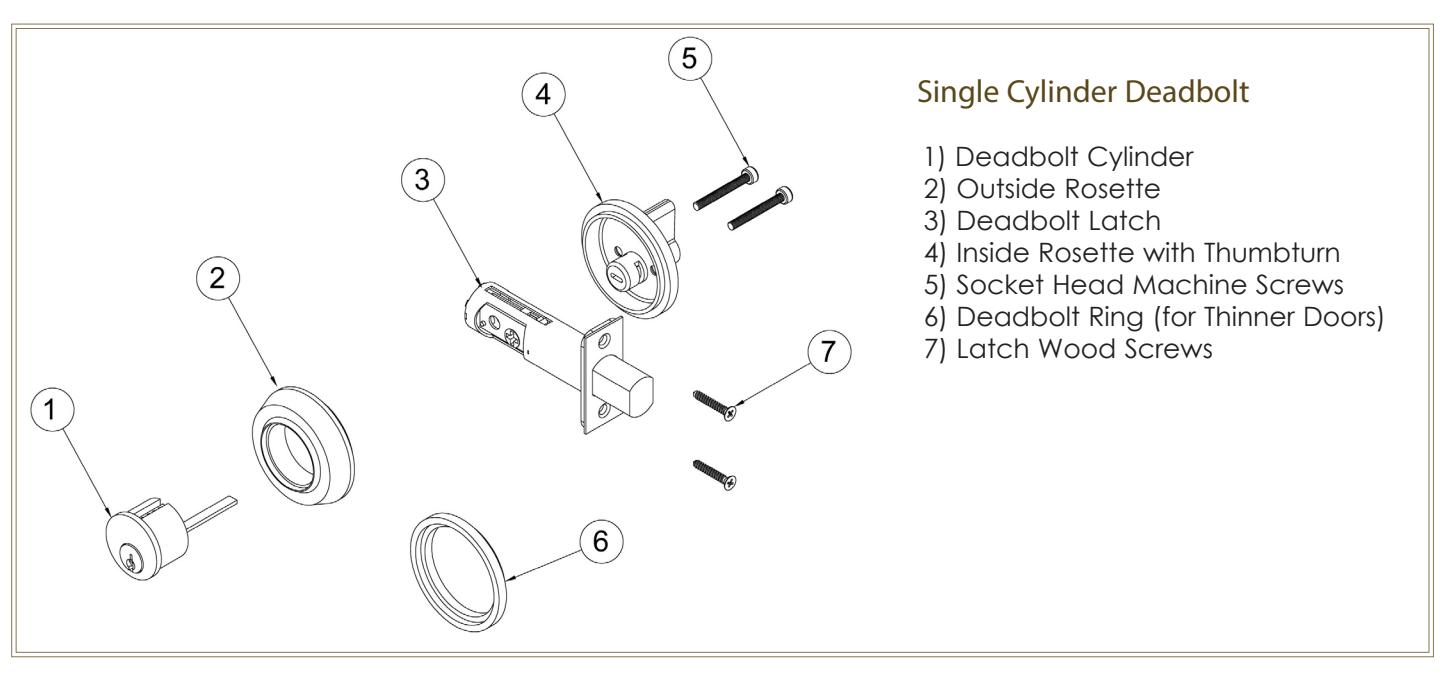

Round & Square Deadbolts, Single Cylinder Round (S50001) & Square (S50003)

• Standard Door Thickness: 13/8"- 2" Standard Components:
• Single Cylinder Tailpiece
• 21⁄4" Socket Head Machine Screws
• Deadbolt Strike Plate

• Extended Door Thickness: 2"- 21⁄2" Extended Components:
• Long Cylinder Tailpiece
• 21⁄2" & 3" Socket Head Machine Screws
• Deadbolt Strike Plate

• Extended Door Thickness: 21⁄2"- 3" Extended Components:
• Extra Long Cylinder Tailpiece
• 3" & 31⁄2" Socket Head Machine Screws
• Deadbolt Strike Plate

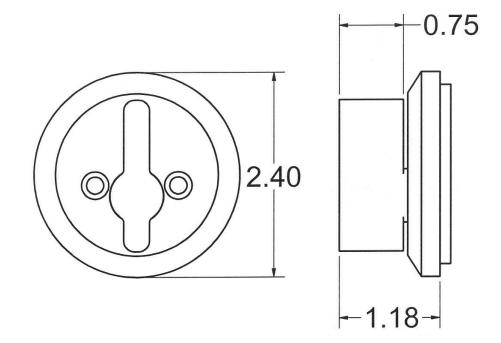

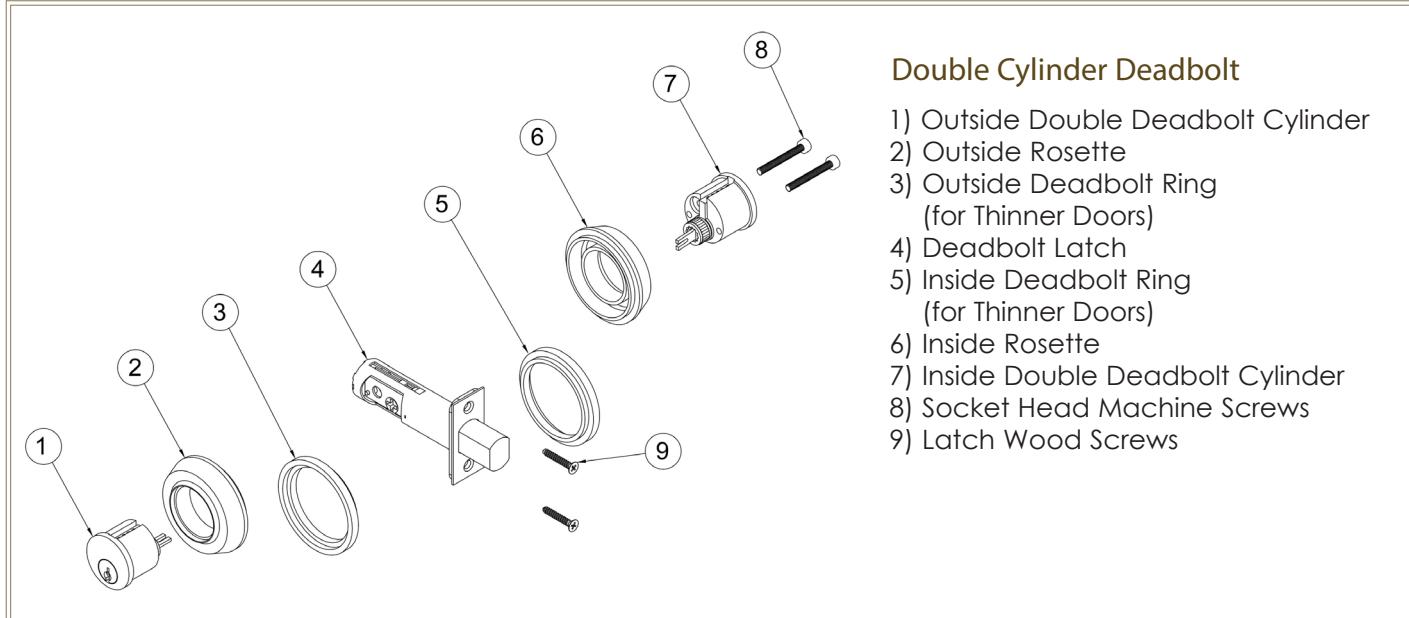

Round & Square Deadbolts, Double Cylinder Round (S50002) & Square (S50023)

• Standard Door Thickness: 13⁄8"- 2" Standard Components:
• Double Cylinder Tailpiece
• 21⁄4" Socket Head Machine Screws
• Deadbolt Strike Plate

• Extended Door Thickness: 2"- 21⁄2" Extended Components:
• Long Double Cylinder Tailpiece
• 3" Socket Head Machine Screws
• Deadbolt Strike Plate

Door Prep Specifications:

• Fits standard door prep--21⁄8" face bore & 1" edge bore.
• Fits a range of door thickness from 13⁄8" to 2". Thicker doors--please specify.

Deadbolt Latches:

• Hardened Steel Bolt
• 23⁄8" backset standard
• 23⁄4" backset available--please specify
• Heavy gauge steel understrike and brass trim strike supplied

Strike & Face Plates:

• Strike & faceplates are square cornered
• Strike Plate-- 11⁄8"W x 23⁄4"H
• Face Plate-- 1"W x 21⁄4"H (attached to latch)
• Understrike Plate--11⁄8"W x 23⁄4"H
