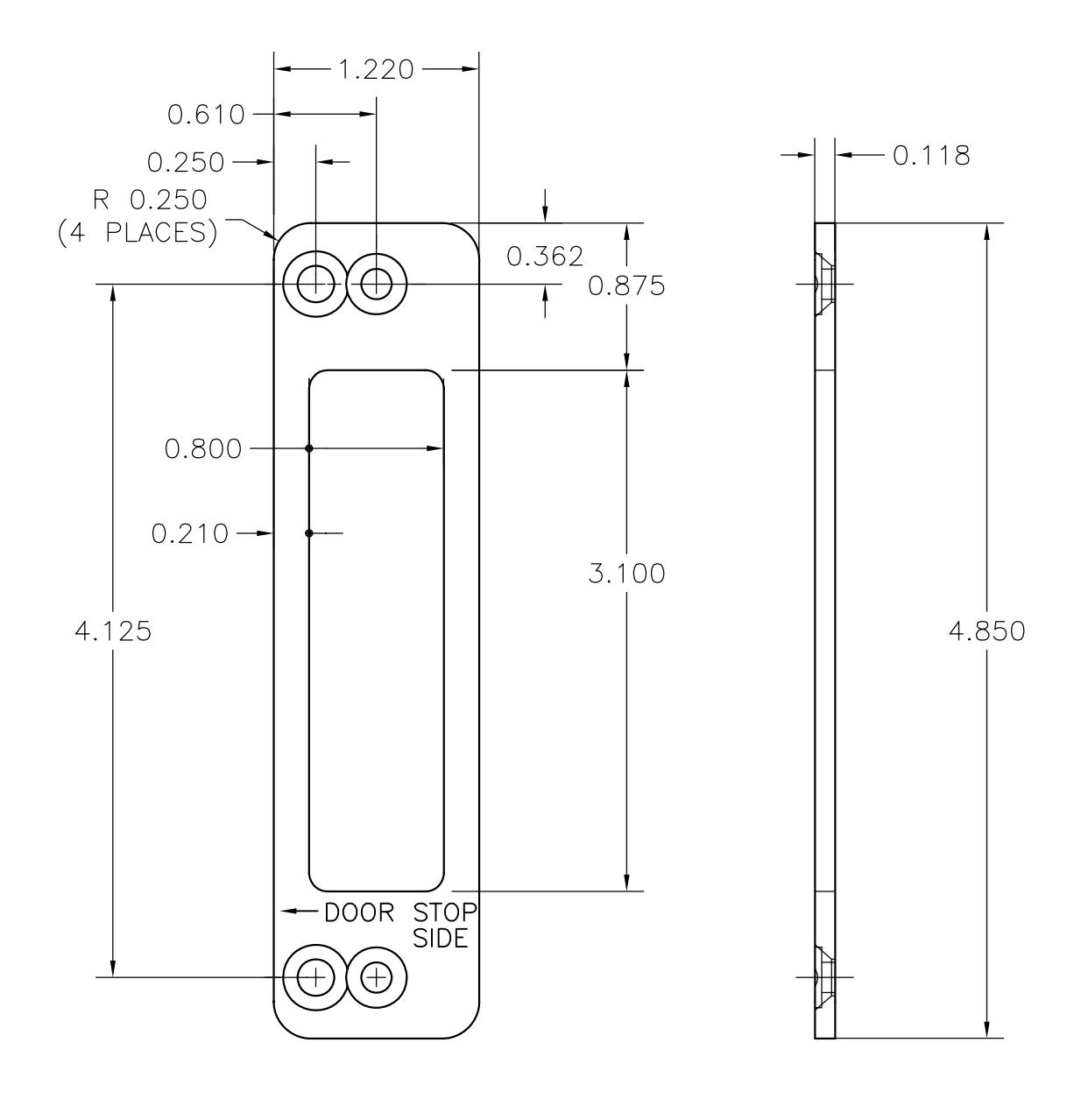

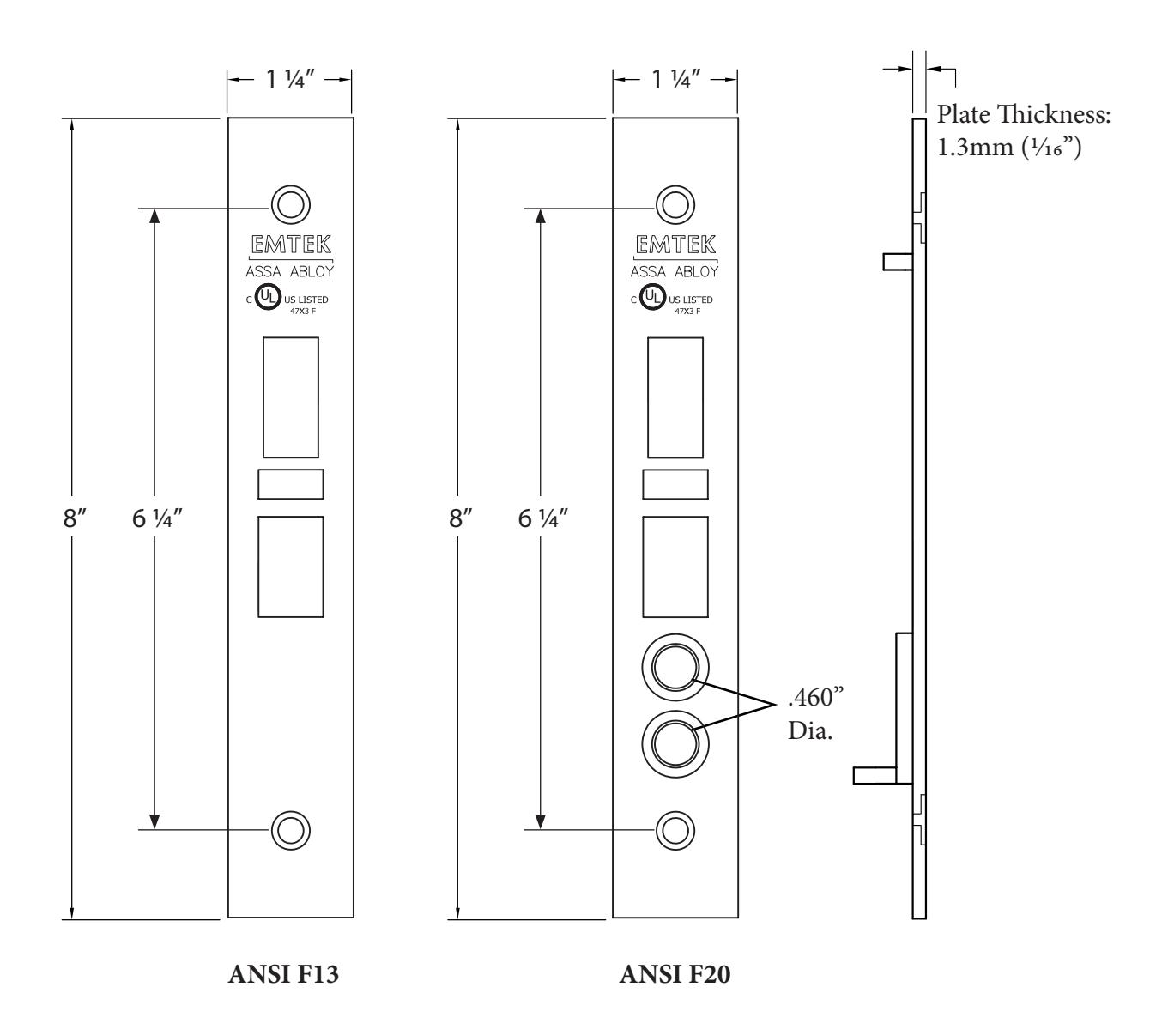

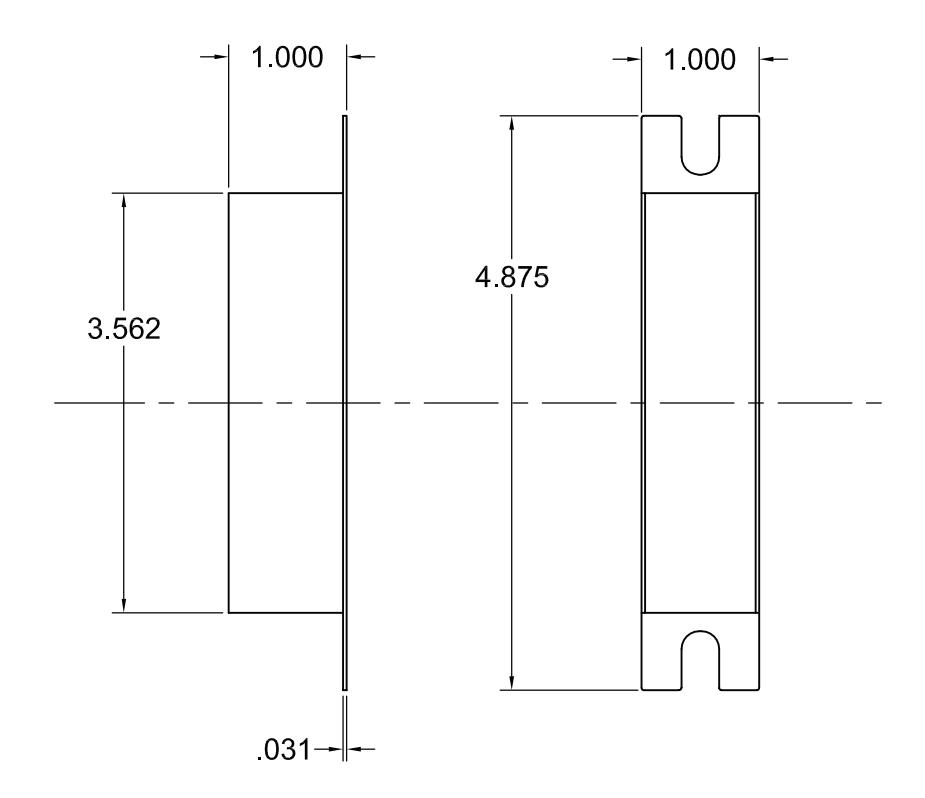

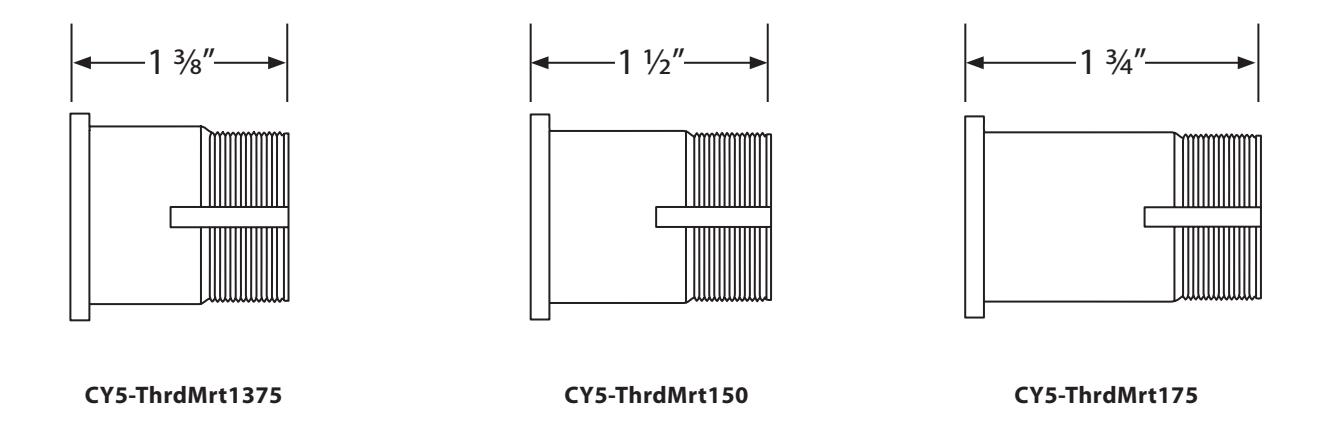

Emtek Cylinder Face Plate Strike Plate Understrike Plate and Dust Box Dimensions Specifications

Open the original PDF document

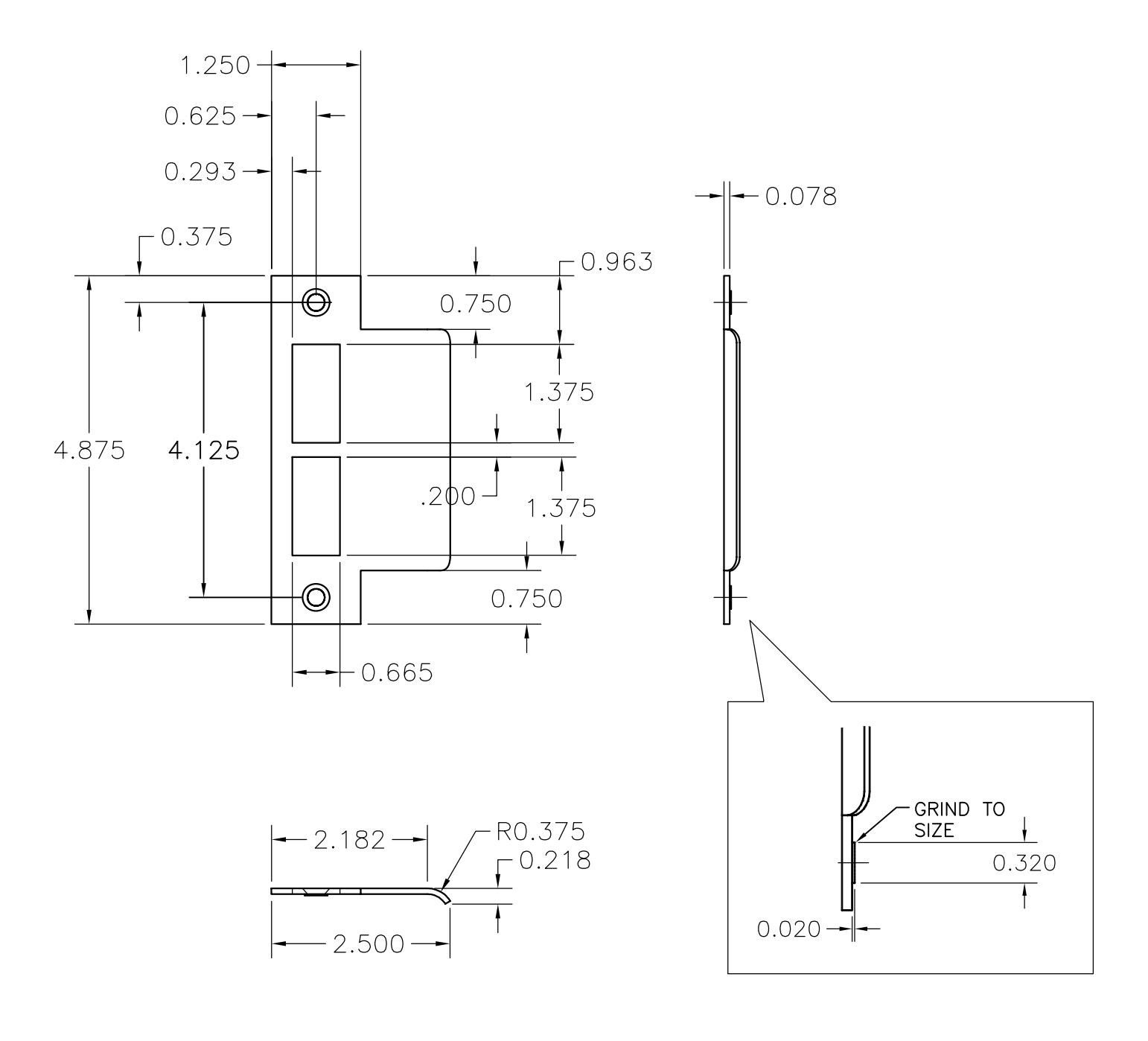

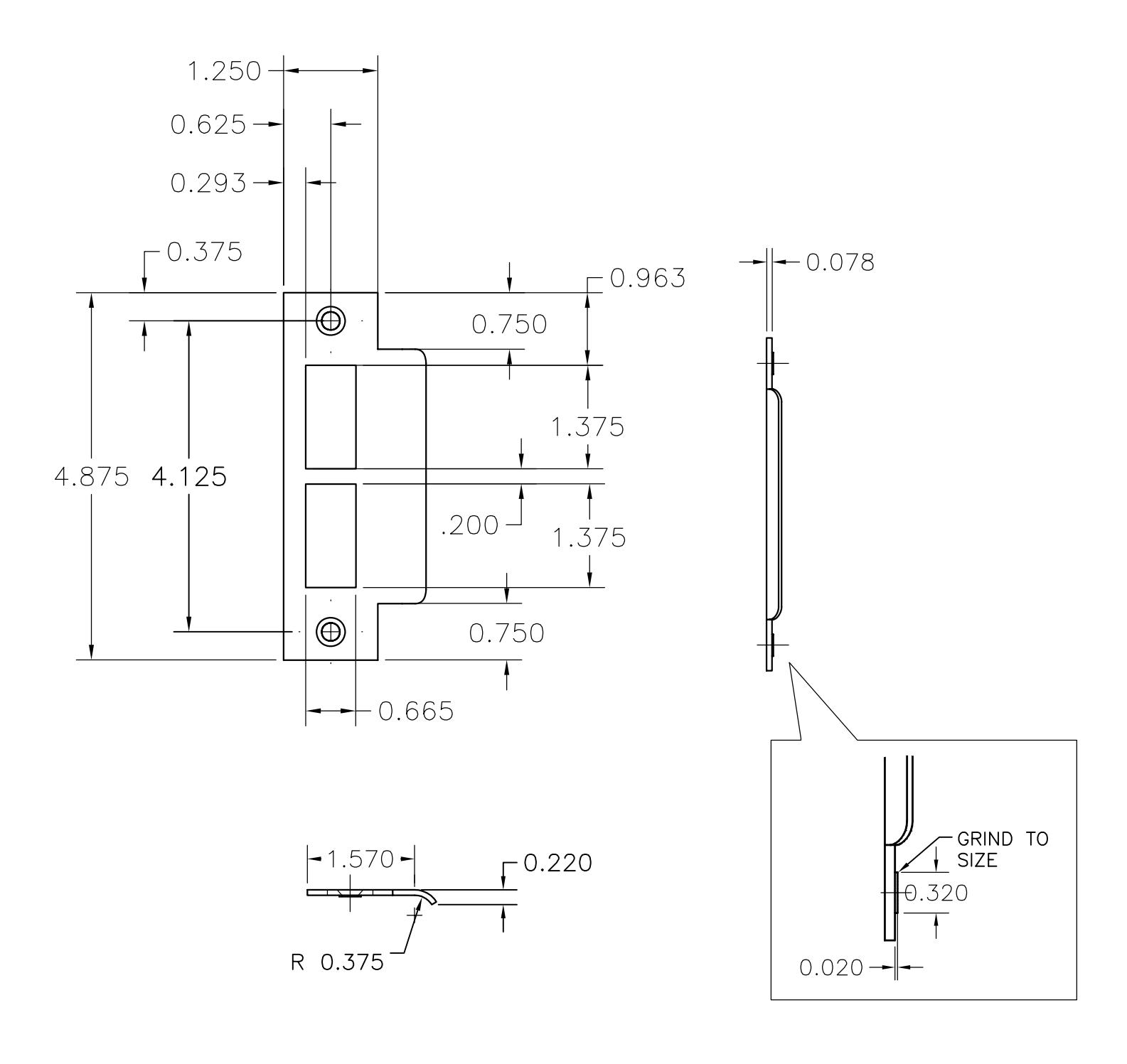

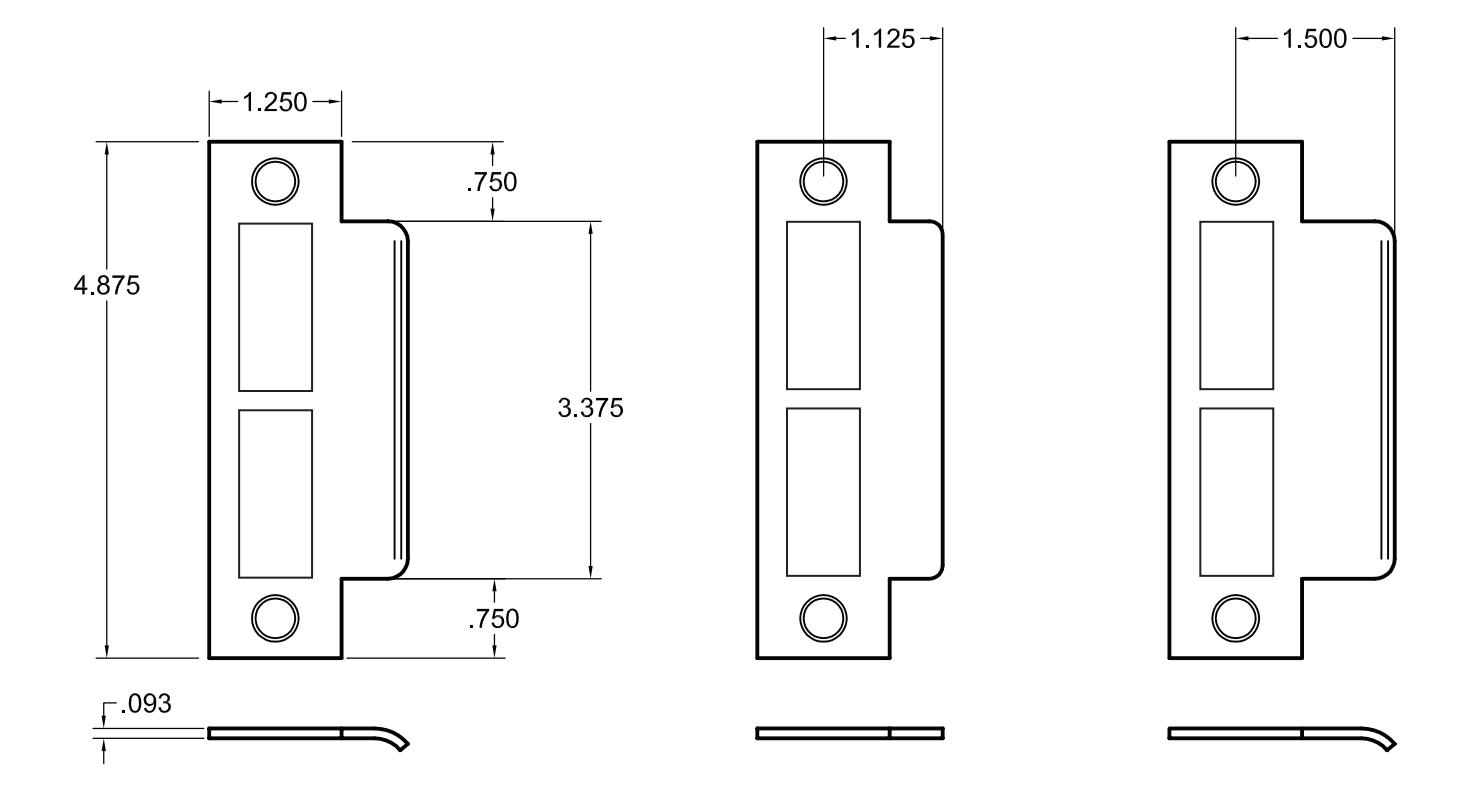

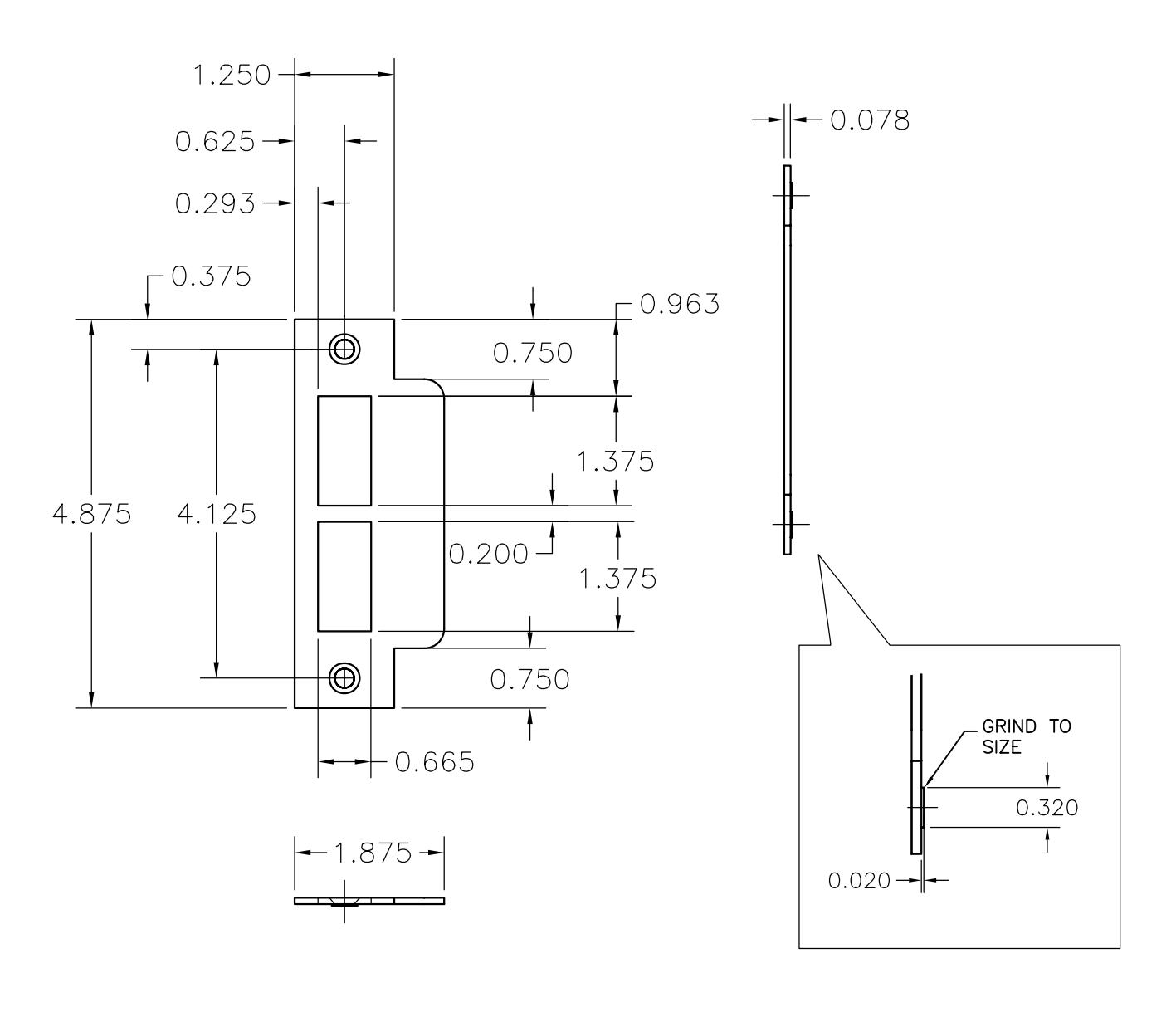

Brass Standard Strike Plate Brass Flat Strike Plate Brass Extended Strike Plate #86147 #86148 #86149
