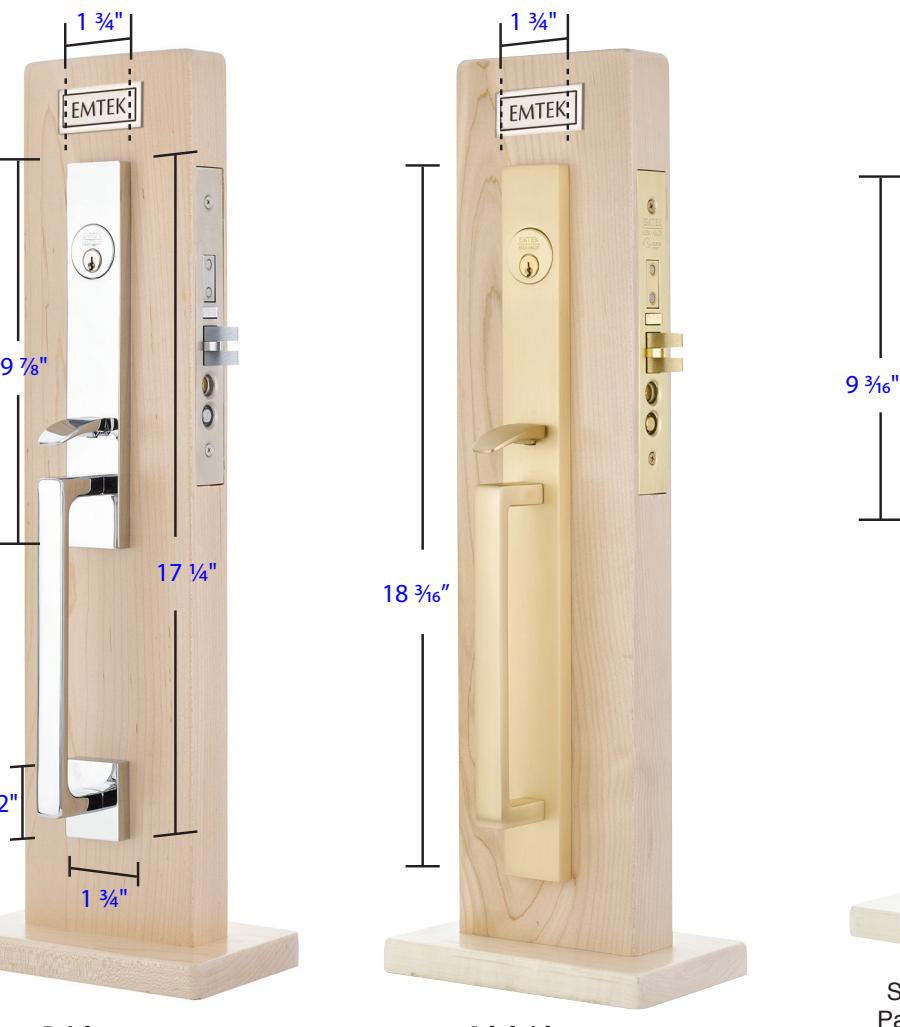

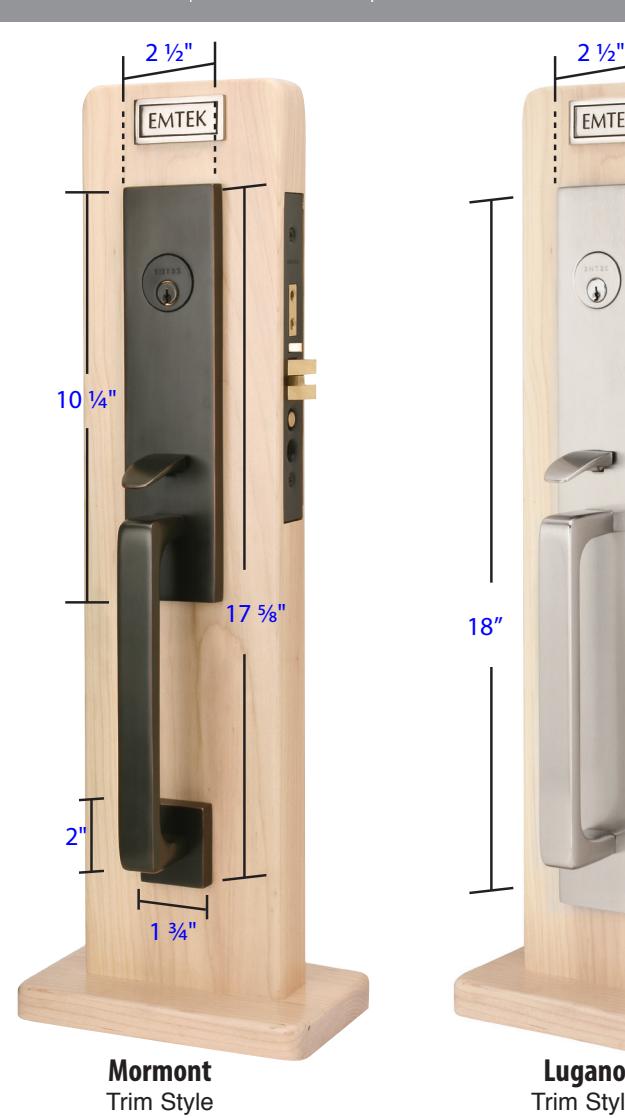

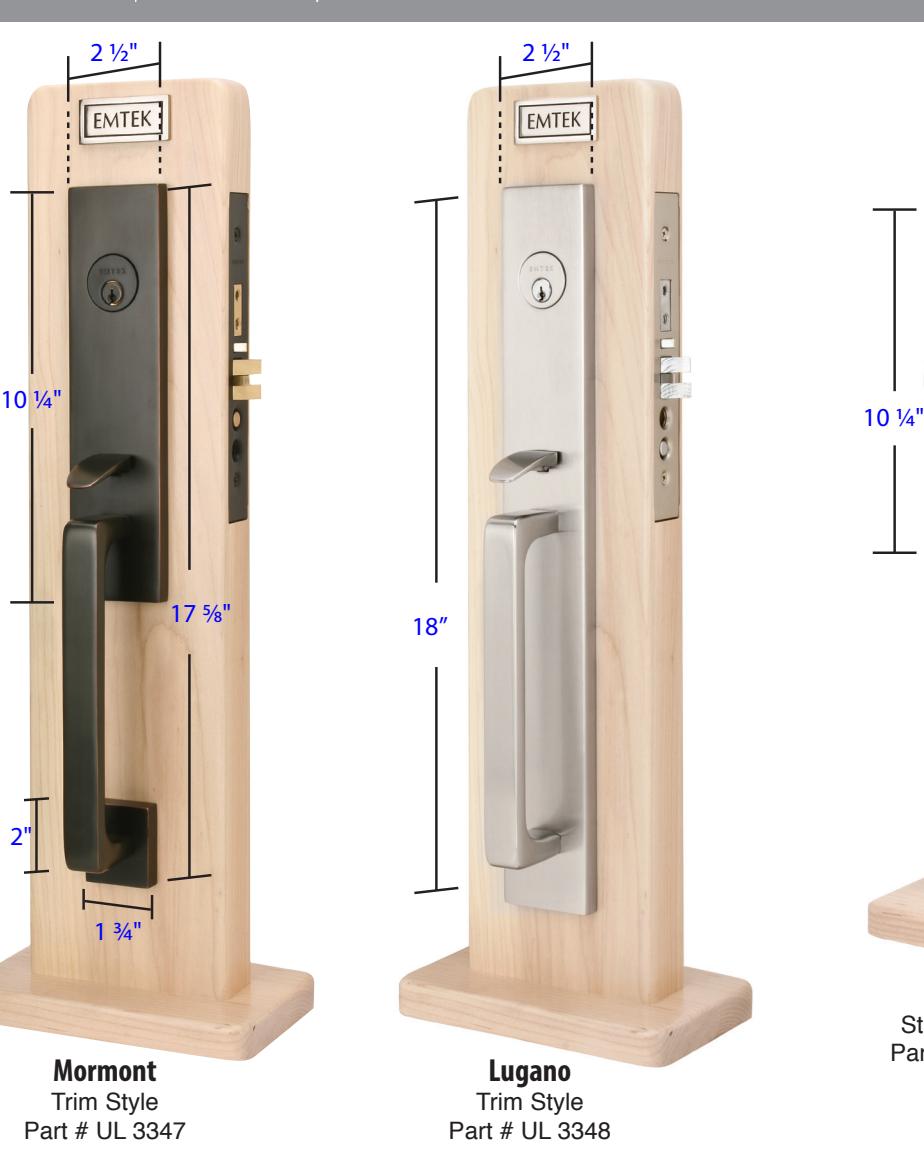

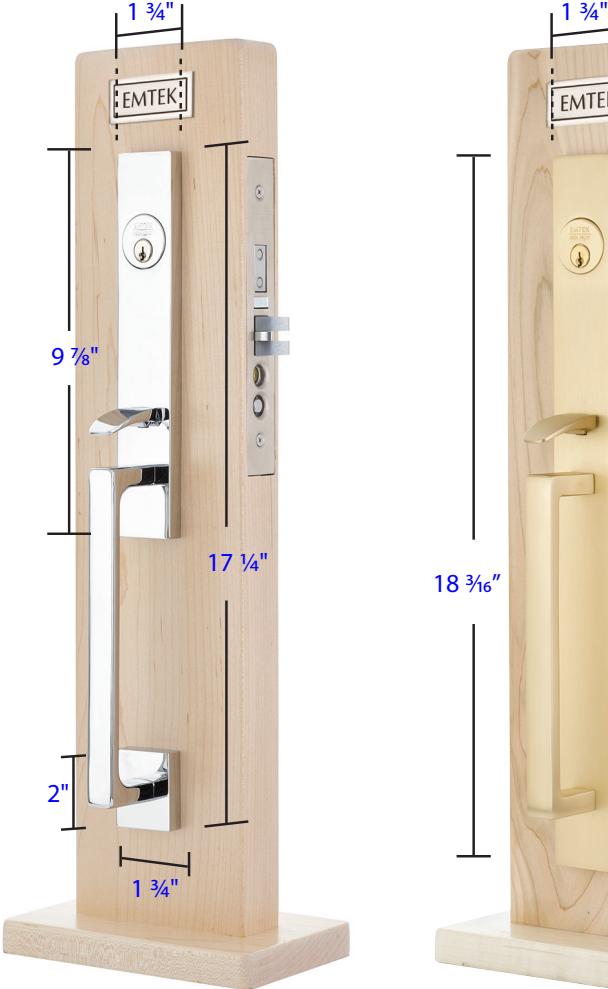

CONTEMPORARY Technical Specifications - MORMONT & LUGANO STYLES

Part # UL 3347

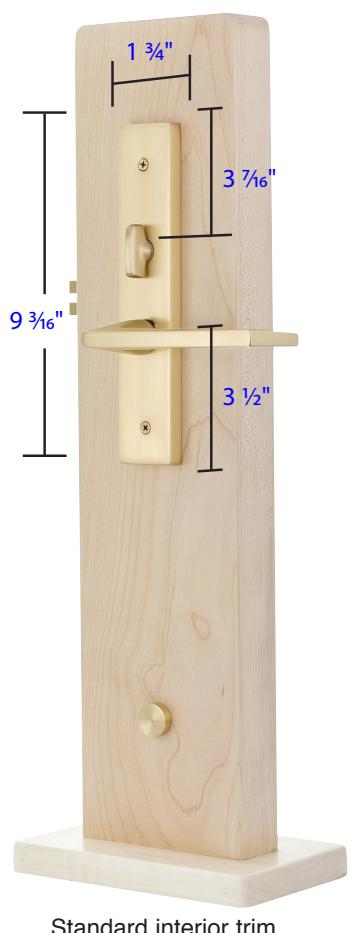

Standard interior trim Part # UL 3347 & 3348

Additional Dimensions: (Part# UL 3347 & 3348)

  • Exterior Projection is 2 1⁄2"
  • Interior Projection Depends on Handle Style
  • Overall Grip thickness: 1"
  • Clearance between door & grip is 1 1/2" 1 7/8"
  • Plates thickness: 1/2"

Same dimensions for dummy function

Door Thickness Specifications

Standard Door Thickness: 13⁄4" Standard Components:

  • 1 3⁄8" Threaded Cylinder
  • 2" Long Spindle
  • 2" Top Rosette Screw
  • 1 1⁄2" Bottom Rosette Screw
  • Thumbpress
  • Strikeplate

Extended Door Thickness: 1 7/8"- 2 1⁄4"

  • Extended Components: • 1 1/2" Threaded Cylinder
  • 2" Long Spindle
  • 2 1⁄2" Top Rosette Screw
  • 2" Bottom Rosette Screw
  • Thumbpress
  • Strikeplate

Extended Door Thickness: 2 3⁄8"- 2 3⁄4" Extended Components:

  • 1 3⁄4" Threaded Cylinder
  • 2 1⁄4" Long Spindle
  • 2 1⁄2" Top Rosette Screw
  • 2" Bottom Rosette Screw
  • Extended Thumbpress
  • Extended Strikeplate

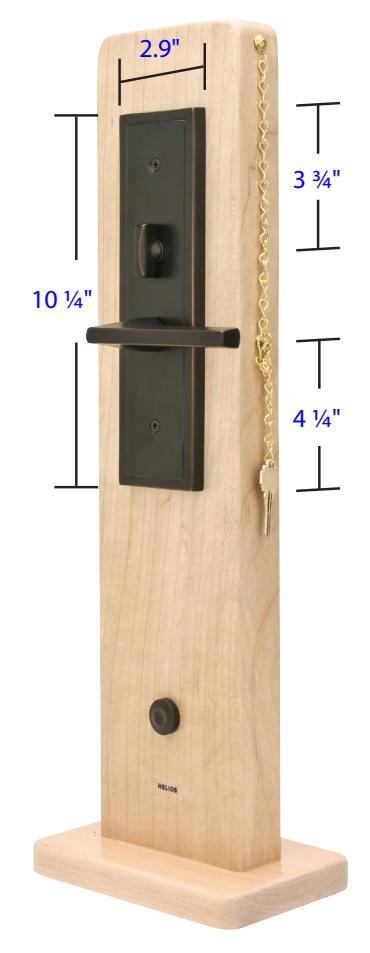

CONTEMPORARY Technical Specifications - BRISBANE & ADELAIDE STYLES

Brisbane Trim Style Part # UL 3311

Adelaide Trim Style Part # UL 3312

Standard interior trim Part # UL 3311 & 3312

Additional Dimensions: (Part# UL 3311 & 3312)

  • Exterior Projection is 2 1⁄2"
  • Interior Projection Depends on Handle Style
  • Overall Grip thickness: 1"
  • Clearance between door & grip is 1 1/2" 1 7/8"
  • Plates thickness: 1/2"

Same dimensions for dummy function

Door Thickness Specifications

Standard Door Thickness: 13⁄4" Standard Components:

  • 1 3⁄8" Threaded Cylinder
  • 2" Long Spindle
  • 2" Top Rosette Screw
  • 1 1⁄2" Bottom Rosette Screw
  • Thumbpress
  • Strikeplate

Extended Door Thickness: 1 7/8"- 2 1⁄4"

Extended Components: • 1 1/2" Threaded Cylinder

  • 2" Long Spindle
  • 2 1⁄2" Top Rosette Screw
  • 2" Bottom Rosette Screw
  • Thumbpress
  • Strikeplate

Extended Door Thickness: 2 3⁄8"- 2 3⁄4" Extended Components:

  • 1 3⁄4" Threaded Cylinder
  • 2 1⁄4" Long Spindle
  • 2 1⁄2" Top Rosette Screw
  • 2" Bottom Rosette Screw
  • Extended Thumbpress
  • Extended Strikeplate

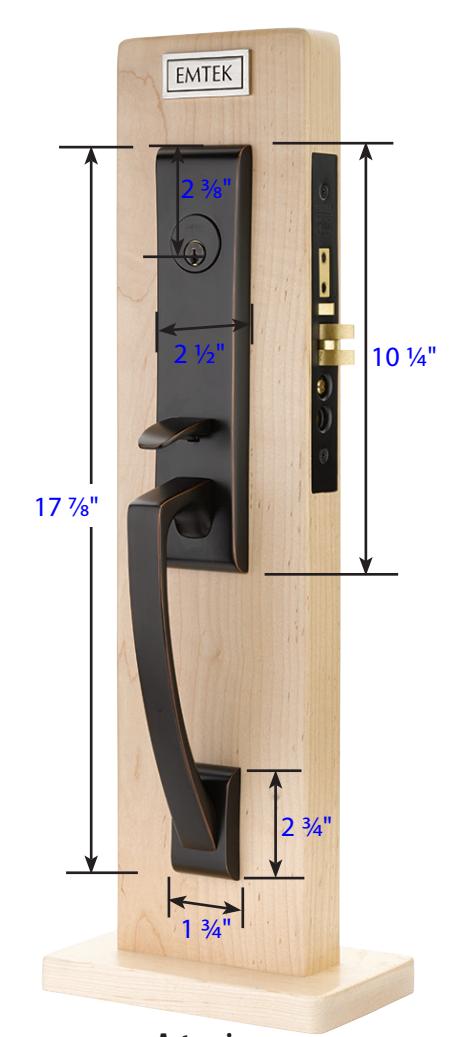

CONTEMPORARY Technical Specifications - ARTEMIS & HERA STYLES

18 1/2" 2 1/2" 2 3/8"

Standard interior trim Part # UL 3344 & 3345

Artemis Trim Style Part # UL 3344

Hera Trim Style Part # UL 3345

Additional Dimensions: (Part# UL 3344 & 3345)

  • Exterior Projection is 2 3⁄4"
  • Interior Projection Depends on Handle Style
  • Overall Grip thickness: 1"
  • Clearance between door & grip is 2 1/4"
  • Plates thickness: 1/2"

Same dimensions for dummy function

Door Thickness Specifications

Standard Door Thickness: 13⁄4" Standard Components:

  • 1 3⁄8" Threaded Cylinder
  • 2" Long Spindle
  • 2" Top Rosette Screw
  • 1 1⁄2" Bottom Rosette Screw
  • Thumbpress
  • Strikeplate

Extended Door Thickness: 1 7/8"- 2 1⁄4" Extended Components:

• 1 1/2" Threaded Cylinder

  • 2" Long Spindle
  • 2 1⁄2" Top Rosette Screw
  • 2" Bottom Rosette Screw
  • Thumbpress
  • Strikeplate

Extended Door Thickness: 2 3⁄8"- 2 3⁄4" Extended Components:

  • 1 3⁄4" Threaded Cylinder
  • 2 1⁄4" Long Spindle
  • 2 1⁄2" Top Rosette Screw
  • 2" Bottom Rosette Screw
  • Extended Thumbpress
  • Extended Strikeplate

CONTEMPORARY Technical Specifications - ZEUS STYLE

Zeus Trim Style Part # UL 3346 Standard interior trim Part # UL 3346

Additional Dimensions: (Part# UL 3346)

  • Exterior Projection is 2 1⁄2"
  • Interior Projection Depends on Handle Style
  • Overall Grip thickness: 1"
  • Clearance between door & grip is 1 1/2" 1 7/8"
  • Plates thickness: 1/2"

Same dimensions for dummy function

Door Thickness Specifications

Standard Door Thickness: 13⁄4" Standard Components:

  • 1 3⁄8" Threaded Cylinder
  • 2" Long Spindle
  • 2" Top Rosette Screw
  • 1 1⁄2" Bottom Rosette Screw
  • Thumbpress
  • Strikeplate

Extended Door Thickness: 1 7/8"- 2 1⁄4"

Extended Components: • 1 1/2" Threaded Cylinder

  • 2" Long Spindle
  • 2 1⁄2" Top Rosette Screw
  • 2" Bottom Rosette Screw
  • Thumbpress
  • Strikeplate

Extended Door Thickness: 2 3⁄8"- 2 3⁄4" Extended Components:

  • 1 3⁄4" Threaded Cylinder
  • 2 1⁄4" Long Spindle
  • 2 1⁄2" Top Rosette Screw
  • 2" Bottom Rosette Screw
  • Extended Thumbpress
  • Extended Strikeplate

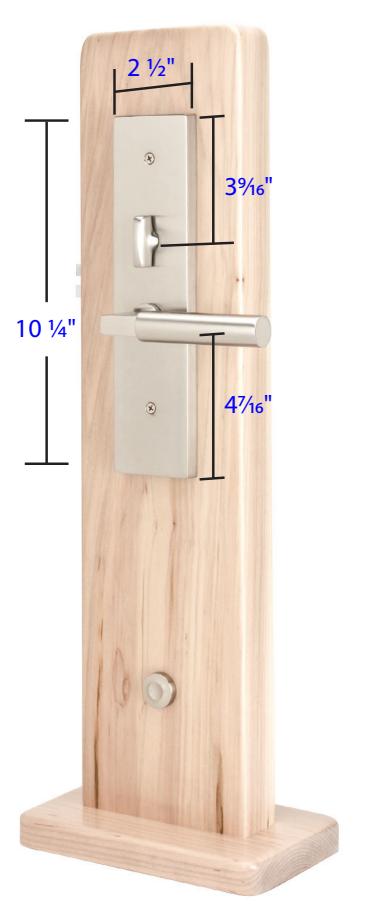

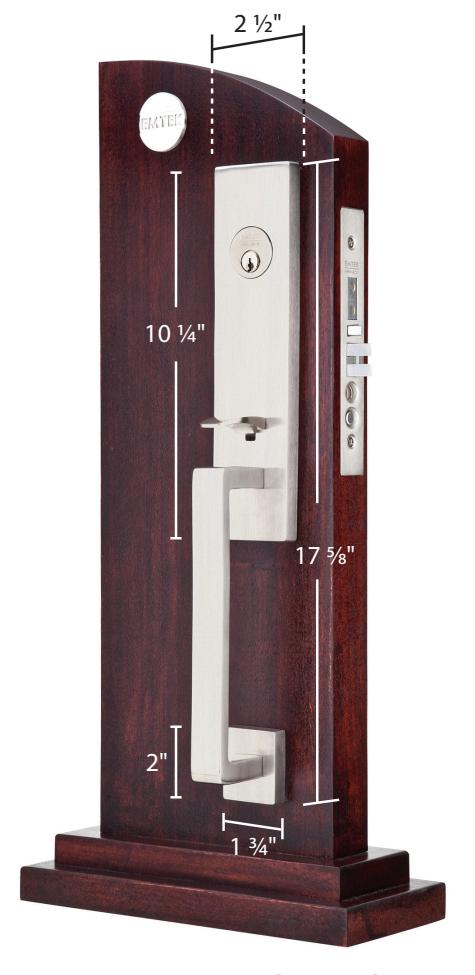

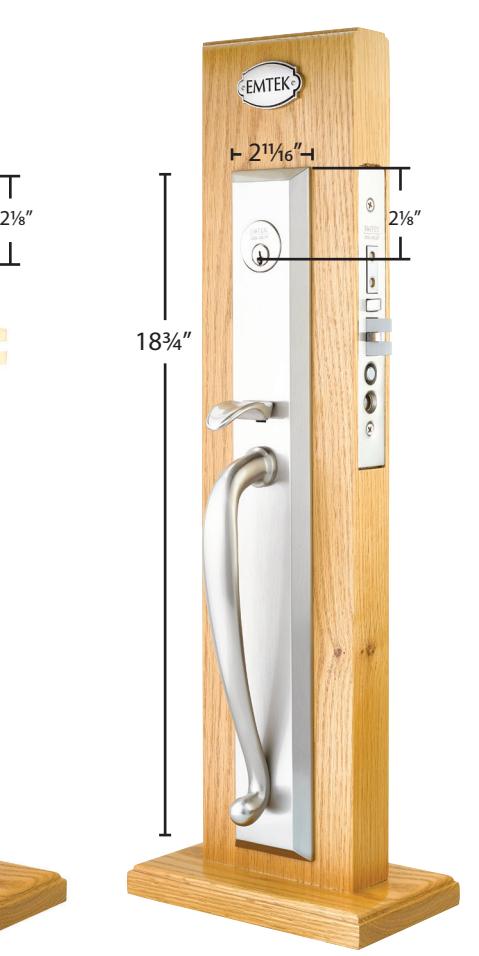

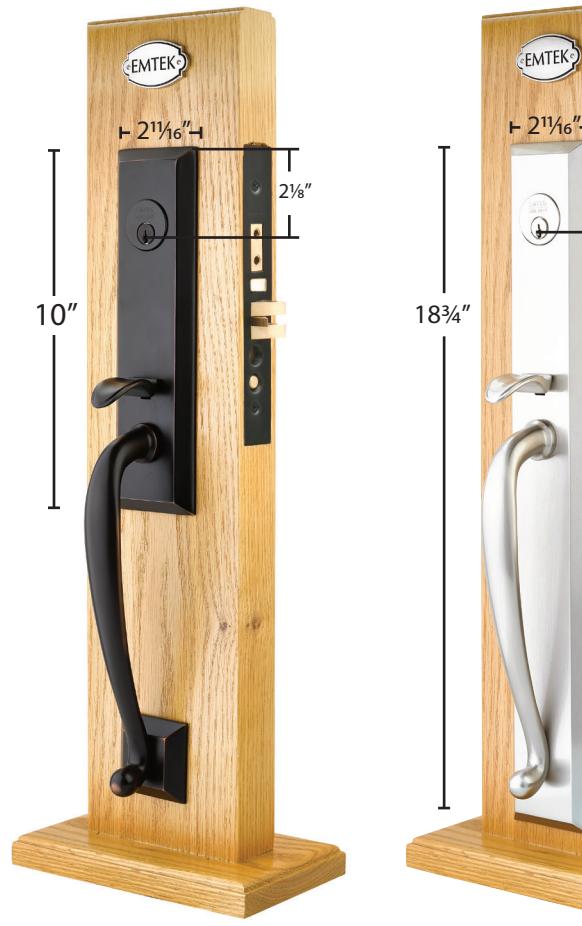

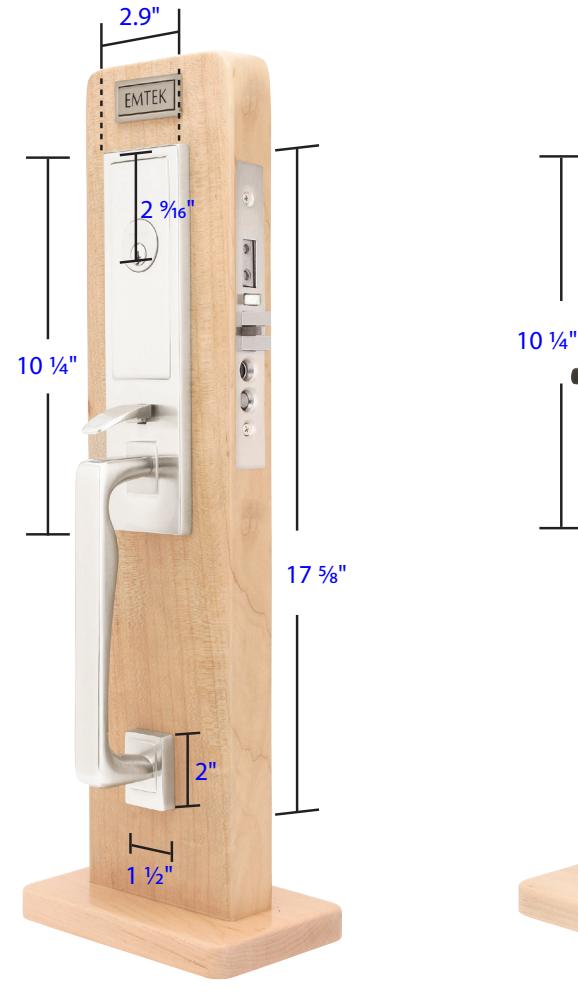

CONTEMPORARY Technical Specifications - MORMONT STYLE STAINLESS STEEL UL MORTISE ENTRANCE HANDLESETS

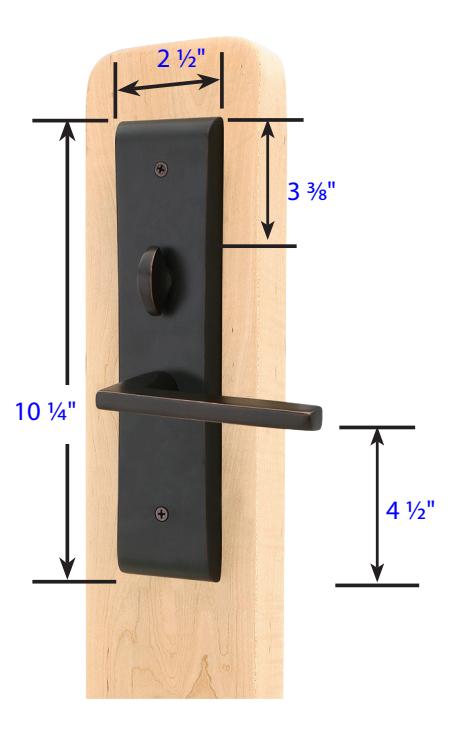

10 1/4" 2 1/2" 39/16" 4 7/16"

Mormont Stainless Steel Trim Style

Part # UL S3301

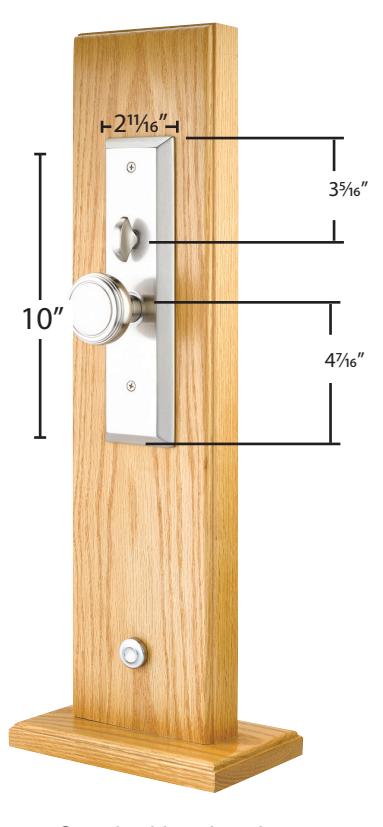

Standard interior trim Part # UL S3301

Additional Dimensions: (Part# UL S3301)

  • Exterior Projection is 2 3⁄4"
  • Interior Projection Depends on Handle Style
  • Overall Grip thickness: 1"
  • Clearance between door & grip is 1" 1 3/4 "
  • Plates thickness: 1/2"

Same dimensions for dummy function

Standard Door Thickness: 13⁄4" Standard Components:

  • 1 3⁄8" Threaded Cylinder
  • 2" Long Spindle
  • 2" Top Rosette Screw
  • 1 1⁄2" Bottom Rosette Screw
  • Thumbpress
  • Strikeplate

Extended Door Thickness: 1 7/8"- 2 1⁄4"

Door Thickness Specifications

Extended Components:

  • 1 1/2" Threaded Cylinder
  • 2" Long Spindle
  • 2 1⁄2" Top Rosette Screw
  • 2" Bottom Rosette Screw
  • Thumbpress
  • Strikeplate

Extended Door Thickness: 2 3⁄8"- 2 3⁄4"

  • Extended Components: • 1 3⁄4" Threaded Cylinder
  • 2 1⁄4" Long Spindle
  • 2 1⁄2" Top Rosette Screw
  • 2" Bottom Rosette Screw
  • Extended Thumbpress
  • Extended Strikeplate

Emtek Products, Inc. 15250 Stafford St. City of Industry, CA 91744 Tel: 800.356.2741 Fax: 800.577.5771 www.emtek.com Emtek Products, Inc. 15250 Stafford St. City of Industry, CA 91744 Tel: 800.356.2741 Fax: 800.577.5771

Technical Specifications - HARRISON & MIDDLETON STYLES

Harrison Trim Style Part # UL 3351

Middleton Trim Style Part # UL 3352

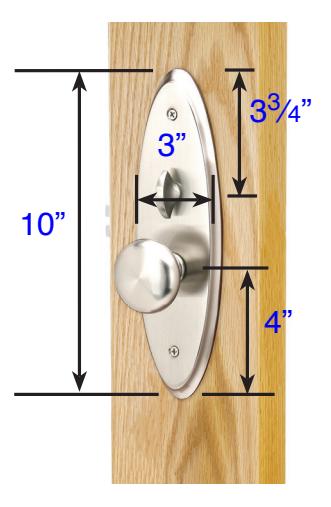

Standard interior trim Part # UL 3351 & 3352

Additional Dimensions: (Part # UL 3351 & 3352)

  • Exterior Projection is 2 3⁄4"
  • Interior Projection Depends on Handle Style
  • Overall Grip thickness: 1 1⁄4"
  • Clearance between door & grip is 2"
  • Plates thickness: 1⁄2"

Same dimensions for dummy function

Door Thickness Specifications

Standard Door Thickness: 13⁄4" Standard Components:

  • 1 3⁄8" Threaded Cylinder
  • 2" Long Spindle
  • 2" Top Rosette Screw
  • 1 1⁄2" Bottom Rosette Screw
  • Thumbpress
  • Strikeplate

Extended Door Thickness: 1 7/8"- 2 1⁄4"

Extended Components:

  • 1 1/2" Threaded Cylinder
  • 2" Long Spindle
  • 2 1⁄2" Top Rosette Screw
  • 2" Bottom Rosette Screw
  • Thumbpress
  • Strikeplate

Extended Door Thickness: 2 3⁄8"- 2 3⁄4" Extended Components:

  • 1 3⁄4" Threaded Cylinder
  • 2 1⁄4" Long Spindle
  • 2 1⁄2" Top Rosette Screw
  • 2" Bottom Rosette Screw
  • Extended Thumbpress
  • Extended Strikeplate

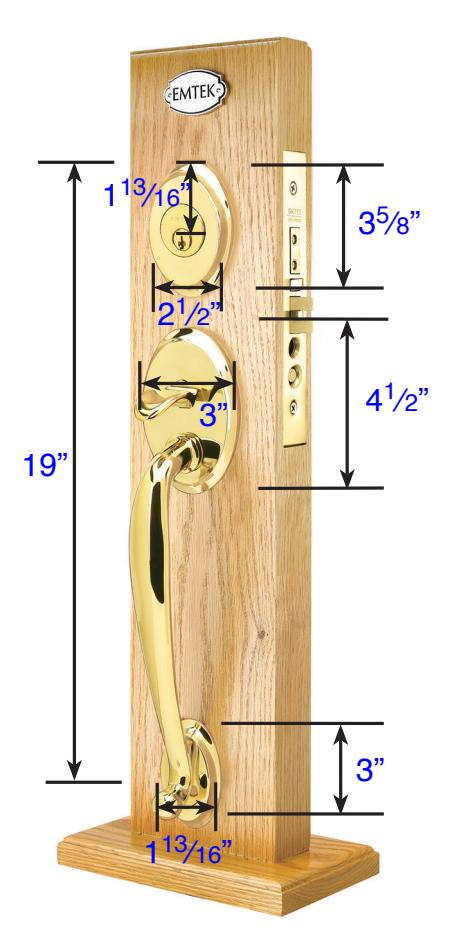

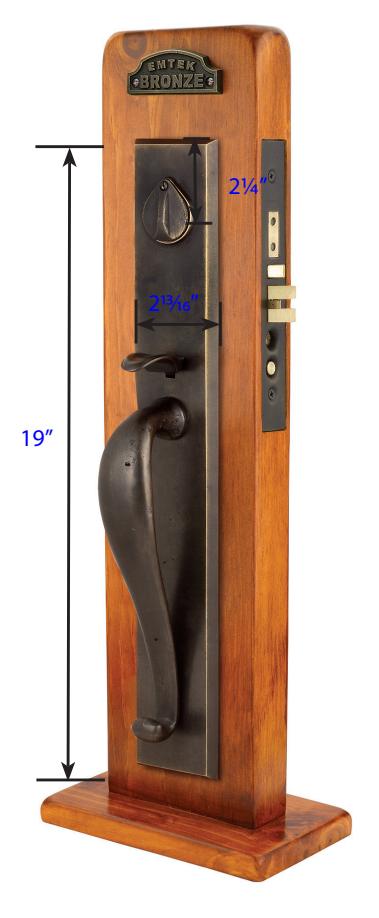

19" 2 1⁄4" 3 5⁄8" 3" 10" 3" 113⁄16"

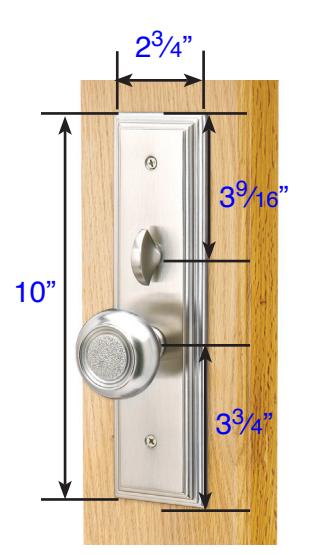

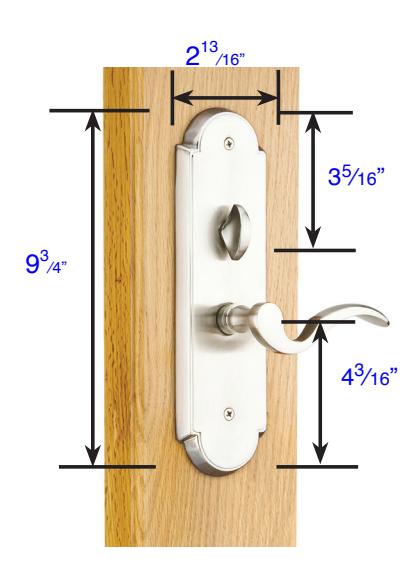

Standard interior trim Part # UL 3301 & 3302

Salem Trim Style Part # UL 3301

Memphis Trim Style Part # UL 3302

Additional Dimensions: (Part # UL 3301 & 3302)

  • Exterior Projection is 2 3⁄4"
  • Interior Projection Depends on Handle Style
  • Overall Grip thickness: 1 1⁄4"
  • Clearance between door & grip is 2"
  • Plates thickness: 1⁄2"

Same dimensions for dummy function

Door Thickness Specifications

Standard Door Thickness: 13⁄4" Standard Components:

  • 1 3⁄8" Threaded Cylinder
  • 2" Long Spindle
  • 2" Top Rosette Screw
  • 1 1⁄2" Bottom Rosette Screw
  • Thumbpress
  • Strikeplate

Extended Door Thickness: 1 7/8"- 2 1⁄4"

Extended Components: • 1 1/2" Threaded Cylinder

  • 2" Long Spindle
  • 2 1⁄2" Top Rosette Screw
  • 2" Bottom Rosette Screw
  • Thumbpress
  • Strikeplate

Extended Door Thickness: 2 3⁄8"- 2 3⁄4" Extended Components:

  • 1 3⁄4" Threaded Cylinder
  • 2 1⁄4" Long Spindle
  • 2 1⁄2" Top Rosette Screw
  • 2" Bottom Rosette Screw
  • Extended Thumbpress
  • Extended Strikeplate

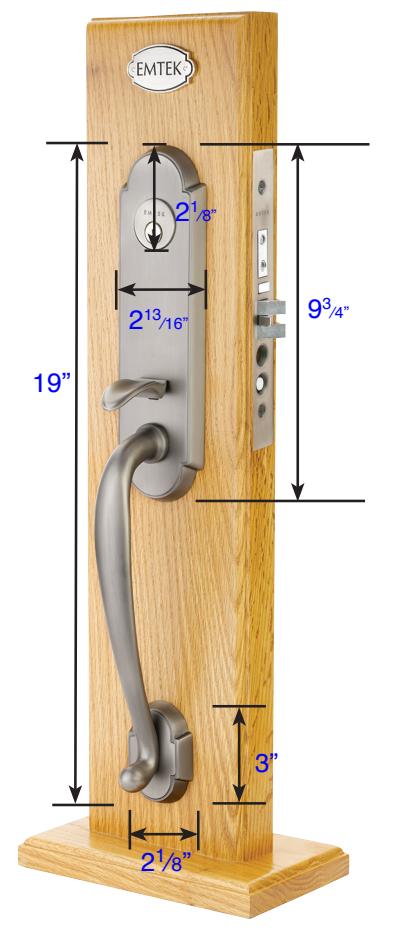

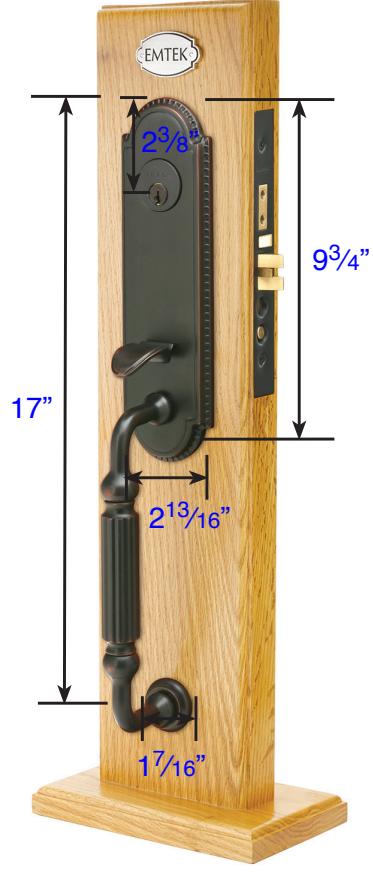

195⁄16" 21 ⁄8" 213⁄16"

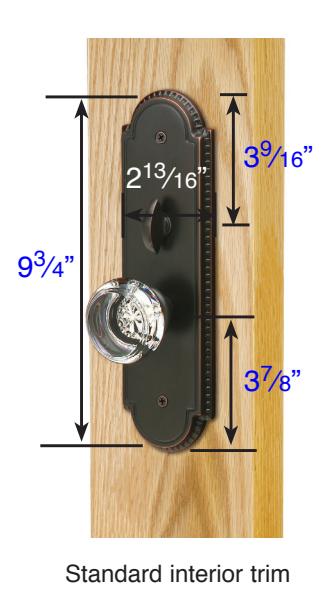

Standard interior trim Part # UL 3343 & 3350

Charleston Trim Style Part # UL 3343

Albany Trim Style Part # UL 3350

Additional Dimensions: (Part# UL 3343 & 3350)

  • Exterior Projection is 2 3⁄4"
  • Interior Projection Depends on Handle Style
  • Overall Grip thickness: 11⁄4"
  • Clearance between door & grip is 2"
  • Plates thickness: 1⁄2"

Same dimensions for dummy function

Standard Door Thickness: 13⁄4" Standard Components:

  • 1 3⁄8" Threaded Cylinder
  • 2" Long Spindle
  • 2" Top Rosette Screw
  • 1 1⁄2" Bottom Rosette Screw
  • Thumbpress
  • Strikeplate

Extended Door Thickness: 1 7/8"- 2 1⁄4"

Door Thickness Specifications

  • Extended Components: • 1 1/2" Threaded Cylinder
  • 2" Long Spindle
  • 2 1⁄2" Top Rosette Screw
  • 2" Bottom Rosette Screw
  • Thumbpress
  • Strikeplate

Extended Door Thickness: 2 3⁄8"- 2 3⁄4" Extended Components:

  • 1 3⁄4" Threaded Cylinder
  • 2 1⁄4" Long Spindle
  • 2 1⁄2" Top Rosette Screw
  • 2" Bottom Rosette Screw
  • Extended Thumbpress
  • Extended Strikeplate

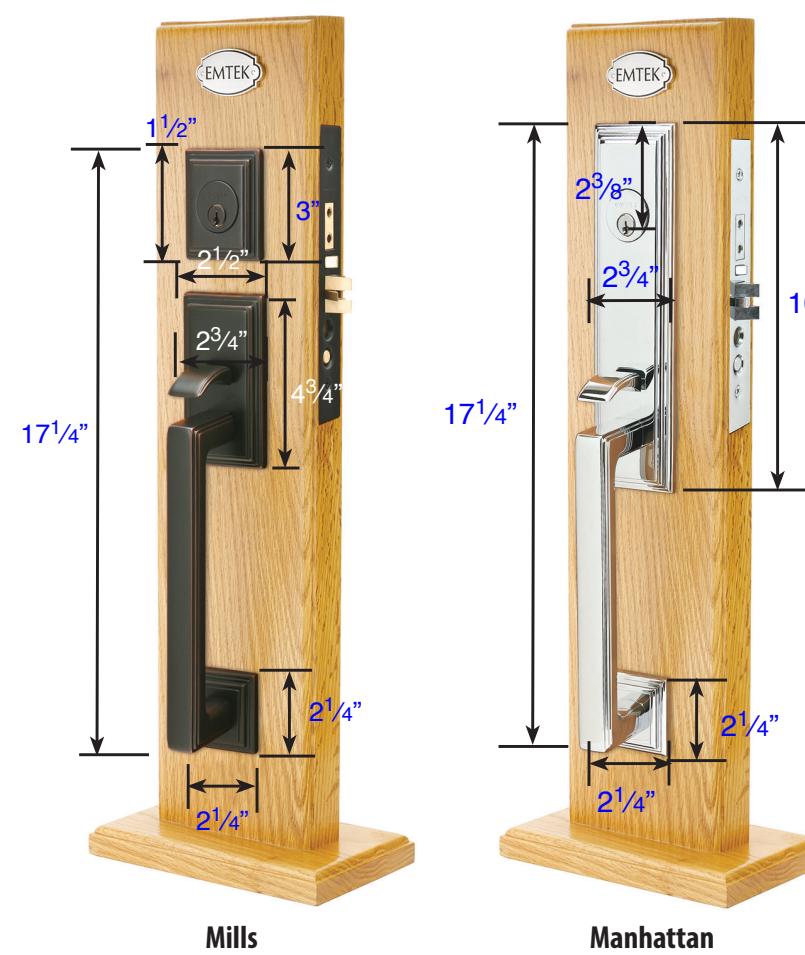

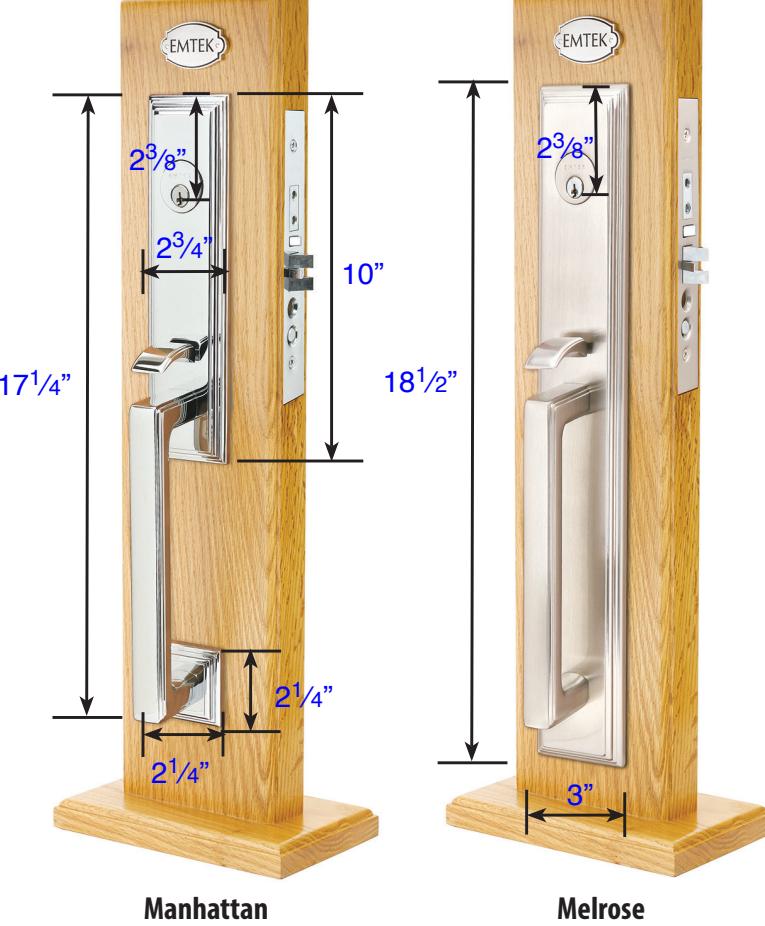

Technical Specifications - MILLS, MANHATTAN & MELROSE STYLES

Standard interior trim Part # UL 3310, 3306 & 3305

Additional Dimensions: (Part # UL 3310, 3306 & 3305)

• Exterior Projection is 2 5⁄8"

Trim Style Part # UL 3306

  • Interior Projection Depends on Handle Style
  • Overall Grip thickness: 1"
  • Clearance between door & grip is 13⁄8"
  • Plates thickness: 1⁄2"

Same dimensions for dummy function

Door Thickness Specifications

Standard Door Thickness: 13⁄4" Standard Components:

• 1 3⁄8" Threaded Cylinder

Trim Part # UL 3310

  • 2" Long Spindle
  • 2" Top Rosette Screw
  • 1 1⁄2" Bottom Rosette Screw
  • Thumbpress
  • Strikeplate

Extended Door Thickness: 1 7/8"- 2 1⁄4"

Extended Components:

  • 1 1/2" Threaded Cylinder
  • 2" Long Spindle
  • 2 1⁄2" Top Rosette Screw
  • 2" Bottom Rosette Screw
  • Thumbpress
  • Strikeplate

Extended Door Thickness: 2 3⁄8"- 2 3⁄4" Extended Components:

  • 1 3⁄4" Threaded Cylinder
  • 2 1⁄4" Long Spindle

Trim Style Part # UL 3305

  • 2 1⁄2" Top Rosette Screw
  • 2" Bottom Rosette Screw
  • Extended Thumbpress
  • Extended Strikeplate

Technical Specifications - HAMILTON STYLE

Part # UL 3304

Hamilton Trim Style

Part # UL 3304

Additional Dimensions: (Part # UL 3304)

  • Exterior Projection is 2 7⁄8"
  • Interior Projection Depends on Handle Style
  • Overall Grip thickness: 1 1⁄4"
  • Clearance between door & grip is 1 1⁄2"
  • Plates thickness: 1⁄2"

Same dimensions for dummy function

Door Thickness Specifications

Standard Door Thickness: 13⁄4" Standard Components:

  • 1 3⁄8" Threaded Cylinder
  • 2" Long Spindle
  • 2" Top Rosette Screw
  • 1 1⁄2" Bottom Rosette Screw
  • Thumbpress
  • Strikeplate

Extended Door Thickness: 1 7/8"- 2 1⁄4"

Extended Components:

  • 1 1/2" Threaded Cylinder
  • 2" Long Spindle
  • 2 1⁄2" Top Rosette Screw
  • 2" Bottom Rosette Screw
  • Thumbpress
  • Strikeplate

Extended Door Thickness: 2 3⁄8"- 2 3⁄4"

Extended Components:

  • 1 3⁄4" Threaded Cylinder
  • 2 1⁄4" Long Spindle
  • 2 1⁄2" Top Rosette Screw
  • 2" Bottom Rosette Screw
  • Extended Thumbpress
  • Extended Strikeplate

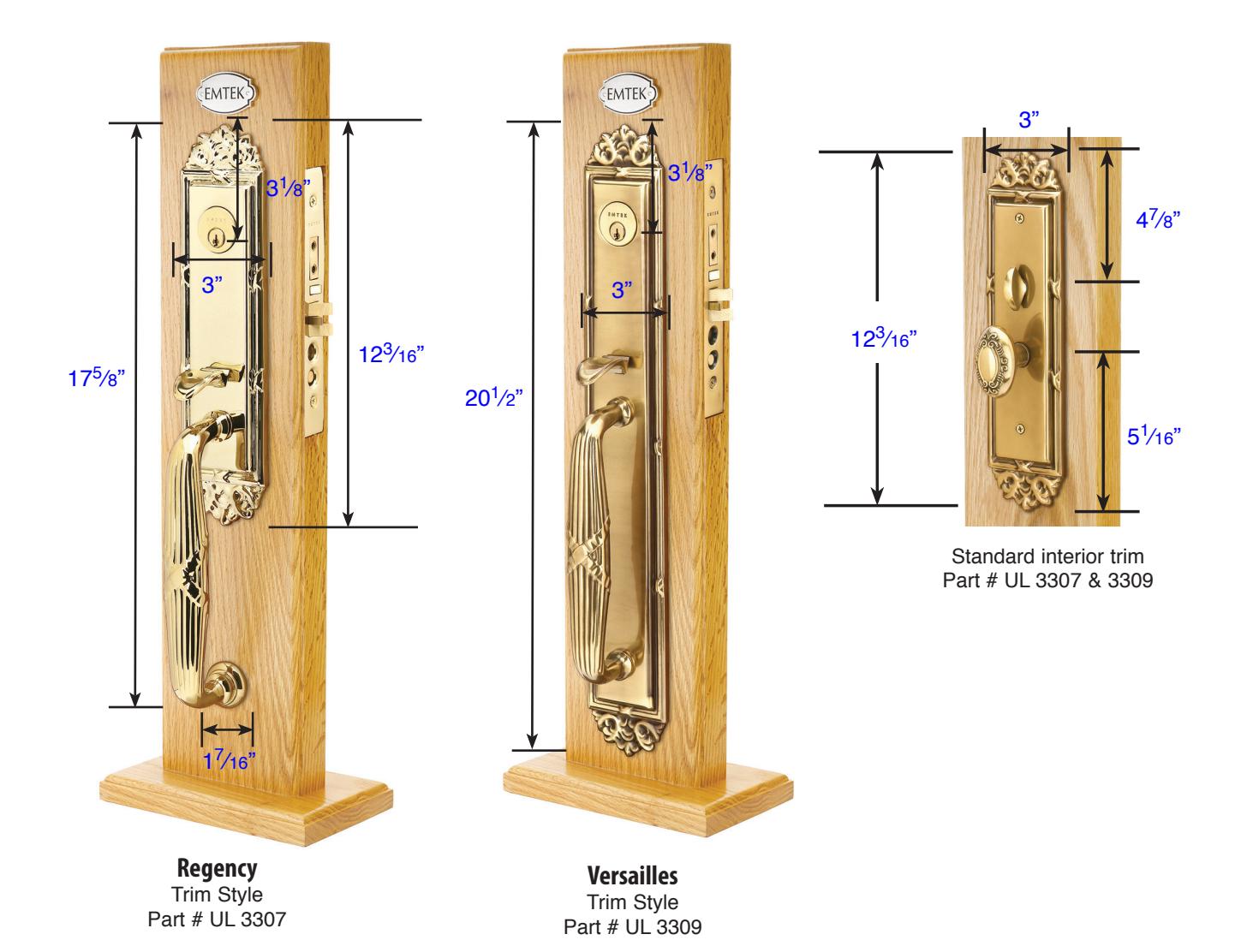

Technical Specifications - REGENCY & VERSAILLES STYLES

Additional Dimensions: (Part # UL 3307 & 3309)

  • Exterior Projection is 2 3⁄4"
  • Interior Projection Depends on Handle Style
  • Overall Grip thickness: 1 3⁄8"
  • Clearance between door & grip is 19⁄16"
  • Plates thickness: 1⁄2"

Same dimensions for dummy function

Door Thickness Specifications

Standard Door Thickness: 13⁄4" Standard Components:

  • 1 3⁄8" Threaded Cylinder
  • 2" Long Spindle
  • 2" Top Rosette Screw
  • 1 1⁄2" Bottom Rosette Screw
  • Thumbpress
  • Strikeplate

Extended Door Thickness: 1 7/8"- 2 1⁄4"

Extended Components:

  • 1 1/2" Threaded Cylinder
  • 2" Long Spindle
  • 2 1⁄2" Top Rosette Screw
  • 2" Bottom Rosette Screw
  • Thumbpress
  • Strikeplate

Extended Door Thickness: 2 3⁄8"- 2 3⁄4"

Extended Components:

  • 1 3⁄4" Threaded Cylinder
  • 2 1⁄4" Long Spindle
  • 2 1⁄2" Top Rosette Screw
  • 2" Bottom Rosette Screw
  • Extended Thumbpress
  • Extended Strikeplate

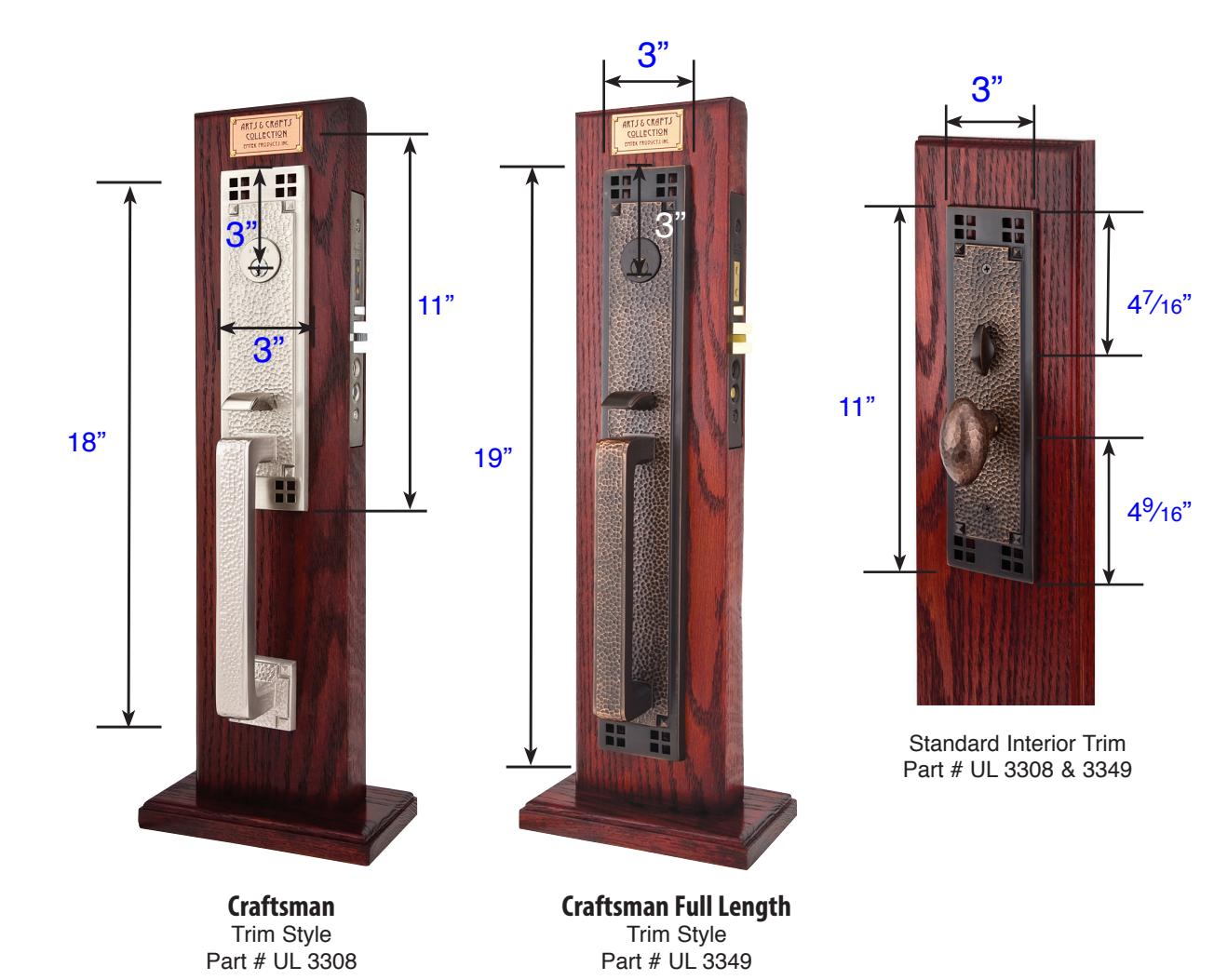

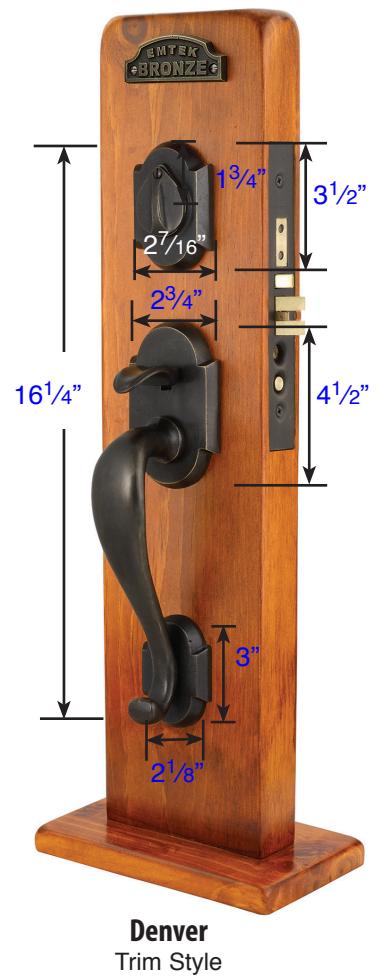

Additional Dimensions: (Part # UL 3308 & 3349)

  • Exterior Projection is 2 5⁄8"
  • Interior Projection Depends on Handle Style
  • Overall Grip thickness: 11⁄8"
  • Clearance between door & grip is 13⁄8"
  • Plates thickness: 1⁄2"

Same dimensions for dummy function

Door Thickness Specifications

Standard Door Thickness: 13⁄4" Standard Components:

  • 1 3⁄8" Threaded Cylinder
  • 2" Long Spindle
  • 2" Top Rosette Screw
  • 1 1⁄2" Bottom Rosette Screw
  • Thumbpress
  • Strikeplate

Extended Door Thickness: 1 7/8"- 2 1⁄4" Extended Components:

  • 1 1/2" Threaded Cylinder
  • 2" Long Spindle
  • 2 1⁄2" Top Rosette Screw
  • 2" Bottom Rosette Screw
  • Thumbpress
  • Strikeplate

Extended Door Thickness: 2 3⁄8"- 2 3⁄4" Extended Components:

  • 1 3⁄4" Threaded Cylinder
  • 2 1⁄4" Long Spindle
  • 2 1⁄2" Top Rosette Screw
  • 2" Bottom Rosette Screw
  • Extended Thumbpress
  • Extended Strikeplate

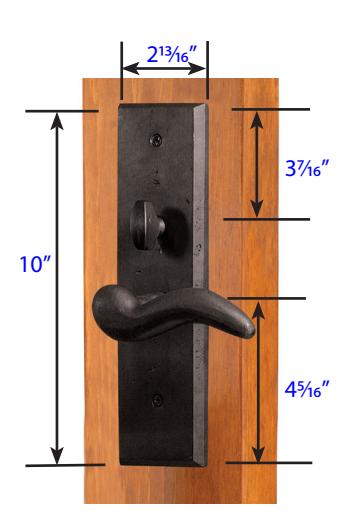

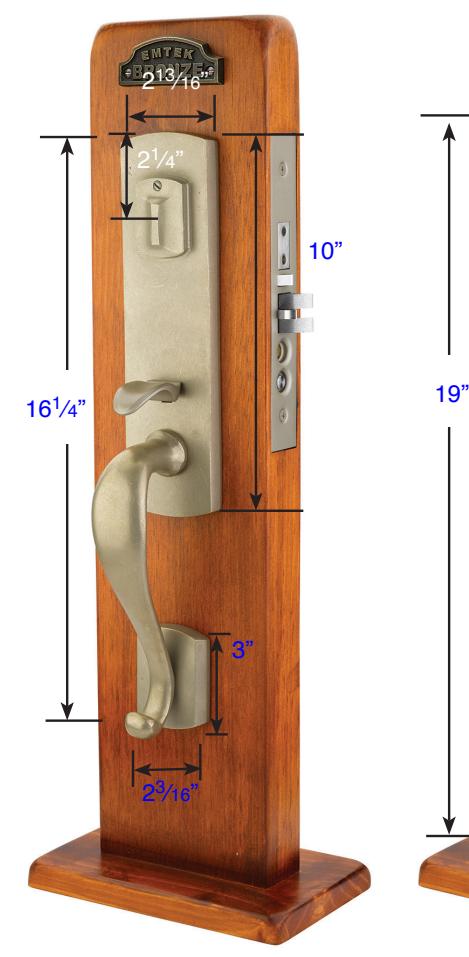

Technical Specifications - SONOMA & LONGMONT STYLES

213⁄16" 19" 21⁄4"

10" 213⁄16" 37⁄16" 45⁄16"

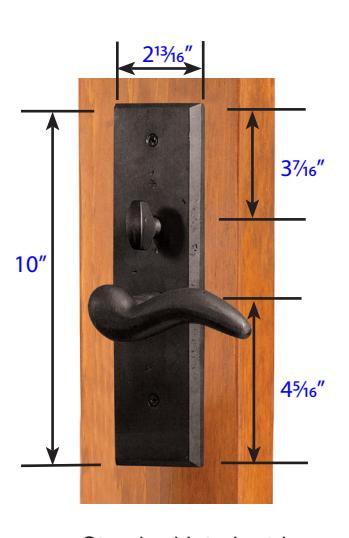

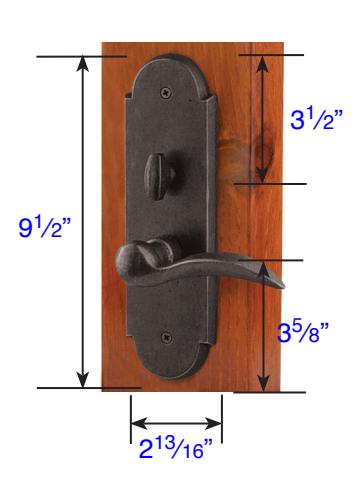

Standard Interior Trim Part # UL 3329 & 3330

Sonoma Trim Style Part # UL 3329

Longmont Trim Style Part # UL 3330

Additional Dimensions: (Part # UL 3329 & 3330)

  • Exterior Projection is 3 1⁄8"
  • Interior Projection Depends on Handle Style
  • Overall Grip thickness: 1 3⁄4"
  • Clearance between door & grip is 13⁄4"
  • Plates thickness: 1⁄2"

Same dimensions for dummy function

13

Door Thickness Specifications Standard Door Thickness: 13⁄4"

Standard Components:

  • 1 3⁄8" Threaded Cylinder
  • 2" Long Spindle
  • 2" Top Rosette Screw
  • 1 1⁄2" Bottom Rosette Screw
  • Thumbpress
  • Strikeplate

Extended Door Thickness: 1 7/8"- 2 1⁄4"

Extended Components:

  • 1 1/2" Threaded Cylinder
  • 2" Long Spindle
  • 2 1⁄2" Top Rosette Screw
  • 2" Bottom Rosette Screw
  • Thumbpress
  • Strikeplate

Extended Door Thickness: 2 3⁄8"- 2 5⁄8"

Extended Components:

  • 1 3⁄4" Threaded Cylinder
  • 2 1⁄4" Long Spindle
  • 2 1⁄2" Top Rosette Screw
  • 2" Bottom Rosette Screw
  • Extended Thumbpress
  • Extended Strikeplate

• 2 3/4" TD Requires 2" Threaded Cylinder

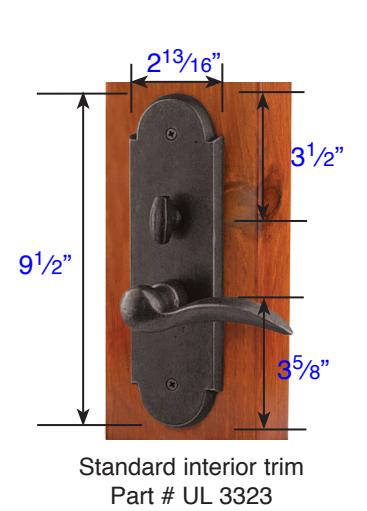

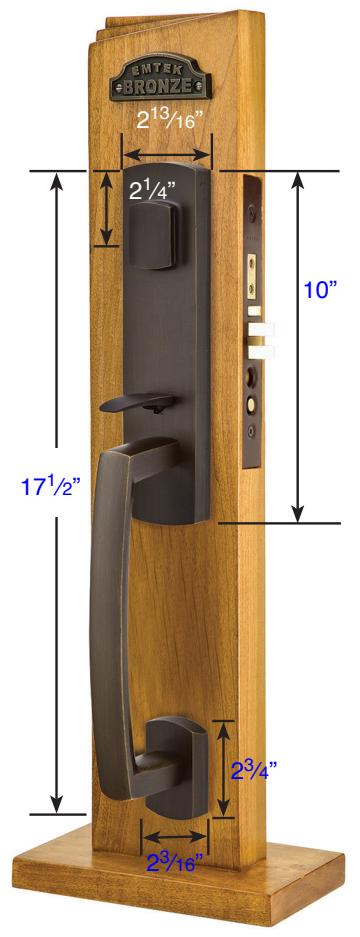

Part # UL 3323

Additional Dimensions: (Part # UL 3323)

  • Exterior Projection is 3"
  • Interior Projection Depends on Handle Style
  • Overall Grip thickness: 1"
  • Clearance between door & grip is 11⁄2"
  • Plates thickness: 1⁄2"

Same dimensions for dummy function

Standard Door Thickness: 13⁄4"

Standard Components:

  • 1 3⁄8" Threaded Cylinder
  • 2" Long Spindle
  • 2" Top Rosette Screw
  • 1 1⁄2" Bottom Rosette Screw
  • Thumbpress
  • Strikeplate

Door Thickness Specifications

Extended Door Thickness: 1 7/8"- 2 1⁄4"

Extended Components:

  • 1 1/2" Threaded Cylinder
  • 2" Long Spindle
  • 2 1⁄2" Top Rosette Screw
  • 2" Bottom Rosette Screw
  • Thumbpress
  • Strikeplate

Extended Door Thickness: 2 3⁄8"- 2 5⁄8"

Extended Components:

  • 1 3⁄4" Threaded Cylinder
  • 2 1⁄4" Long Spindle
  • 2 1⁄2" Top Rosette Screw
  • 2" Bottom Rosette Screw
  • Extended Thumbpress
  • Extended Strikeplate
  • 2 3/4" TD Requires 2" Threaded Cylinder

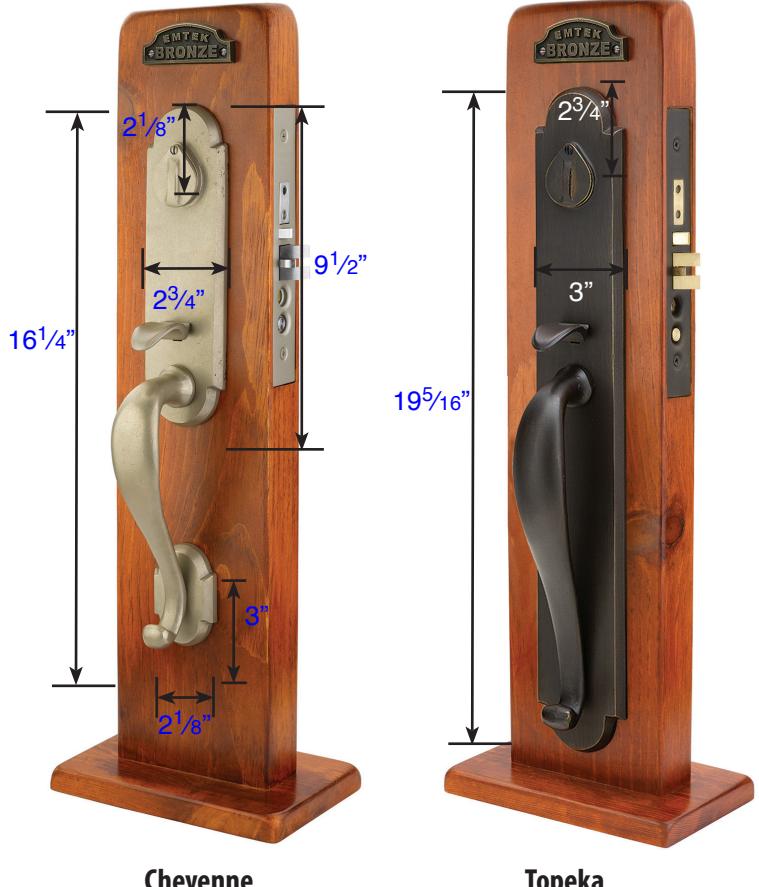

Cheyenne Trim Style Part # UL 3321

Topeka Trim Style Part # UL 3322

Standard interior trim Part # UL 3321 & 3322

Additional Dimensions: (Part # UL 3321& 3322)

  • Exterior Projection is 3 1⁄8"
  • Interior Projection Depends on Handle Style
  • Overall Grip thickness: 13⁄4"
  • Clearance between door & grip is 13⁄4"
  • Plates thickness: 1⁄2"

Same dimensions for dummy function

Door Thickness Specifications

Standard Door Thickness: 13⁄4" Standard Components:

  • 1-1/2" Threaded Cylinder
  • 2" Long Spindle
  • 2" Top Rosette Screw
  • 1 1⁄2" Bottom Rosette Screw
  • Thumbpress
  • Strikeplate

Extended Door Thickness: 1 7/8"- 2 1⁄4"

Extended Components:

  • 1 1/2" Threaded Cylinder
  • 2" Long Spindle
  • 2 1⁄2" Top Rosette Screw
  • 2" Bottom Rosette Screw
  • Thumbpress
  • Strikeplate

Extended Door Thickness: 2 3⁄8"- 2 5⁄8"

Extended Components:

  • 1 3⁄4" Threaded Cylinder
  • 2 1⁄4" Long Spindle
  • 2 1⁄2" Top Rosette Screw
  • 2" Bottom Rosette Screw
  • Extended Thumbpress
  • Extended Strikeplate
  • 2 3/4" TD Requires 2" Threaded Cylinder

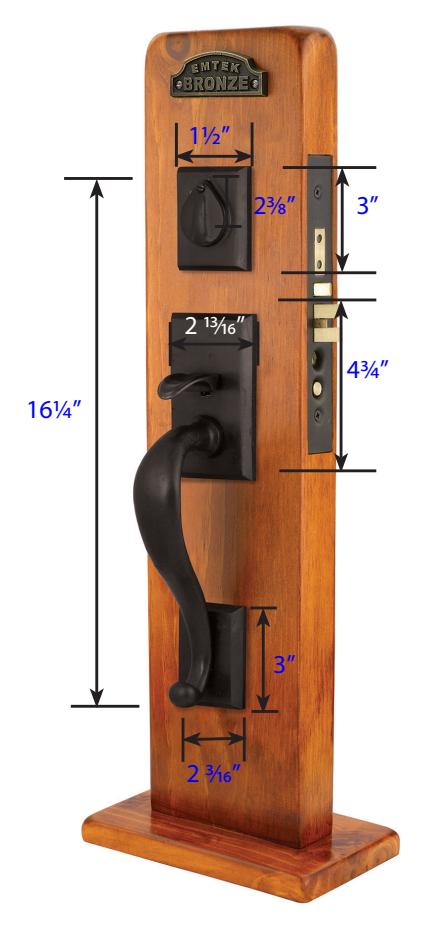

Technical Specifications - RECTANGULAR SECTIONAL STYLE

Standard interior trim Part # UL 3324

Rectangular Sectional

Trim Style Part # UL 3324

Additional Dimensions: (Part # UL 3324)

  • Exterior Projection is 3 1⁄8"
  • Interior Projection Depends on Handle Style
  • Overall Grip thickness: 13⁄4"
  • Clearance between door & grip is 13⁄4"
  • Plates thickness: 1⁄2"

Same dimensions for dummy function

Door Thickness Specifications

Standard Door Thickness: 13⁄4"

Standard Components:

  • 1 1⁄2" Threaded Cylinder
  • 2" Long Spindle
  • 2" Top Rosette Screw
  • 1 1⁄2" Bottom Rosette Screw
  • Thumbpress
  • Strikeplate

Extended Door Thickness: 1 7/8"- 2 1⁄4"

  • Extended Components:
  • 1 1/2" Threaded Cylinder
  • 2" Long Spindle
  • 2 1⁄2" Top Rosette Screw
  • 2" Bottom Rosette Screw
  • Thumbpress
  • Strikeplate

Extended Door Thickness: 2 3⁄8"- 2 5⁄8"

Extended Components:

  • 1 3⁄4" Threaded Cylinder
  • 2 1⁄4" Long Spindle
  • 2 1⁄2" Top Rosette Screw
  • 2" Bottom Rosette Screw
  • Extended Thumbpress
  • Extended Strikeplate
  • 2 3/4" TD Requires 2" Threaded Cylinder

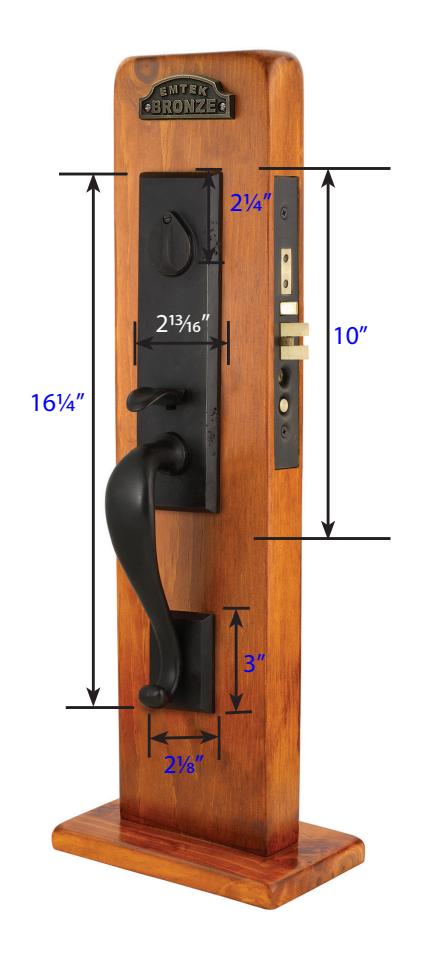

Technical Specifications - RECTANGULAR STYLES

Standard interior trim Part # UL 3325 & 3326

Rectangular Monolithic Trim Style Part # UL 3325

Rectangular Full Length Trim Style Part # UL 3326

Additional Dimensions: (Part # UL 3325 & 3326)

  • Exterior Projection is 3 1⁄8"
  • Interior Projection Depends on Handle Style
  • Overall Grip thickness: 13⁄4"
  • Clearance between door & grip is 13⁄4"
  • Plates thickness: 1⁄2"

Same dimensions for dummy function

Door Thickness Specifications

Standard Door Thickness: 13⁄4"

Standard Components:

  • 1 3⁄8" Threaded Cylinder
  • 2" Long Spindle
  • 2" Top Rosette Screw
  • 1 1⁄2" Bottom Rosette Screw
  • Thumbpress
  • Strikeplate

Extended Door Thickness: 1 7/8"- 2 1⁄4"

Extended Components:

  • 1 1/2" Threaded Cylinder
  • 2" Long Spindle
  • 2 1⁄2" Top Rosette Screw
  • 2" Bottom Rosette Screw
  • Thumbpress
  • Strikeplate

Extended Door Thickness: 2 3⁄8"- 2 5⁄8"

Extended Components:

  • 1 3⁄4" Threaded Cylinder
  • 2 1⁄4" Long Spindle
  • 2 1⁄2" Top Rosette Screw
  • 2" Bottom Rosette Screw
  • Extended Thumbpress
  • Extended Strikeplate
  • 2 3/4" TD Requires 2" Threaded Cylinder

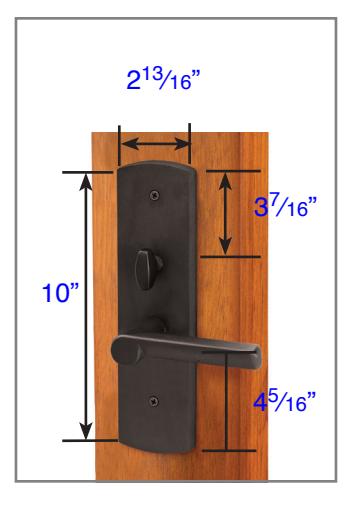

Technical Specifications - MORGAN & ROCKFORD STYLES

213⁄16" 21⁄4"

Standard interior trim Part # UL 3327 & 3328

Morgan Trim Style Part # UL 3327

Rockford Trim Style Part # UL 3328

Additional Dimensions: (Part # UL 3327 & 3328)

  • Exterior Projection is 3 1⁄8"
  • Interior Projection Depends on Handle Style
  • Overall Grip thickness: 13⁄4"
  • Clearance between door & grip is 13⁄4"
  • Plates thickness: 1⁄2"

Same dimensions for dummy function

Door Thickness Specifications

Standard Door Thickness: 13⁄4"

Standard Components:

  • 1 3⁄8" Threaded Cylinder
  • 2" Long Spindle
  • 2" Top Rosette Screw
  • 1 1⁄2" Bottom Rosette Screw
  • Thumbpress
  • Strikeplate

Extended Door Thickness: 1 7/8"- 2 1⁄4"

Extended Components:

  • 1 1/2" Threaded Cylinder
  • 2" Long Spindle
  • 2 1⁄2" Top Rosette Screw
  • 2" Bottom Rosette Screw
  • Thumbpress
  • Strikeplate

Extended Door Thickness: 2 3⁄8"- 2 5⁄8"

Extended Components:

  • 1 3⁄4" Threaded Cylinder
  • 2 1⁄4" Long Spindle
  • 2 1⁄2" Top Rosette Screw
  • 2" Bottom Rosette Screw
  • Extended Thumbpress
  • Extended Strikeplate

• 2 3/4" TD Requires 2" Threaded Cylinder

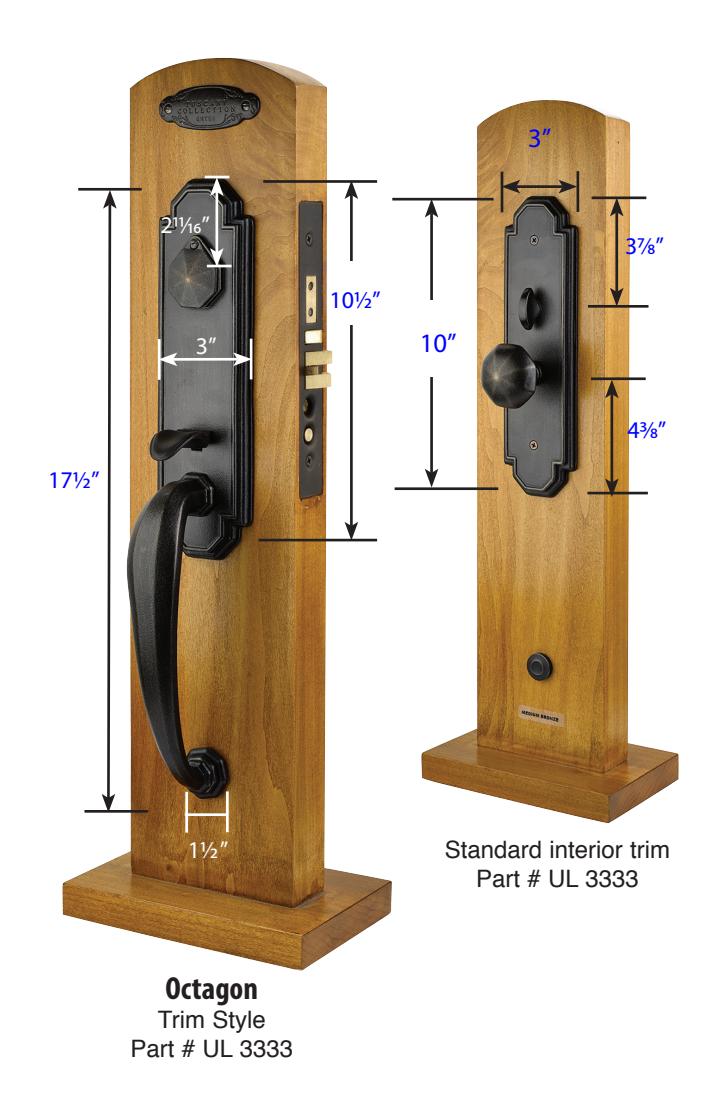

Additional Dimensions: (Part # UL 3333)

  • Exterior Projection is 3 1⁄16"
  • Interior Projection Depends on Handle Style
  • Overall Grip thickness: 2 1⁄8"
  • Clearance between door & grip is 19⁄16"
  • Plates thickness: 1⁄2"

Same dimensions for dummy function

Standard Door Thickness: 13⁄4"

Standard Components:

  • 1 1/2" Threaded Cylinder
  • 2" Long Spindle
  • 2" Top Rosette Screw
  • 1 1⁄2" Bottom Rosette Screw
  • Thumbpress
  • Strikeplate

Door Thickness Specifications

Extended Door Thickness: 1 7/8"- 2 1⁄4"

  • Extended Components:
  • 1 1/2" Threaded Cylinder
  • 2" Long Spindle
  • 2 1⁄2" Top Rosette Screw
  • 2" Bottom Rosette Screw
  • Thumbpress
  • Strikeplate

Extended Door Thickness: 2 3⁄8"- 2 5⁄8"

Extended Components:

  • 1 3⁄4" Threaded Cylinder
  • 2 1⁄4" Long Spindle
  • 2 1⁄2" Top Rosette Screw
  • 2" Bottom Rosette Screw
  • Extended Thumbpress
  • Extended Strikeplate
  • 2 3/4" TD Requires 2" Threaded Cylinder

TUSCANY BRONZE UL MORTISE ENTRANCE HANDLESETS EUROPEAN TRADITIONS

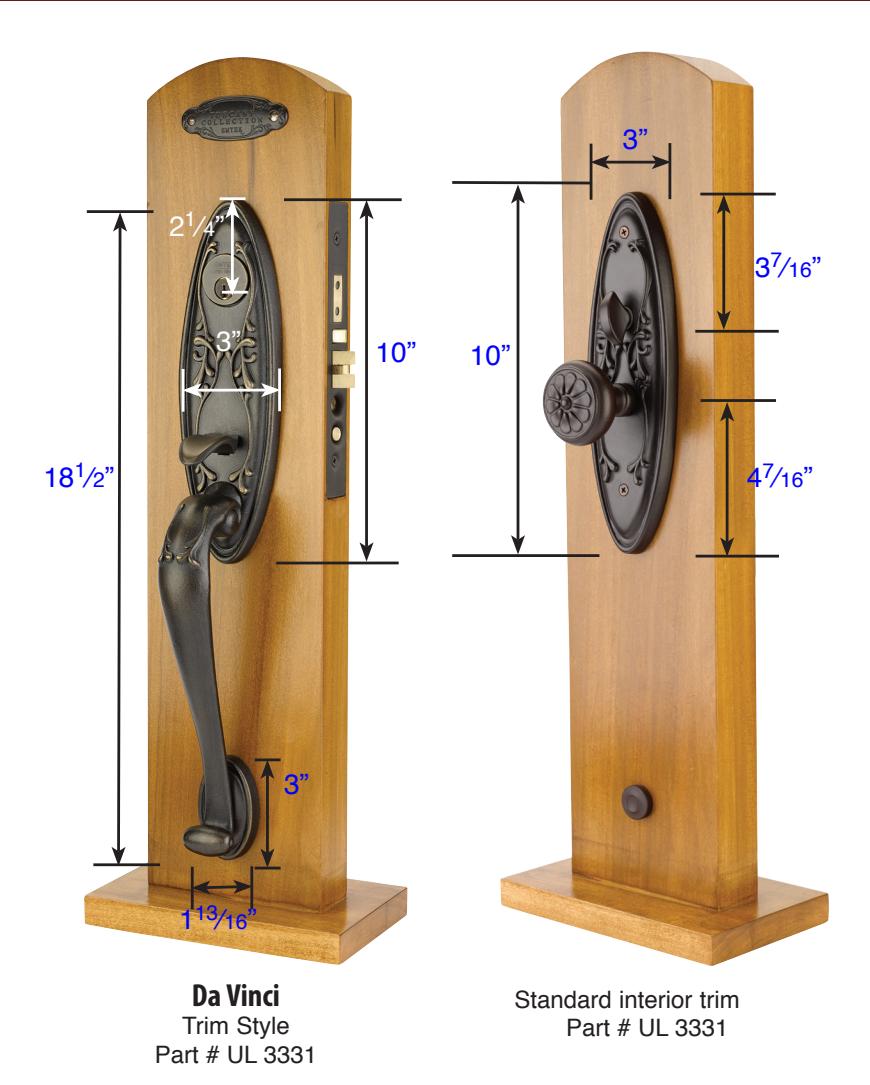

Technical Specifications - DA VINCI STYLE

Additional Dimensions: (Part # UL 3331)

  • Exterior Projection is 3 9⁄32"
  • Interior Projection Depends on Handle Style
  • Overall Grip thickness: 19⁄16"
  • Clearance between door & grip is 17⁄8"
  • Plates thickness: 11⁄16"

Same dimensions for dummy function

Door Thickness Specifications

Standard Door Thickness: 13⁄4"

Standard Components:

  • 1 3⁄8" Threaded Cylinder
  • 2" Long Spindle
  • 2" Top Rosette Screw
  • 1 1⁄2" Bottom Rosette Screw
  • Thumbpress
  • Strikeplate

Extended Door Thickness: 1 7/8"- 2 1⁄4"

  • Extended Components: • 1 1/2" Threaded Cylinder
  • 2" Long Spindle
  • 2 1⁄2" Top Rosette Screw
  • 2" Bottom Rosette Screw
  • Thumbpress
  • Strikeplate

Extended Door Thickness: 2 3⁄8"- 2 5⁄8"

Extended Components:

  • 1 3⁄4" Threaded Cylinder
  • 2 1⁄4" Long Spindle
  • 2 1⁄2" Top Rosette Screw
  • 2" Bottom Rosette Screw
  • Extended Thumbpress
  • Extended Strikeplate
  • 2 3/4" TD Requires 2" Threaded Cylinder
