View PDFART DECO AMERICAN HERITAGE
Cabinet Knobs & Pulls Technical Specifications
Art Deco Knob
| Product Code | Dimension(D) | Projection(P) | Base Dimension(B) |
|---|---|---|---|
| 86421 | 1 1/4" | 1 1/4" | 3/4" |
Newport Knob
| Product Code | Dimension(D) | Projection(P) | Base Dimension(B) |
|---|---|---|---|
| 86432 | 1 1/4" | 1 1/4" | 3/4" |
| 86433 | 1 5/8" | 1 1/2" | 1" |

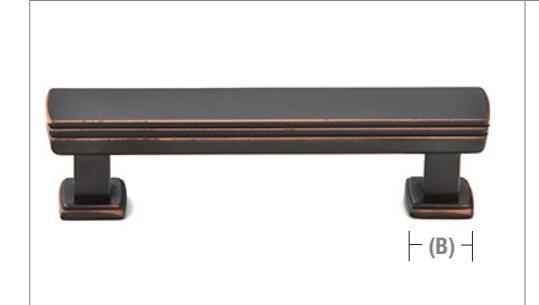

Art Deco Pull
| Product Code | C-to-C | Dimension Overall Projection(P) Base Dimension(B) | ||
|---|---|---|---|---|
| 86422 | 3 1/2" | 4 3/8" | 1 1/8" | 5/8" |
| 86423 | 4" | 4 7/8" | 1 1/8" | 5/8" |
Alexander Pull
| Product Code |
Dimension
C-to-C |
Overall | Projection(P) | Base Dimension(B) |
|---|---|---|---|---|
| 86424 | 3 1/2" | 4 1/8" | 1 1/8" | 5/8" |
| 86425 | 4" | 4 5/8" | 1 1/8" | 5/8" |
| 86484 | 5" | 5 5/8" | 1 1/8" | 5/8" |
| 86426 | 6" | 6 5/8" | 1 1/8" | 5/8" |
| 86427 | 8" | 8 5/8" | 1 1/8" | 5/8" |
| 86485 | 10" | 10 5/8" | 1 1/8" | 5/8" |
| 86479 | 12" | 12 5/8" | 1 1/8" | 5/8" |
| Also available in Appliance Pulls: | ||||
| 86442 | 12" | 13" | 2" | 1" |
| 86443 | 18" | 19" | 2" | 1" |
ART DECO AMERICAN HERITAGE
Cabinet Knobs & Pulls Technical Specifications

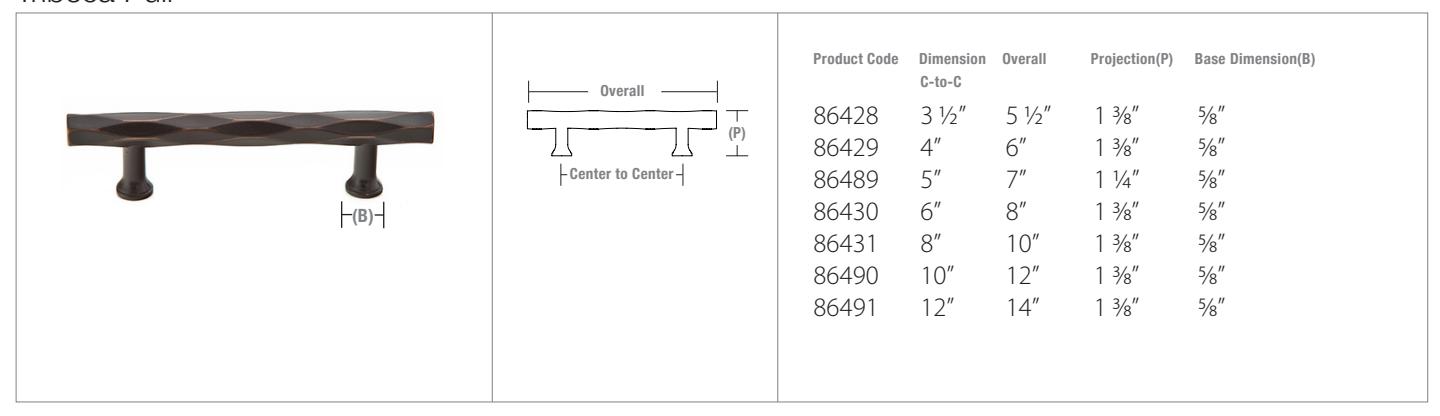

Tribeca Pull

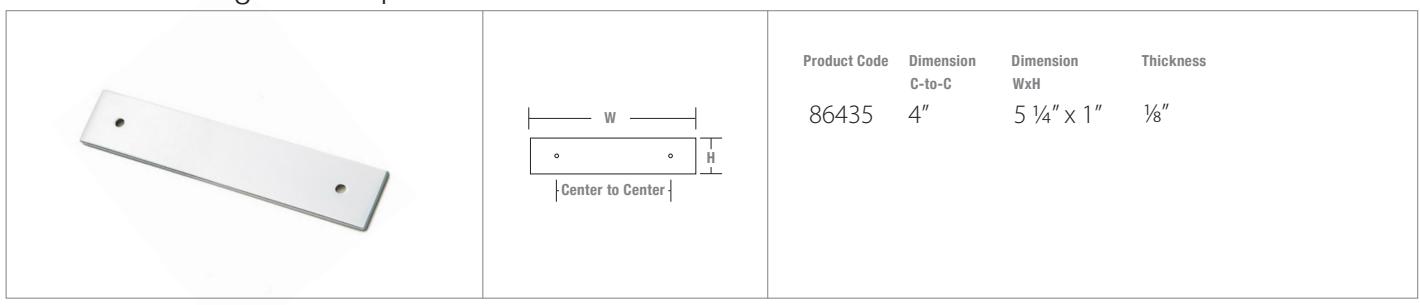

Art Deco Rectangular Backplate for Pulls

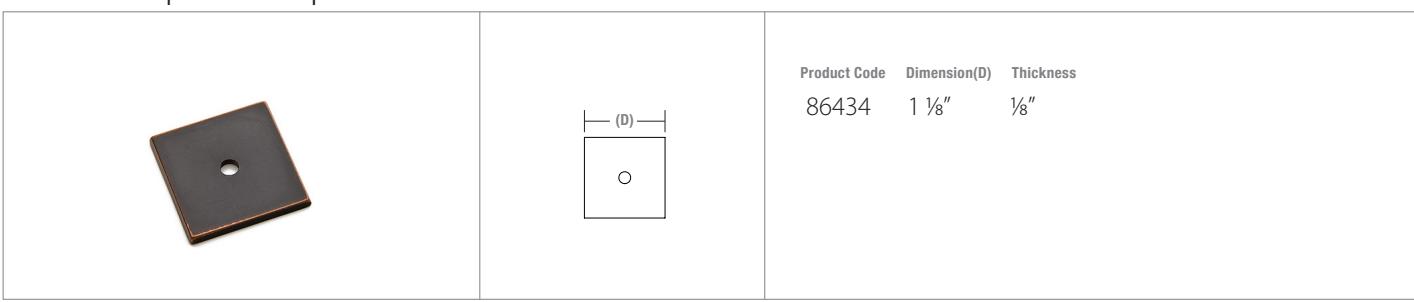

Art Deco Square Backplate for Knobs
TS-CH REV19 10/17/19
