EmergencyAccessPanel-Pricelist
Open the original PDF document
View PDF
CSFM Listed
SDC 490 series emergency door release stations include 2-SPDT contacts for release of all doors on the same circuit and remote annunciation. A built-in local alarm is standard.

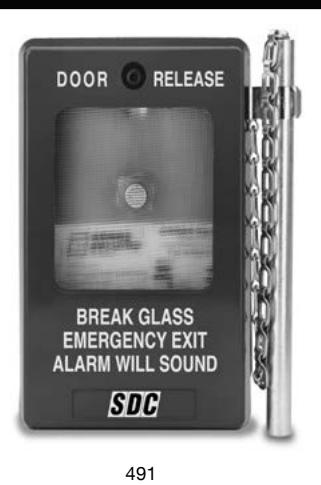

| 491 | Blue break glass station, emergency door release, 2-SPDT 10 Amp contacts with built-in local alarm (12/24V), 2 replacement glass included. Single gang box mounted | 200.00 |
|---|---|---|
| 491-GL4 | Four replacement glass plates for 491 | 23.00 |
| 491-BB | Blue surface mount box for 491 | 67.00 |

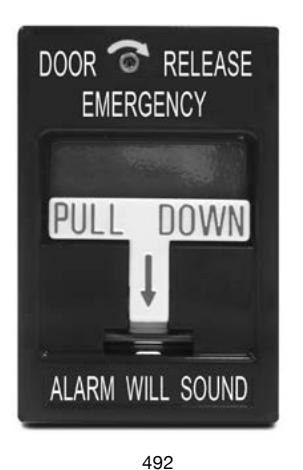

| 492 | Blue pull station, emergency door release, 2-SPDT 10 Amp contacts with built-in local alarm (12/24V), 2 replacement glass rods included. Single gang box mounted. | 164.00 |
| 492-GL | Four replacement glass rods for 492 | 23.00 |
| 492-BB | Blue surface mount box for 492 | 45.00 |
Emergency Access Panel

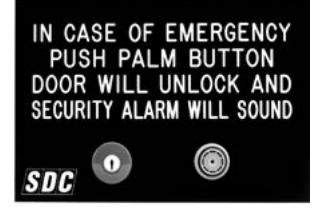

APB1000A Emergency access panel for lobby door system. Mushroom button with key reset and siren
