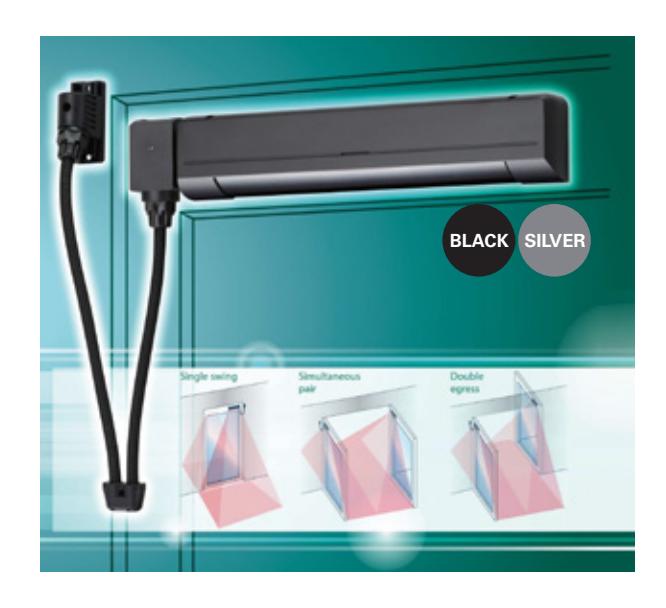

ELITE T ACTIVE INFRARED DOOR SENSOR
DOOR-MOUNTED PRO-SWING
Complies with new ANSI standard
FULL-TIME PRESENCE DETECTION
The Advantage of the door-mounted Pro-Swing ELITE T is that the presence detection stays on even when the door is in motion. The Pro-Swing ELITE T can detect a person or object at any point in the door's swing path, providing complete safety and convenience for swinging doors. When a person or object is in the detection area, the sensor will cause the door to slow, stop, or reverse direction. Knowing Act Doors - ELITE T system satisfies the requirement for secondary activation sensor. No additional sensor required.
The Pro-Swing ELITE T provides a full detection pattern that covers the entire swing of the doors in full open and full close position, there is no need for an overhead safety sensor.
LARGE AND ADJUSTABLE DETECTION AREA
The Pro-Swing ELITE T has a large detection area which can detect beyond the normal area around the moving part of the door. The sensor creates a layer of awareness around the door to ensure safety. By simply selecting dipswitches both the function and detection area of the sensor can be adjusted.
MONITORING CAPABILITY
ELITE T has built-in "monitoring capability". ELITE T monitors all its critical functions and notifies compatible controls when an error occurs. Self-monitoring capability ensures a higher level of performance over the life of the sensor.
FULL TIME PRESENCE DETECTION
The Optex Pro-Swing ELITE T is designed to detect moving or stationary people in the swing path of the door. The Optex Pro-Swing ELITE T stays active even when the door is in motion, providing safety all of the time!
ELITE T ACTIVE INFRARED DOOR SENSOR
DOOR-MOUNTED PRO-SWING

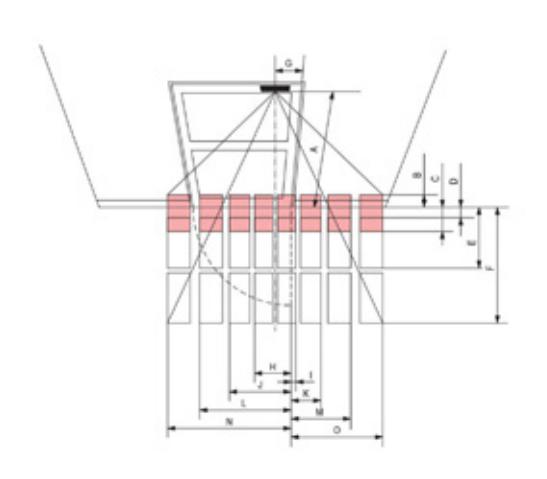

DETECTION AREA
| Α | 2000 (6'7") | 2300 (7'6") |
|---|---|---|
| В | 186 (7") | 214 (8") |
| C | 360 (1'2") | 414 (1'4") |
| D | 152 (6") | 175 (7") |
| E | 840 (2'9") | 966 (3'2") |
| F | 1650 (5°5") | 1898 (6'2") |
| G | 252 (10") | |
| Н | 593 (1°11") | 645 (2'1") |
| 1 | 89 (3") | 141 (6") |
| J | 911 (3') | 1010 (3'4") |
| K | 407 (1'4") | 506 (1'8") |
| L | 1275 (4'2") | 1428 (4'8") |
| М | 770 (2'6") | 924 (3') |
| N | 1684 (5'6") | 1900 (6'3") |
| 0 | 1180 (3'10") | 1395 (4'7") |
SPECIFICATIONS

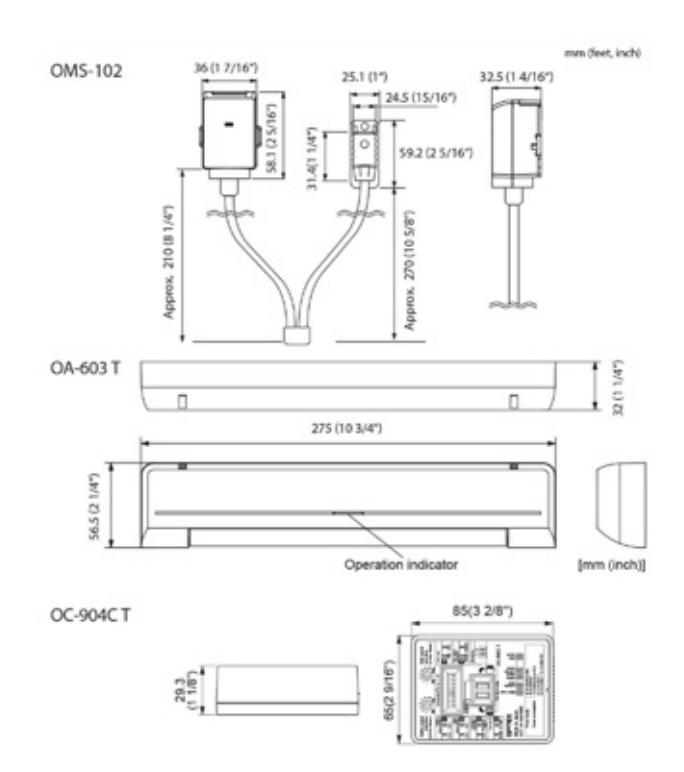

| Model | OA-603 T |
|---|---|
| Cover color type | Black / Silver |
| Mounting height | 2.0 m (6*7') to 2.5 m (8*2*) |
| Detection area | See DETECTION AREA |
| Detection method | Active infrared reflection (Presence detection type) |
| Detection angle |
Threshold area ±5 (Inside & outside)
Adjustments: Swing area ±5 (Inside & Outside) |
| Operation indicator |
Green: Stand-by, Blinking red: threshold area detection active
Red: Swing area detection active, Blinking Yellow learning |
| Current draw | 120 mA Max |
| Response time | < 0.3 sec. |
| Operating temperature | -20to+55°C (-4 to+131°F) |
| Weight | 230 g (8.2 oz.) |
| Accessories |
1 Sensor cable 0.2 m(7"), 9 Mounting screws,
1 Operation manual 3 Mounting template |
| Model | OC-904C T |
|---|---|
| Power supply | 12 to 24 V AC /12 to 30VDC |
| Current draw | 500 mA max.* |
| Activate output | Form A relay 50 V, 0.3 A (resistance load) |
| Safety output | Form B Relay 50 V 0.3 A (resistance load) |
| Stall output | Form B Relay 50 V 0.3 A (resistance load) |
| Relay hold time | (Safety & Stall Output only) 0.5 to 10s |
| Response time | < 0.3 sec. |
| Operation indicator | Green: Standby, Red: door opening. Orange: lockout |
| Operating temperature | -20 to +55°C (-4 to+131°F) |
| Weight | 62 g (2.2 oz.) |
| Accessories | 1 Two sided tape, 2 T-tap connector, |
• When a unit of the 2 OA-603 and 1 OC-904C used.
