ELECTROMAGNETIC DOOR HOLDERS

DOOR ARMATURES & EXTENSIONS

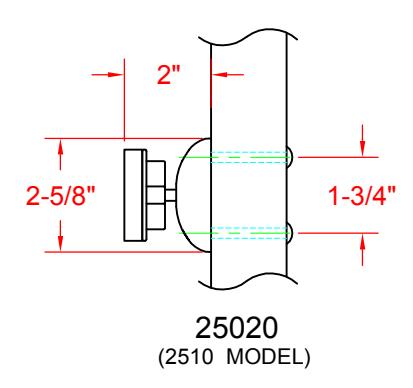

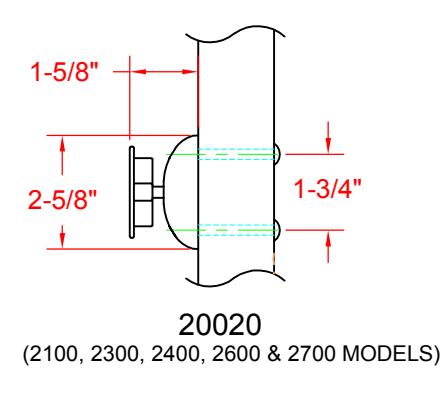

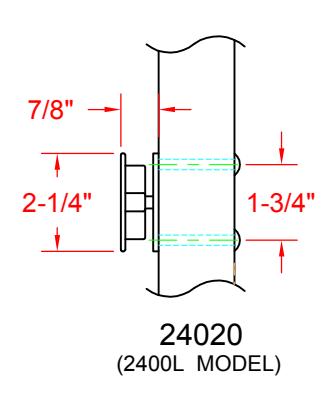

DOOR ARMATURES

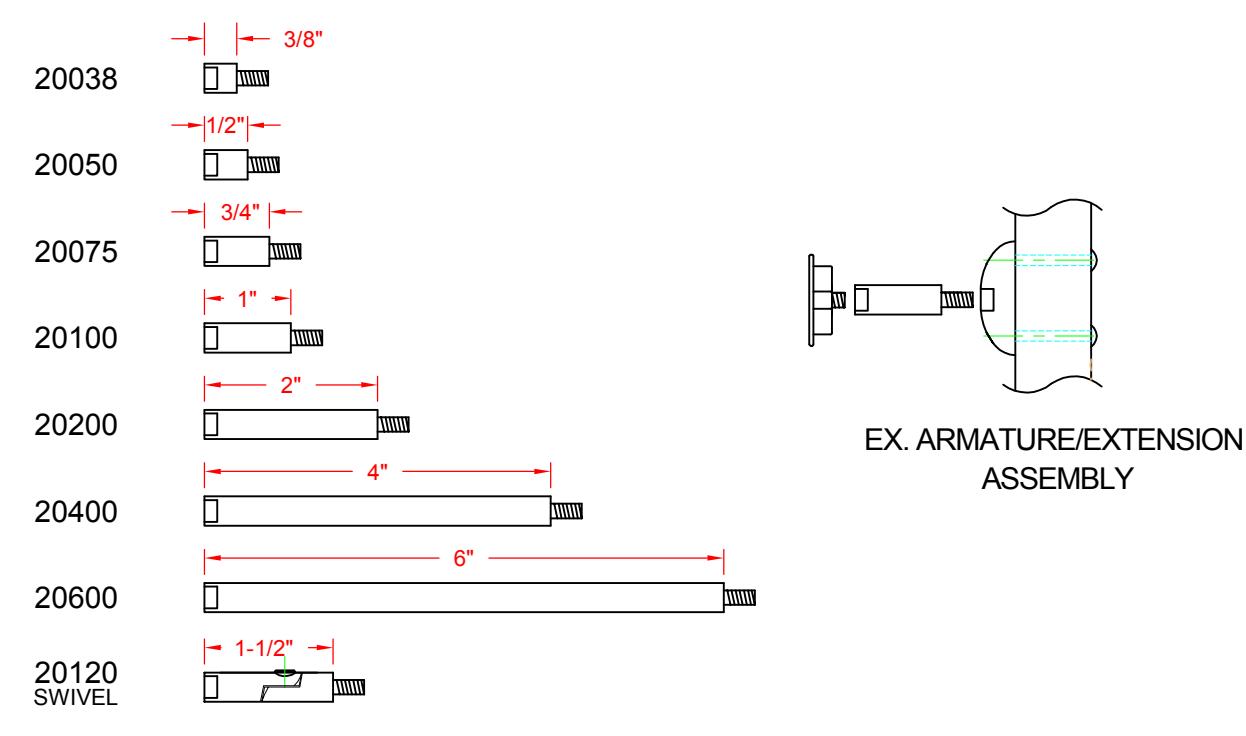

STANDARD LENGTH EXTENSIONS

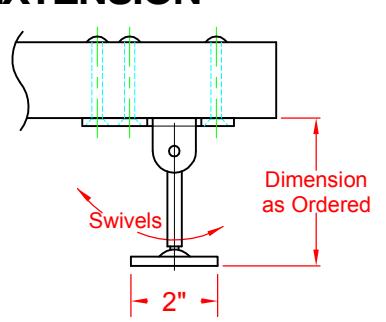

S20020 CUSTOM LENGTH EXTENSION

• · Custom Armature with Extension for length greater than 10"
• · Specify overall length required from face of door to face of Magnet

Electro Magnetic Door Armature Extension.DWG

www.abhmfg.com E-mail: abhinfo@abhmfg.com Architectural Builders Hardware Mfg., Inc. 1222 Ardmore Ave., Itasca, IL 60143 630.875.9900; FAX 800.9FAXABH (932.9224)

ELECTROMAGNETIC DOOR ARMATURE & EXTENSION

c 2019 ABH Mfg., Inc. printed in USA

ISSUED 06-04-19 PAGE 1 OF 1
