ELECTRO-MAGNETIC S U R F A C E A N D R E C E S S H O L D E R S
DOOR HOLDERS
ELECTRO-MAGNETIC DOOR HOLDERS
The 2000 Series Electro-magnetic Door Holders is Tri-Voltage . Each model (except 2500) can be wired 12V DC, 24V AC/DC or 120V AC. Units can be used on fire/smoke barrier doors held open until released by a remote switching device. They can also be used to just hold a door open. The armature is thru-bolted to the door for security and can be provided with any projection required. When ordering indicate, model, total projection, finish and door thickness if other than 1-3/4".
- 30-45 pound holding power (except 2500 300 lbs.)
- Underwriters US and Canada Listed
- California State Fire Marshal Listed
- New York City MEA
- ANSI/BHMA 156.15
- Most models available in US28, sprayed finishes and US32D
- Easy wire installation with quick insert connector
- Armature has 360° Mobility
- No Plastic Parts

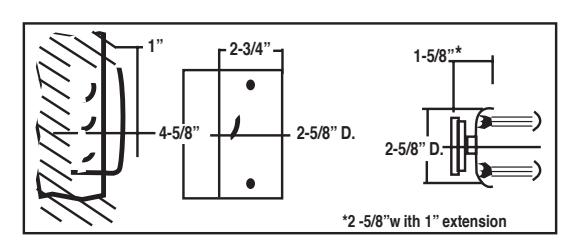

2100 RECESSED WALL MOUNT

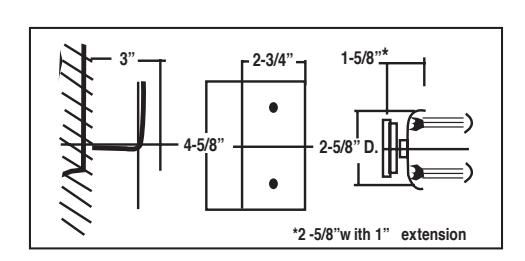

2300 SURFACE WALL MOUNT

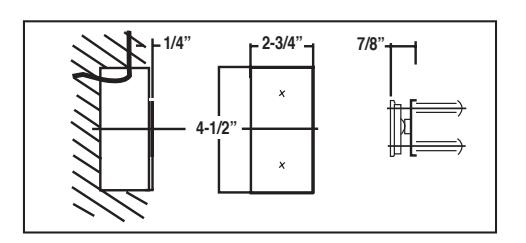

2400 FLUSH WALL MOUNT

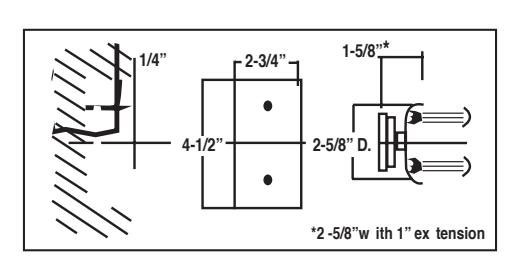

2400L FLUSH WALL MOUNT
International Door Closers, Inc.
COPYRIGHT 2018 INTERNATIONAL DOOR CLOSERS, INC www.intldoorclosers.com
West: 800-544-4422 • East: 800-225-6737

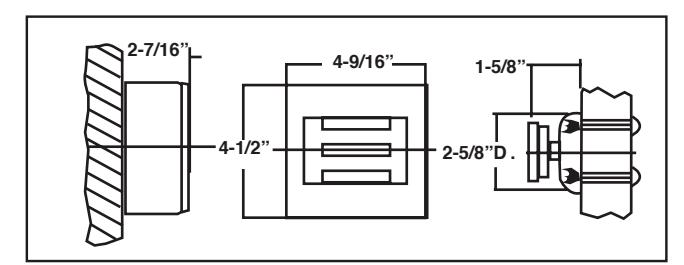

2500 SURFACE WALL MOUNTED
300 LBS. Holding Force 2510 - 24AC/DC

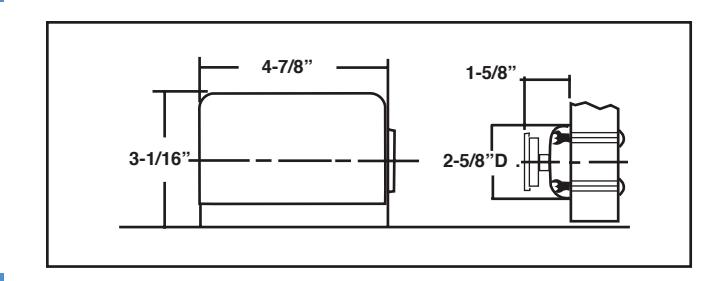

2600 SINGLE FLOOR MOUNT

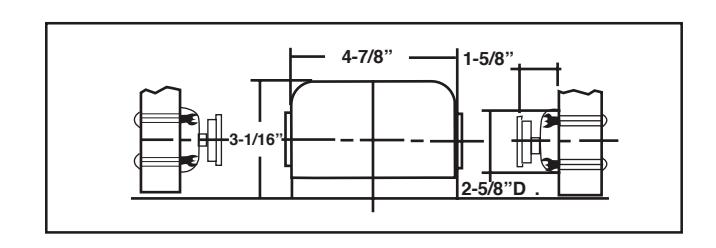

2700 DOUBLE FLOOR MOUNT

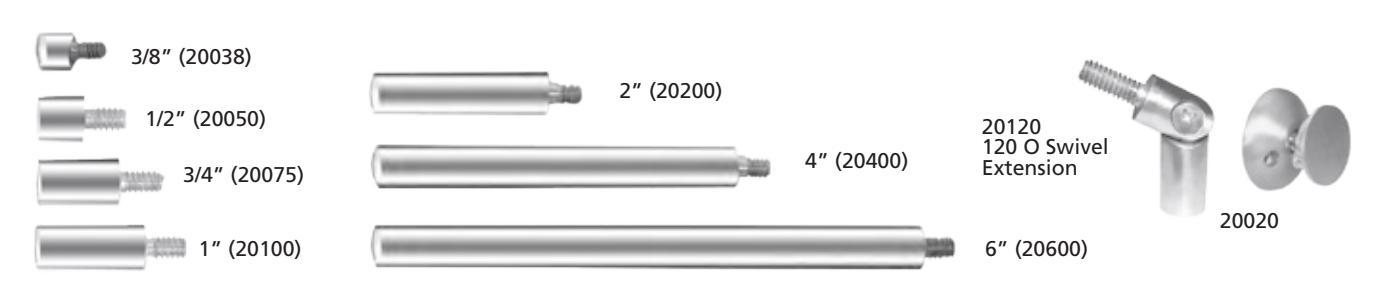

ARMATURE EXTENSIONS
| PERFORMANCE DATA | |||
|---|---|---|---|
| MODEL | VOLTS | mAMPS | VA |
| 2100, 2300 | 12DC | 60 | .72 |
| 2400, 2600, 2700 | 24AC | 30 | .72 |
| 2400L | 24DC | 30 | .72 |
| 120AC | 30 | 3.60 | |
| 2510 | 24AC/DC | 105 | 1.26 |
