ELECTRIC TRIM CONTROL INSTALLATION INSTRUCTIONS MODEL 1560 AND 1570

LEVER IS LOCKED WHEN POWER IS APPLIED.
WHEN POWER IS REMOVED ALLOWS ENTRY BY LEVER HANDLE.
EXIT DEVICE ALWAYS ALLOWS FREE EGRESS.
OUTSIDE KEY CYLINDER FUNCTIONS AS A NIGHT LATCH. THIS ALLOWS THE LATCH TO BE RETRACTED BY KEY WHEN OUTSIDE TRIM IS SECURE.

LEVER IS LOCKED WHEN POWER IS OFF.
WHEN POWER IS APPLIED ALLOWS ENTRY BY LEVER HANDLE.
EXIT DEVICE ALWAYS ALLOWS FREE EGRESS.
OUTSIDE KEY CYLINDER FUNCTIONS AS A NIGHT LATCH. THIS ALLOWS THE LATCH TO BE RETRACTED BY KEY WHEN OUTSIDE TRIM IS SECURE.

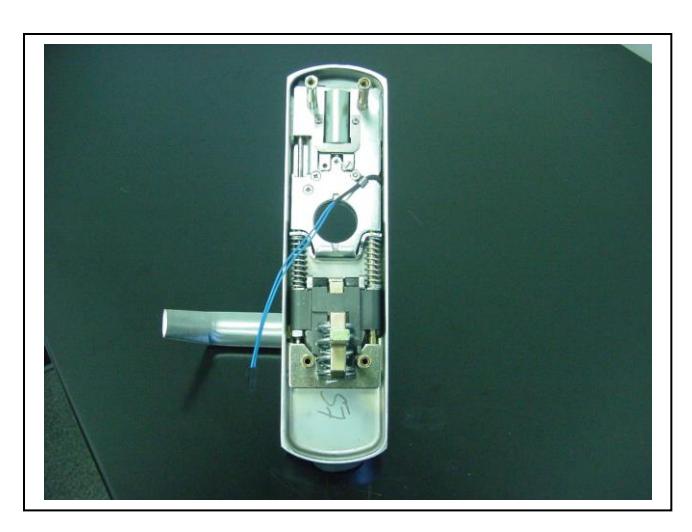

MODELS: 1560 – FAIL SAFE CONTROL (POWER LOCK)

1570 – FAIL SECURE CONTROL (POWER UNLOCK)

NOTE: FOR FUNCTION CHANGE SEE DIAGRAM ATTACHED AT END OF INSTRUCTIONS.

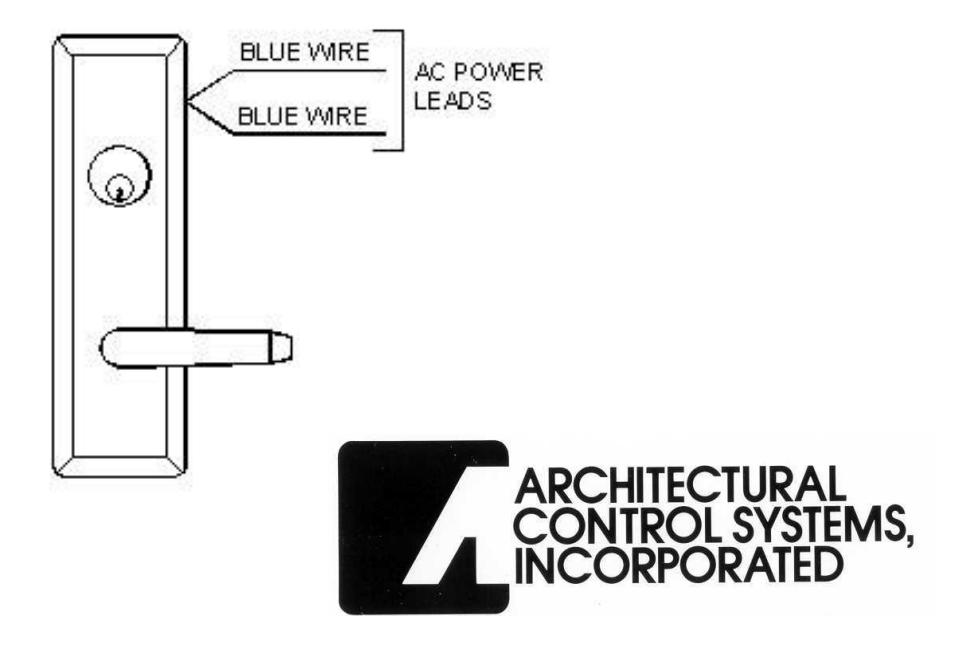

.33 AMP @ 24 VOLTS AC OR DC ± 10% (CONTINUOUS DUTY)

NOTE: USE MANUFACTURERS INSTRUCTIONS FOR DEVICE MOUNTING.

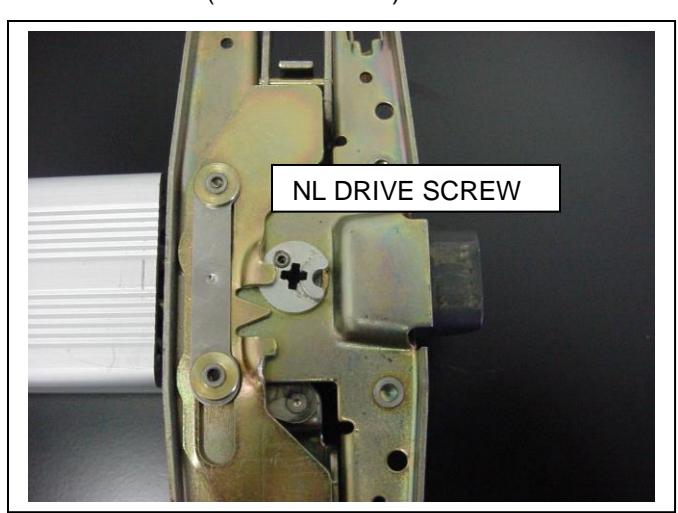

DO NOT REMOVE (NL) DRIVE SCREW FROM BACK OF DEVICE. SCREW MUST BE LEFT IN PLACE FOR PROPER KEY FUNCTION (NIGHT LATCH).

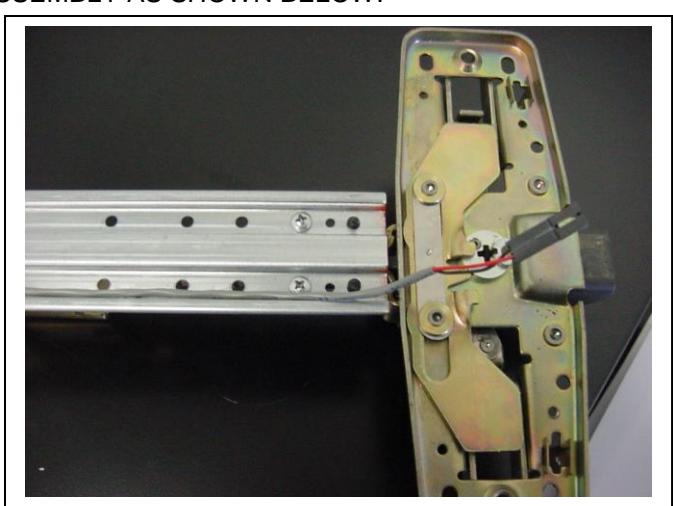

SLIDE OUTSIDE CHANNEL FROM DEVICE AND INSTALL DOOR CABLE IN BOTTOM OF DEVICE BASEPLATE ASSEMBLY AS SHOWN BELOW.

ALLOW APPROXIMATELY 2" INCHES OF CABLE PLUS THE CONNECTOR TO BE LEFT ON THE LATCH SIDE AS SHOWN.

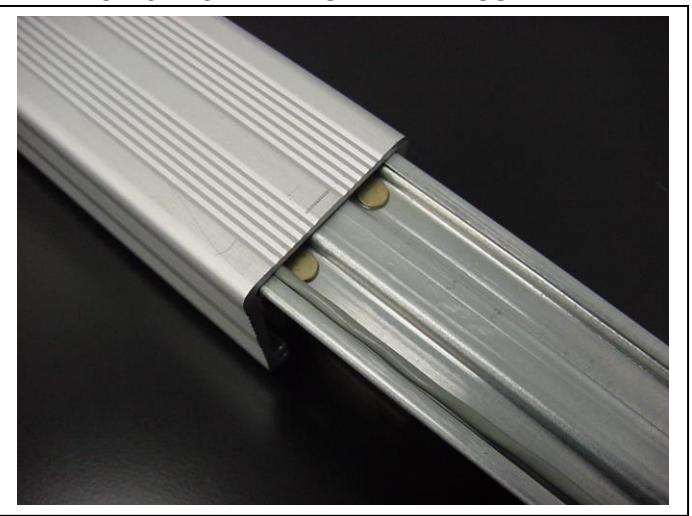

SLIDE THE CHANNEL BACK ONTO THE BASE PLATE ASSEMBLY.

WRAP WIRES AROUND TO THE ACTIVE SIDE OF DEVICE CENTER CASE.

PUSH WIRES AND CONNECTOR FROM TRIM THROUGH THE PREP HOLE IN DOOR. PREP HOLE IS SHOWN ON TEMPLATE NUMBER (E1500-11 ATTACHED AT END OF INSTRUCTIONS).
USE MANUFACTURERS INSTALLATION INSTRUCTIONS FOR MOUNTING TRIM AND EXIT DEVICE.

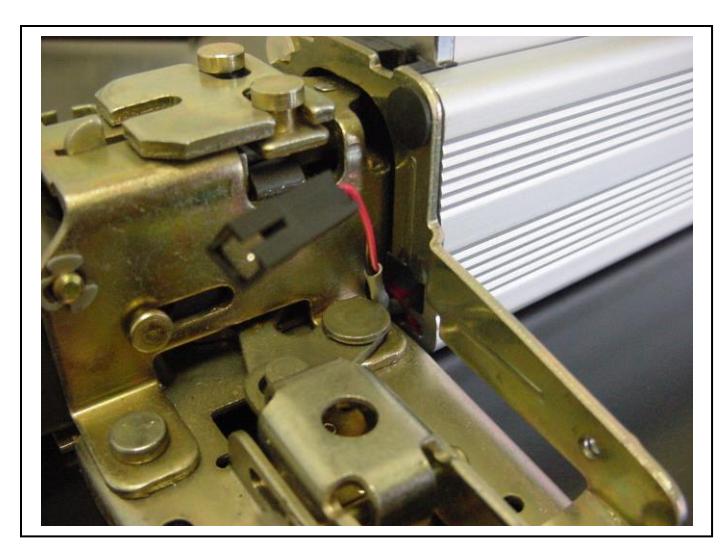

BRING WIRES FROM TRIM CONTROL THROUGH THE DEVICE CENTER CASE AS SHOWN BELOW.

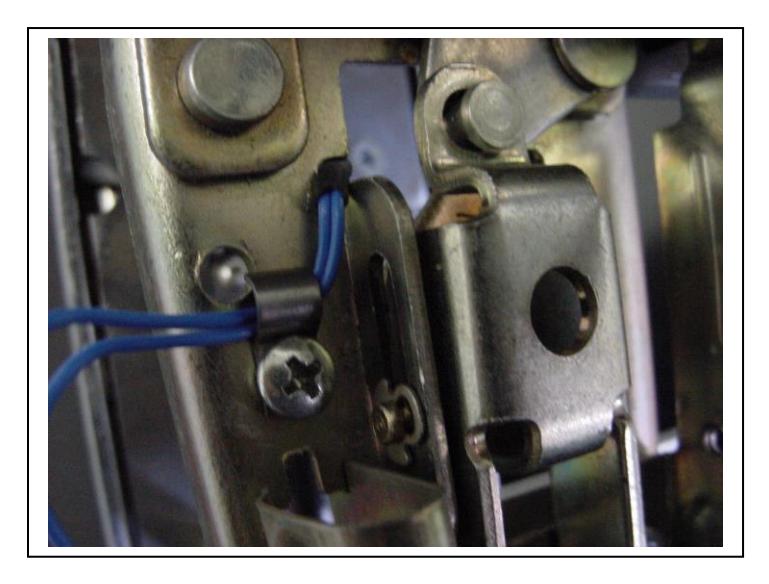

STRAIN RELIEF WIRES TO EXISTING HOLE IN CENTER CASE. USE THE WIRE CLAMP AND SELF-TAPPING SCREW PROVIDED WITH TRIM.

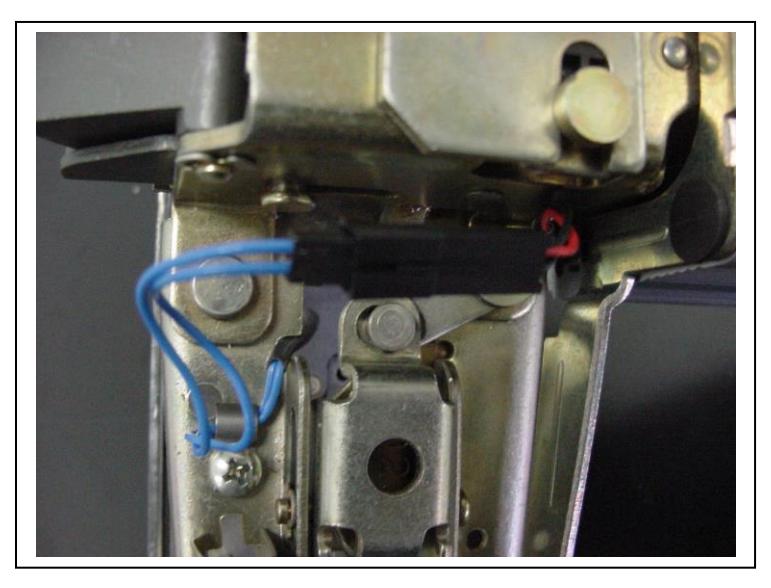

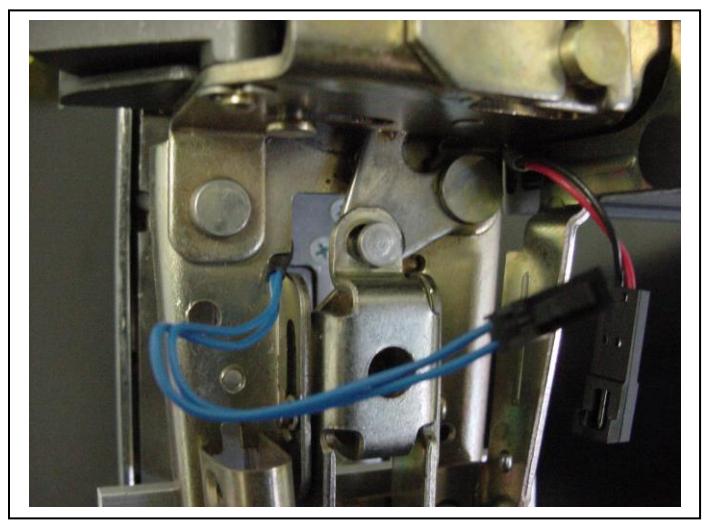

CONNECT THE WIRES FROM THE TRIM TO THE CABLE CONNECTOR AS SHOWN.

USE TEMPLATE NO. E1500-3 (EXIT DEVICE TEMPLATE) FOR PROPER TERMINATION OF WIRES TO THE POWER TRANSFER DEVICE.

FOR USE WITH MODEL 1560 AND 1570 VON DUPRIN 994L AND 996L TRIM CONTROL EXIT DEVICE TEMPLATE FOR WOOD, COMPOSITE AND HOLLOW METAL DOORS

USE MANUFACTURERS TEMPLATE FOR BASIC PREP LOCATION OF HOLES AND CUTOUTS IN DOOR.

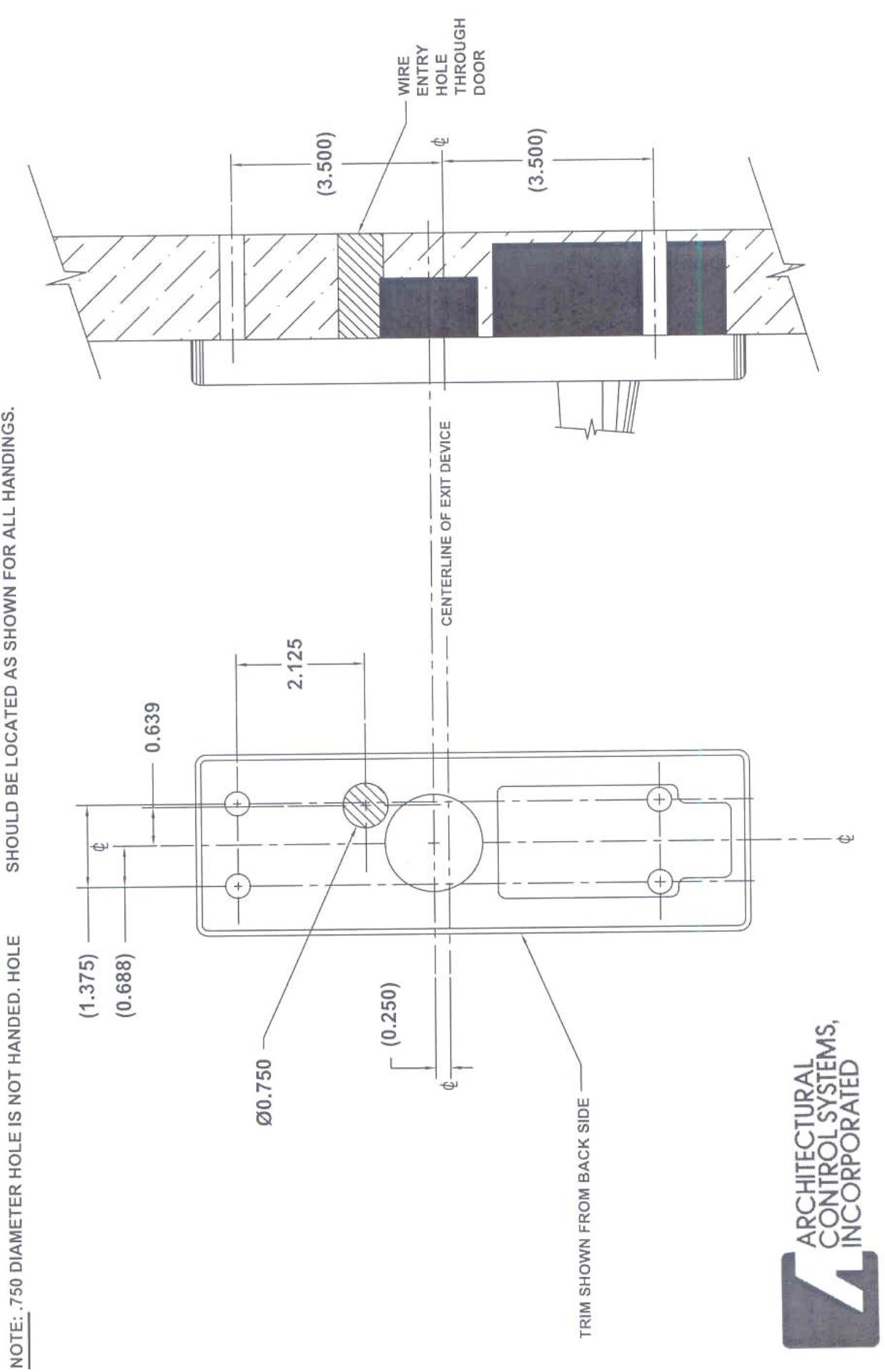

- PROVIDE ADDITIONAL .750 DIA. HOLE THROUGH DOOR TO ALLOW FOR WIRE ENTRY FROM ELECTRIC TRIM CONTROL. SHOULD BE LOCATED AS SHOWN FOR ALL HANDINGS.

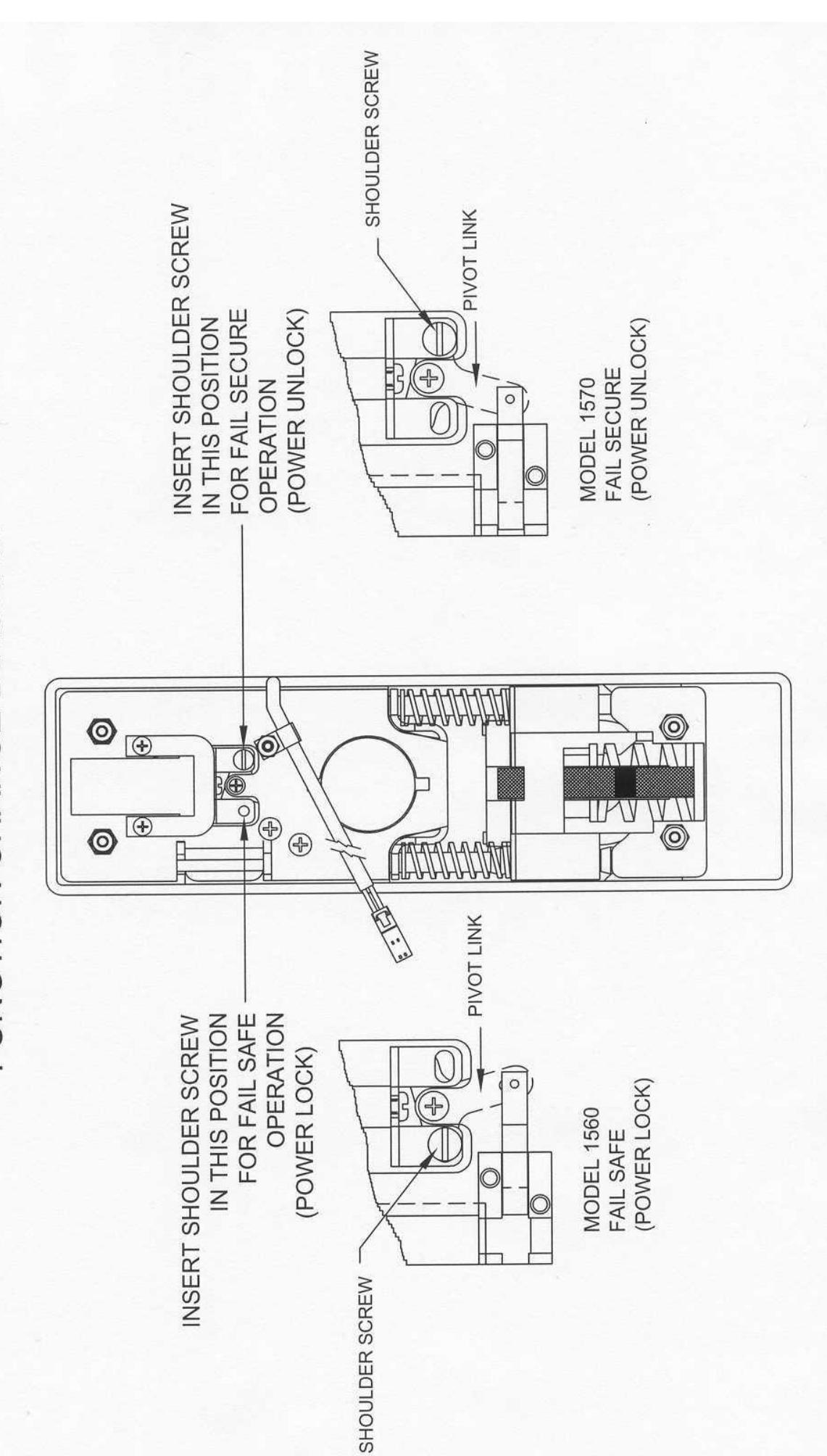

SHOULDER OF SCREW MUST BE INSERTED THROUGH PIVOT LINK. SHOULDER SCREW MUST BE TIGHTENED FULLY TO AVOID INTERFERENCE.
