Electric Strikes Application Guide
Open the original PDF document
View PDF
At critical moments of life safety, Von Duprin® gives you the confidence of knowing that the products you count on will perform.
Von Duprin electric strikes have been designed and tested to the highest standards in the industry to provide the assurance of quality and reliability. You can turn to Von Duprin for expertise and service at any time before, during or after installation. We offer a full line of electric strikes to accommodate a wide range of door preps and locking hardware. Whether you're deploying an electric strike in a standalone setting or as part of a comprehensive access control system, Von Duprin electric strikes are an ideal solution. Our broad portfolio includes electric strikes with a wide range of factory configurable options for new construction and specialized applications, as well as field-configurable options to fit your aftermarket needs.
4200 Series
Traffic control
Affordable option for commercial applications
Field configure power failure mode without disassembling the strike
Cylindrical lockset applications
Ideal for interior applications such as a doctor's office entrance that requires visitor management and traffic control.

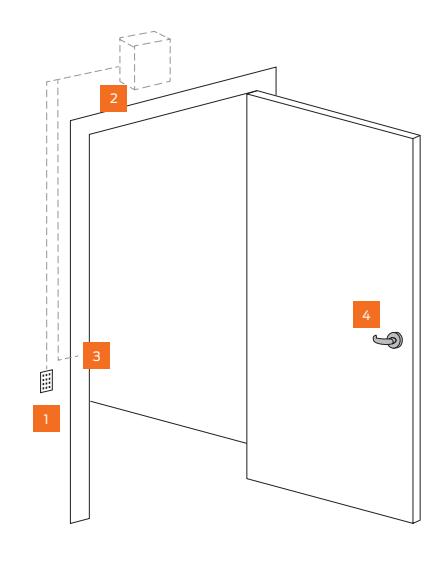

Schlage® KP2000E standalone keypad
Von Duprin PS902 power supply
Von Duprin 4211 electric strike
Schlage AL Series lock
Schlage 621 pushbutton
5100 Series
Medium duty
Three faceplates standard accommodate more applications
Multiple finish options
Cylindrical lockset applications
Simple and cost effect way to add standalone access control to perimeter openings such as employee entrances.

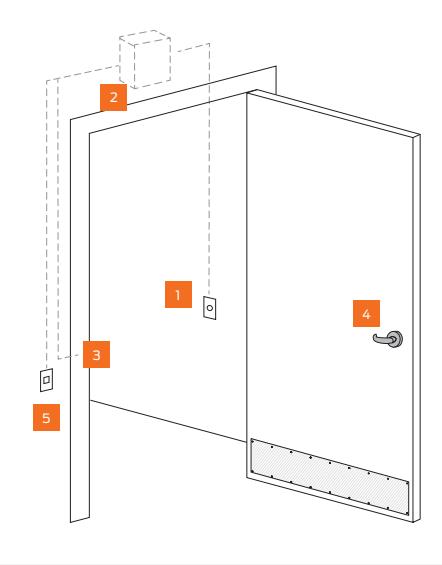

Schlage KP212 standalone keypad
2 Von Duprin PS902 power supply
Von Duprin 5100 electric strike
Schlage ND Series lock
| Series | Lockset (latch | Types of doors | Dimensions | |||||
|---|---|---|---|---|---|---|---|---|
| Cylindrical | Mortise |
Mortise
deadbolt |
Exit | Single |
Pair w/
mullion |
Face plate length |
Backbox
depth |
|
| 4200 Series | 4211: up to 3 / 4 " 4212: up to 5 / 8 " | _ | _ | _ | • | - | 47/8" | 13/8" |
| 5100 Series | up to 5/8" | _ | _ | _ | • | _ | 4 7 / 8 " and 7 15 / 16 " | 1 "/16" |
| 6300 Series | _ | _ | _ |
Rim exit,
up to 3/4" |
• | • | 9" |
Surface
mounted - 3 / 4 " projection |
| 6400 Series | up to 3/4" | up to 3 /4" |
Up to 1" as
nightlatch |
Mortise exit,
up to 3/4" |
• | _ | 47/8" | 15/8" |
6300
Heavy duty up to 2,000,000 cycles
Surface mounted, quick and easy installation
Fire rated, fail secure
Rim exit device applications
Surface mounted strike for challenging applications such as aluminum storefronts.
aptiQ™ SM10 smart card reader
Schlage CT5000 offline controller
Von Duprin PS902 power supply Von Duprin 6300 electric strike
Von Duprin 98 Series exit device
6400
Heavy duty
Modular design adjusts to centerline of many MS/MD locks
Fire rated, fail secure
Mortise or cylindrical lockset applications
Designed for high security applications such the electrical room of a small business.

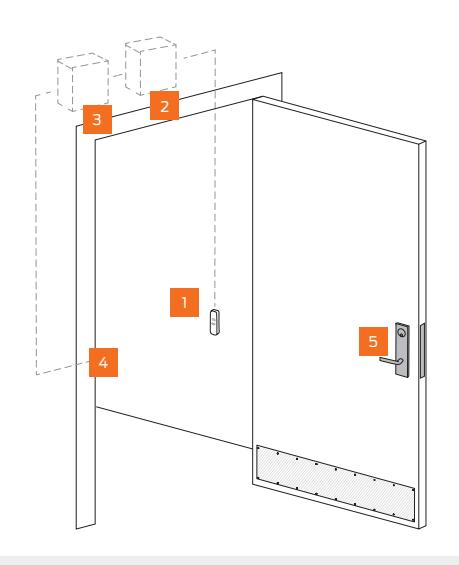

aptiQ SM10 smart card reader
Schlage CT5000 offline controller
Von Duprin PS902 power supply
Von Duprin 6400 electric strike
Schlage L9000 mortise lock
| Door and frame material | Codes | Power requirements | Additional options | Series | |||||
|---|---|---|---|---|---|---|---|---|---|
|
Hollow
metal |
Wood |
Alumi-
num |
Fire rated | AC | DC | Latchbolt monitor |
Rectifier
kit |
Entry
buzzer |
|
| • | _ | • | _ | _ | 12/24 |
4211: N/A
4212: Standard |
Optional |
Optional
(Fail-secure only) |
4200 Series |
| • | • | • | _ | _ | 12/24 | _ | Optional | _ | 5100 Series |
| • | • | • | • | _ | 12/24 | _ | Optional | Optional | 6300 Series |
| • | • | • | - | 12/24 | 12/24 | Optional | _ | Optional | 6400 Series |
The 6100 Series and 6200 Series have a many different models to accommodate virtually any application and type of lockset. Please see the data sheet to make the proper selection.
6100 Series
Ideal for high abuse applications such as perimeter entrances and exits where secure access control is required.
Heavy duty
Broad application coverage with a variety of factory orderable options
Fire rated models available
Rim exit device applications

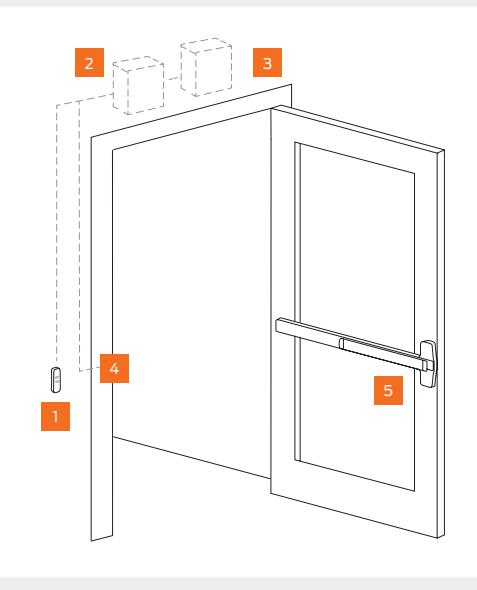

1 Schlage KP232 standalone keypad 2 Von Duprin PS902-FA power supply
3 Von Duprin 6100 Series electric strike
4 Von Duprin 98 Series exit device
6200 Series
Heavy duty product designed for high security applications such as laboratories or records offices.
1 Schlage KP212 standalone keypad 2 Von Duprin PS902-FA power supply
3 Von Duprin 6200 Series electric strike
4 Schlage L9000 mortise lock
Heavy duty
Broad application coverage with a variety of factory orderable options
Fire rated, fail secure
Mortise or cylindrical lockset applications
