Edwards Signaling SD-TRK4 SD-TRM4 3100690 R1 Remote Test Reset Station Installation Instruction

Product description

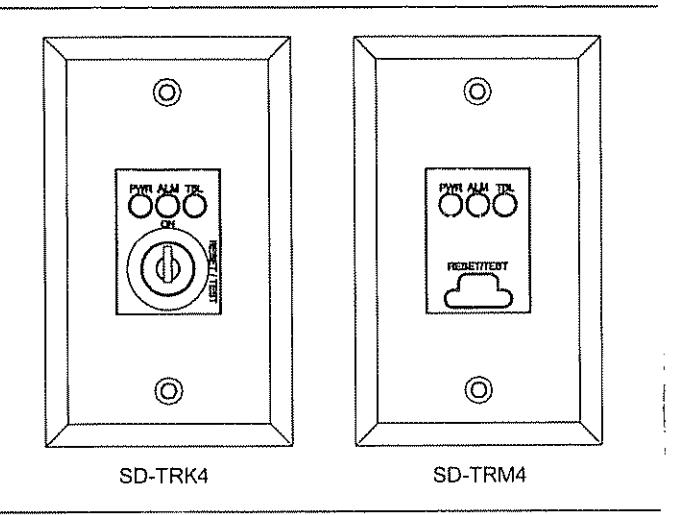

The SD-TRK4 and SD-TRM4 Remote Test/Reset Stations are used with the SuperDuct™ four-wire duct smoke detector. Each remote test/reset station provides a green LED to indicate power, a red LED to indicate alarms, and a yellow LED to indicate troubles and detector dirty levels. The SD-TRK4 requires a key to activate test and reset functions while the SD-TRM4 requires the SD-MAG magnetic test tool.

For operating instructions, refer to Technical Bulletin P/N 3100685

Specifications

Compatible electrical boxes

North American 1-gang box

Standard 4-in square box, 1-1/2 inches deep, with 1-gang

cover

LED indicators: Alarm (red), Trouble (yellow), Power (green)

LED type: Clear lens Wire size: 14 to 22 AWG Resistance per wire: 10 $\backslash Omega$ , max

Current requirements: Included in controller specification Compatible detectors: SuperDuct Four-Wire Duct Smoke

Detectors

Operating environment

Temperature: 0 to 55 °C (32 to 131 °F) Humidity: 93% RH, noncondensing Storage temperature: -20 to 60 °C (-4 to 140 °F)

Installation instructions

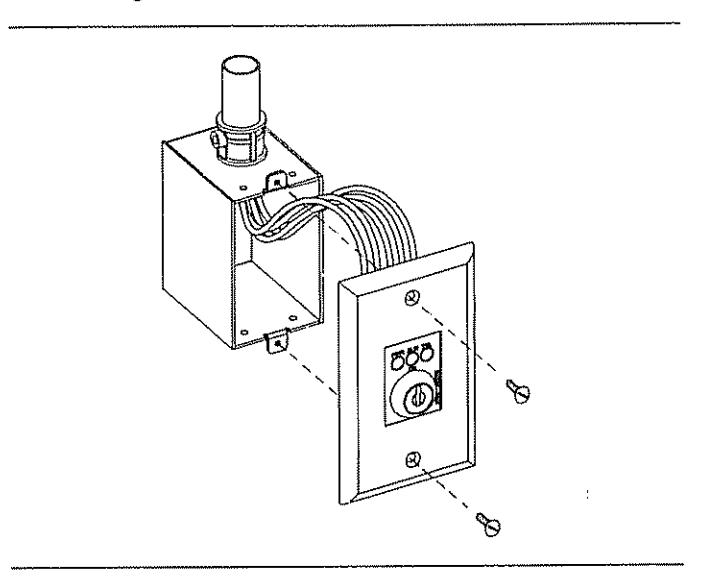

Mount the remote test/reset station on a single gang box as shown in Figure 1.

Figure 1: Installation diagram

Wiring

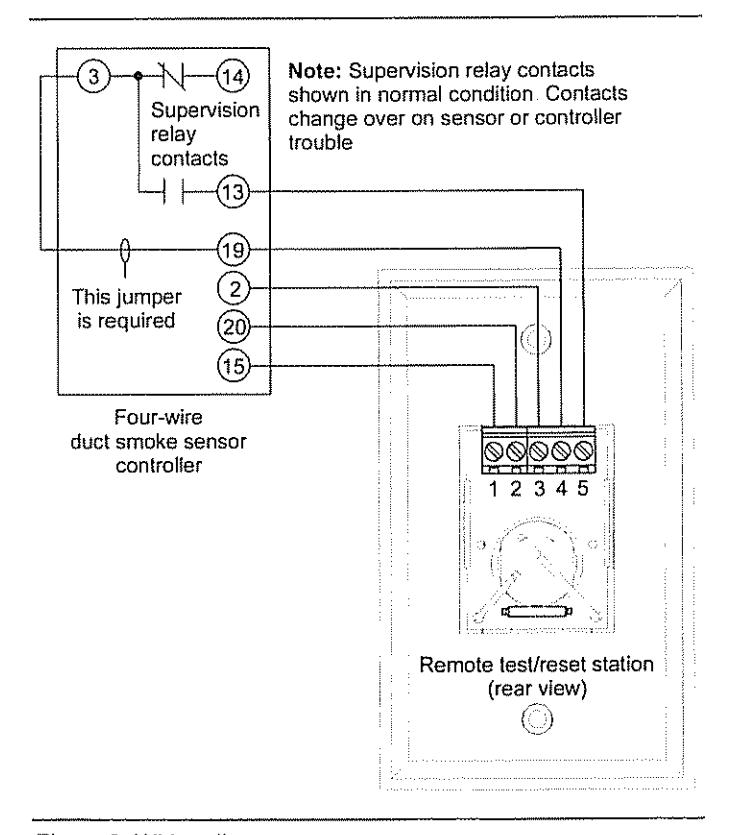

Wire the remote test/reset station to the four-wire controller as shown in Figure 2.

Figure 2: Wiring diagram
