Product description

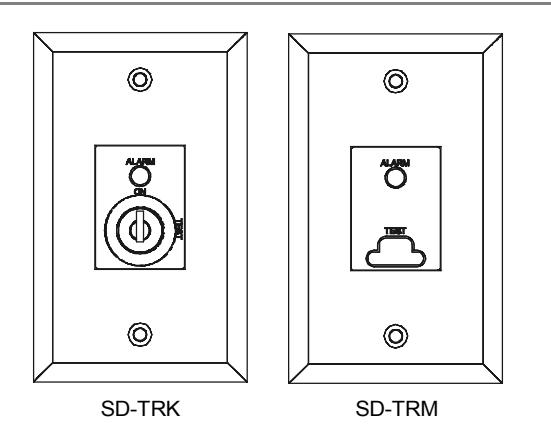

The SD-TRK and SD-TRM remote test stations are used with SuperDuct series of conventional two-wire and Signature duct smoke detectors. Each remote test station provides a red LED to indicate alarms. The SD-TRK requires a key to activate the test function while the SD-TRM requires the SD-MAG magnetic test tool (ordered separately).

For operating instructions, refer to the following documentation:

• SuperDuct Conventional Two-Wire Duct Smoke Detector Technical Reference (P/N 3100737)
• SuperDuct Signature Duct Smoke Detector Technical Reference (P/N 3100738)

Specifications

Compatible electrical boxes

North American 1-gang box

Standard 4-in square box, 1-1/2 inches deep, with 1-gang

cover

LED indicators: Alarm (red) LED type: Clear lens Wire size: 12 to 22 AWG Resistance per wire: 10 Ω, max.

Current requirements: Included in controller specification

LED circuit ratings

Voltage: 3 Vdc, max. Current: 30 mA, max. Switch ratings (SD-TRK) Voltage: 125 Vdc, max. Current: 4 A, max. Switch ratings (SD-TRM) Voltage: 200 Vdc, max.

Current: 0.5 A, max. Compatible detectors: SuperDuct conventional two-wire and

Signature duct smoke detectors

Operating environment

Temperature: 0 to 55 °C (32 to 131 °F) Humidity: 93% RH, noncondensing Storage temperature: -20 to 60 °C (-4 to 140 °F)

Installation instructions

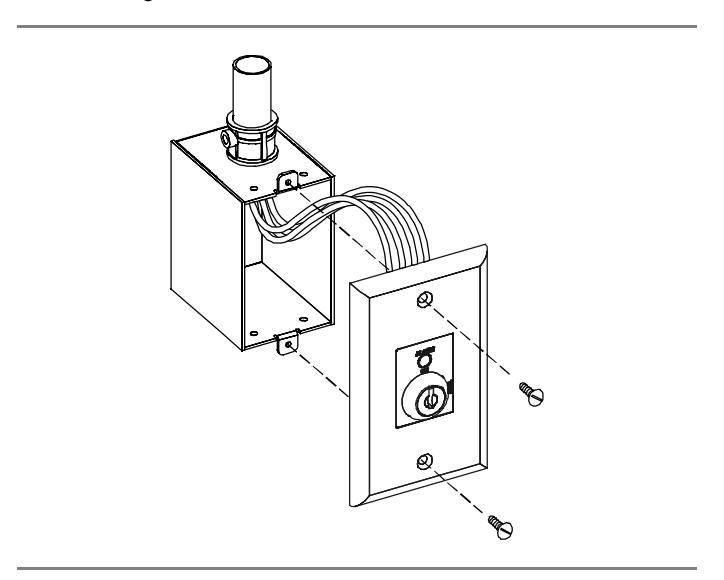

Mount the remote test/reset station on a single gang box as shown in Figure 1.

Figure 1: Installation diagram

Wiring diagram

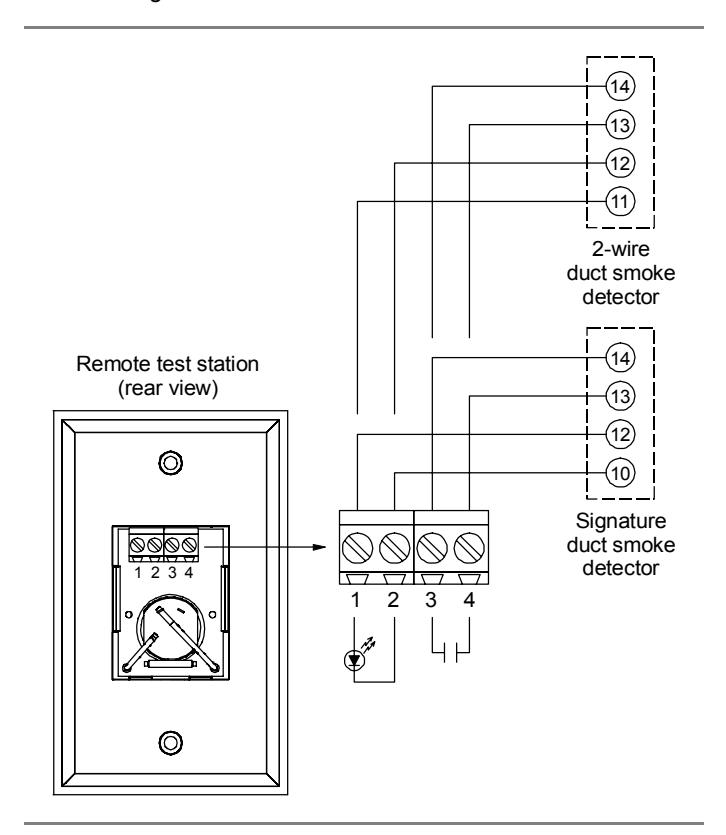

Wire the remote test station to the duct smoke detector as shown in Figure 2.

Figure 2: Wiring diagram

OFFSET SPEC SD-TRK, SD-TRM Remote Test Stations

For: letter, portrait to 1/4

One 8-1/2 in x 11 in sheet printed on one side.

Material is standard white offset stock.

Characters are black on white background.

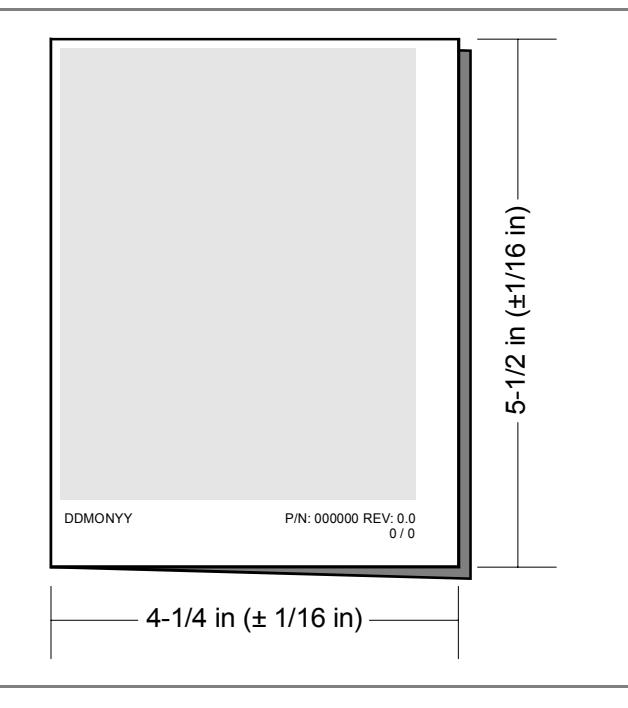

Fold two times to the dimensions shown, with the part number on the outside.
