E-FSAi n t e l l i g e n t s m a l l b u i l d i n g f i r e a l a r m s o l u t i o n s

Specifications	E-FSA64	E-FSA250
E-FSA64: one loop that supports up to 64 intelligent devices of any type.		E-FSA250: One loop that supports up to 127 intelligent devices. Can be expanded to two loops. Each loop supports 127 devices devices of any type.
E-FSA64: 2 Class B or 2 optional Class A NACs Any combination of up to eight LCD, LED, and graphic serial annunciators		E-FSA250: 4 Class B or 2 Class A NACs Optional 10 A or 6.5 A Booster
		Ethernet (SA-ETH)

Quick Reference

Consult relevant literature for full listing of available models and options.

Control Panels
E-FSA64RD	Intelligent Fire Alarm Control Panel with dialer, 64 Points
SA-TRIM1	Fire Alarm Control Accessory, Semi-Flush Mt., Trim Kit, E-FSA64
E-FSA250RD	Intelligent Fire Alarm Control Panel with Dialer, 1-Loop (127-Devices) expand to 2nd Loop (127 Devices) use XAL127 Module
SA-TRIM2	Semi-Flush Mt., Trim Kit, E-FSA250
BC-1R	Battery Cabinet, red
12V6A5	7.2 Ah Batteries
12V10A	11.0 Ah Batteries
12V17A	18 Ah Batteries

Option Cards
XAL127	SLC Loop Expansion Module
SA-CLA	E-64 Class A adapter module
SA-ETH	Ethernet Port (supports laptop programming interface)
SA-232	Serial Port (RS-232) (supports laptop programming interface)

Remote Annunciation
RLCD-R	LCD text annunciator without common controls. Red.
RLCD-CR	LCD text annunciator, common controls. Red.
RLED-CR	16-pair LED zone annunciator, common controls. Red.
RLED24R	24-pair LED zone expander, cable and zone card. Red.
RA-ENC1	One-position enclosure for Remote Annunciator.
RA-ENC2	Two-position enclosure for Remote Annunciator and Remote Expander.
LSRA-SB	Surface Mount Box

Power Supplies
EBPS6A	6.5 Amp Booster Power Supply
EBPS10A	10 Amp Booster Power Supply
12V6A5	7.2 Ah Batteries
12V10A	11.0 Ah Batteries
	BC-1R - Red Battery Cabinet

Intelligent Detectors & Bases
E-PD	Photoelectric Smoke Detector
E-PHD	Photoelectric Smoke/Heat Detector
E-HD	Heat Detector, RoR or Fixed, Programmable
B4U	Standard Base
IB4U	Isolator Detector Base
RB4U	Relay Detector Base
SB4U	Audible (Sounder) Detector Base
AB4G-SB	Surface Box for Audible Base
R-LED	Remote alarm LED. Use with standard base only.

Duct
Detectors
E-PDD	Intelligent SuperDuct Detector
SD-Txx	Sampling Tubes for SuperDuct
SD-TRK	Remote Test Stations for SuperDuct

Manual Stations
E-278	Double Action Pull Station
276B-RSB	Surface Mount Box, Red, for E-278
E-270	Single Action Pull Station
P-039250	Steel Mounting Box for E-270

Intelligent Modules
E-IDC1B	Single Input Mini Module
E-IDC2B	Dual Input Module
E-2WIRE	Two Wire Smoke Detector Input Module
E-ISO	SLC Fault Isolator Module
E-NAC	Intelligent NAC module
E-RLY	Intelligent Contact Relay Module

Strobes, Horns
EG1RF-VM	Wall Strobe, 15-110 cd, Marked "Fire", 24VDC, red
	EG1RF-HDVM Wall Horn/Strobe, 15-110 cd, Marked "Fire", 24VDC, red
EG1RF-HD	Wall Horn, Temporal, High/Low dB, Marked "Fire", 24VDC, Red
EG1RT	Genesis Trim Plate (for 2-gang or 4" sq. boxes), red
EGCF-VM	Ceiling Multi-cd Strobe, 15-95 cd, Marked "Fire", red
EGCF-VMH	Ceiling Multi-cd Strobe, 95-177 cd, Marked "Fire", red
EGCF-HDVM	Ceiling Multi-cd Horn-Strobe, 75- 95 cd, Marked "Fire", red
	EGCF-HDVMH Ceiling Multi-cd Horn-Strobe, 95-177 cd, Marked "Fire", red
	CS405-8A-T Weatherproof Strobe, 110 cd
2452THS 110-R	Weatherproof Horn/Strobe, 110 cd
449	Weatherproof Box for CS405 strobes
2459WPB-R	Weatherproof Surface Box, red

Doorholders
1501-AQN5	Single Door, Floor Mounted
1502-AQN5	Double Door, Floor Mounted
1504-AQN5	Long Catch Plate, Flush Wall Mounted
1505-AQN5	Short Catch Plate, Flush Wall Mounted
1508-AQN5	Surface, Wall Mounted

Power Relays
MR101/C	Single SPDT relay. Contact Rating 10 Amps @ 115Vac and Coil Power 24 Vac, 24Vdc, 115Vac or 230Vac.
MR201/C	Single DPDT relay. Contact Rating 10 Amps @ 115Vac and Coil Power 24 Vac, 24Vdc, 115Vac or 230Vac.
PAM1	Encapsulated SPDT relay. Contact Rating 10 Amps @ 115Vac and Coil Power 24 Vac, 24Vdc, or 115Vac.

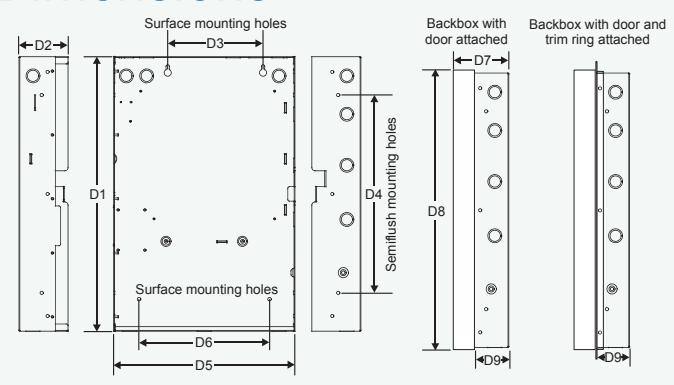

Dimensions

Panel dimensions, in (cm)
	D1*	D2	D3	D4	D5*	D6	D7	D8	D9
E-FSA64	21.50	3.85	7.5	15.5	14.25	10.25	3.9	21.7	2.7
	(54.6)	(9.8)	(19)	(39.4)	(36.2)	(26)	(9.9)	(55.1)	(6.8)
E-FSA250	28.0	3.85	9.0	22.0	15.75	10.25	3.9	28.2	2.7
	(71.1)	(9.8)	(22.8)	(55.8)	(40.0)	(26.0)	(9.9)	(71.6)	(6.8)

^* Optional trim kits provide 3/4" frame on top, bottom and sides.

Booster Power Supply

Consult relevant literature for application details.

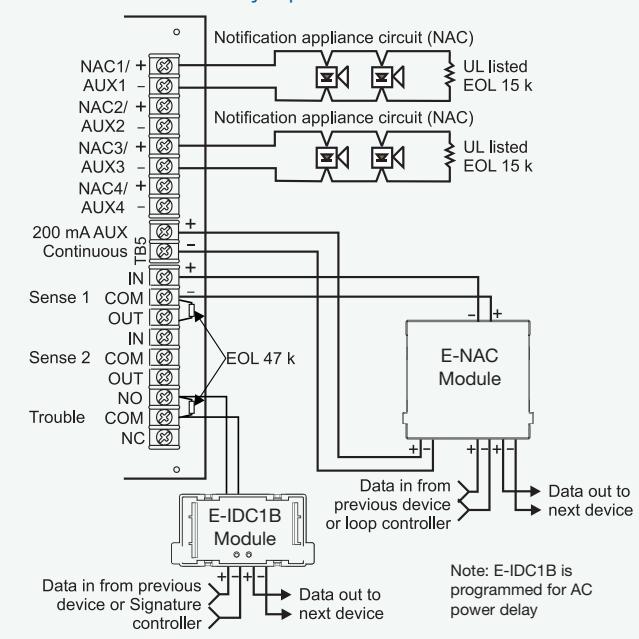

AC Power Fail delay operation

Specifications	EBPS6A - 6.5 amp Booster	EBPS10A - 10 amp Booster
AC Line	120VAC 50/60Hz 390 watts	120VAC 50/60Hz 580 watts
Voltage
NAC Ratings	24Vdc nominal	24Vdc nominal
	6.5A max total all NACs	10A max total all NACs
Trouble Relay		2 Amps @ 30Vdc
Auxiliary		Four individually configurable outputs can replace NACs 1, 2, 3 or
Outputs	4 as auxiliary outputs.
	200 mA dedicated auxiliary for use with E-NAC module.
Input Current	6mA @ 24Vdc (from an existing NAC)
Current	70mA (Booster Internal Supervisory)
Maximum	10 Amp Hours (2 of 12V10A) in cabinet
Battery Size	up to 24 Amp hours with external battery cabinet (p/n BC-1R)
Environmental	Temperature 32° to 120°F (0° to 49°C),
	Humidity 0 to 93% non condensing @ 32°C
NAC Wiring	(4) Class B or (2) Class A
Output Signal	Continuous, 3-3-3 temporal,
Rates	or follow installed panel's NAC.
