Weatherproof Mounting Boxes Models 348/349/449
449
Overview

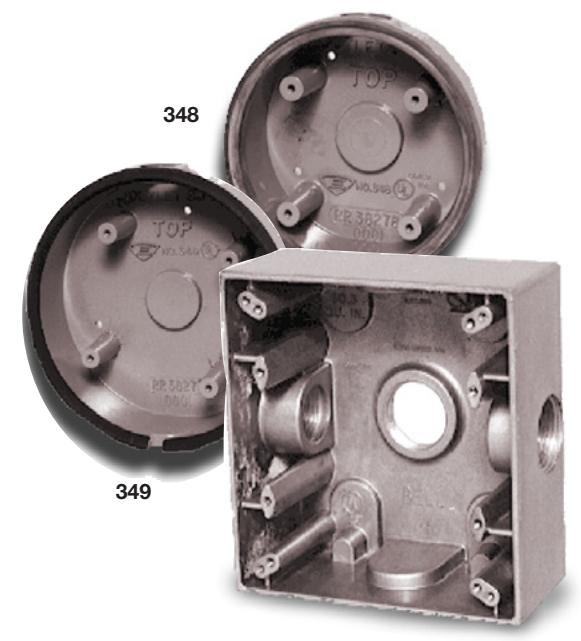

Edwards die-cast weatherproof backboxes are perfect for mounting a variety of Edwards signaling appliances such as bells, horns and sirens. They are made from die-cast aluminum and finished at the factory with a baked "Sage Gray" enamel finish. All boxes are shipped complete with a molded neoprene gasket. They all feature 3/4 inch tapped conduit entries.
Three models are available:
Catalog Number 348
– fits 4" 340 bells. UL listed for outdoor use.
Catalog Number 349
– fits 6", &10", & 340 bells, and 5520 Duotronic horn/siren. UL listed for outdoor use.
Catalog Number 449
– fits 4" 435 & 6", 8", &10" 439D, 435, & 438 bells and CS405 strobes. UL listed for outdoor use.
Standard Features
- Die-cast aluminum
- Surface mount
- Gray baked enamel finish
- Weatherproof gasket included
Contact us...
Phone: 1-800-336-4206
Web: www.edwardssignaling.com
Edwards Signaling is an EDWARDS brand.
3 Farm Glen Boulevard Farmington, CT 06032
In Canada, contact Chubb Edwards... Email: inquiries@chubbedwards.com Web: www.chubbedwards.com
© 2013 UTC Fire & Security Americas Corporation, Inc. All rights reserved. Specifications subject to change without notice. Edwards is part of UTC Climate, Controls & Security, a unit of United Technologies Corporation.
Installation

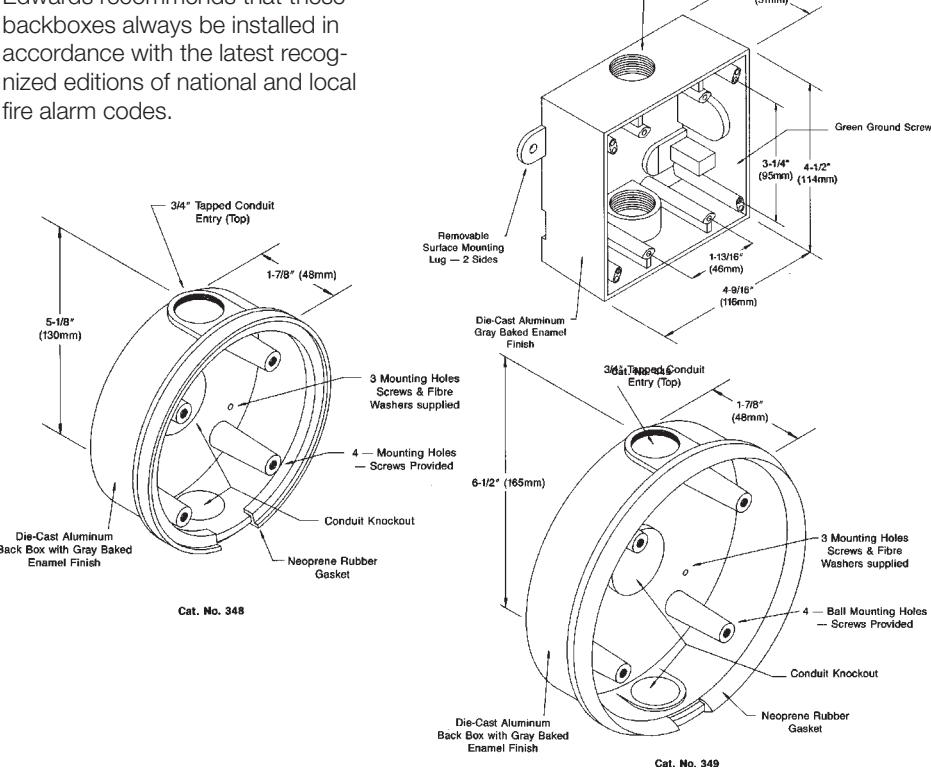

Edwards recommends that these backboxes always be installed in accordance with the latest recog-
Specifications
|
Catalog
Number |
348 | 349 | 449 |
|---|---|---|---|
| Dimensions |
5-1/8" (130mm) Diameter
x 1-7/8" (48mm) Deep |
6-1/2" (165mm) Diameter
x 1-7/8" (48mm) Deep |
4-9/16" (116mm) Square
x 2" (51mm) Deep |
| Conduit Entry | 3/4" Top | 3/4" Top, Back, Bottom | |
| Material | Die Cast Aluminum | ||
| Gasket |
Molded Neoprene
Rubber |
Closed Cell Neoprene | |
| Finish | Sage Gray Baking Enamel | ||
Ordering Information
|
Catalog
Number |
Description |
Shipping
Weight |
|---|---|---|
| 348 | Weatherproof Backbox | 0.33 lb |
| — Surface Mount with Gasket, 5-1/8" (130mm) Diameter | (0.15kg) | |
| 349 | Weatherproof Backbox | 0.5 lb |
| — Surface Mount with Gasket, 6-1/2" (165mm) Diameter | (0.2kg) | |
| 449 | Weatherproof Backbox | 0.33 lb |
| — Surface Mount with Gasket, 4-9/16" (116mm) Square. | (0.15kg) |
