Multi-Voltage Control Relays MR100 & MR200 Series
MR104C, MR204/C
Overview
The MRSeries Multi-Voltage Control Relays offer SPDT or DPDT 10 Amp contacts which may be operated by one of four input control voltages. A single relay may be energized from a voltage source of 24 Vdc, 24 Vac, 115 Vac or 230 Vac by wiring to appropriate input terminals.

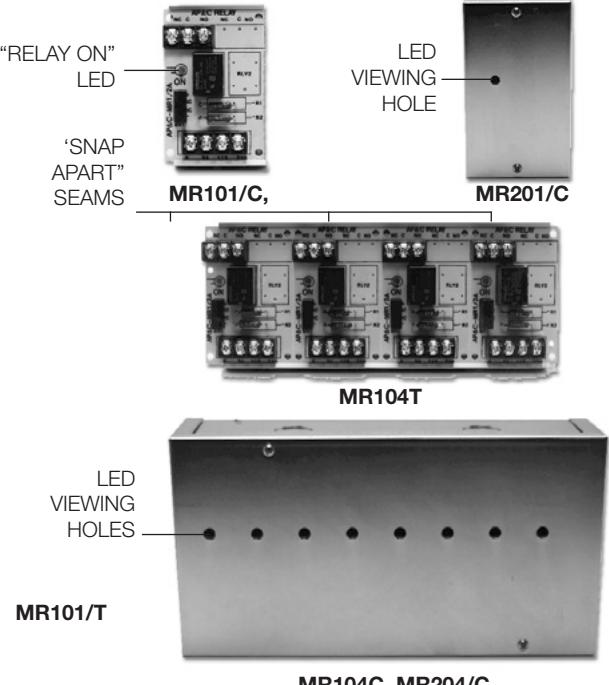

Each relay position contains a red light emitting diode (LED) which indicates the relay coil is energized. Relays may be "snapped apart" from a standard four-module assembly and used independently.
These devices are ideal for applications where local contacts are required for system status, remote contacts for control of electrical loads and general purpose switching. They are suitable for use with HVAC Temperature Control, Fire Alarm, Security, Energy Management, and Lighting Control Systems.
Standard Features
- Each relay position may be energized from one of four input voltages
- Each relay position contains a red LED which illuminates when the coil is energized. This provides a timesaving convenience when checking an installed system; no metering is required.
- Single, dual or triple relay modules may be "snapped apart" from a standard four-position master
- SPDT or DPDT relays available
- Available in dustproof metal enclosures with LED viewing port
- Track mounting hardware to facilitate installation in standard cabinets
- UL recognized relays rated at 10 million mechanical operations
- ULI listed as control unit accessory
Contact us...
Phone: 1-800-336-4206
Web: www.edwardssignaling.com
Edwards Signaling is an EDWARDS brand. 3 Farm Glen Boulevard Farmington, CT 06032
In Canada, contact Chubb Edwards... Email: inquiries@chubbedwards.com Web: www.chubbedwards.com
© 2013 UTC Fire & Security Americas Corporation, Inc. All rights reserved. Specifications subject to change without notice. Edwards is part of UTC Climate, Controls & Security, a unit of United Technologies Corporation.

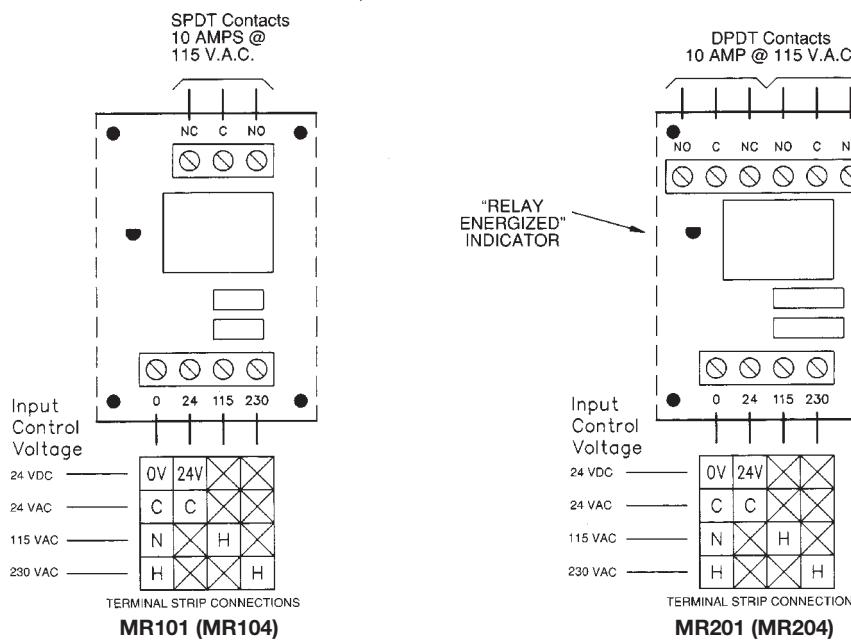

Installation Wiring
(TYPICAL FOR ONE MODULE POSITION)
Specifications
| Power Requirements | |
| MR101 Position | 15 mA @ 24 Vac, 24 Vdc, 115 Vac, 230 Vac |
| MR201 Position | 35 mA @ 24 Vac, 24 Vdc, 115 Vac, 230 Vac |
| Relays | |
| MR101 | UL Recognized SPDT |
| MR201 | UL Recognized SPDT |
| Enclosure | 18 ga. CRS, plated with 1/2 in conduit knockouts (top and bottom) |
| Contact Rating | 10 Amps @ 115 Vac |
| Ambient Temperature | -58°F to 185°F (-50°C to 85°C) |
| Approvals | UL Listed control unit accessory |
| Dimensions | |
| MR101/T and MR201/T | 3.0 H x 2.125 W x 1.5 D in (76 H x 54 W x 38 D mm) |
| MR104T and MR204/T | 3.0 H x 8.5 W x 1.5 D in (76 H x 216 W x 38 D mm) |
| MR101/C and MR201/C | 6.125 H x 3.25 W x 2.5 D in (156mm H x 83mm W x 64 D mm) |
| MR104C and MR204/C | 6.125 H x 9.5 W x 2.5 D in (156 H x 241 W x 64 D mm) |
Ordering Information
| Model | Description |
|---|---|
| MR101/T | Single SPDT relay with LED and track mounting hardware |
| MR101/C | Single SPDT relay with LED mounted in metal enclosure |
| MR104T | Four-position SPDT relay with LEDs and track mounting hardware |
| MR104C | Four-position SPDT relay with LEDs mounted in metal enclosure |
| MR201/T | Single DPDT relay with LED and track mounting hardware |
| MR201/C | Single DPDT relay with LED mounted in metal enclosure |
| MR204/T | Four-position DPDT realy with LEDs and track mounting hardware |
| MR204/C | Four-position DPDT relay with LEDs mounted in metal enclosure |
