Technology that saves lives

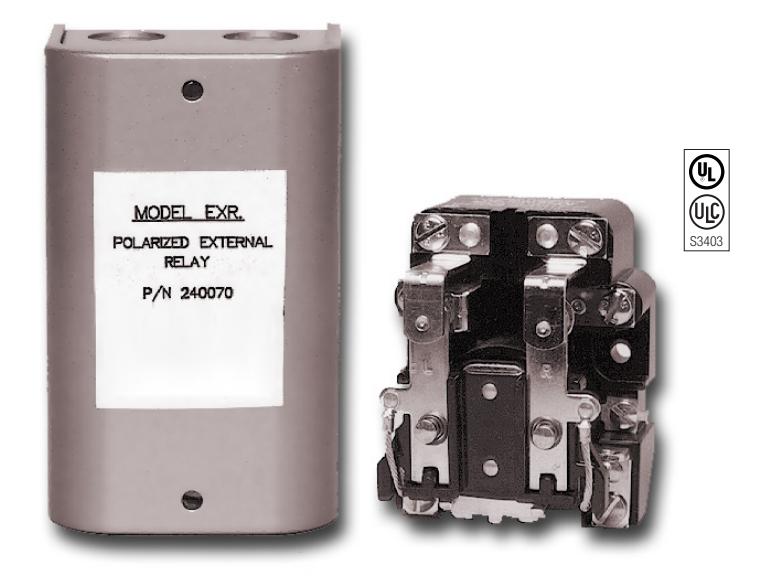

Heavy Duty Power Relays MR 199 Series
Overview
The MR 199 Heavy Duty Power Relays are designed for control applications where 30 Amp DPDT contacts are required. Two models are available: a 115 Vac coil and a 24 Vdc coil, each of which may be mounted in a rugged steel enclosure.
Standard Features
- Heavy duty 30 Amp DPDT contacts
- 24 Vdc or 120 Vac models available
- Sturdy metal enclosure

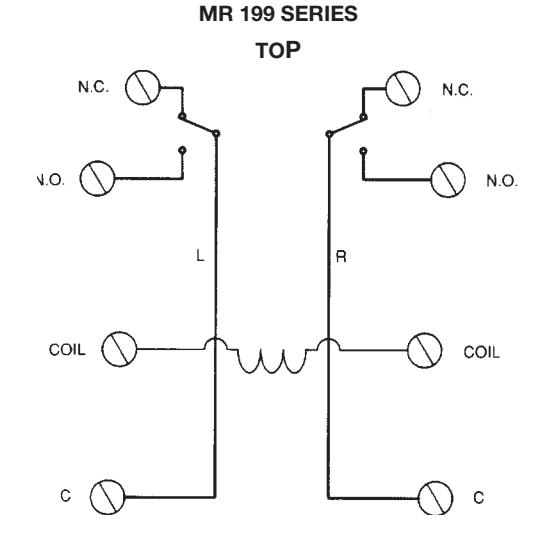

Wiring
Technology that saves lives
Contact us...
Email: kidde.fire@fs.utc.com Web: Kidde.com/EngineeredSystems
Kidde is a UTC brand. 1016 Corporate Park Drive Mebane, NC 27302
© 2016 United Technologies Corporation. All rights reserved.
Specifications
| Contact Arrangement | DPDT Standard | |
|---|---|---|
| Contact Rating | 30 Amps @ 300 Vac, 2 HP Motor Load | |
| Coil Power | MR199X-13:24 Vdc @ 85 mA | |
| Temperature Range | -22°F to 122°F (-30°C to 50°C) |
| Dimensions | |
|---|---|
| MR 199X13 & MR 199AX14 | 3.13 H x 2.5 W X 2.31 inches (79.4 H x 63.5 W x 58.7 D mm) |
| MR199 X13/C | 5.31 H x 3.38 W x 3.13 D inches |
| & MR199 AX14/C | (134.9 H x 85.9 W x 96.8 D mm) |
Ordering Information
| Model | Description |
|---|---|
| MR 199X13 | DPDT, 24 Vdc, relay only |
| MR 199X13/C | DPDT, 24 Vdc, mounted in enclosure |
| MR 199AX14 | DPDT, 120 Vac, relay only |
| MR 199AX14/C | DPDT, 120 Vac, mounted in enclosure |
