Technology that saves lives

Low Frequency Audible Signals

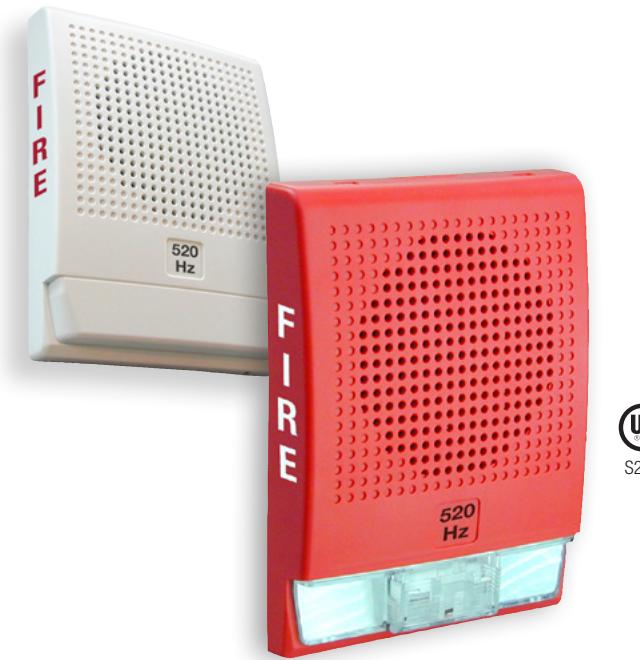

Genesis G4LF Series

)

Overview

G4LF Series notification appliances provide the benefits of Genesis life safety signals with output suitable for applications requiring low frequency audible tones. These high-performance appliances generate a crisp 520 Hz tone in the standard 3-3 temporal pattern. An optional setting configures the appliance for continuous audible output — a critical feature for notification appliance circuits that are coded with a CDR-3 coder module. G4LF appliances also feature field-configurable high and low dB output settings.

When connected to compatible control equipment, G4LF Series audible output remains synchronized with all Genesis audible signals on the same Notification Appliance Circuit, including standard 3.2 kHz Genesis audible signals.

Available G4LF models include audible-only appliances, as well as combination audible-visible signals. Combination appliances feature Genesis FullLight™ strobe technology, which produces a smooth light distribution pattern without the spikes and voids that characterize bulky specular reflectors. This ensures the entire coverage area receives consistent illumination exceeding UL-1971 light distribution requirements. It also results in a slim, low profile device that blends with any decor. Candela output is field configurable.

When connected to a compatible synchronization source, Genesis appliances synchronize (strobes to UL 1971) to within 10 milliseconds indefinitely without the need for external modules or other equipment. See the Specifications section for a list of synchronization sources.

Standard Features

• Unique low-profile design...

  • Compact UL listed audible and audible-visible appliances
  • Ultra-slim: protrudes an inch from the mounting surface
  • Attractive appearance: no visible mounting screws

• Choice of colors and markings...

  • White or red housings
  • With or without FIRE markings

• Easy to install...

  • Room side wiring accepts #18 #12 AWG (0.75 to 2.5 mm2
  • Fits standard 4-inch square electrical boxes or standard Gensis EG4B or EG4RB surface-mount boxes

• Easy to configure without removing the device...

  • High or low dB output
  • Temporal or continuous audible tone
  • Temporal or continuous visible output
  • 15, 30, 75, or 110 candela intensity

• High performance output...

  • Exclusive FullLight™ strobe output distribution pattern
  • Meets tough synchronization standards for strobes and audible signals

Application

Genesis G4LF Series appliances are UL 464-listed for low-frequency audible requirements. Models are also available in combination with a UL 1971-listed strobe light for indoor wall-mounted public-mode notification applications. Many codes and regulations now call for low-frequency audible appliances (520 Hz) in newly constructed sleeping rooms and also require strobe lights under some of these circumstances. Consult with your Authority Having Jurisdiction for details.

Combination audible-visible appliances are installed in accordance with guidelines established for visible (strobe) devices.

When used with a compatible synchronization source, all Genesis xenon-based strobes — audible units, and combination appliances — maintain fully synchronization indefinitely. This exceeds the UL synchronization requirements of 10 milliseconds over a two-hour period.

WARNING: These devices will not operate without electrical power. As fires frequently cause power interruptions, we suggest you discuss further safeguards with your local fire protection specialist.

Kidde recommends that these devices always be installed in accordance with the latest recognized edition of national and local codes. Refer to the appropriate codes and standards for mounting height information.

Audible Signal Application

Genesis low-frequency audible output features a code-compliant 520 Hz signal. Audible signals may be configured for either coded or non-coded signal circuits. They can also be set for low dB output with a jumper cut that reduces audible output by about 5 dB. Audible-only models may be ceiling-mounted or wall-mounted.

For sleeping rooms, most codes and standards require 75 dBAfast at the pillow.

For non-sleeping rooms, the suggested sound pressure level for each signaling zone used with alarm signals is at least 15 dB above the average ambient sound level, or 5 dB above the maximum sound level having a duration of at least 60 seconds, whichever is greater. This is measured 5 feet (1.5 m) above the floor.

Doubling the distance from the signal to the ear will theoretically result in a 6 dB reduction of the received sound pressure level. The actual effect depends on the acoustic properties of materials in the space. A 3 dBA difference represents a barely noticeable change in volume.

Visible Signal Application

For sleeping rooms covered by NFPA, a strobe light is typically required within 16 feet of the pillow. If the strobe light is wall-mounted and at or farther than 24 inches (610 mm) from the ceiling, it should be 110 cd or greater. If the strobe light is ceiling-mounted or wall-mounted closer than 24 inches (610 mm) to the ceiling, it must be 177 cd or greater.

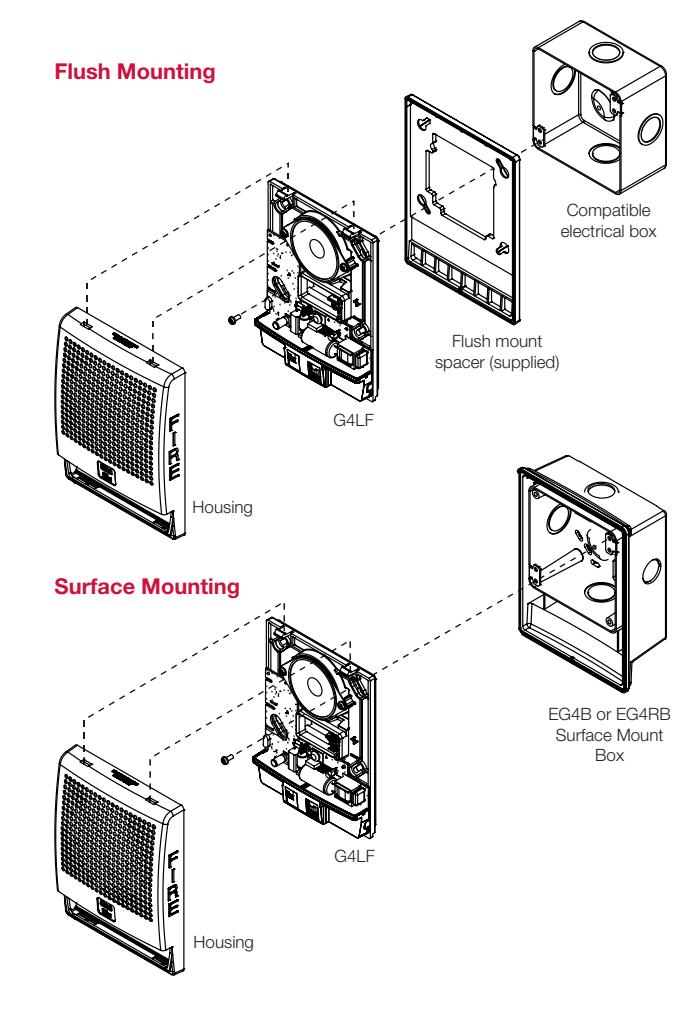

Installation

Genesis G4LF Series appliances mount to a standard 4 inch (102 mm) square electrical box using the provided mounting spacer or directly to a Genesis G4 surface mount box.

All Genesis appliances have two tabs at the top of the signal. Unlock the cover to reveal the mounting hardware. The shallow depth of Genesis devices leaves ample room behind the signal for extra wiring. Once installed with the cover in place, no mounting screws are visible.

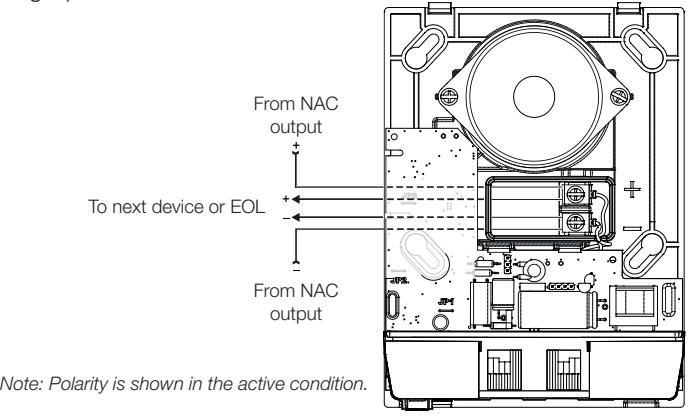

Typical Wiring

Room-side field wiring terminals accommodate #18 to #12 AWG (0.75 mm² to 2.5 mm²) wiring. Audible appliances, strobes, and combination audible-visual appliances are interconnected with a single pair of wires as shown.

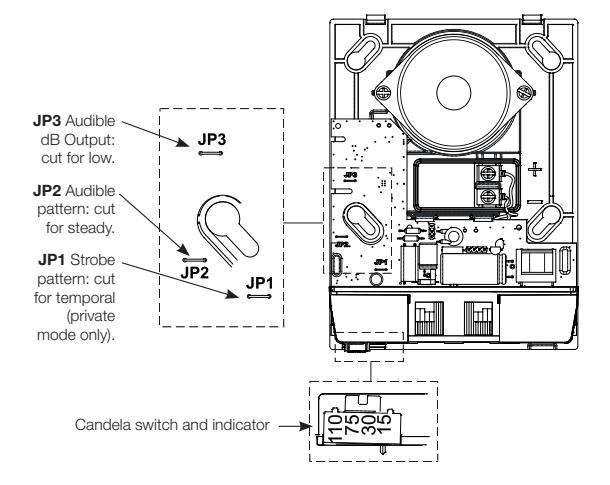

Field Configuration

Genesis G4LF Series audible appliances are factory set to operate in a Temporal 3 (three-pulse) pattern. Units may be configured for use with coded systems by cutting jumper JP2 on the circuit board. This results in a steady output that can be turned on and off (coded) as the system applies and removes power to the signal circuit. A Genesis Signal Master is required to maintain G4LF strobe light synchronization when connected to a coded system.

Audible signals and combination audible-visible appliances are factory set for high dB output. Low dB output may be selected by cutting jumper JP3 on the circuit board. This reduces the output by about 5 dB.

Genesis G4LF Series strobe lights are shipped from the factory ready for use as UL 1971 compliant signals for public mode operation. These signals may be configured for temporal flash by cutting jumper JP1 on the circuit board. This battery-saving feature may be used for private mode signaling only.

Genesis G4LF Series strobe lights may be set for 15, 30, 75, or 110 candela output. The output setting is changed by simply opening the device and sliding the switch to the desired setting. The appliance does not have to be removed to change the output setting. The setting remains visible through a small window on the side of the device after the cover is closed.

Nominal Sound Level Output

UL (dBA)
Signal and voltage Low High
Temporal 16 VDC 72.4 76.0
24 VDC 72.3 75.7
33 VDC 73.3 75.4
Continuous 16 VDC 75.7 79.8
24 VDC 76.1 78.6
33 VDC 75.4 78.8

UL 464: Sound level output at 10 ft. (3.05 m) measured in a reverberant room.

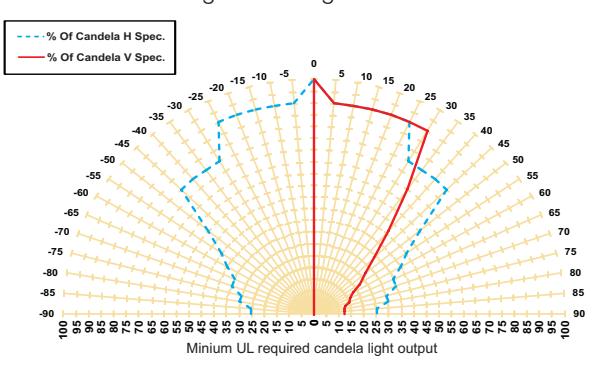

Light Output

Per cent of UL rating versus angle

Current Draw

Audible-Visible Appliances

Operating horn-strobe current in RMS (mA)
with audible set to standard (high) output
Strobe
output (cd) 		15 30 75 110
Temporal
16 VDC 219 266 381 437
16 VFWR 308 362 510 579
24 VDC 151 176 243 278
24 VFWR 228 258 349 395
33 VDC 112 132 177 199
33 VFWR 186 208 267 291
Continuous
16 VDC 221 258 371 433
16 VFWR 305 358 514 576
24 VDC 147 171 239 274
24 VFWR 211 247 335 377
33 VDC 110 179 175 196
33 VFWR 178 199 257 282

VDC = Volts direct current, regulated and filtered

VFWR = Volts full wave rectified

Operating Current

RMS (mA) Audible appliance only

Signal and voltage Low High
Temporal 16 VDC 86 166
24 VDC 43 112
33 VDC 36 87
16 VFWR 97 215
24 VFWR 78 159
33 VFWR 76 140
Continuous 16 VDC 36 160
24 VDC 45 109
33 VDC 36 86
16 VFWR 92 212
24 VFWR 80 168
33 VFWR 77 141

VDC = Volts direct current, regulated and filtered

VFWR = Volts full wave rectified

Technology that saves lives

Contact us...

Email: kidde.fire@fs.utc.com Web: Kidde.com/EngineeredSystems

Kidde is a UTC brand. 1016 Corporate Park Drive Mebane, NC 27302

© 2016 United Technologies Corporation. All rights reserved.

Specifications

Genesis G4LF Audible and Visible Signals
Operating voltage 24 VDC or 24 VFWR [1]
Housing Red or white textured UV stabilized, color impregnated engineered plastic.
Dimensions Height: 6.5" (165 mm). Width: 5" (127 mm). Depth to wall: 1" (25 mm).
Mounting Flush: North-American 4" square box, 2 1/8" (54 mm) deep. Requires
(indoor wall mount supplied spacer.
only) Surface: model EG4B (white) or EG4RB (red) surface mount box.
Synchronization FACPs: VM and VS Series life safety systems, FX Series fire alarm control
Sources panels. Moduels: GSA-CC1S, GSA-MCC1S, SIGA-CC2A, GSA-MCC2A,
EG1M-RM. Power supplies: MIRBPS6A, MIRBPS10A, APS6A, APS10A.
Wire Size 12 to 18 AWG (0.75 to 2.50 mm²).
Operating 32-120° F (0-49° C) ambient temperature; 0-93% relative humidity,
environment noncondensing.
Audible Signal
Audible pulse rate Temporal rate with compatible synchronization source: indefinitely within
10 milliseconds.
Temporal audible ½ sec ON, ½ sec OFF, ½ sec ON, ½ sec OFF, ½ sec ON, 1½ sec OFF,
pattern then repeat cycle.
Visible Signal
Strobe Output Rating UL 1971: selectable 15 cd, 30 cd, 75 cd, or 110 cd output
Strobe Operating 16 - 33 Vdc Regulated, 16-33 V Full wave rectified (UL Voltage
Voltage Designations "Regulated 24" and "24 fwr")
Strobe Flash Rate One flash per second.
One flash per second (fps) within 10 milliseconds over a 2 hour time
Strobe Flash period on a common circuit. Synchronization source required to comply
Synchronization with UL 1971 synchronization standard. Temporal setting (private mode
only): synchronized to temporal output on the same circuit.
Strobe Lens Material Polycarbonate

[1] This device was tested to the Regulated 24 DC/FWR operating voltage limits of 16 V and 33 V. Do not apply 80% and 110% of these values for system operation.

Ordering Information

Model Housing Marking Audible
Signal 		Visible
Signal 		Ship Wt.
lbs (kg)
Fire Alarm Appliances (520 Hz screen printed on housing)
G4LFWN-HVM White None Low
Frequency
G4LFWF-HVM White FIRE Selectable
G4LFRN-HVM Red None 15, 30, 75,
or 110 cd. 		1.5 lbs.
(0.68 kg)
G4LFRF-HVM Red FIRE (520 Hz) with
G4LFWN-H White None selectable
G4LFWF-H White FIRE High/Low dB
Audible
output.
only.
G4LFRN-H Red None
G4LFRF-H Red FIRE

Accessories

GSA-CC1S Intelligent Synchronization Output Module (2-gang) 0.5 (0.23)
GSA-MCC1S Synchronization Output Module (Plug-in UIO) 0.18 (0.08)
SIGA-CC2A Dual Input Signal Module with Class A Operation (2-gang) 0.5 (0.23)
GSA-MCC2A Dual Input Signal Module with Class A Operation (Plug-in UIO) 0.18 (0.08)
EG4B Surface mount box, white 0.7 (0.32)
EG4RB Surface mount box, red 0.7 (0.32)
