Signal control and communications management like you've never seen before.
Signaling powered by know-how.
There's a lot more to an Edwards solution than signaling control. You can tap into the industry's leading authorities for help and advice for any signaling challenge. Just ask. And if we don't already have a solution, we'll find one.
As you read through this overview, you may very well find the ideal configuration for yourself. If not, visit us at www.edwards-signals.com or call us at 203.699.3300. And put our proven experience to work for you.
Signal Solutions for all your challenges:
- 1 Signal Management and Control
- 2 Signaling Devices
-
3 Signaling Applications
- SYSTEM PLANNING
-

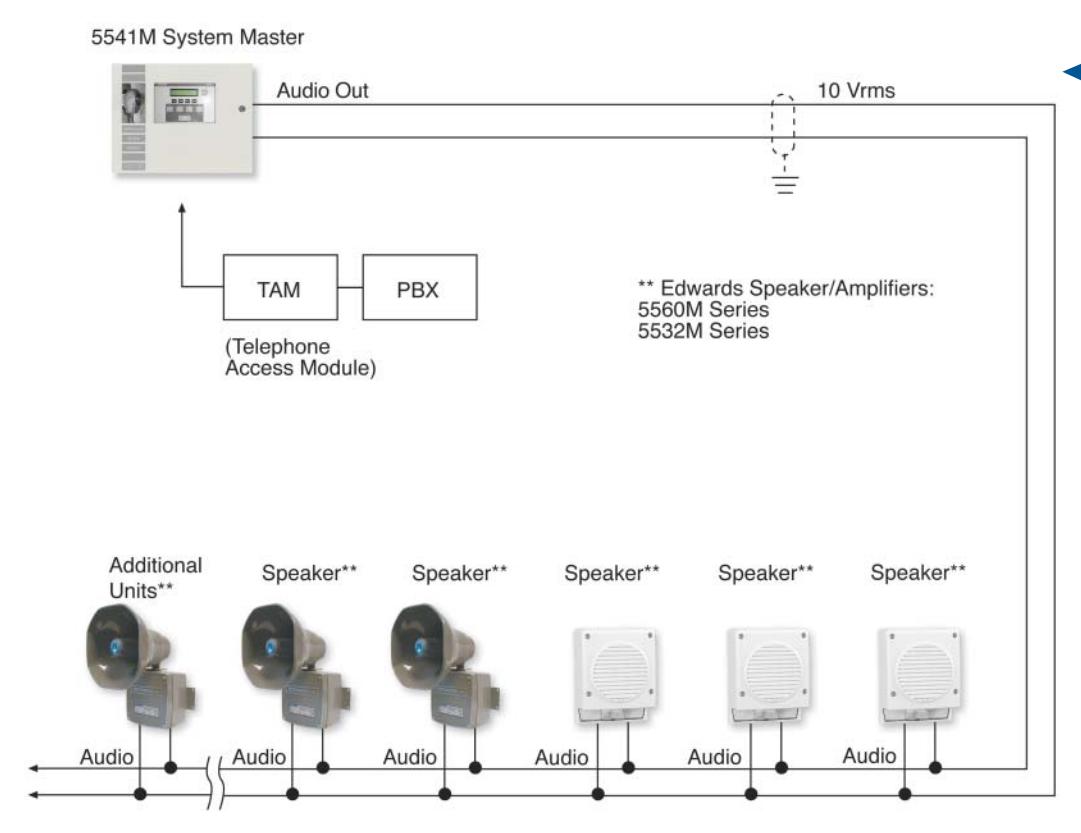

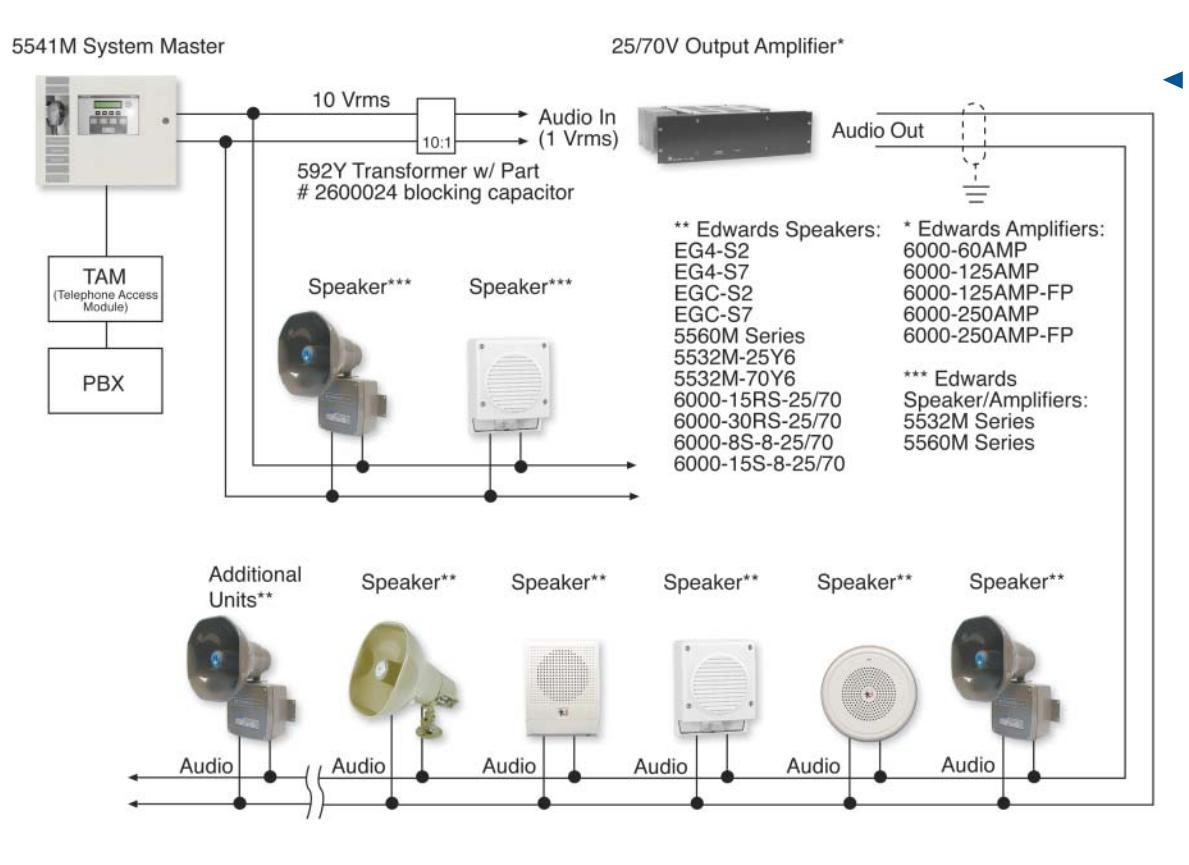

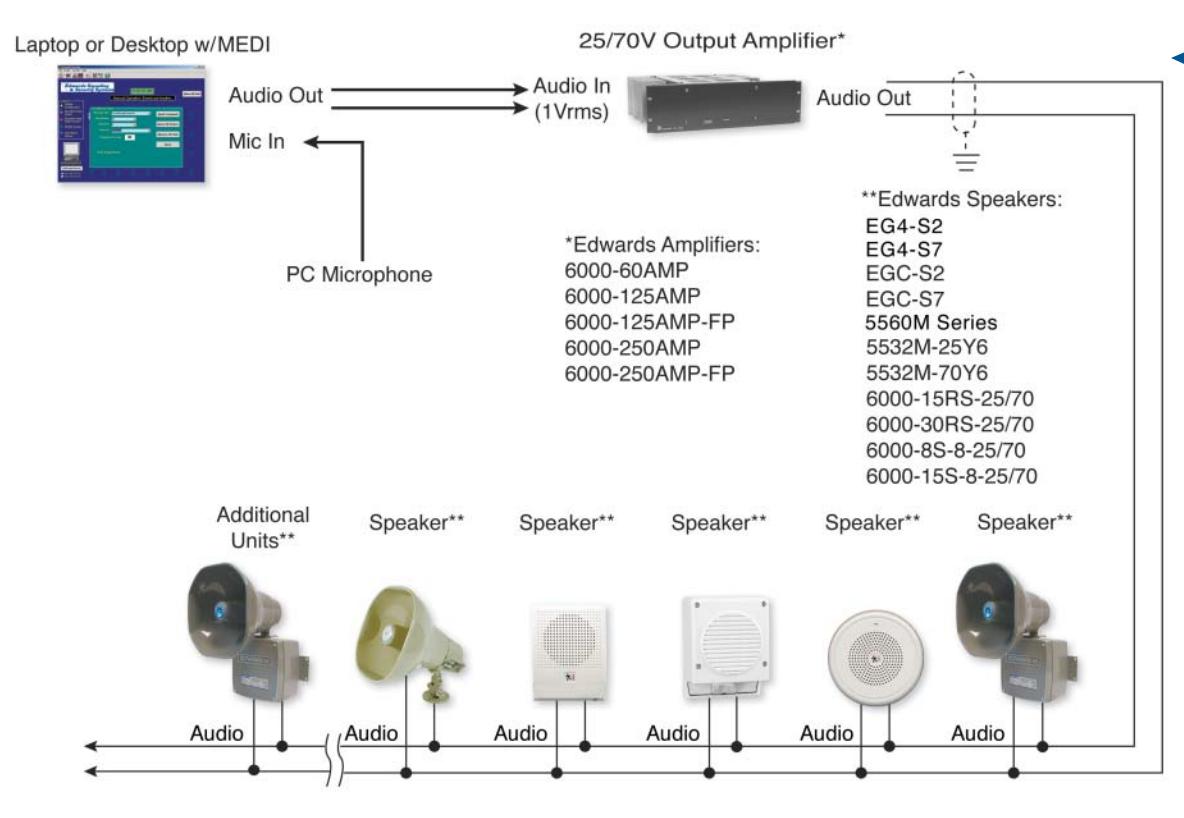

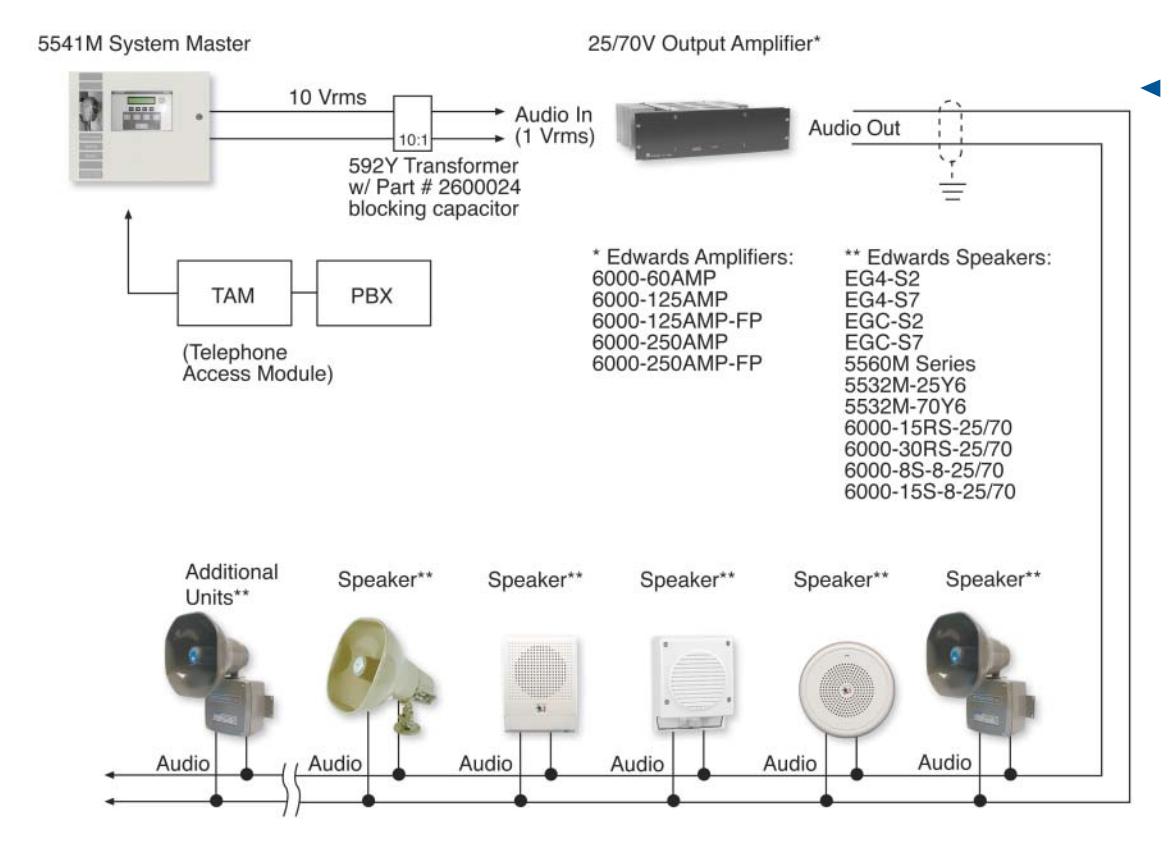

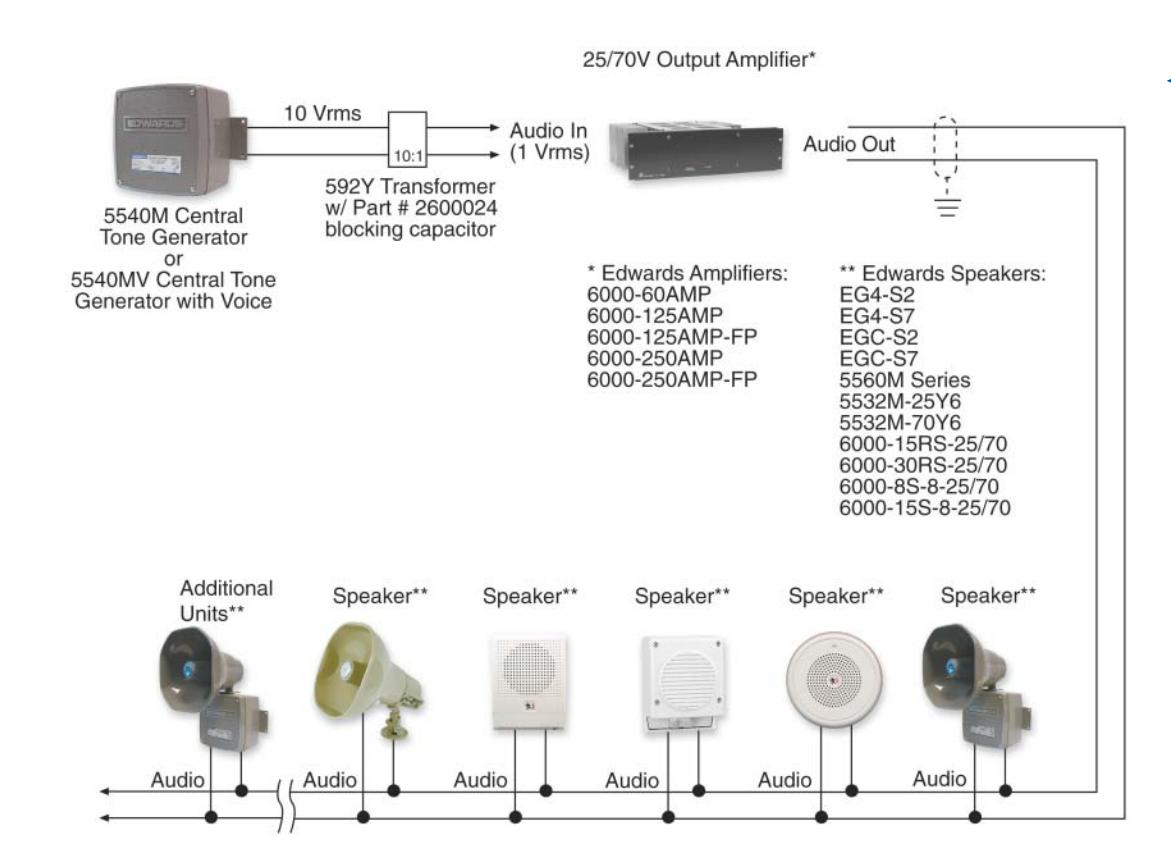

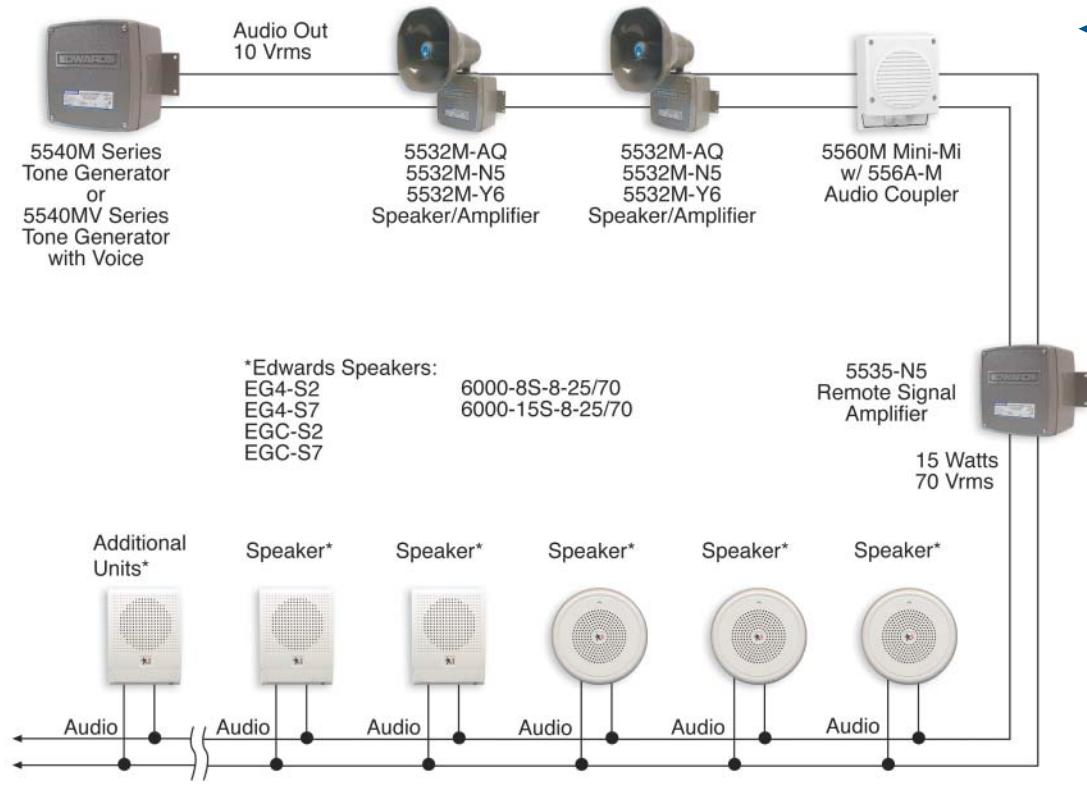

4 Conventional Speaker/ Amplifier Applications
- SYSTEM PLANNING
-

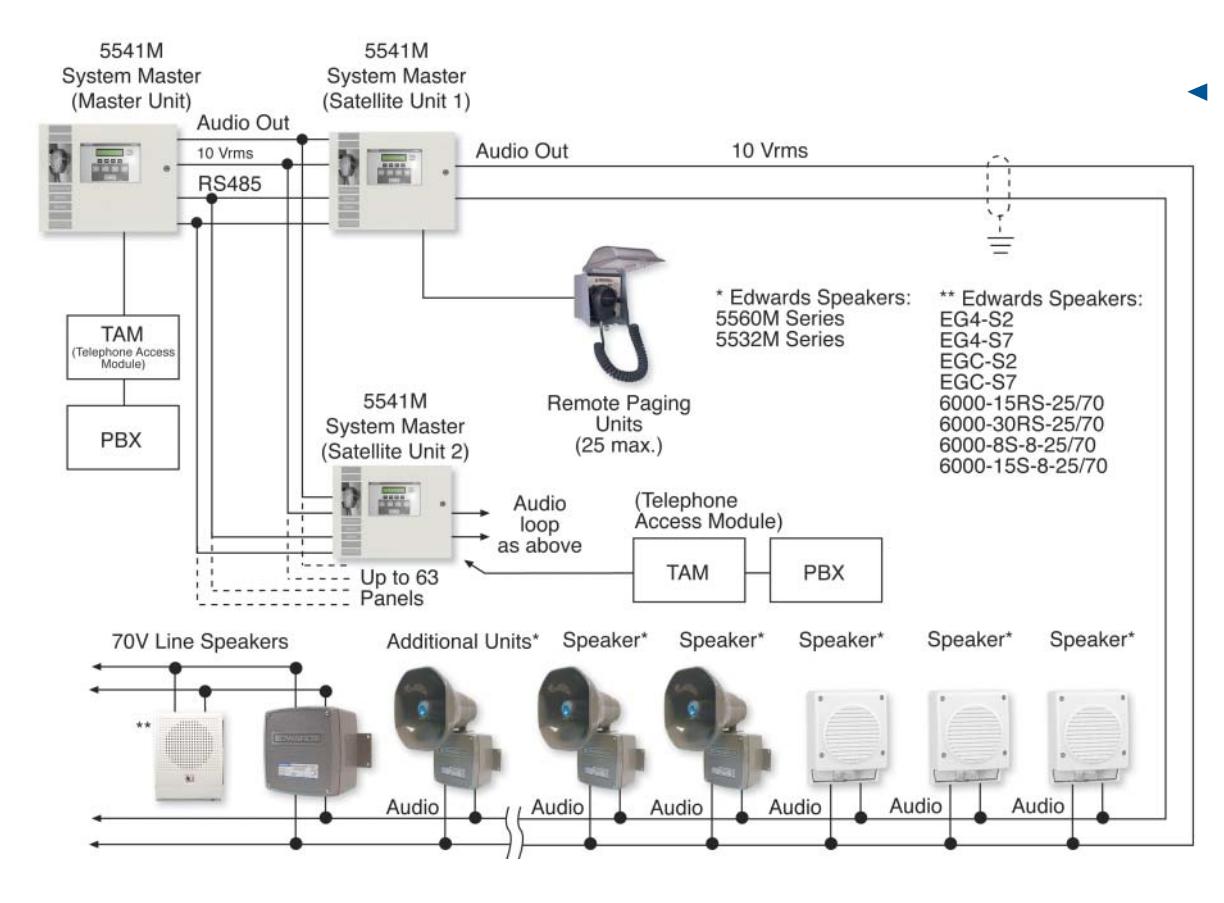

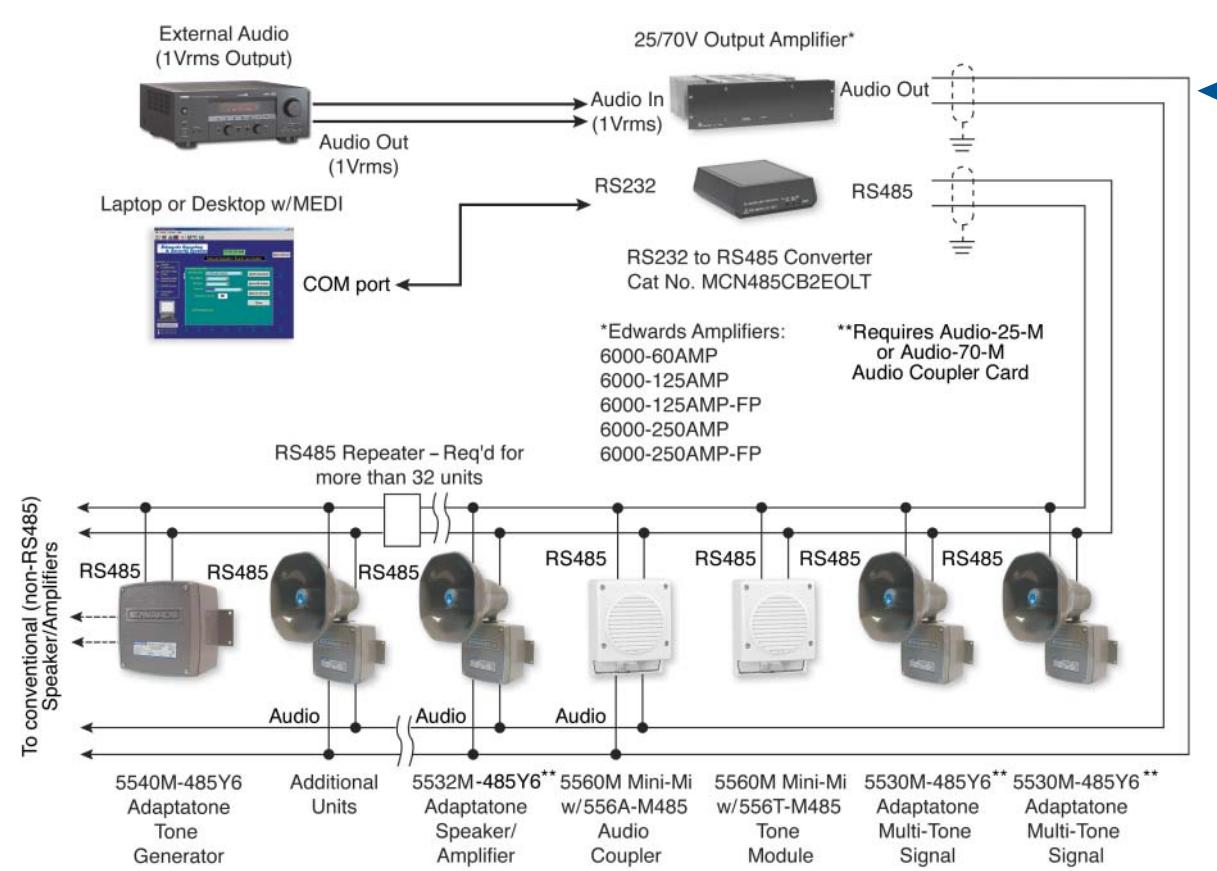

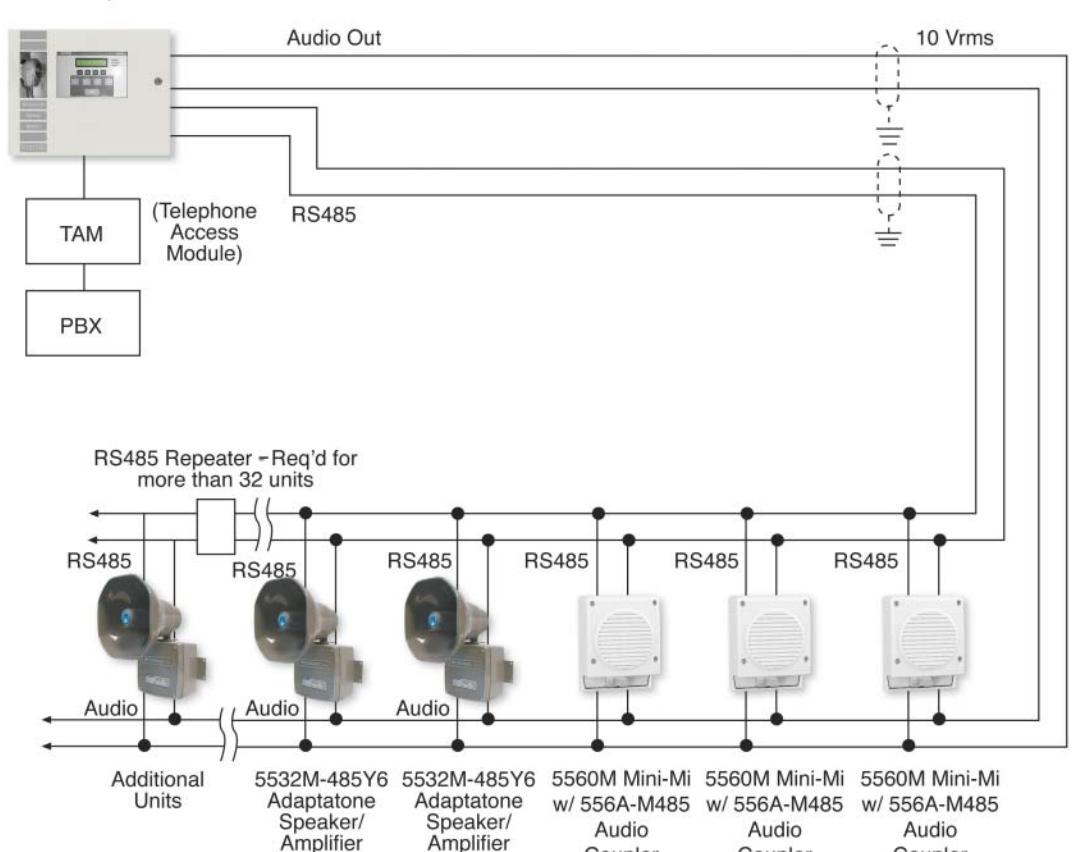

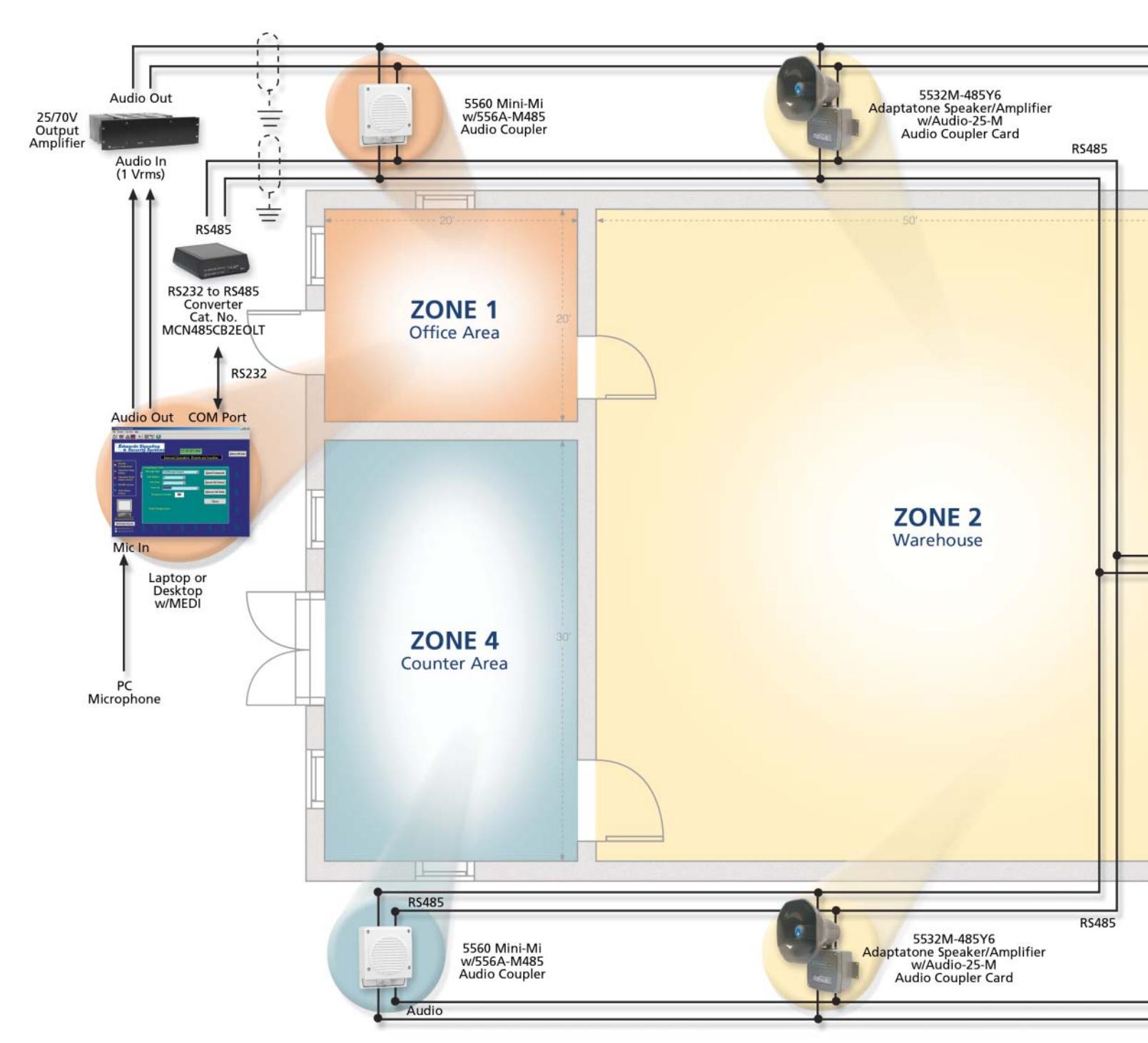

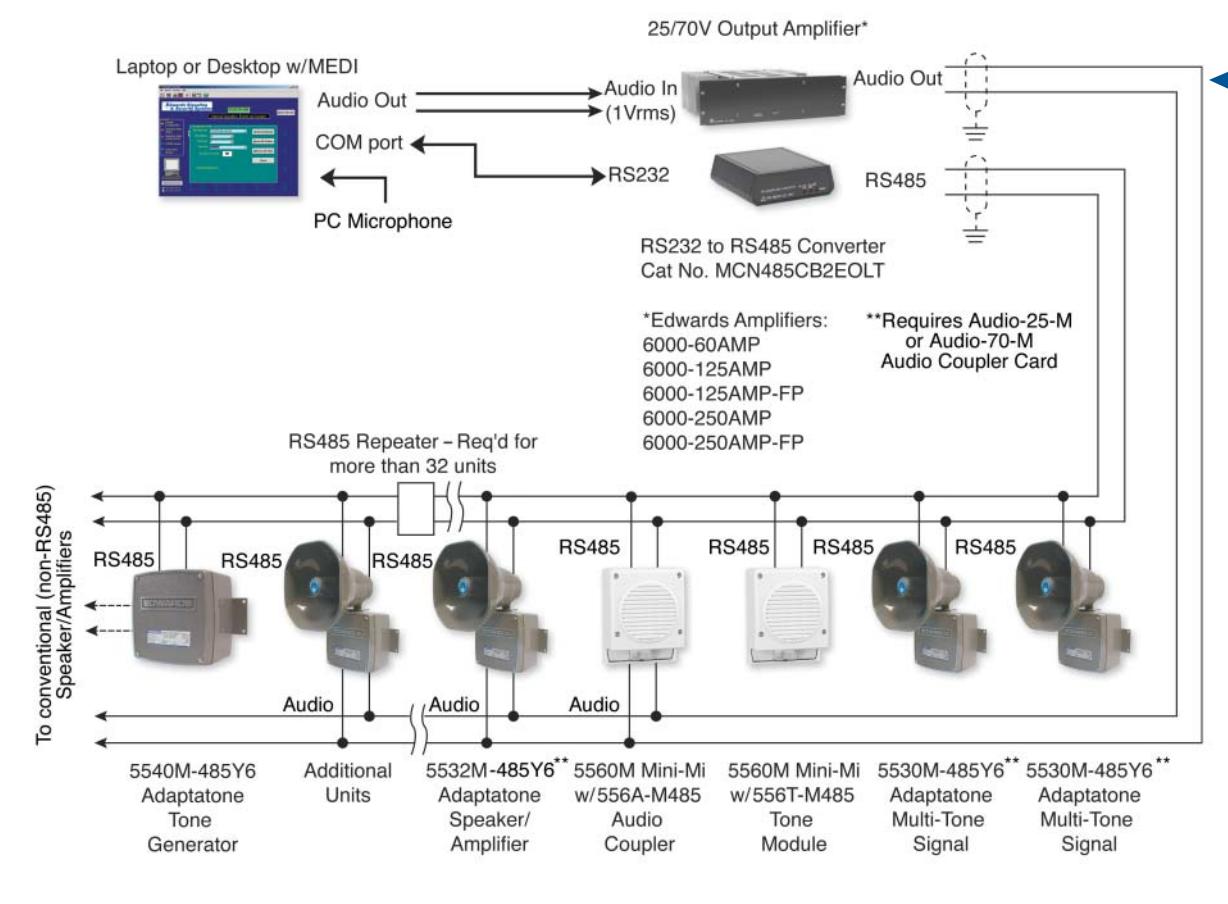

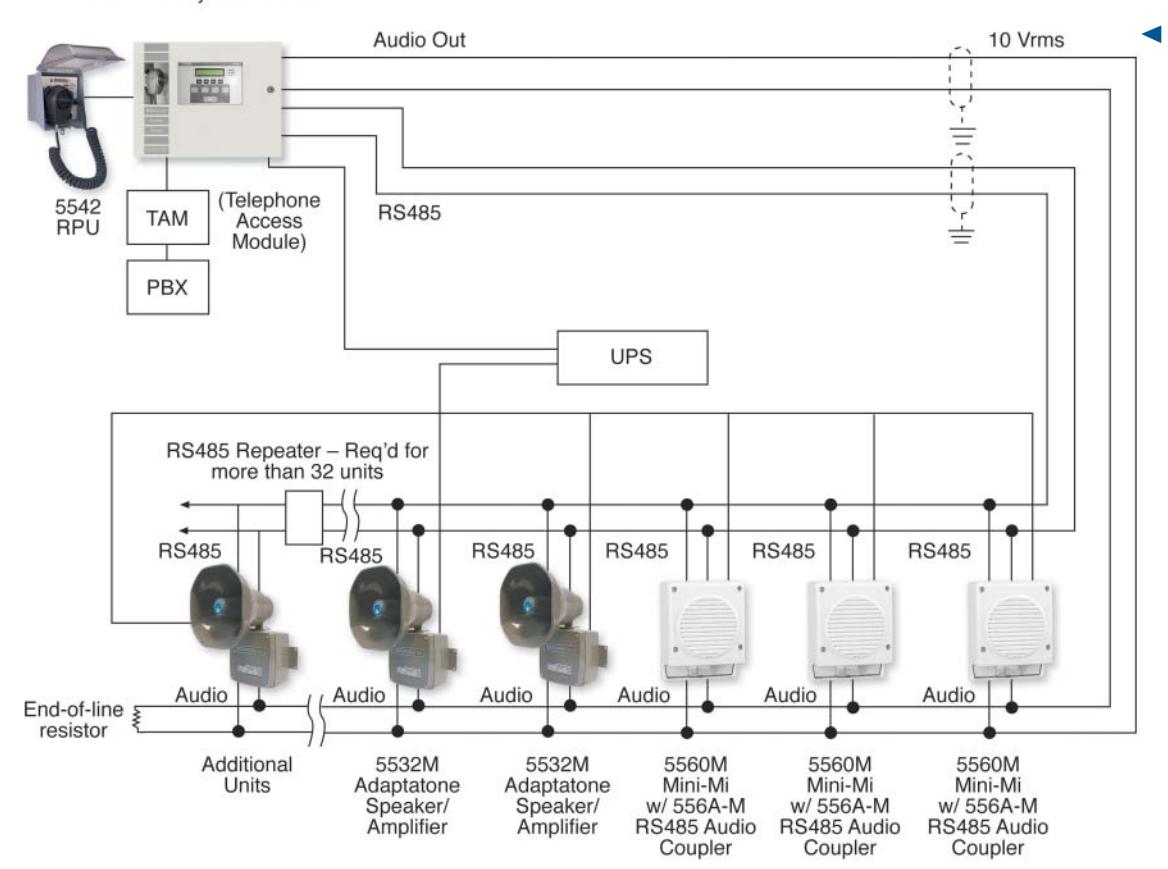

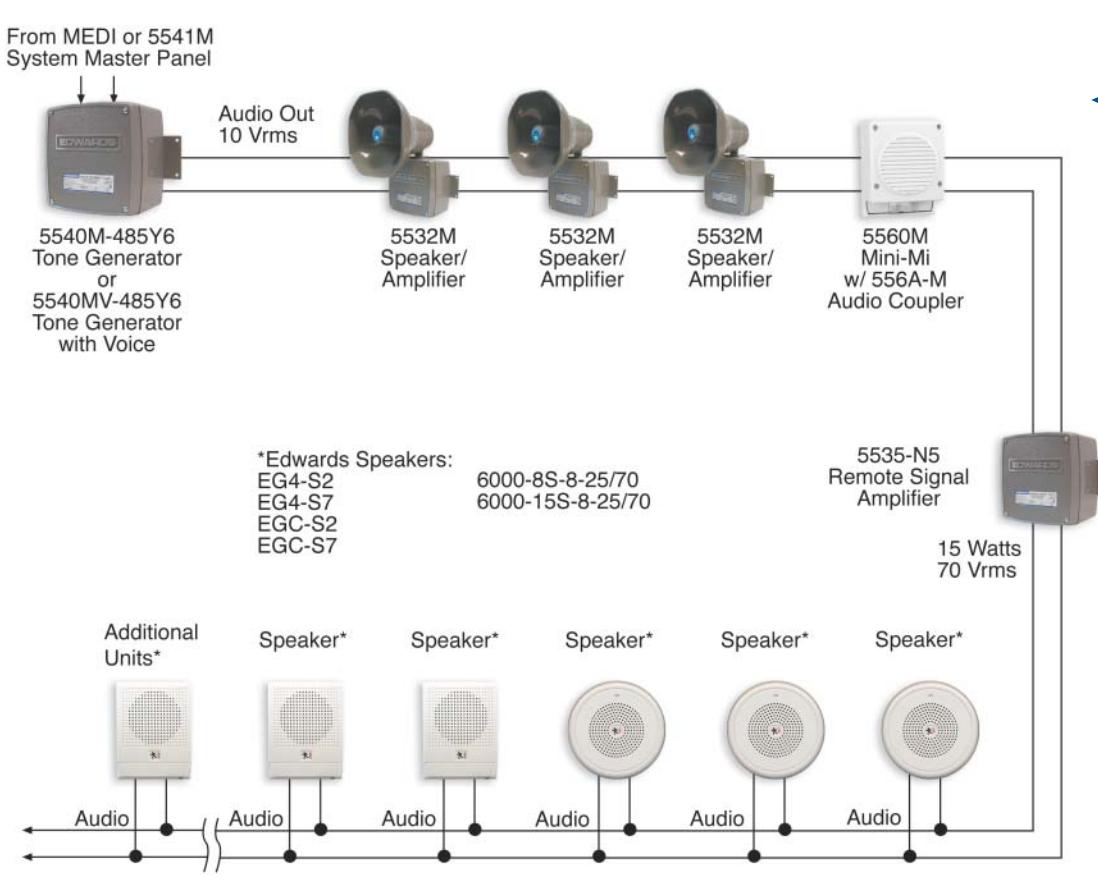

5 RS485 Applications
- SYSTEM PLANNING

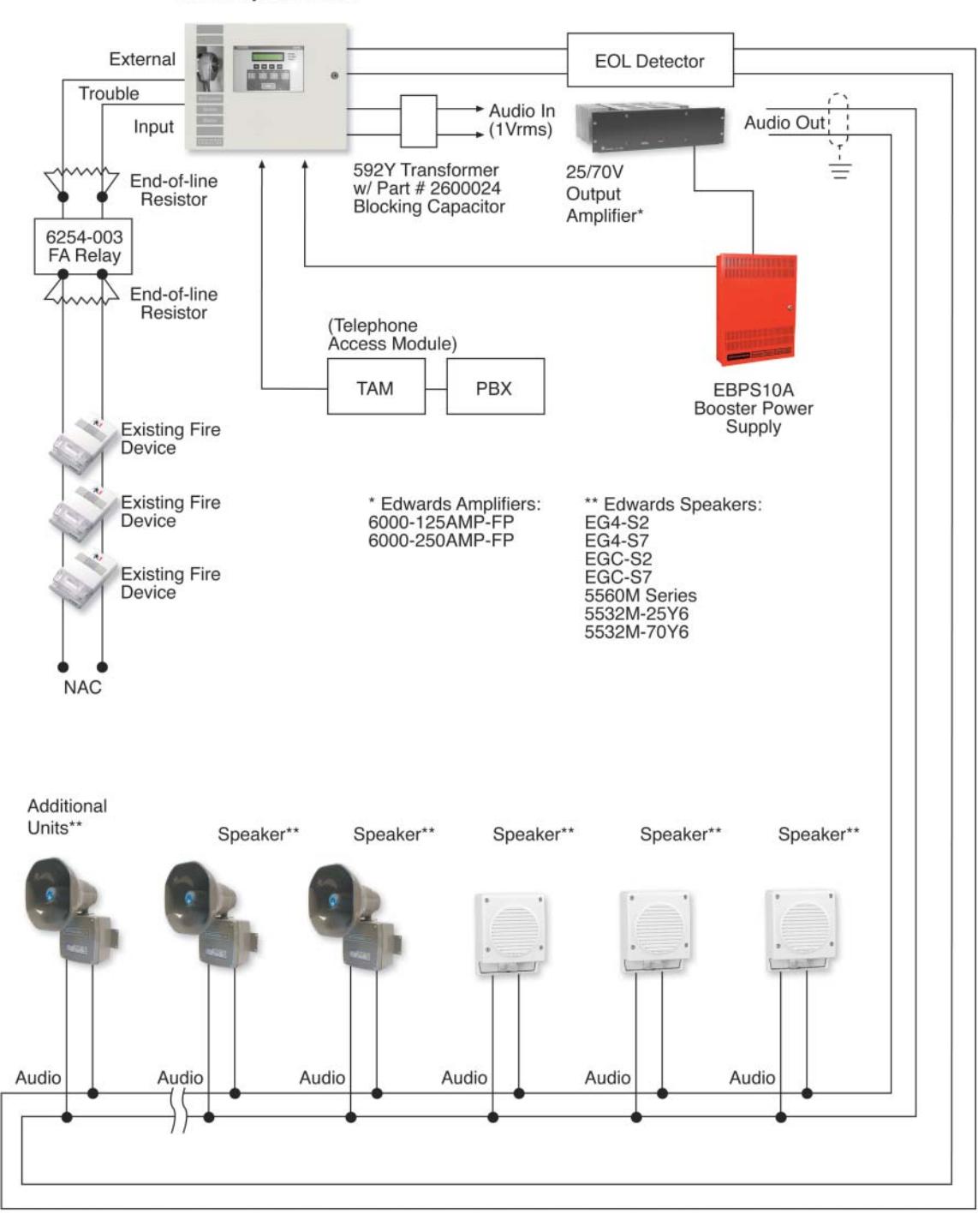

- 6 Fire Applications

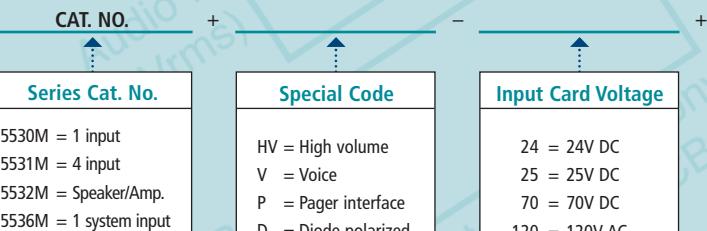

- 7 Ordering Information
1
Signal management and control – you're in the driver's seat and handling is a snap.
From the plant floor, the control room, your desktop or laptop – you can control your routine and emergency signaling from just about anywhere.
The Edwards family of signaling control innovations has a solution that fits the way you do business. For audible, visual, and voice signaling, you are in complete control. And that makes you a better communicator.

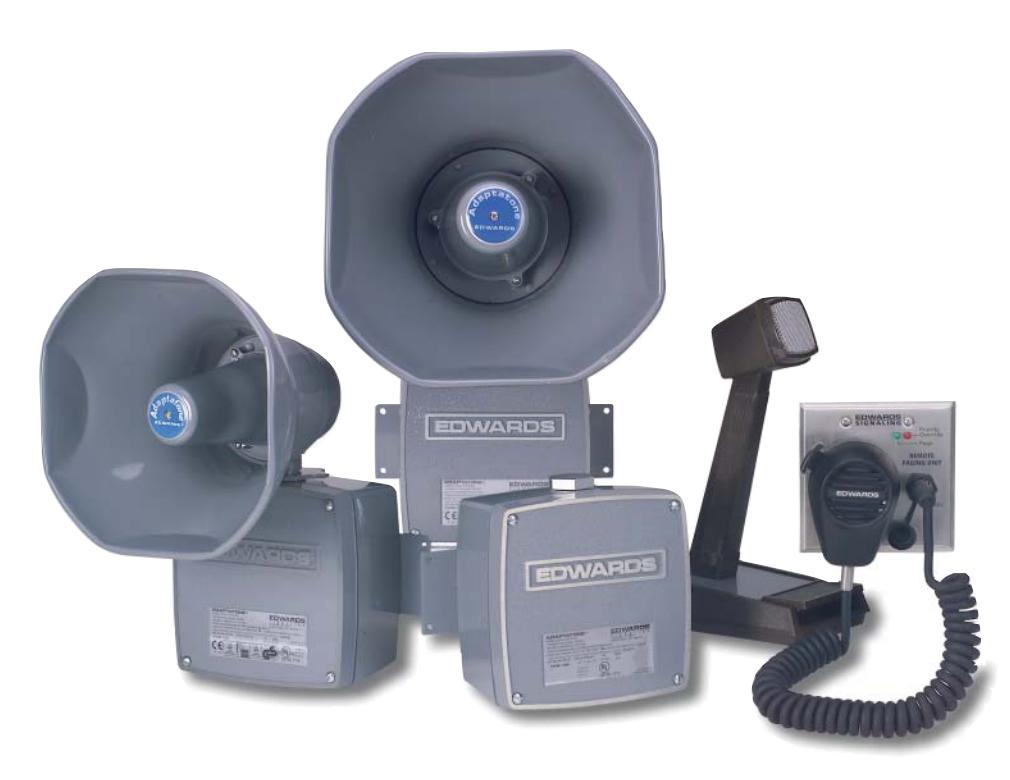

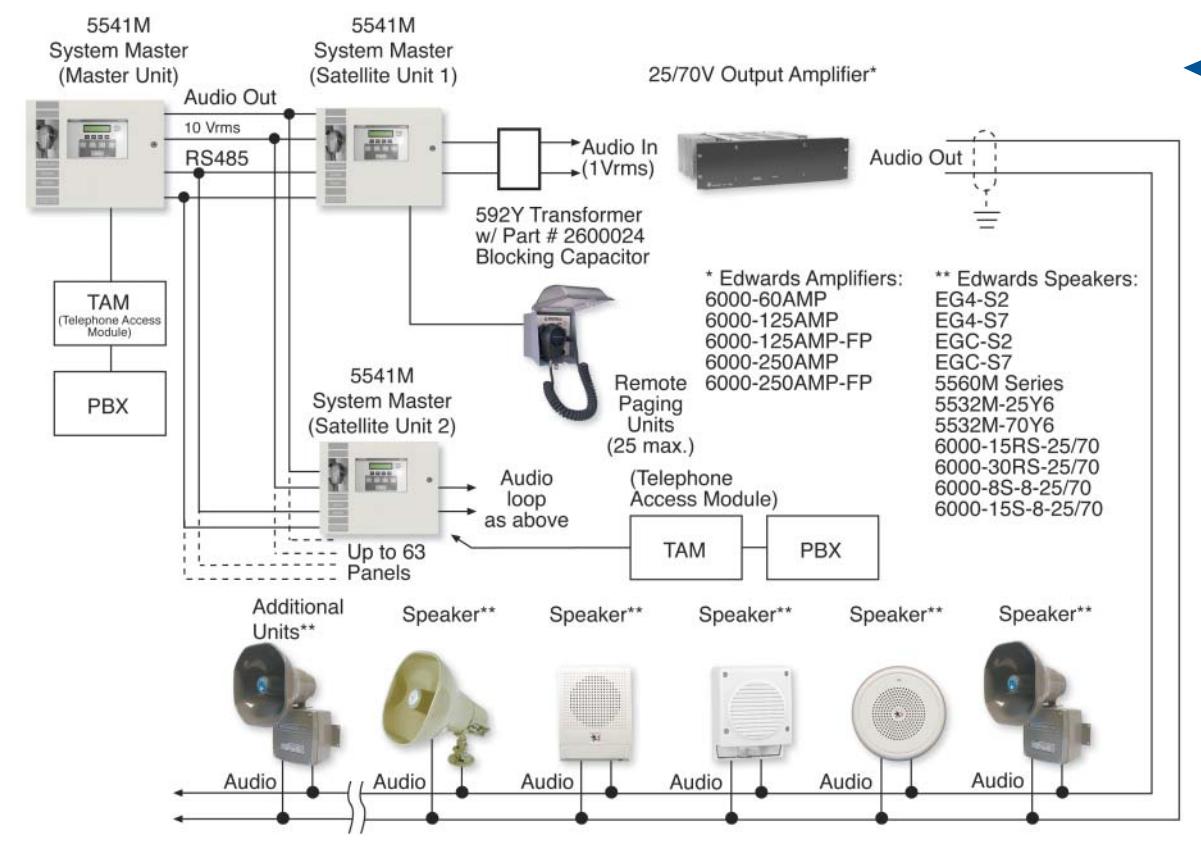

Millennium System Master® : You're in complete control from the plant floor.
Get multi-function power and true flexibility for both emergency and routine signaling. With a single Millennium System Master you take complete control of all your emergency, evacuation, and routine signaling. And you do it with functionality and features that can turn plant-floor signaling into a powerful business tool.

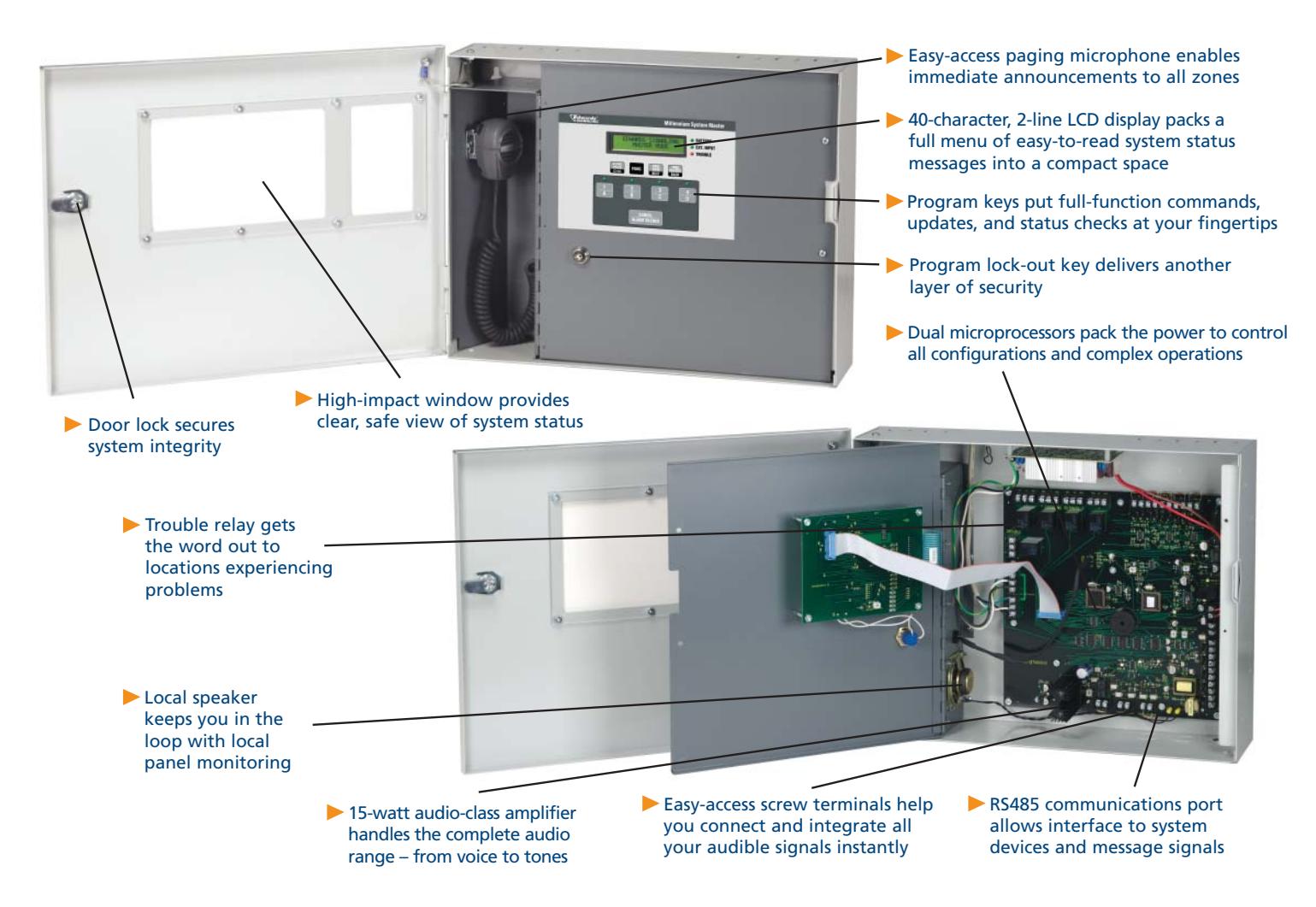

The System Master control panel is your new signaling communications center. Its simple touch-programming keys and easy-to-read, 40-character, 2-line LCD display make set up, operations, and modifications a snap. Thanks to System Master's Dynamic Zone Control™ (DZC) and its programmable zone reconfiguration, you can leverage the signaling investments you've already made without the need for expensive rewiring.
You get all these functions built-in:
- 67 tones
- Audio, voice, and power supervision
- Microphone and external input supervision
- Up to four five-second, fieldrecordable voice messages
- Hand-held microphone paging
- Phone paging from your PBX phone system
- Standby power feature for all functions

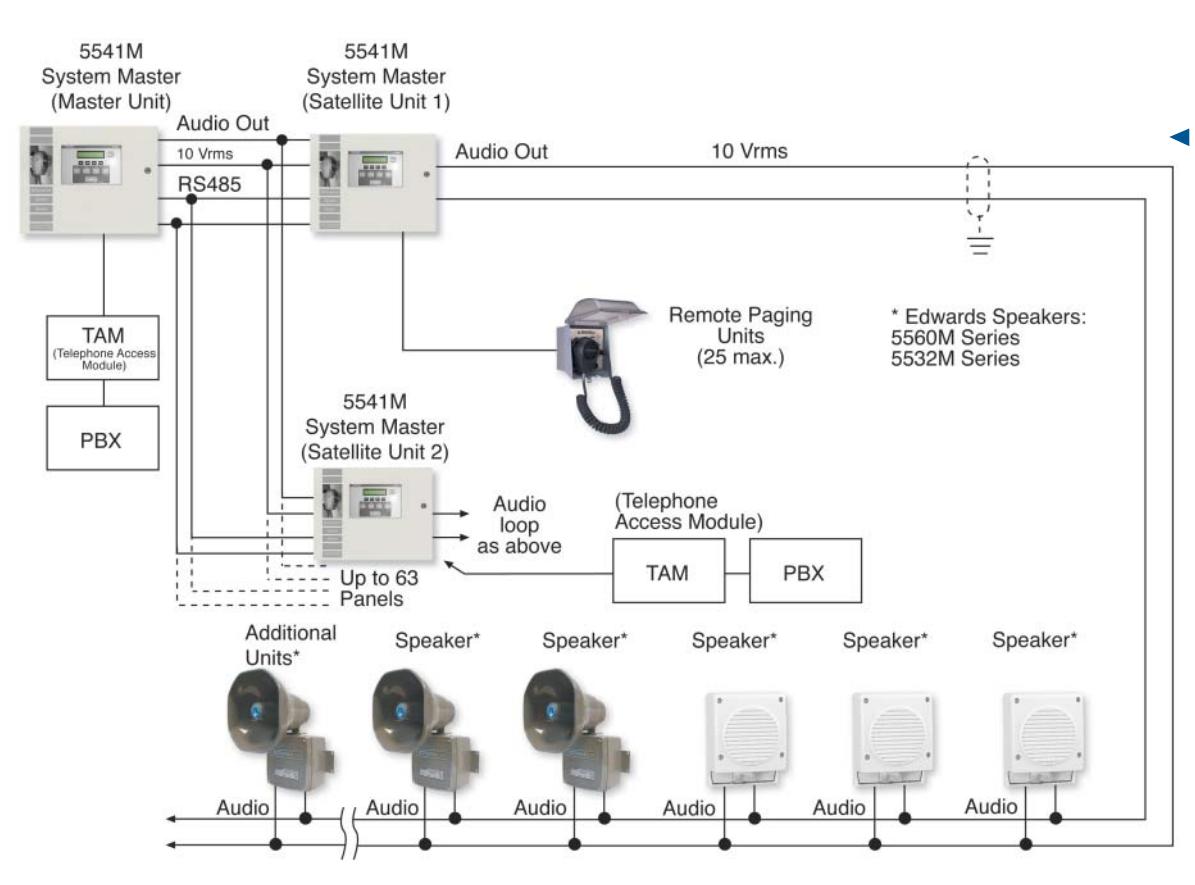

- Up to 64 satellite units addressable through the RS485 Network
- Output and trouble relays designed for fail-safe operation
- Top, side, and bottom knockouts for easy wire entry
- LED alarm and status indicators
- Easy-to-adjust output audio volume
Plus, Millennium System Master meets all OSHA self-monitoring, prioritization, and standby power requirements, as well as UL standards for emergency evacuation signaling.
You're in complete control integrating System Master's voice notification with your fire system.
There is a tremendous need for integrated and supervised emergency evacuation and fire systems. Oversight agencies realize this and have either made or are making code changes. In fact, the Occupational Safety and Health Administration (OSHA) has drafted a regulation specifically to address a facility's emergency action plan and to allow safe escape of employees from the workplace (OSHA Regulation 1910.165).
Edwards products – Adaptatone® System Signals, Millennium System Master®, Genesis® – are designed for both emergency evacuation and general signaling. They can be used by themselves for plant alarm and employee emergency notification, or integrated into your existing fire alarm system. When used in conjunction with your installed fire alarm system, Edwards signals can augment or replace existing bells, horns, or electronic notification appliances that sound when an alarm is initiated. Use the Millennium System Master in this
application to sound tones or pre-recorded voice messages. Personnel can use the panel's onboard microphone or external microphones for
real-time, live-voice announcements and directions.
OSHA 1910.165
OSHA 1910.165 was developed to reduce the severity of workplace accidents and injuries by ensuring that alarm systems operate properly and procedures are in place to alert employees to workplace emergencies. It applies to all employers that use an alarm system to satisfy any OSHA standard that requires employers to provide an early warning for emergency action, or reaction time for employees to safely escape the workplace, the immediate work area, or both.
General Requirements
1910.165(b)(1)
The employee alarm system shall provide warning for necessary emergency action as called for in the emergency action plan, or for reaction time for safe escape of employees from the workplace or the immediate work area, or both.
1910.165(b)(2)
The employee alarm shall be capable of being perceived above ambient noise or light levels by all employees in the affected portions of the workplace. Tactile devices may be used to alert those employees who would not otherwise be able to recognize the audible or visual alarm.
1910.165(b)(3)
The employee alarm shall be distinctive and recognizable as a signal to evacuate the work area or to perform actions designated under the emergency action plan.
1910.165(b)(4)
The employer shall explain to each employee the preferred means of reporting emergencies, such as manual pull box alarms, public address systems, radio or telephones. The employer shall post emergency telephone numbers near telephones or employee notice boards, and other conspicuous locations when telephones serve as a means of reporting emergencies. Where a communication system also serves as the employee alarm system, all emergency messages shall have priority over all non-emergency messages.
1910.165(b)(5)
The employer shall establish procedures for sounding emergency alarms in the workplace. For those employers with 10 or fewer employees in a particular workplace, direct voice communication is an acceptable procedure for sounding the alarm provided all employees can hear the alarm. Such workplaces need not have a back-up system.
MEDITM :

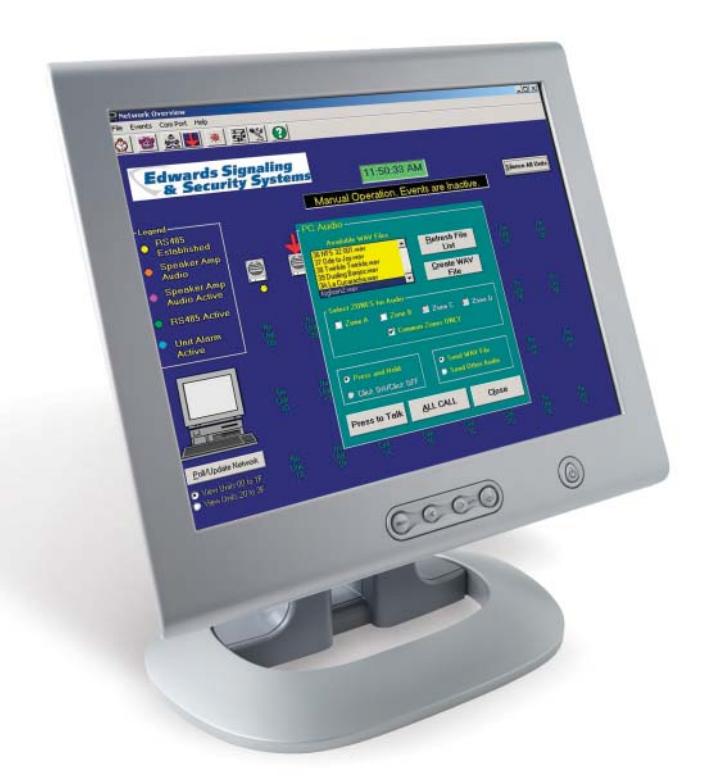

You're in complete control from your desktop or laptop.
You control so much of your job from your computer – why not your signaling too? It's easy with the Millennium Event Driver Interface (MEDI™). Schedule signals for events as mundane as lunch, or deliver critical voice messages – all without leaving your desk.
The windows-based MEDI software package provides command and control of remote signaling devices throughout your facility. With a few simple clicks, you can program MEDI to automatically signal work start and stop times, break times, or any other timed event. You can also manually command MEDI to initiate tones, wav files, or real-time voice. Any time. It integrates with either conventional or RS485 signaling components.
MEDI installs fast and easy. From the very first moment, MEDI's intuitive design will have you improving your signaling for tasks like automatically or manually sounding break times, shift start and stop times, special events, or real-time voice.
MEDI Applications
Automatically or manually signal events or real-time voice in:
- Industrial Work Cells
- Commercial Buildings and Work Areas
- Schools
- Places of Worship
- Outdoor Work Areas
- Warehouses
- Auditoriums and Theatres
- Correctional and Rehabilitation Institutions
- Security Areas
- Amusement Parks
- Retirement Villages and Club Houses
System Requirements:
- Windows 98, NT, XP, or 2000.
- 160 MB min. hard drive space with additional space for user-added wav files.
- 333 MHz processor required, greater than 500 MHz recommended.
- Sound card with mic/line input and speaker outputs.
- Display with 800x600 minimum resolution. 256 colors recommended.
For RS485 Operation:
- PC must contain at least one Serial COM port or USB port.
- USB port can be configured using a USB/Serial Adapter with associated software.
- RS232 to RS485 Converter (Edwards Part Number MCN485CB2EOLT or equivalent).
2
Every signal you need to signal responsibly.
The only thing better than Edwards versatile signaling control is Edwards versatile, reliable, and proven signals. With the industry's broadest line, there isn't much we can't do.
Constructed of the finest materials, continually tested and improved, an Edwards signal communicates for a lifetime. Following are many of the signals that are commonly controlled by Edwards signal management systems.
Versatile, plant-wide and proven – Adaptatone Millennium.
Adaptatone Millennium multiple-tone electronic signals offer the widest selection of tones in the industry. With short code blasts or sustained warning signals, they meet virtually every application requirement – from emergency evacuation to routine communications. The Adaptatone signaling system provides for integrated plant-wide communications with microprocessor reliability. Choose from voice, telephone paging, or field-programmable voice units that command notice and allow instant multilingual recognition of your factory's operational status.
Get your message heard
27 unique tones that get your message across – soft tones and melodies for your office areas. Alarming tones that cut through the din of your noisiest production areas. Tones are easily selected by setting internal miniature switches. Plus, Millennium also features field-recordable voice messages and systemwide voice and telephone paging to distinctly and accurately reach every ear in your facility.
Rugged and smart construction
Durable – cast construction with corrosion-resistant heat-flowed epoxy finish to stand up to your harshest environment.
Smart – captive components that won't get dropped and lost during installation. Easy pipe or surface mounting using the integral, external mounting flange.
No special tools required – field wiring terminals can be operated with standard electrician screwdrivers.
Hassle-free installation – large internal wiring compartment that gives you room to work.
Versatile and expandable
As your needs grow, so can your Adaptatone Millennium system. By using a central tone generator and simply connecting speaker amplifiers, you can construct a complete system for plant-wide warning and evacuation. Millennium models are available in a wide voltage range for non-hazardous and Division 2 hazardous locations. Connections are provided for external battery backup. Choose from standard 15-watt and high-volume 30-watt units. Division 1 models are also available.
The smaller alternative with full-size performance – Mini-Mi.TM
When you need reduced size without reduced performance, Adaptatone ® Millennium Mini-Mi is the answer.
Low profile and low cost, Mini-Mi's modular design delivers the perfect solution for any application: speaker/amplifier, stand-alone tone generation, or field-recorded voice operation. Weatherproof and available with RS485 connectivity, Mini-Mi delivers a lot of signaling in a small 6"x 5" footprint.

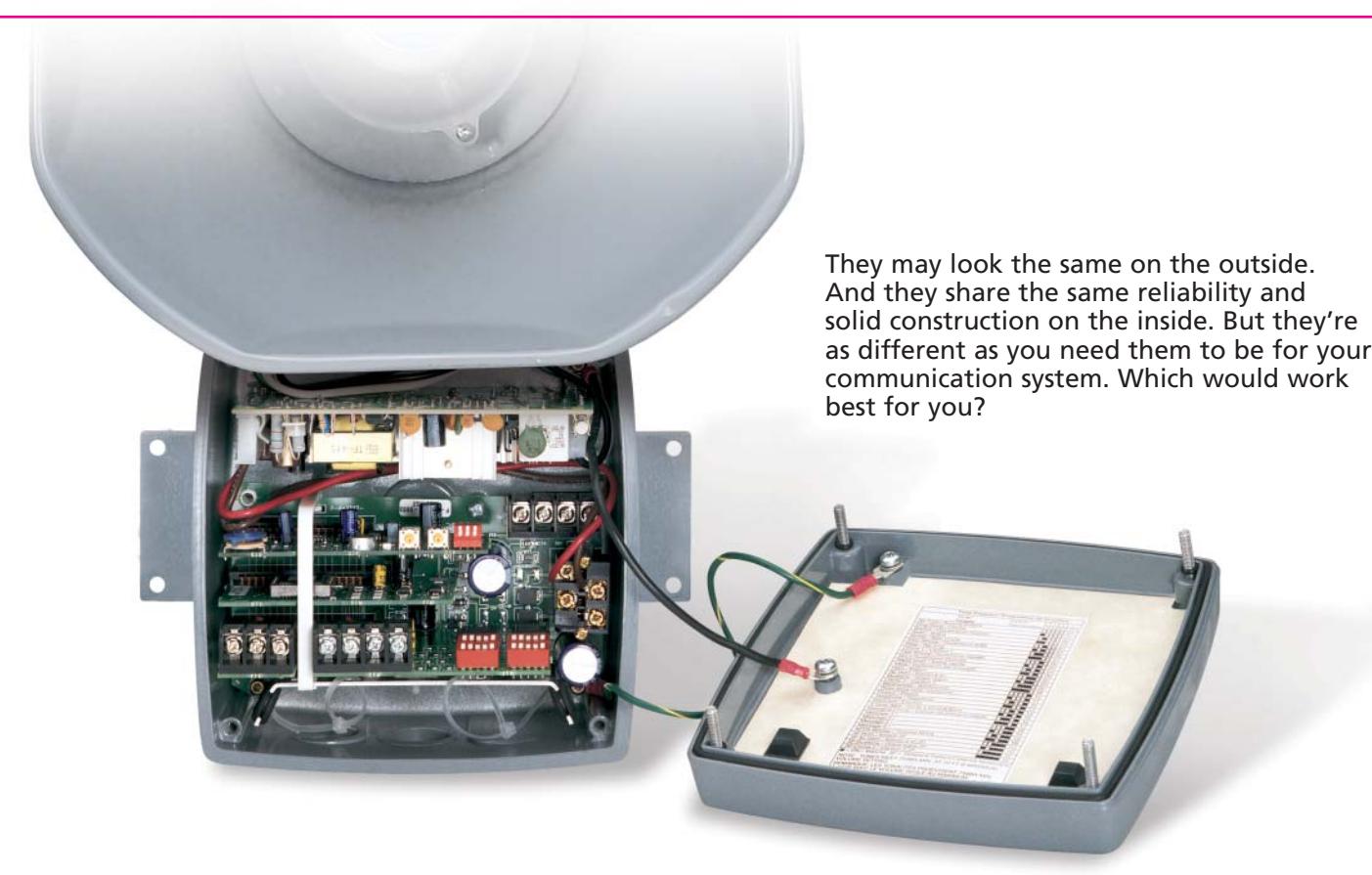

The 5560M Mini-Mi is ideal for sounding stand-alone or system tones and voice in factory hallway, office, and personnel areas where the use of a larger device is not desirable. The Mini-Mi may also be used for fire/emergency applications, where audio or voice is required for plant or area-wide tone or voice notification.
This compact tone, voice generator, and speaker/ amplifier can be configured with or without a 115 candela strobe.
One of five optional modules may be installed in the base unit:
- 556T-M Tone Module Board, where one tone may be dipswitch-selected from a field of 55 tones and will be played whenever power is applied to the unit.
- 556T-M485 Tone Module Board, where any of the available 55 tones can be activated over an RS485 network.
- 556V-M Voice Module Board is capable of standalone voice operation. When power is applied to the unit, it will play up to 20 seconds of one pre-recorded, field-programmed voice message.
- 556A-M Audio Coupler Board allows the Mini-Mi to be operated as a system speaker/amplifier over any system that outputs 10, 25, or 70.7V RMS.
- 556A-M485 Audio Coupler Board allows the Mini-Mi to be operated as a system speaker/ amplifier over an RS485 network.
Diode polarized fire alarm models are available with and without the 115 candela strobe. The fire alarm models operate from 16 to 33VDC and are available in standard white or red Lexan housings.
- Internal volume control
- NEMA Type 3R
- UL 464, 1604, and UL 1971 (FJ Model) listed
- CSFM
- MEA
- 90dBA @ 10 feet
- 24VAC/24VDC, 120VAC, 16-33VDC Models
- Mounts on a standard 4" (120mm) backbox
Out-of-the-box signaling with complete signaling components ready to go. Just "plug and play."
5530M Series Single Input, Single Output
Stand-alone 27 tones including four three-pulse temporal tones. 15-watt output. Battery backup terminals. Weatherproof and suitable for Division 2 locations. Diode polarized and high-volume 30-watt output models. Available with serial inputs for use on RS485 networks. UL, cUL Listed, and CE Marked.
5531M Series
Four Input, Four Output
All the features of the 5530M Series, but with four inputs and four outputs with cascading-type priority tone operation. The tone programmed in each higherpriority location overrides the tones programmed in lower locations. Weatherproof and suitable for Division 2 locations. UL, cUL Listed, and CE Marked.
5531MV Series
Voice Capability – Four Input, Four Output
Four input, four output cascading-type priority tone and voice operation. Features 20 seconds of field-recordable voice messages in 5-second parts. Messages and tones are selected by setting miniature dip switches within the unit. Weatherproof and suitable for Division 2 locations. UL, cUL Listed, and CE Marked.
5530M/5530MV Series
Multiple-Tone Signal, Single Output RS485 Activation
Heavy-duty industrial, tone-selectable signaling device capable of producing volume-controlled, high-decibel tones. It uses a microprocessor circuit to create 27 distinctive tones selected by setting a dip switch within the unit. Additionally, the unit has a field-recorded voice feature that allows activation over the RS485 network. UL and cUL. Weatherproof and suitable for Division 2 locations.
5530MD-24AW
Multiple-Tone Signal Diode
Polarized for Fire Alarm Communication, Single output heavy-duty industrial, tone-selectable signaling device intended primarily for use in fire alarm systems and other applications requiring electrical supervision of signaling circuit field wiring. Weatherproof and suitable for Division 2 locations. UL, cUL Listed, and CE Marked.
5530MHV Series
High Volume Multiple-Tone Signal, 30-Watt, Single Output, RS485 Activation
Heavy-duty, high volume, 30-watt, industrial signaling device capable of producing volume-controlled, high-decibel tones. Activated from field-wired, normally open contacts, or from a 24VDC or 120VAC external voltage source such as an output of a PLC. Weatherproof and suitable for Division 2 locations. UL, cUL Listed, and CE Marked.
Components to create custom signaling systems for any application – small to supersized.
Wired? Wireless? Whatever you need. There's an easy, efficient way to integrate the perfect signaling solution with Edwards components. We've got enough proven choices to create the right system for your communications, in your locations, at your convenience. Here's a sampling of the more common components that can help you Signal Responsibly™.
5545M Hazardous Location Remote Speaker/Amplifier
For system use with central tone generator in Division 1 locations.
5533M Hazardous Location Signal Two input, two output signal for
Division 1 locations.
5535 Remote Amplifier
Used when remote speakers are required. Amplifier output is a 70V line with a maximum of 15 watts.
5551B-2W Cone Speaker
4" cone speaker for indoor ceiling or wall mounting. 70V input voltage. Four power taps – .25, .50, 1, and 2 watts. Moisture-proof.

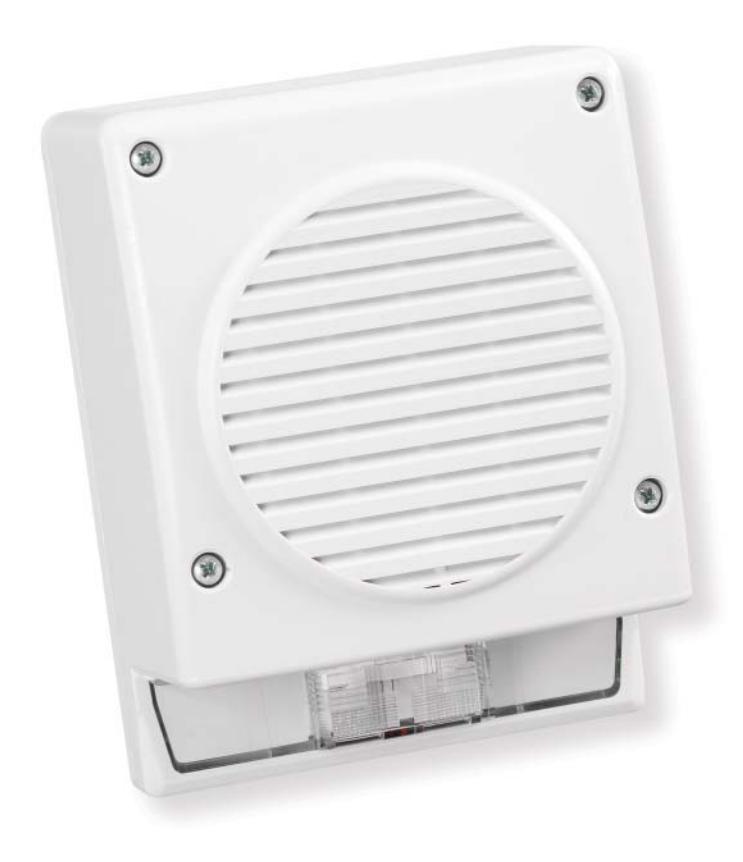

EG4 Series Genesis Speakers and Speaker Strobes
Available in red or white. Optional mounting box.
Attractive 25V or 70V wall-mount units. 4" cone. Multi-watt taps 1/4, 1/2, 1, and 2 watts. Multi-candela strobe options. Field-selectable 15/30/75/110 candela output. 90dBA output speaker.
EGC Series Genesis Ceiling Speakers, Strobes, and Speaker/Strobes
Attractive 25V or 70V ceiling-mount units. 4" cone. Multi-watt taps 1/4, 1/2,
1, and 2 watts. Multi-candela strobe options. Fieldselectable 15/30/75/110 candela output. 90dBA output speaker. Available in red or white. Optional mounting box.
5510 Remote Audio Signal Converter Converts 25V or 70V RMS input to
10V RMS output.
5547-15W Re-entrant Speaker
70V input voltage, high sound output. Four power taps – 15, 8, 4, and 2 watts. Moisture-resistant.
5538-4 Series Remote Signal Actuator
Remote activation of up to four tones or messages. 5538-4R allows system to be interfaced to local/system units for priority override.
MR-201/C Relay
Used to enable the audio output from the Millennium Adaptatone components to override output from other sources to
the same speaker/amplifier products in the system.
Millennium Retrofit Kits
Designed for use in Adaptatone Millennium units to add the following:
Audio-10-M: Adds 10V RMS System Audio Audio-25-M: Adds 25V RMS System Audio Audio-70-M: Adds 70V RMS System Audio
RS485-M: Adds RS485 Networking
Voice-M: Adds Field-programmable Voice Page-M: Adds paging capability to the 5531M
5536M Series Local/System Signal Accepts three electrical inputs and
delivers three tones from the available 27. One of the inputs is designated as a top-priority signal. The 5536M works in the Adaptatone system, either
sounding the centrally produced tone or voice signal, or its own tone signal. The Adaptatone system has priority over the locally initiated tones. Weatherproof and suitable for Division 2 locations. 30-watt high-volume models available. UL, cUL Listed, and CE Marked.
5540M Series Central Tone Generator
Designed for centralized generation of all 27 tones and simultaneous synchronous signaling throughout the
Adaptatone system. Four cascading-type priority operating tones may be programmed into the unit. Battery backup terminals. Weatherproof and suitable for Division 2 locations. Available with serial inputs for use on RS485 networks. UL, cUL Listed, and CE Marked.
5532M Series Speaker/Amplifier
Remote speaker/amplifier designed for operation with the 5540M Central Tone Generator. Operates directly from local power sources, making it possible to connect these units to available voltage
sources from 24V to 250V. Battery backup terminals. Weatherproof and suitable for Division 2 locations. High-volume 30-watt output models. Available with serial inputs for use on RS485 networks. UL, cUL Listed, and CE Marked.

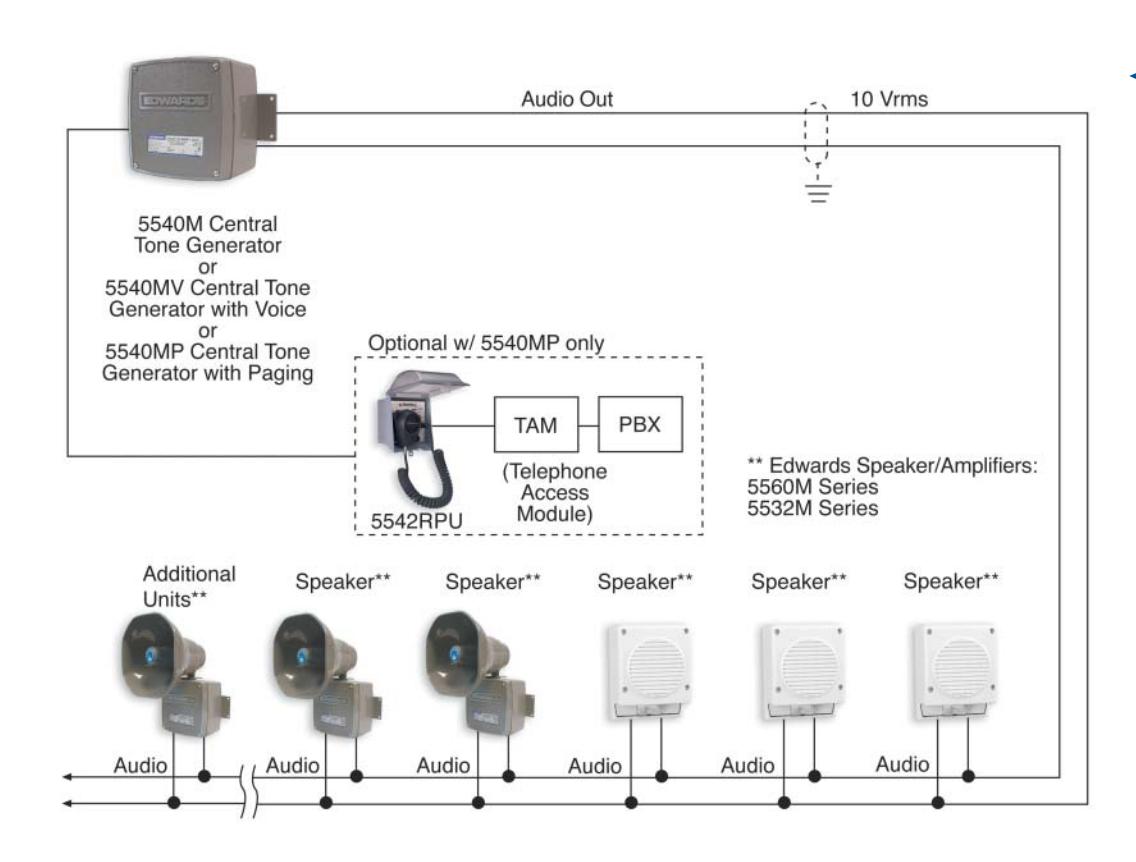

5540MV Series Central Tone Generator with Voice Capability
All the features of the 5540M but with four input, four output pyramidtype priority tone and voice operation. Features 20 seconds of field-recorded voice messages in 5-second parts. Messages and tones are selected by setting miniature dip switches within the unit. Available with serial inputs for use on RS485 net-
5540MP Series Central Tone Generator with Microphone Paging All the features of the 5540M, but
with the ability to provide simultaneous
voice and telephone paging throughout the Adaptatone system. Requires the 5542RPU Remote Paging Unit to operate. Ordered separately. UL and cUL Listed.
works. UL, cUL Listed, and CE Marked.

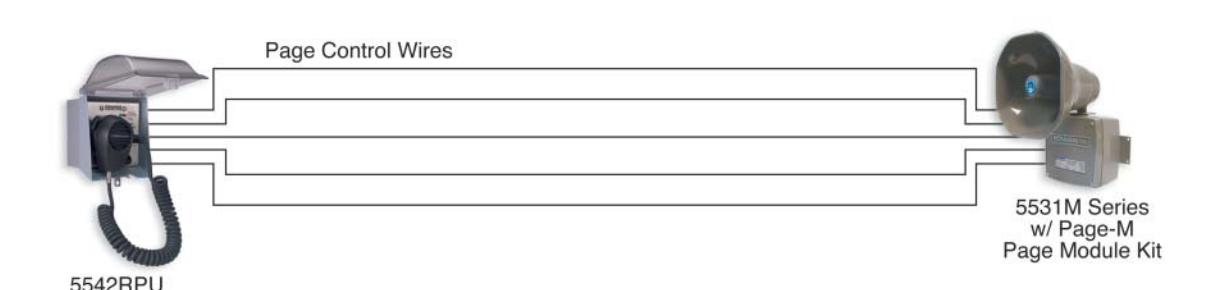

5542RPU Remote Paging Unit
Remote Paging Unit sends audio to the 5540MP. Input is received from the microphone input (optional), 1V audio source, or telephone system audio
converted using a Bogen Telephone Access Module or equivalent. Powered by the 5540MP Series Central Tone Generator. Mounts in a doublegang box. UL and cUL Listed.

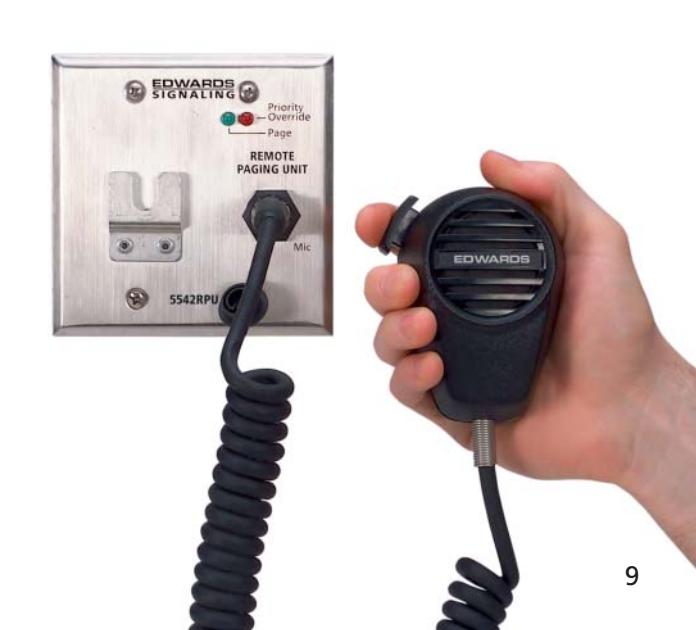

5542RPU-M Remote Paging Unit with Mic
Identical to the 5542RPU, but supplied complete with the 5542MIC-H handheld microphone. (Shown with weatherproof mounting kit.)
5531MHV Series Adaptatone Millennium Multiple-Tone Industrial Signal
Four outputs, high volume, 30-watt heavy-duty industrial signaling device capable of producing volume-controlled,
high-decibel tones. Four tones can be activated from field-wired, normally open contacts, or from a 24VDC or 120VAC external voltage source such as the output of a PLC.
XT and XR Transmitters and Receivers
These RF transmitters are designed for use in wireless remote control applications. When activated with an external dry contact, the transmitter sends a 10-watt, 27.225 MHz digitally encoded
FSK (Frequency Shift Keying) signal to a companion receiver. The receivers detect the signal, verify the code and trigger the remote device. These devices have full supervision capability. If this option is selected, the transmitter sends hourly status signals to its receiver. If these signals stop, the receiver indicates trouble by activating its status output.

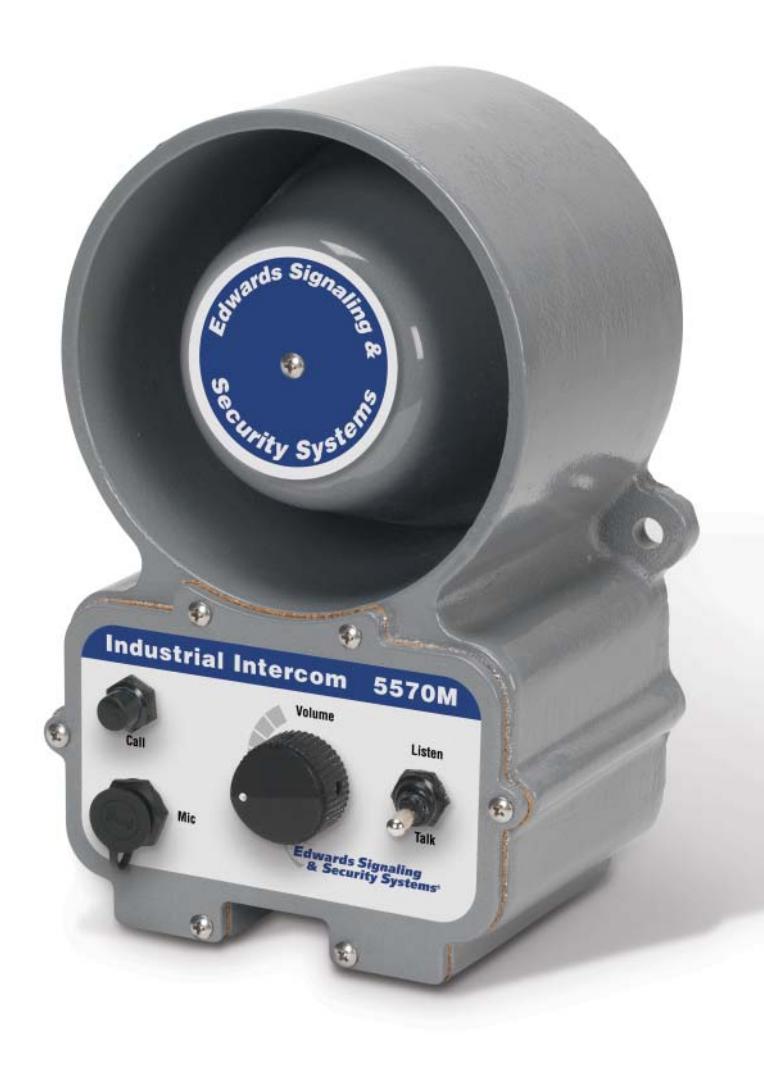

The Millennium Industrial Intercom: When you need an intercom that's up for just about anything.
Industrial and hazardous locations are no match for the 5570 Intercom and speaker. This heavy-duty, two-way communications device is available in 120/240VAC 50/60Hz and 24VAC/DC, so it can fit into just about any communications infrastructure. Voltage input for the 120/240VAC model is internally switch selectable for easy configuration. The AC line has a 1/2 amp 250-volt type GMC fuse.
The speakers are rated for 30 Watts, 16 Ohms. Their frequency response of 150Hz to 12kHz covers the full range of voice communication.
For even more flexibility, you can also select a balanced or unbalanced line operation and Master or Satellite mode configuration. The unit has transformer isolated audio inputs and a choice of four alert tones. There is also an optional hand-held, noise-cancelling microphone to combat high ambient noise.
With NEMA Type 4X and marine listed enclosures, they are ideal for indoor or outdoor use. They are also listed for Class I Div. 2, Class II Div. 2, and Class III hazardous location areas.
Features
- Division 2 Rated
- NEMA 3R and 4X
- Marine Rated
- 4 Dipswitch-Selectable Call Tones
- 120VAC/240VAC and 24VAC/24VDC Models
- Auxiliary Signal Activation
Applications
- Petrochemical plants
- Offshore oil platforms
- Textile mills
- Airports
- Bottling facilities
- Food processing
- Pulp and paper mills
- Waste water treatment facilities

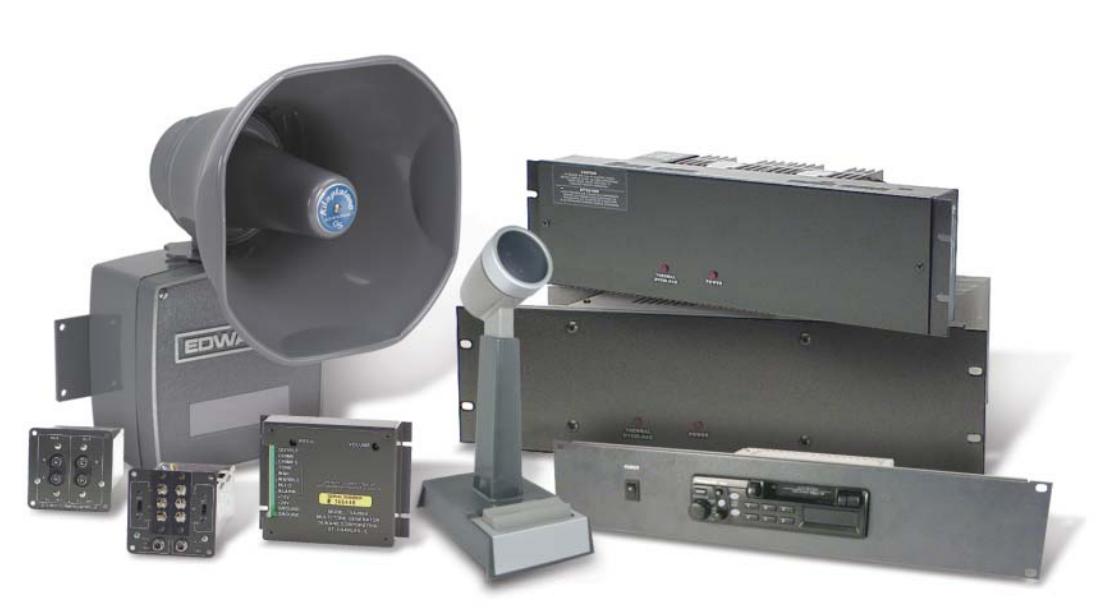

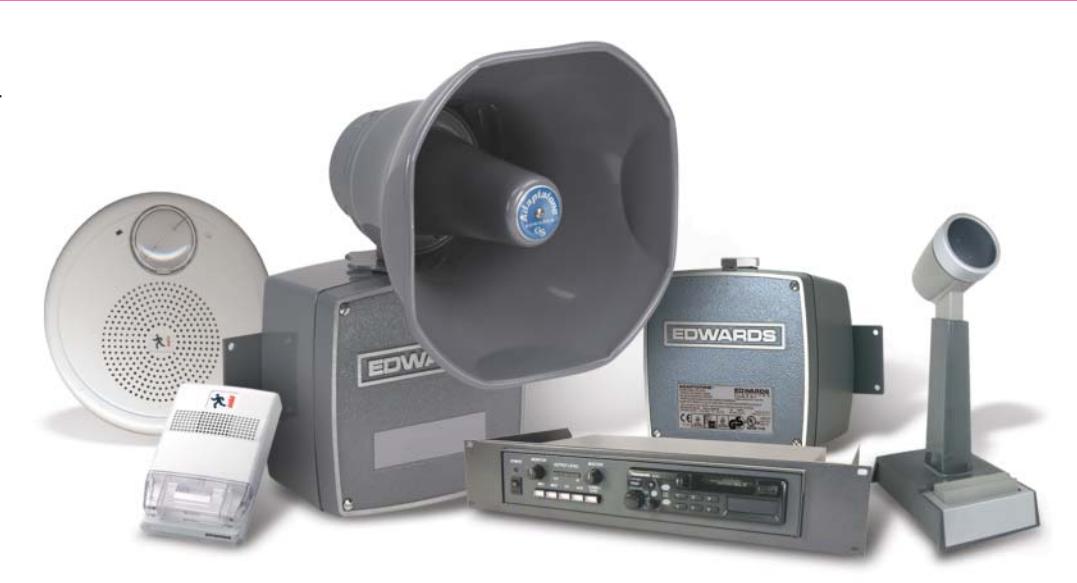

Public address components that make it easy to get the word out. Anywhere.
The human voice is one of the most challenging sounds to transmit in busy work areas or acoustically reflective rooms. Edwards Public Address components are designed for voice reproduction regardless of the ambient acoustics. Standalone or integrated, they speak volumes about our dedication to workplace safety, and communications clarity.
6000-RS-25/70 Series
Available in 15- or 30-Watt continuous output models. All models have a screwdriver-adjustable switch that can be externally adjusted. Indoor and outdoor with a built-in 25-volt and 70-volt transformer with selector switch.
6000-MP Series Mixer Preamplifier
The Edwards Mixer Preamplifier
Catalog 6000-MPAMP accepts up to eight programmed inputs, while maintaining low distortion (THD) and high signal-to-noise ratio.
6000-AM/FMCAS-PA AM/FM Tuner/Cassette Player with Preamp
This AM/FM Cassette Player with preamplifier is a rack-mount unit designed for use with the Edwards 6000 Series amplifiers. It provides a single channel output from one or all five inputs.
6000-AM/FMCAS AM/FM Tuner/Cassette Player
This rack-mount AM/FM Cassette Player is designed for use with the Edwards 6000-MPAMP Mixer Preamplifier.
6000-AMP Series
Edwards power amplifiers are rated at either 60, 125, or 250
watts. All Edwards amplifiers are UL 813 Listed and can be used in sound reinforcement, general paging, and commercial and industrial communication applications.
6000-DM Touch-to-Talk Desk Microphone and Stand
Ideal for paging and communications in applications such as restaurants, schools, and dispatching operations. The micro-
phone has an on/off switch operated via a fingertip control bar that provides momentary or locking switch operation.
6000-MTG Multi-tone Generator
A solid-state tone generator capable of operating from either 12VDC or 24VDC.
The unit can produce seven separate and distinct signals: wail, warble, hi-lo, alarm, repeating chimes, single chime, and tone. The unit is equipped with a pitch control that affects the chimes and the tone functions. The volume control affects all functions.
6000-S-8-25/70 Series 25/70-Volt Baffled Speaker Assemblies
High quality units that feature a tastefully constructed steel baffle that blends well with modern interiors. The speaker
assembly includes a dual voltage 70 and 25-volt matching transformer. The transformer has taps of 1/2, 1, 2, and 4 watts at 70 volts and 1/2, 1, and 2 watts at 25 volts. The 15-Watt 6000-15S-8-25/70 has an additional apex whizzer cone for extended high frequency response.
3
What do you need to do?
It doesn't matter what your signaling needs are. Because there is a proven Edwards solution already doing precisely whatever you need to do.
Put us to the test and we'll give you the right signaling answer for any application. That's why there are more Edwards signals communicating in more applications throughout the world than anyone else's. Our specialty is meeting every signaling challenge. We wouldn't be satisfied with anything less. And neither should you.
Come up with an application...

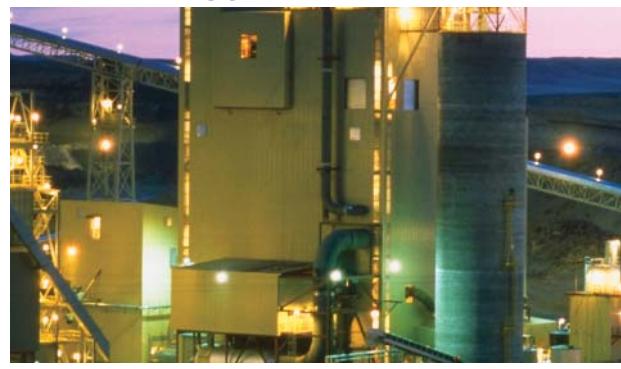

Industrial Applications
Process Control Applications
Institutional Applications
Commercial Applications
we already have a solution.
There's just about no place noisier than industrial locations. And there is no place Edwards industrial audible electronic signals can't perform. As your onestop solution with the industry's broadest line, we can do it all. Cranes, conveyors, crushers, loading machinery, mines, lumber operations, paper mills – you name it and we can equip it with the ideal industrial signaling solution.
Edwards delivers the most cost effective, convenient way to drive audible signals with your PLC. Simply check your PLC specifications against the Edwards PLC compatibility table in our catalog or on our website. Verify compatibility, make the connections, and you're done – without buying and installing relays, loading resistors, or snubbing circuits. And you don't need PLC programming – signals activate using standard constant voltage from the PLC. With Edwards, you save all around.
Hospitals, nursing homes, healthcare facilities, universities, government buildings – all applications where you may need to communicate facility-wide or on a targeted basis. And, in all of these applications, Edwards has a signal solution, from a call for help to routine class announcements. Everyone can signal better when they Signal Responsibly™.
Commercial locations are filled with activity and a need to communicate that is sometimes overlooked. Assembly, warehousing, and other commercial applications need to overcome distractions and noise without overwhelming the people. Edwards has solutions that strike that balance. And communicate better.
Simple Public Address
Use the 5542 Remote Paging Unit and an Adaptatone 5531M Signal with a paging module for simple public address. Devices require local power.
Conventional Tone Generator Operation
Use a 5540M Series Tone Generator or a 5540MV Tone Generator with fieldrecorded voice to broadcast tones and messages throughout your facility over speaker amplifiers. Also, use a 5535 remote amplifier to boost the signal and drive up to 15 watts of 70V speakers. Some devices may require local power.
Conventional Non-zoned System
Use the 5540M Central Tone Generator or the 5540MV Central Tone Generator with field-recorded voice to send tones or voice over conventional speakers/amplifiers. As an option, use the 5540MP Central Tone Generator with paging and a 5542RPU Remote Paging Unit to now send real-time voice throughout the factory from a microphone or your telephone system. Devices require local power.
Conventional Non-zoned System Using External 25/70V Amplifiers
Use the 5540M Central Tone Generator or the 5540MV Central Tone Generator with field-recorded voice to send tones or voice over conventional speakers. Use external 25/70V amplifiers to boost the signal. Devices require local power.
Conventional Speaker Application Using the PC's Sound Card
Use the MEDI and your PC's sound card as an audio source to sound Adaptatone® system wav files, custom wav files, or real-time voice (using the PC microphone) over conventional 25 or 70V speakers or speaker/amplifiers. A cost-effective way to sound scheduled events. Some devices may require local power.
Conventional Non-zoned, Non-supervised System
Use the System Master to send tones or realtime voice from a telephone or the panel's included microphone over speaker amplifiers. Devices require local power.
Conventional Non-zoned, Non-supervised System using External 25/70V Amplifiers
Use the System Master and external 25/70V amplifiers to send tones or real-time voice from a telephone or the panel's included microphone. Some devices may require local power.
Combination Speaker/Amplifier and Banked Amplification Non-zoned, Nonsupervised System
Use the System Master to send tones or real-time voice from a telephone or the panel's included microphone. The 10V audio loop is used to communicate to conventional speaker/ amplifiers or centralized banked amplification. The 25/70V audio loop is used to communicate to conventional speakers. Some devices may require local power.
Addressable RS485 Speaker Application Using the PC's Sound Card
Use the MEDI and your PC's sound card as an audio source on an installed RS485 network. Use to locally sound Adaptatone ® tones on RS485 compatible tone generators and multitone signals, or use the network to broadcast PC tone wav files, custom wav files, or realtime voice over RS485 compatible speaker/ amplifiers. Devices require local power.
Addressable RS485 Speaker Application Using an External Audio Source
Use the MEDI, an external audio source, and an installed RS485 network to locally sound Adaptatone tones on RS485 compatible tone generators and multi-tone signals. Or, turn on RS485 compatible speaker/ amplifiers and broadcast audio from an external source. Devices require local power.
Addressable RS485 System w/Tone Generator
Use an RS485 Tone Generator to send tones to conventional speaker/amplifiers. Use a remote signal amplifier to boost the signal and drive 70V conventional speakers. Some devices may require local power.
Addressable RS485 System w/System Master and Zoned Speakers
Use the System Master Panel to send tones or real-time voice from a telephone or the panel's included microphone over an RS485 network. Units on the network can be assigned to one of four zones. Devices require local power.
5
Addressable RS485 Supervised System w/ System Master, Zoned Speakers, and Battery Backup
Use the System Master Panel to send tones or real-time voice from a telephone, the panel's included microphone, or a 5542RPU Remote Paging Unit over an RS485 network. System also utilizes a UPS (supplied by others) for system backup. Units can be assigned to one of four zones. Devices require local power.
Addressable RS485 Master Satellite System using External 25/70V Amplifiers
Use the System Master Panel to communicate with up to 63 satellite panels. The satellite panels are used to drive conventional speakers through external 25/70V amplifiers. This system is used where outlying buildings require a network that is locally controlled by the satellite panels. However, the master panel is able to override the satellite panels if necessary. Some devices may require local power.
Addressable RS485 Master Satellite System, Non-supervised
Use the System Master Panel to communicate with up to 63 satellite panels or RS485 devices in up to four zones. The satellite panels are used to drive conventional speakers. This system is used where outlying buildings require a network that is locally controlled by the satellite panels. However, the master panel is able to override the satellite panels if necessary. Some devices may require local power.
Addressable RS485 Master Satellite System w/ Remote Amplifier
Use the System Master Panel to communicate with up to 63 satellite panels. The satellite panels are used to drive conventional speakers. A 5535 remote amplifier is used to drive conventional low wattage 70V line speakers. This system is used where outlying buildings require a network that is locally controlled by the satellite panels. However, the master panel is able to override the satellite panels if necessary. Some devices may require local power.
Putting it all together with MEDI.TM
Small 4-Zone RS485 Application
Use the MEDI and your RS485 network to broadcast PC wav files or send real-time voice throughout your facility. You may broadcast to all or to any selected zone.
In this application we are installing the MEDI and an RS485 network in a small distribution business.
We have segmented the building into four zones and we are running a 25V audio system. A 70V audio system may also be configured. In this case, we would use 70V audio coupler cards inside the 5532M speaker/amplifiers in lieu of 25V coupler cards.
Zone 1
The first zone is an office area that measures 20 feet by 20 feet and has an ambient noise level of about 60dB. In this zone we installed one RS485-capable Mini-MiTM Speaker/Amplifier with its volume turned down so that we measure about 10dB above background at the furthest extreme. The Mini-Mi will most likely be used for paging in this area.
Zone 2
The second zone is the warehouse. This area measures 50 feet by 50 feet and has an ambient noise level of about 75dB. Here we have installed two RS485 capable Adaptatone 5532M Speaker/Amplifiers at either end of the building's width.These Adaptatones have their volume adjusted so that we read 10dB above background in the middle of the warehouse. In this area the Adaptatones will most likely be used to sound routine paging, shift changes, and break times.

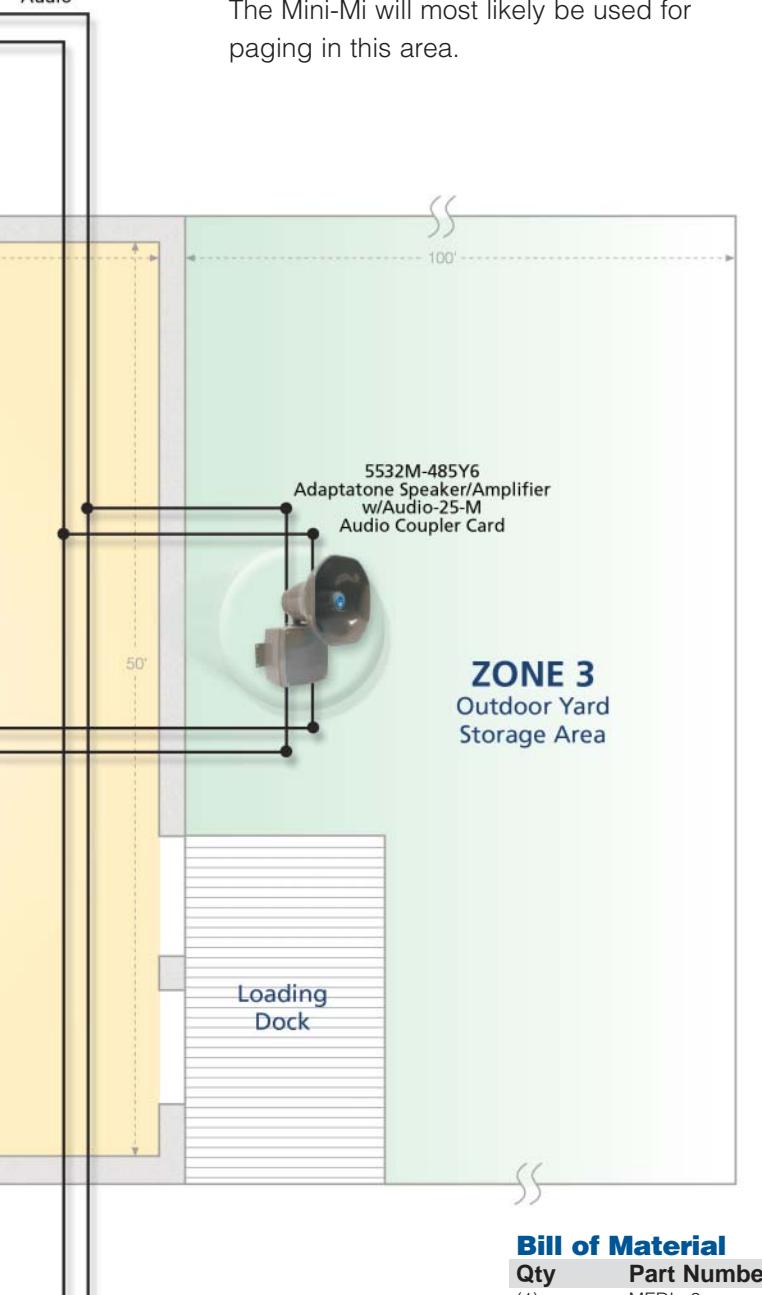

Zone 3
The third zone is the outdoor yard and loading dock area that measures 50 feet by 100 feet. Here we installed one RS485-capable Adaptatone 5532M Speaker/Amplifier in the middle of the building. Ambient noise varies widely in this area, so we set the Adaptatone at maximum volume. In this area the Adaptatone will most likely be used for paging.
Zone 4
The fourth zone is the counter and display area. Here we installed one RS485-capable Mini-Mi Speaker/Amplifier with its volume turned down so that we measure about 10dB above background at the furthest extreme. The background ambient in this area is about 65dB. In the counter and display area the Mini-Mi is used for routine paging and to sound timed events such as custom wav files that are used to advertise product specials.
| Qty | Part Number | Description |
|---|---|---|
| (1) | MEDI-v2 | MEDI Software |
| (2) | 5560M-N5 | 120V Mini-Mi Signal |
| (2) | 556A-M485 | RS485 Audio Coupler Board |
| (3) | 5532M-485Y6 | RS485 Adaptatone Millennium Speaker/Amplifier 120-240VAC |
| (3) | Audio-25-M* | 25V Audio Coupler Card |
| (1) | MCN485CB2EOLT | RS232 to RS485 Converter Box |
| (1) | 6000-60AMP | 60-Watt Commercial Amplifier |
| (2) | MCN485-100 | RS485 Wire, Shielded/2 Wire, 22AWG (100 Feet) |
Note: Audio Wire is also required. Use shielded/twisted pair audio cable. Contact application engineering for wire size. *Audio-70-M is used with the 70V system.
Use an existing Fire Control
Panel to activate the System Master Panel
for voice evacuation in conjunction with fire alarm activation. When the fire panel goes into alarm it activates a fire alarm relay on its NAC output. The relay then activates the System Master Panel. The panel then outputs to speakers and speaker/ amplifiers on its supervised audio loop. Devices require local power.
Use an existing Fire Control Panel to activate the System Master Panel for voice evacuation in conjunction with fire alarm activation. When the fire panel goes into alarm it activates a fire alarm relay on its NAC output. The relay then activates the System Master Panel. The panel then outputs to banked amplification, speakers, and speaker/amplifiers on its supervised audio loop. Some devices may require local power.
|
Input Card
Activation |
||
|---|---|---|
| Cat. No. | Volts | Voltage |
| Adaptatone Multi-Tone Signal – 1 Input/1 Output | ||
| 5530M-24AQ |
24V DC
24V AC 50/60 Hz |
24V DC |
| 5530M-24N5 | 120V AC 50/60 Hz | 24V DC |
| 5530M-120N5 | 120V AC 50/60 Hz | 120V AC |
| 5530M-24Y6 |
120V AC 50/60 Hz
240V AC 50/60 Hz 125V DC 250V DC |
24V DC |
| 5530M-120Y6 |
120V AC 50/60 Hz
240V AC 50/60 Hz 125V DC 250V DC |
120V AC |
| High Volume | Adaptatone Multi-Tone Signal – 1 Input/1 Output - | |
| 5530MHV-24AQ |
24V DC
24V AC 50/60 Hz |
24V DC |
| 5530MHV-24Y6 |
120V AC 50/60 Hz
240V AC 50/60 Hz 125V DC 250V DC |
24V DC |
|
5530MHV-120Y6 120V AC 50/60 Hz
240V AC 50/60 Hz 125V DC 250V DC |
120V AC | |
| Adaptatone Multi-Tone Signal – 4 Input/4 Output | ||
| 5531M-24AQ |
24V DC
24V AC 50/60 Hz |
24V DC |
| 5531M-24N5 | 120V AC 50/60 Hz | 24V DC |
| 5531M-120N5 | 120V AC 50/60 Hz | 120V AC |
| 5531M-24Y6 |
120V AC 50/60 Hz
240V AC 50/60 Hz 125V DC 250V DC |
24V DC |
| 5531M-120Y6 |
120V AC 50/60 Hz
240V AC 50/60 Hz 125V DC 250V DC |
120V AC |
| High Volume | Adaptatone Multi-Tone Signal – 4 Input/4 Output - | |
| 5531MHV-24AQ |
24V DC
24V AC 50/60 Hz |
24V DC |
| 5531MHV-24Y6 |
120V AC 50/60 Hz
240V AC 50/60 Hz 125V DC 250V DC |
24V DC |
|
5531MHV-120Y6 120V AC 50/60 Hz
240V AC 50/60 Hz 125V DC 250V DC |
120V AC | |
| 4 Input/4 Output | Adaptatone Multi-Tone Signal w/Voice Capability – | |
| 5531MV-24N5 | 120V AC 50/60 Hz | 24V DC |
| 5531MV-120N5 | 120V AC 50/60 Hz | 120V AC |
| 5531MV-24Y6 |
120V AC 50/60 Hz
240V AC 50/60 Hz 125V DC 250V DC |
24V DC |
| Cat. No. | Volts |
Input Card
Activation Voltage |
|---|---|---|
| Adaptatone Multi-Tone Signal – Division 1 - 2 | ||
| Input/2 Output | ||
| 5533M-AQ |
24V DC
36V DC 24V AC 50/60 Hz |
24V DC |
| 5533M-Y6 |
120V AC 50/60 Hz
240V AC 50/60 Hz 125V DC 250V DC |
24V DC |
| Input/2 Output – Diode Polarized | Adaptatone Multi-Tone Signal – Division 1 - 2 | |
| 5533MD-AW | 20 - 31V DC | 24V DC |
| Remote Amplifier | ||
| 5535-N5 | 120V AC 50/60 Hz | |
| 5535-R5 | 240V AC 50/60 Hz | |
| Local/System Signal | ||
| 5536M-24AQ |
24V DC
24V AC 50/60 Hz |
24V DC |
| 5536M-24N5 | 120V AC 50/60 Hz | 24V DC |
| 5536M-24Y6 |
120V AC 50/60 Hz
240V AC 50/60 Hz 125V DC 250V DC |
24V DC |
| Local/System Signal – High Volume | ||
| 5536MHV-24AQ |
24V DC
24V AC 50/60 Hz |
24V DC |
| 5536MHV-24Y6 |
120V AC 50/60 Hz
240V AC 50/60 Hz 125V DC 250V DC |
24V DC |
| Cat. No. | Volts |
Input Card
Activation Voltage |
|---|---|---|
| Central Tone Generator | ||
| 5540M-24AQ |
24V DC
24V AC 50/60 Hz |
24V DC |
| 5540M-24N5 | 120V AC 50/60 Hz | 24V DC |
| 5540M-120N5 | 120V AC 50/60 Hz | 120V AC |
| 5540M-24Y6 |
24V DC
24V AC 50/60 Hz |
24V DC |
| 5540M-120Y6 |
120V AC 50/60 Hz
240V AC 50/60 Hz 125V DC 250V DC |
24V DC |
| Central Tone Generator w/Voice Messaging | ||
| 5540MV-24N5 | 120V AC 50/60 Hz | 24V DC |
| 5540MV-24Y6 |
24V DC
24V AC 50/60 Hz |
24V DC |
| Central Tone Generator w/Microphone Paging | ||
| 5540MP-24Y6 |
120V AC 50/60 Hz
240V AC 50/60 Hz 125V DC 250V DC |
24V DC |
| System Master Panel | ||
| 5541M-Y6 | 120-240V AC 50/60 Hz | |
| Millennium Event Driver Interface | ||
| MEDI-2004 | ||
| MEDI-v2 | ||
| Mini-Mi Signal | ||
| 5560M-AQ |
24V DC
24V AC 50/60 Hz |
|
| 5560M-N5 | 120V AC 50/60 Hz |
HOW TO ORDER ADAPTATONE MILLENNIUM
Cat. no. + special code – input card voltage + power supply voltage
Example: 5531MV-24N5
& 3 local inputs 5540M = Tone Generator 5542 = Remote paging
D = Diode polarized
25 = 25V DC 70 = 70V DC 120 = 120V AC 485 = RS485 Activation
24 = 24V DC
AW= 20-31V DC AQ = 24V AC/DC N5 = 120V AC Y6 = 120V AC - 240V AC 125V DC - 250V DC
Power Supply Voltage
| Cat. No. | Description | Volts |
|---|---|---|
| Mini-Mi Signal with Strobe | ||
| 5560MS-AQ |
24V DC
24V AC 50/60 Hz |
|
| 5560MS-N5 | 120V AC 50/60 Hz | |
| Mini-Mi Signal – Diode Polarized | ||
| 5560MD-FJ | 16 - 33V DC | |
| 5560MDR-FJ | (Red) | 16 - 33V DC |
| Mini-Mi Signal with Strobe – Diode Polarized | ||
| 5560MDS-FJ | 16 - 33V DC | |
| 5560MDSR-FJ | (Red) | 16 - 33V DC |
| Mini-Mi Modules | ||
| 556T-M485 |
Tone Module Board
with RS485 Connectivity |
|
| 556T-M | Tone Module Board | |
| 556V-M | Voice Module Board | |
| 556A-M |
Audio Coupler
Module Board |
|
| 556A-M485 |
Audio Coupler
Module Board with RS485 Connectivity |
|
| Speaker/Amplifier | ||
| 5532M-AQ |
24V DC
24V AC 50/60 Hz |
|
| 5532M-N5 | 120V AC 50/60 Hz | |
| 5532M-Y6 |
120V AC 50/60 Hz
240V AC 50/60 Hz 125V DC 250V DC |
|
| Speaker/Amplifier – High Volume | ||
| 5532MHV-AQ | 24V DC | |
| 24V AC 50/60 Hz | ||
| 5532MHV-N5 | 120V AC 50/60 Hz | |
| 5532MHV-Y6 | 120V AC 50/60 Hz | |
|
240V AC 50/60 Hz
125V DC |
||
| 250V DC | ||
| Speaker/Amplifier – Diode Polarized | ||
| 5532MD-10AW |
10V RMS Audio
Coupler Board |
20 - 24V DC |
| 5532MD-25AW |
25V RMS Audio
Coupler Board |
20 - 24V DC |
| 5532MD-70AW |
70V RMS Audio
Coupler Board |
20 - 24V DC |
| Speaker/Amplifier w/Audio Coupler Board | ||
| 5532M-25Y6 | Coupler Board |
25V RMS Audio 120V AC 50/60 Hz
240V AC 50/60 Hz 125V DC 250V DC |
| 5532M-70Y6 | Coupler Board |
70V RMS Audio 120V AC 50/60 Hz
240V AC 50/60 Hz 125V DC 250V DC |
| Cat. No. | Description | Volts |
|---|---|---|
| Remote Speaker/Amplifier – Division 1 | ||
| 5545M-AQ | 24V DC | |
| 24V AC 50/60 Hz | ||
| 5545M-Y6 |
120V AC 50/60 Hz
240V AC 50/60 Hz |
|
| 125V DC | ||
| 250V DC | ||
| Adaptatone System Reentrant Wall Speaker | ||
| 5547-15W | 15, 8, 4 and | |
| 2 watt taps | ||
| 5548 | Backbox for | |
|
weatherproof
mounting |
||
| 5549 | Backbox for | |
| surface mounting | ||
| Adaptatone System Cone Ceiling Speaker | ||
| 5551B-2W | 1/4, 1/2, 1, 2 | |
| watt taps | ||
| Adaptatone Millennium Remote Paging Unit | ||
| 5542RPU | Remote Paging Unit | |
| (no microphone) | ||
| 5542RPU-M | Remote Paging Unit | |
| with hand held | ||
| 5542MIC-H |
microphone
Hand-held microphone |
|
| 5542MIC-D | Desktop microphone | |
| 5542WPK | Weatherproof | |
| Mounting Kit | ||
| for 5542RPU | ||
| Pre-Amplifier Devices | ||
| 6000-MPAMP | Mixer Pre-amplifier | |
| 6000-MP-DMIC | Dual | |
|
Microphone/Aux
Input Module |
||
| 6000-MP-DSUM | Dual Stereo | |
| Summing Input | ||
| Module | ||
| 6000-MP-TELE | Telephone/Aux | |
| Input Module | ||
| Amplifiers | ||
| 6000-60AMP | 60 Watt | |
| Commercial Amplifier | ||
| 6000-125AMP |
125 Watt
Commercial Amplifier |
|
| 6000-125AMP-FP | 125 Watt | |
| Industrial Amplifier | ||
| (Continuous Duty) | ||
| 6000-250AMP |
250 Watt
Commercial Amplifier |
|
| 6000-250AMP-FP | 250 Watt | |
| Industrial Amplifier | ||
| (Continuous Duty) |
| Cat. No. | Description | Volts |
|---|---|---|
| Input Devices | ||
| 6000-DM | Desk Microphone | |
| 6000-MTG | Multi-Tone Generator | |
| 6000-AMFMCAS |
AM/FM Tuner
Cassette Player |
|
| 6000-AMFMCAS-PA | ||
| AM/FM Tuner | ||
| Cassette Player | ||
| with Preamp | ||
| 6000-CD-RS | Optional Rack | |
| Mount Shelf | ||
| Speakers | ||
| 6000-15RS-25/70 | ||
| 15W 25/70 | ||
|
Re-entrant
Horn Speaker |
||
| 6000-30RS-25/70 | ||
| 30W 25/70 | ||
| Re-entrant | ||
| Horn Speaker | ||
| 6000-8S-8-25/70 | ||
|
8W 25/70V 8"
Speaker Assembly – |
||
| White Steel Baffle | ||
| 6000-15S-8-25/70 | ||
| 15W 25/70V 8" | ||
| Speaker Assembly – | ||
| 6000-8-BB |
White Steel Baffle
Steel 9" round |
|
| backbox for 8" speaker – | ||
| anti-resonance pad | ||
| 6000-8-SB | Backbox support bridge – | |
| Reduces tile sag | ||
| Mounting Racks | ||
| 6000-MR-42 | Wall Cabinet 42" | |
| 6000-MR-21 | Wall Cabinet 21" | |
| Industrial Intercom | ||
| 5570M-AQ | 24V DC | |
| 24V AC 50/60 Hz | ||
| 5570M-NR5 |
120V AC 50/60 Hz
240V AC 50/60 Hz |
|
|
Wireless Transmitters
XT-1 |
1-Channel Transmitter | |
| XT-4 | 4-Channel Transmitter | |
| 1-Channel Receiver | ||
| Wireless Receivers | ||
| XR-1 | ||
| XR-4 | 4-Channel Receiver | |
| Wireless Accessories | ||
| T-1224DC | Transmitter Power Supply | |
| T-124.8DC | Receiver Power Supply | |
|
ANT-2
CON-90 |
Quarter Wave Antenna
Right Angle Adapter |
90 Fieldstone Court Cheshire, CT 06410-1212 Phone: (203) 699-3300 Fax: (203) 699-3108 email: lit.request@edwards-signals.com From emergency voice activation to routine signaling, maximize plant communication control and flexibility with Edwards Millennium signaling products. Up to 67 tones and system paging, field programmability, and now complete integration of your plant-wide signaling needs with the System Master supervised control panel. Edwards has been a pioneer in the design, manufacture, and installation of leading-edge plant-wide communication, emergency evacuation systems, and general signaling equipment for over 130 years. Serving Fortune 500 and other leading worldwide companies, our products work seamlessly together to ensure workplace safety and signaling reliability. Represented by:
