Edwards Signaling AE Bulletin RS232 DB9 Connection Diagram

AEBN: 090809

Date: 09/08/09

Subject: RS-232 DB-9 Connection Diagram, E-FSA64 & E-FSA250

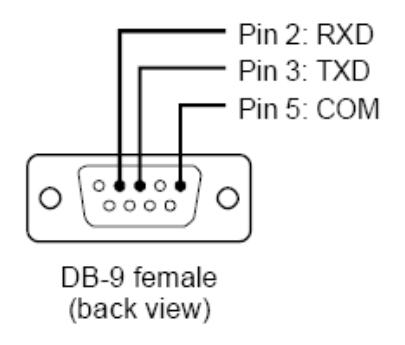

The DB-9 pin connection diagrams for the RS-232 cable illustrated in the E-FSA Technical Reference Manual 3101202 (rev. 2) and SA-232 Installation Sheet 3101095 (rev. 1.04) are labeled incorrectly. The connector shown should be a female, looking from the backside (side where wires solder to connector).

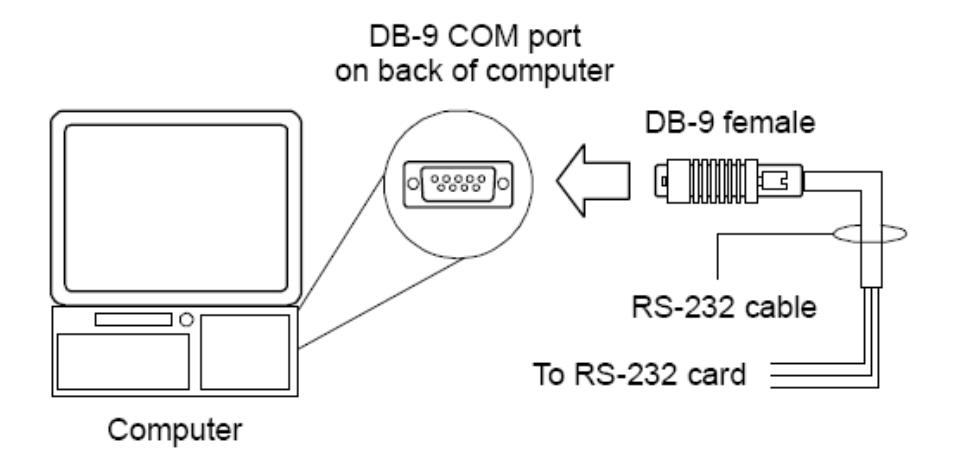

The correct diagrams are shown below.

The download cable can be purchased from Edwards using part number 260097, or you can make your own.
