Edwards Signaling AE Bulletin Fire with Multi Zone Voice Evacuation

AEBN: 120210-2

Date: December 2, 2010

Subject: E-FS Series Fire Alarm Panels With Multi Zone Audio

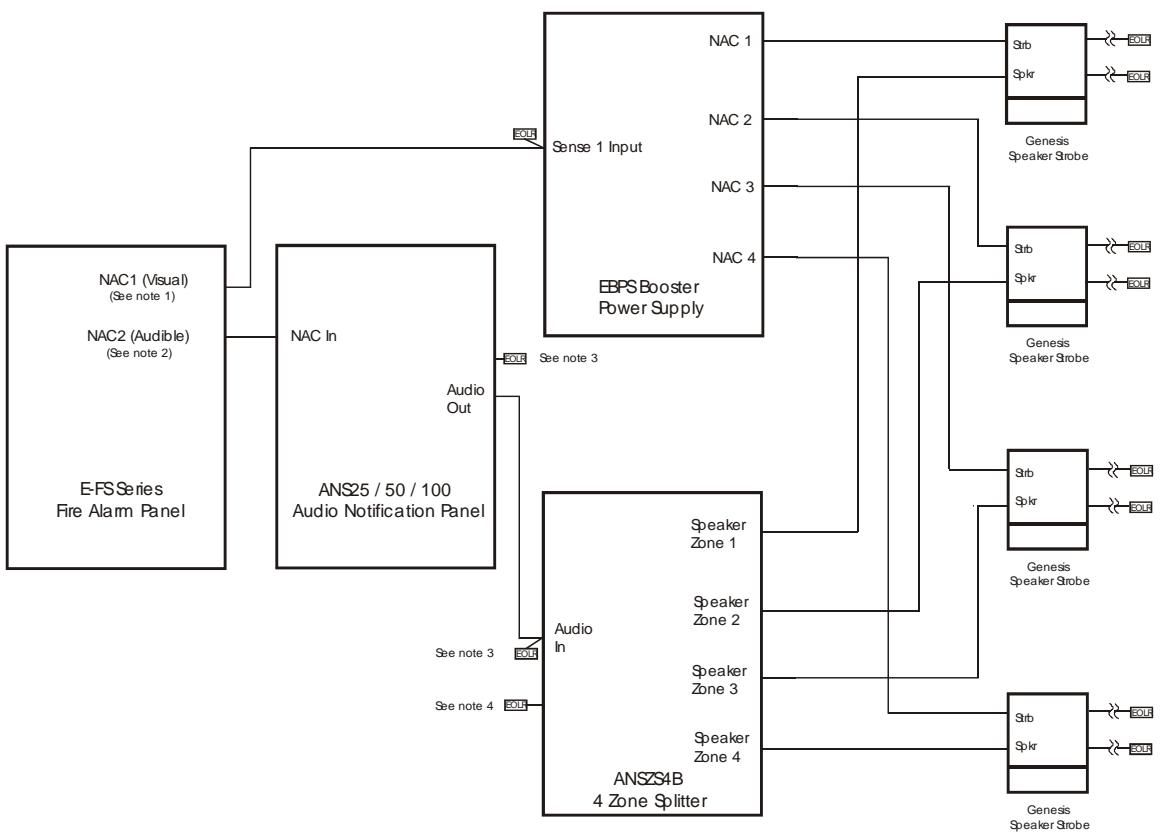

Block Diagram - FS Panel With Multi Zone, General Alarm Audio

Notes:

• 1. NAC1 on fire alarm panel should be configured as Genesis.
• 2. NAC2 on fire alarm panel should be configured as Continuous.
• 3. End of line resistor value on TB3-5 and TB3-6 of audio panel must match the resistor used on TB2-1 and TB2-2 of zone splitter module. Value can be between 2.2K and 100K ohms.
• 4. End of line resistor value on TB3-1 and TB3-2 equals the value used by the fire alarm panel's NAC (signal circuit).
• 5. Speaker circuit wiring should be 18 gauge minimum, twisted pair, shielded if necessary (if run in electrically noisy areas). Be sure to observe polarity.
• 6. Strobe circuit wiring should be 18 gauge pair minimum, twisted/shielded not required.
• 7. 4 zone splitter module mounts in same cabinet as Audio Notification Panel. Refer to splitter module's installation instructions for detailed interconnect drawings.
• 8. Refer to installation manuals for fire alarm, booster power supply, and ANS audio notification panel for detailed wiring instructions.
