Edwards Signaling Products 90 Fieldstone Court Cheshire, CT 06410 (203)699-3000 FAX (203)699-3108

Technical Bulletin # 970523

Date: July 12, 1999

Product: Door Strikes

Product Category: Accessories

Subject: Compatible Locksets for Edwards Door Strikes

The following compilations are the compatible locksets for Edwards Door Openers:

Note: Compatible Lockset designations are offered as a convenience only: reference should be made to manufacturers catalogs for complete data as to exact requirements. Caution must be taken in the alignment of locks with latchbolts when used with an electric strike. The spacing between the door and door jamb varies. If the gap is exceptionally tight, the latchbolt may not project to its maximum length. Edwards Signaling Products, assumes no liability for differences between items compared.

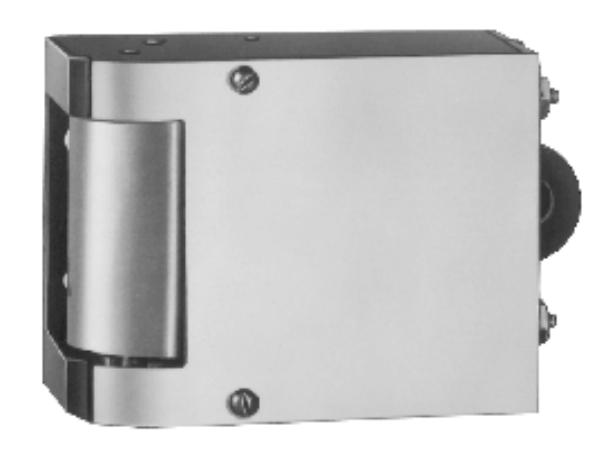

Compatible Locksets for 152 Series Door Strikes

BEST 44F73, 44F77 ILCO 220, 540 LORI 1300 SIMPLEX 200NL YALE 80, 042

Compatible Locksets for 150 & 151 Door Strikes

ACCURATE 62, 66, 69 ADAMSRITE 4700-8300, 8400 ARROW C,H,M, L BEST 5, 7, 50, 6TDL, 9 CORBIN 1400-5600, 6100-6600 DEXTER DEXLOCK, DURALOCK

DOMINION 300, 400, 5000

GUARD 1990

FALCON A, BA, D, E, F, N, S, X

HARLOC 6900

KWIKSET 400, 500, 582, 583 LOCKWOOD 930/970, 8000 LORI 80/8200, 81/8300 LSDA 1000-1500, 100-150

MARKS 110, 180 MEDCO EMBASSY NATIONAL 400

PDQ SH,SR,SV,SX

PARKER 160A, 9100, L7100, 2800

RUSSWIN 3400-4300, 400 SARGENT 6, 7, 8, 9, 10 SCHLAGE A, F, BD

TACO ED, HV, LXV, SV, MLV

TAYMOR 28

UNICAN 6000, 7004 WEISER A, BA, D, E WESLOCK ALL LOCKS YALE 5200, 5300

Application Data: For use in new or replacement installations in metal jambs. Used with locksets having up to 5/8" throw (Based on 1/8" door gap).

• Holding Force 1200 lbs.
• Durability 500,000 Life Cycles

Compatible Locksets for 154 Series Door Strikes

ACCURATE 66 ARROW C,H,M

BEST 5, 7, 50, 6TDL

CORBIN 1400-5600, 6100-6600 DEXTER DEXLOCK, DURALOCK

DOMINION 300, 400, 5000

GUARD 1990

FALCON A, BA, D, E, F, N HARLOC 49/5900, 6900 KWIKSET 400-500, 582, 583

LOCKWOOD 900

LORI 80/8200, 81/8300 LSDA 1000-1500, 100-150

MARKS 110 NATIONAL 400 PDQ SR,SV,SX PARKER 160A RUSSWIN 3400, 4300 SARGENT 6, 7, 8, 9, 10

SCHLAGE A, F

TACO ED, HV, LXV, SV

TAYMOR 28

UNICAN 6000, 7004 WEISER A, BA, D, E WESLOCK ALL LOCKS YALE 5200, 5300

Compatible Locksets for 177 & 178 Door Strikes

ACCURATE 66 ARROW C,H,M BEST 5, 7, 50, 6TDL

CORBIN 1400-5600, 6100-6600 DEXTER DEXLOCK, DURALOCK

DOMINION 300, 400, 5000

GUARD 1990

FALCON A, BA, D, E, F, N, S HARLOC 49/5900, 6900 KWIKSET 400-500, 582, 583

LOCKWOOD 900

LORI 80/8200, 81/8300 LSDA 1000-1500, 100-150

MARKS 110 NATIONAL 400 PDQ SR, SV, SX PARKER 160A RUSSWIN 3400, 4300 SARGENT 6, 7, 8, 9, 10 SCHLAGE A, F

TACO ED, HV, LXV, SV

TAYMOR 28

UNICAN 6000, 7004 WEISER A, BA, D, E WESLOCK ALL LOCKS YALE 5200, 5300

Application Data: For use in new or replacement installations in wood and metal jambs. Used with locksets having up to 5/8" throw (Based on 1/8" door gap).

• Holding Force 1100 lbs.
• Durability 500,000 Life Cycles

Compatible Locksets for 180-AF & 181-AF Door Strikes

ACCURATE 62, 66, 76 ARROW C,H,M, L

BEST 5, 7, 50, 6TDL, 9

CORBIN 400, 800, 1400-5600, 6100-6600 DEXTER DEXLOCK, DURALOCK

DOMINION 300, 400, 5000

GUARD 1990

FALCON A, BA, D, E, F, N, S, X HARLOC 49/5900, 6900 KWIKSET 400, 500, 582, 583 LOCKWOOD 930/970, 8000 LORI 80/8200, 81/8300 LSDA 1000-1500, 100-150 MARKS 110, 180, 8000-9000

MEDCO EMBASSY NATIONAL 400

PDQ SH,SR,SV,SX

PARKER 160A

RUSSWIN 400, 3400, 4300 SARGENT 6, 7, 8, 9, 10 SCHLAGE A, B, D, F

TACO ED, HV, LXV, SV, MLV

TAYMOR 28

UNICAN 6000, 7004 WEISER A, BA, D, E WESLOCK ALL LOCKS YALE 5200, 5300, 5400

Application Data: For use in new or replacement installations in wood jambs. Used with locksets having up to 3/4" throw (Based on 1/8" door gap).

• Holding Force 1000 lbs.
• Durability 500,000 Life Cycles

Compatible Locksets for 188-AF Door Strikes

ACCURATE 62, 67, 76, 7800 ADAMS RITE 4700-8300, 8400

ARROW C, H, M

BEST 5, 7, 50, 6TDL CORBIN 1400-5600, 6100-6600 DEXTER DEXLOCK, DURELOCK

DOMINION 300, 400, 5000

GUARD 1990

FALCON A, BA, D, E, F, N, S HARLOC 49/5900, 6900 KWIKSET 400-500, 582, 583

LOCKWOOD 900

LORI 80/8200, 81/8300 LSDA 1000-1500, 100-150

MARKS 110 NATIONAL 400 PDQ SR, SV, SX PARKER 160A RUSSWIN 3400, 4300 SARGENT 6, 7, 8, 9, 10 SCHLAGE A, F

TACO ED, HV, LXV, SV

TAYMOR 28

UNICAN 6000, 7004 WEISER A, BA, D, E WESLOCK ALL LOCKS YALE 5200, 5300

Application Data: For use in new or replacement installations in wood and metal jambs. Auxiliary lever ramps for use with locksets, which contain dead locking levers. Used with locksets having up to 5/8" throw (Based on 1/8" door gap).

• Holding Force 1100 lbs.
• Durability 500,000 Life Cycles

Compatible Locksets for 9E Door Strike

ACCURATE 66 ARROW C,H,M

BEST 5, 7, 50, 6TDL

CORBIN 1400-5600, 6100-6600 DEXTER DEXLOCK, DURALOCK

DOMINION 300, 400, 5000

GUARD 1990

FALCON A, BA, D, E, F, N, S HARLOC 49/5900, 6900 KWIKSET 400-500, 582, 583

LOCKWOOD 900

LORI 80/8200, 81/8300 LSDA 1000-1500, 100-150

MARKS 110 NATIONAL 400 PDQ SR, SV, SX PARKER 160A RUSSWIN 3400, 4300 SARGENT 6, 7, 8, 9, 10

SCHLAGE A, F

TACO ED, HV, LXV, SV

TAYMOR 28

UNICAN 6000, 7004 WEISER A, BA, D, E WESLOCK ALL LOCKS YALE 5200, 5300

Glossary for Electric Door Strike Terms:

Continuous Duty - A device that is designed to operate continuously without rest.

• Fail Safe A device that is normally open and locks when power is applied to the unit. Example: During a loss of power the device remains open.
• Fail Secure A device that is normally closed or locked until power is applied. Example: During loss of power the device remains locked.
• Intermittent Duty - A device that is designed to operate for a short period of time; generally less than 45 seconds.
• Rectifier - A device that is commonly used to convert AC to DC. Commonly used to silence the audible sound that an electric strike can make while energized on AC.
