Installation Instructions for the 7008B-N5 Call for Assistance Package

Specifications

Horn/Strobe Voltage ....................................

Description

The 7008B-N5 120V AC Call for Assistance Package lets handicapped individuals alert the general area when they need emergency assistance. The audible/visual-strobe device mounts outside and above the entrance of public rest room facilities. It signals an audible/visual alarm when the cord switch is pulled from inside the facility. The kit contains a Pull Cord Switch (Cat. No. 6537) and an audible/visual signaling appliance (Cat. No. 7007B-N5).

Installation

A qualified electrician familiar with National Electrical Code and local code requirements must install this product. Failure to follow the safety precautions in this instruction sheet could result in product or property damage, severe personal injury or death.

WARNING

To reduce the risk of shock, do not connect AC power until installation is complete.

• 1. Install Cat. No. 6537 Pull Cord Switch (Figures 1 and 2).
  • a. Install a single gang 2" x 4" (51 mm x 102 mm) electrical box using suitable hardware.
  • b. Extend the black and white wires using 18 AWG wire and connectors (not supplied). Route the extended wires to the horn/strobe and transformer (polarity is not important). Ground in accordance with local codes and regulations.
  • Mount the pull cord switch onto the electrical box using two screws (supplied).
  • d. If an additional Catalog No. 6537 pull cord switch is required, install a single gang 2" x 4" (51 mm x 102 mm) electrical box. Extend the black and white wires using 18 AWG wire and connectors (not supplied). Route the extended wires to the previously installed pull cord switch and connect the wire leads (Figure 1).

2. Install Catalog No. 7007B-N5 horn/strobe (Figures 1 and 3).

WARNING

To reduce the risk of shock, do not remove lens or tamper with unit when the circuit is energized. Disconnect power and allow five (5) minutes for stored energy to dissipate before starting work or disassembly. High energy could be stored in the strobe circuit once it is energized.

The 7007B-N5 horn/strobe can be mounted on any single gang 2" x 4" (51 mm x 102 mm) electrical box, double gang 4" x 4" (102 mm x 102 mm) electrical box, or standard 4" x 4" (102 mm x 102 mm) junction box with a plaster ring.

• a. Install an appropriate electrical box using suitable hardware.
• b. Connect one wire from the 6537 pull cord to one of the audible/visual signaling appliance wires (polarity is not important).
• c. Extend the remaining audible/visual signaling appliance wire to the 120V AC source.
• d. Mount the audible/visual signaling appliance onto the electrical box using two screws (supplied).
• When all connections are completed, pull the cord switch and verify operability of the audible/visual signaling appliance.
• 5. Reset the unit using the switch on the cover of the Cat. No. 6537 Pull Cord (Figure 2).

Maintenance

Perform regularly scheduled testing at least twice a year or more often as dictated by local authorities having jurisdiction.

The 7008B-N5 Call for Assistance Package is not serviceable or repairable. Should it fail to operate properly, contact the supplier for replacement.

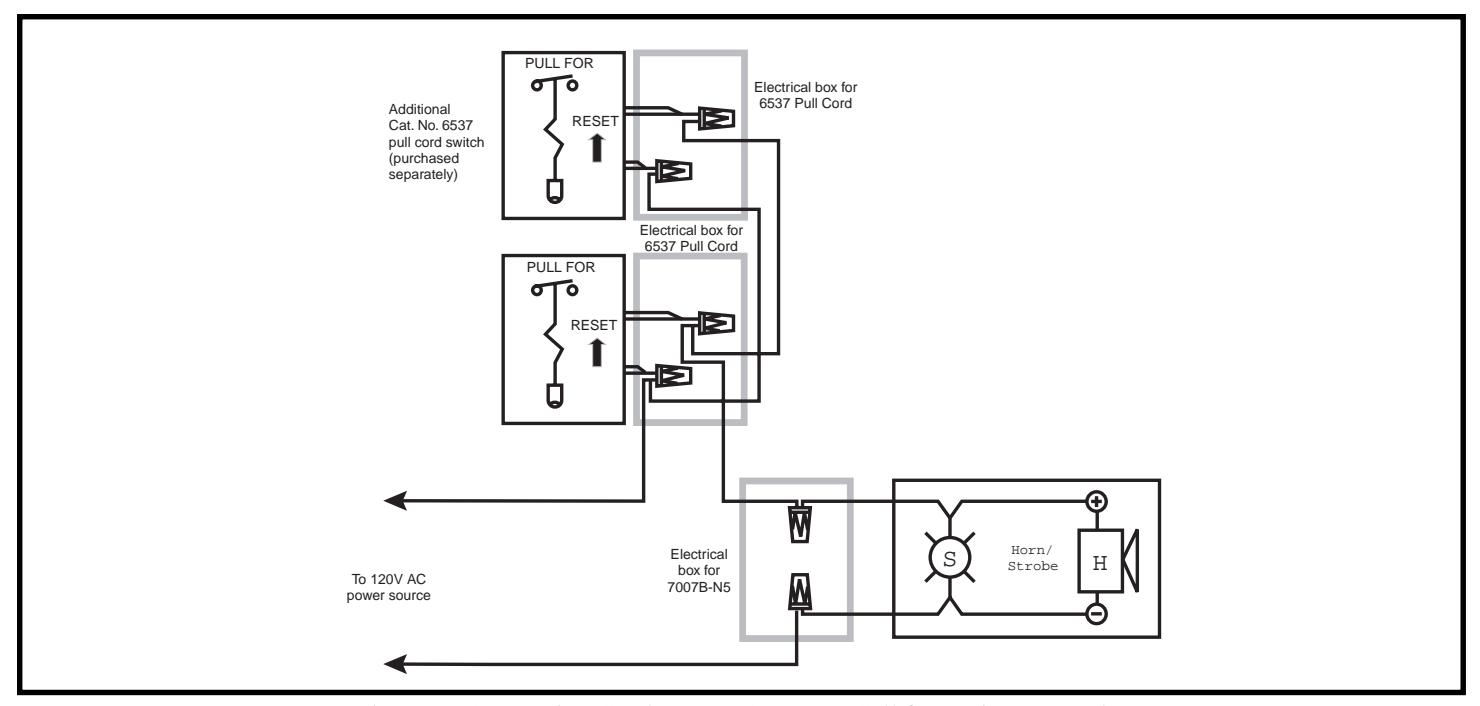

Figure 1. Connecting Catalog No. 7008B-N5 Call for Assistance Package

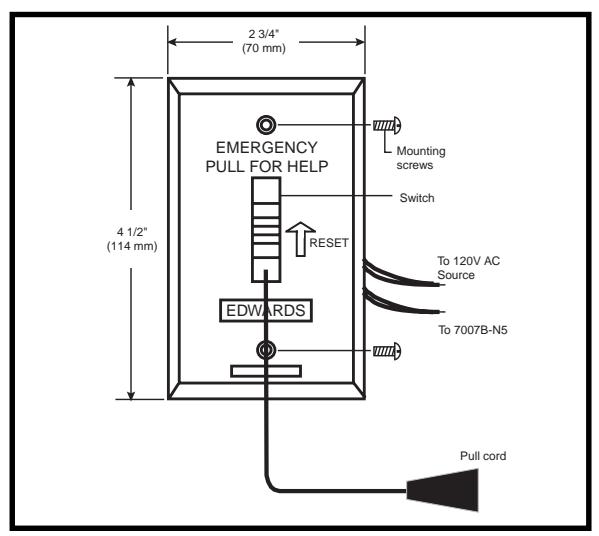

Figure 2. Catalog No. 6537 Pull Cord Switch

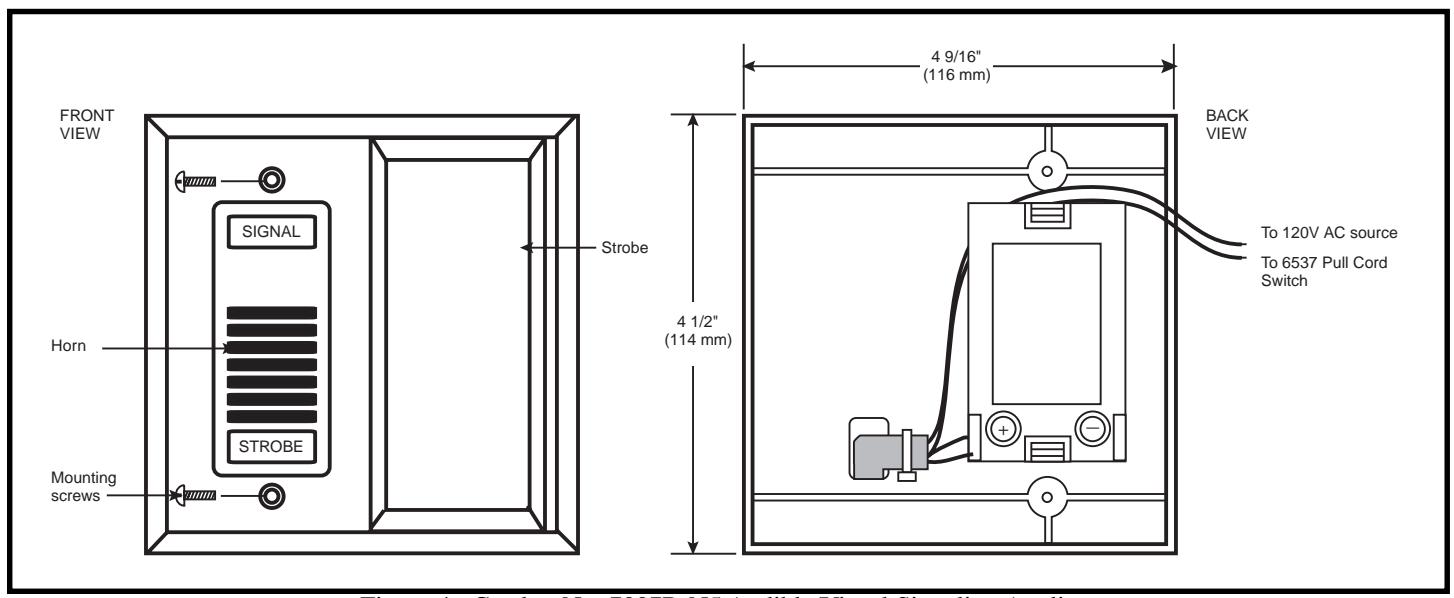

Figure 4. Catalog No. 7007B-N5 Audible/Visual Signaling Appliance
