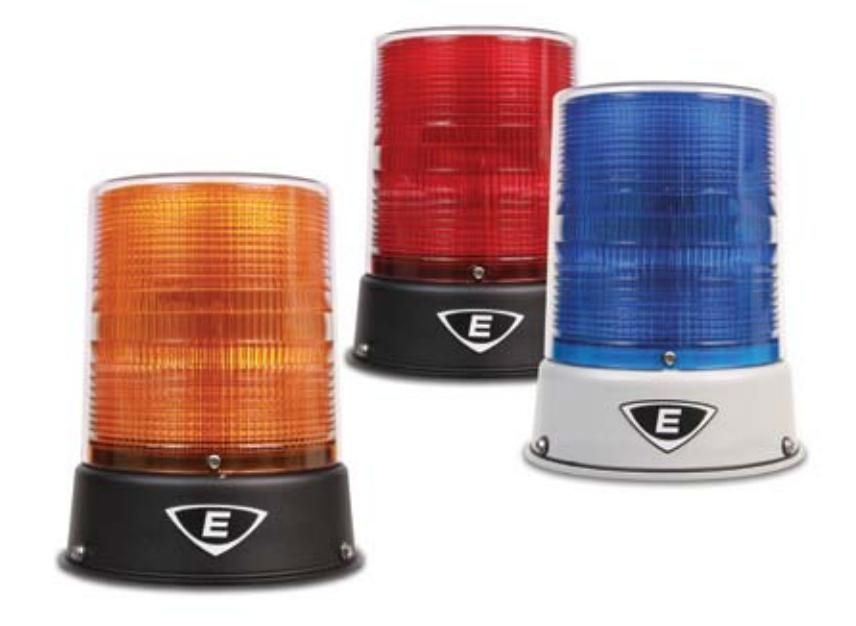

Polaris™ Class LED Beacon 57 Series
Edwards PolarisTM Class LED beacons are NEMA Type 4X and IP66 rated visual signals designed for indoor and outdoor applications. The units are available in Edwards' 57 Series housing in 12-24V DC, 24V AC, 120V AC and are field configurable with seven flash patterns, including steady-on, utilizing a "Hidden In Plain Sight" (HIPS) switch.
The inner, double fresnel lens is made of a high grade polycarbonate and is designed to magnify the ultra-bright LED's inside. A clear, outer, impact-resistant polycarbonate dome offers additional protection against accidental impacts with machinery or falling objects. It also acts as a protective and simple to clean "dust and residue" cover.
The Polaris Class beacons are designed to be mounted on 3/4 inch NPT conduit (indoor or outdoor). To maintain the NEMA and IP ratings for outdoor installation, the beacon must be mounted with the dome facing directly up. When installing the beacon indoors in dry environments, it can be mounted in any position.
The Polaris Class is designed for industrial or commercial applications that require the longevity of an LED combined with the brightness of a xenon strobe. These units are very effective in high noise areas where ear protection is worn or audible signals may not be heard.
PolarisTM Class Features and Specifications
- Seven flash patterns (includes steady-on) UL 1638 and cUL Listed
- Hidden in Plain Sight (HIPS) switch NEMA 4X and IP66 Rated
- 12-24V DC, 24V AC, 120V AC High level of immunity to shock and vibration
-
Six lens colors Black or Gray base option
- ¾" (19mm) NPT threaded conduit Operating Temperature: -31°F to +150.8°F (-35°C to +66°C)
Specifications
| Specifications | Operating | Base | Lens | Projected | Replacement | |||
|---|---|---|---|---|---|---|---|---|
| Description | Cat. No. | Voltage | Color | Colors | LED Life (L70)* | Current | Dome | Lens |
| LED Beacon | 57PLEDMA24AD |
12-24V DC
24V AC @ 50/60 Hz |
Gray | Amber | 148,000 |
0.700A
0.550A |
57E-DC | 57E-LA |
| 57PLEDMB24AD |
12-24V DC
24V AC @ 50/60 Hz |
Gray | Blue | 148,000 |
0.700A
0.550A |
57E-DC | 57E-LB | |
| 57PLEDMG24AD |
12-24V DC
24V AC @ 50/60 Hz |
Gray | Green | 148,000 |
0.700A
0.550A |
57E-DC | 57E-LG | |
| 57PLEDMM24AD |
12-24V DC
24V AC @ 50/60 Hz |
Gray | Magenta | 148,000 |
0.700A
0.550A |
57E-DC | 57E-LM | |
| 57PLEDMR24AD |
12-24V DC
24V AC @ 50/60 Hz |
Gray | Red | 148,000 |
0.700A
0.550A |
57E-DC | 57E-LR | |
| 57PLEDMW24AD |
12-24V DC
24V AC @ 50/60 Hz |
Gray | White | 148,000 |
0.700A
0.550A |
57E-DC | 57E-LC | |
| 57PLEDMA24ADB |
12-24V DC
24V AC @ 50/60 Hz |
Black | Amber | 148,000 |
0.700A
0.550A |
57E-DC | 57E-LA | |
| 57PLEDMB24ADB |
12-24V DC
24V AC @ 50/60 Hz |
Black | Blue | 148,000 |
0.700A
0.550A |
57E-DC | 57E-LB | |
| 57PLEDMG24ADB |
12-24V DC
24V AC @ 50/60 Hz |
Black | Green | 148,000 |
0.700A
0.550A |
57E-DC | 57E-LG | |
| 57PLEDMM24ADB |
12-24V DC
24V AC @ 50/60 Hz |
Black | Magenta | 148,000 |
0.700A
0.550A |
57E-DC | 57E-LM | |
| 57PLEDMR24ADB |
12-24V DC
24V AC @ 50/60 Hz |
Black | Red | 148,000 |
0.700A
0.550A |
57E-DC | 57E-LR | |
| 57PLEDMW24ADB |
12-24V DC
24V AC @ 50/60 Hz |
Black | White | 148,000 |
0.700A
0.550A |
57E-DC | 57E-LC | |
| 57PLEDMA120A | 120V AC @ 50/60 Hz | Gray | Amber | 148,000 | 0.250A | 57E-DC | 57E-LA | |
| 57PLEDMB120A | 120V AC @ 50/60 Hz | Gray | Blue | 148,000 | 0.250A | 57E-DC | 57E-LB | |
| 57PLEDMG120A | 120V AC @ 50/60 Hz | Gray | Green | 148,000 | 0.250A | 57E-DC | 57E-LG | |
| 57PLEDMM120A | 120V AC @ 50/60 Hz | Gray | Magenta | 148,000 | 0.250A | 57E-DC | 57E-LM | |
| 57PLEDMR120A | 120V AC @ 50/60 Hz | Gray | Red | 148,000 | 0.250A | 57E-DC | 57E-LR | |
| 57PLEDMW120A | 120V AC @ 50/60 Hz | Gray | White | 148,000 | 0.250A | 57E-DC | 57E-LC | |
| 57PLEDMA120AB | 120V AC @ 50/60 Hz | Black | Amber | 148,000 | 0.250A | 57E-DC | 57E-LA | |
| 57PLEDMB120AB | 120V AC @ 50/60 Hz | Black | Blue | 148,000 | 0.250A | 57E-DC | 57E-LB | |
| 57PLEDMG120AB | 120V AC @ 50/60 Hz | Black | Green | 148,000 | 0.250A | 57E-DC | 57E-LG | |
| 57PLEDMM120AB | 120V AC @ 50/60 Hz | Black | Magenta | 148,000 | 0.250A | 57E-DC | 57E-LM | |
| 57PLEDMR120AB | 120V AC @ 50/60 Hz | Black | Red | 148,000 | 0.250A | 57E-DC | 57E-LR | |
| 57PLEDMW120AB | 120V AC @ 50/60 Hz | Black | White | 148,000 | 0.250A | 57E-DC | 57E-LC | |
* LED Manufacturer's Median Projected LED Life for LUXEON Rebel LEDs (L70 at 85°C and T<sub>junction</sub> 98°C). Actual LED life will vary inversely with ambient temperature, voltage, driver current, junction temperature and duty-cycle at which the signaling device is operated. Please refer to http://www.philipslumileds.com/pdfs/WP15.pdf.
| Flash Mode Selection | |||||
|---|---|---|---|---|---|
| Pattern | Description | ||||
| Steady | Steady-On | ||||
| S65 | 65 flashes per minute (FPM) | ||||
| Light Burst | 1000 FPM (seven pulses) 440 ms off/repeat | ||||
| Singular Burst | 120 FPM | ||||
| Binary Burst | 65 double FPM | ||||
| Quad Burst | 65 quad FPM | ||||
| 750 FPM (nine pulses)/ | |||||
| iBurst | 480 FPM (one pulse)/ | ||||
| ibuist | 85 FPM (six pulses)/ | ||||
| 460 FPM (one pulse) | |||||

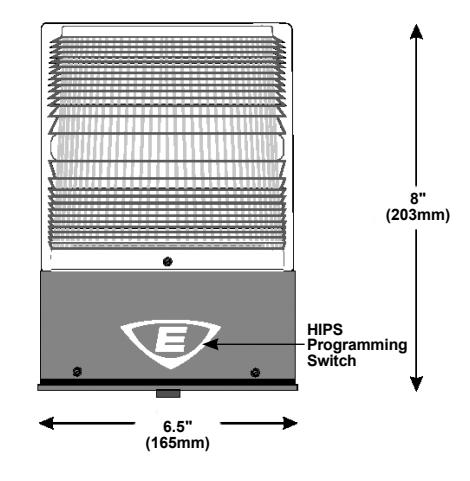

Dimensional Drawing
