ADAPTATONE REENTRANT SPEAKER AT. NO. 5547-15W

APPLICATION:

• * U.L.-LISTED: AUDIBLE SIGNAL APPLIANCE
• * N.F.P.A. STANDARDS 72; PROTECTIVE SIGNALING
• * O.S.H.A. STANDARDS; AUDIBLE ALARM
• * UNIFORM BUILDING CODE: VOICE ALARM SYSTEMS
• * STATE OF CALIFORNIA: HEALTH & SAFETY CODE
• * E.V.C.S.: EMERGENCY VOICE COMMUNICATIONS
• * INDUSTRIAL INTERCOM AND COMMUNICATIONS

FEATURES:

• * HIGH EFFICIENCY COMPRESSION-DRIVER
• * EXPONENTIAL SOUND PROJECTOR
• * MOUNTS TO 4" ELECTRICAL BACKBOX
• * CORROSION, VIBRATION AND VERMIN RESISTANT

Cat. No. 5547-1W or 5547-15W Surface mounting reentrant apeaker with backbox (Cat No 5549)

CAT NO 5547 REENTRANT SPEAKERS

(108)

(108)

• * WATER AND MOISTURE SEALED
• * SELECTION OF MOUNTING OPTIONS
• * DIE-CAST ZINC HOUSING

SPECIFICATIONS:

POWER:

15 WATTS RMS

FREOUENCY:

400-5,000 Hz. (+ 5 dB)

SOUND LEVEL:

109.5 dBA (4'/lK Hz., rated power)

VOICE COIL:

8 OHMS @ 800 HZ or 1 KHZ

DRIVER:

15 WATT WITH 70V LINE TRANSFORMER/

15, 8, 4, 2 WATT TAPS

TEMPERATURE RANGE:

150°F (66°C) TO -30°F (-35°C)

SENSITIVITY AS

MICROPHONE:

-26 DBM (ref: 1K Hz., 10 dynes/cm²)

TERMINATION:

6" (15.2 cm.) COLOR CODED LEADS

FINISH:

BAKED EPOXY; SAND

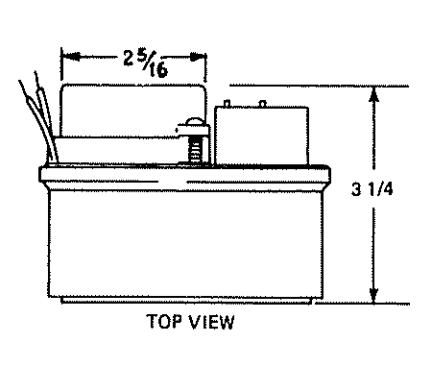

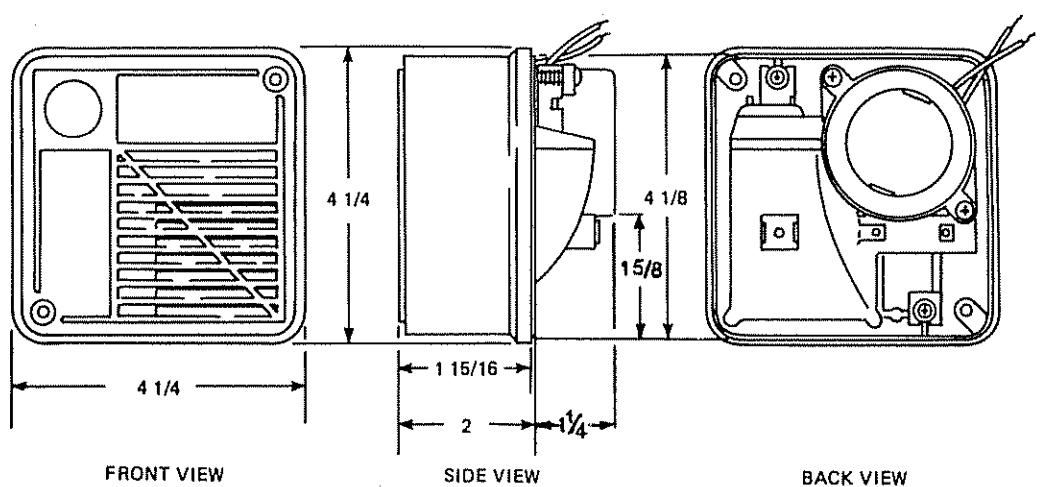

DIMENSIONS (O.D.):

4-1/4" WIDE (10.8 cm.), 4-1/4" HIGH (10.8 cm.)

3-1/8" DEEP (8 cm.)

WEIGHT:

3 LBS. (1.36 Kq.)

SOUND LEVEL: REFERENCE INDEX:

DISTANCE		15-W INPUT	8-W INPUT
10 FT.	(3.0 m)	101.5 dBA	99 dBA
20 FT.	(6.0 m)	95.5 dBA	93 dBA
30 FT.	(9.1 m)	92.5 dBA	90 dBA
40 FT.	(12.1 m)	89.5 dBA	87 dBA
50 FT.	(15.2 m)	88.5 dBA	85.5 dBA

P-047550-0323 ISSUE 1
