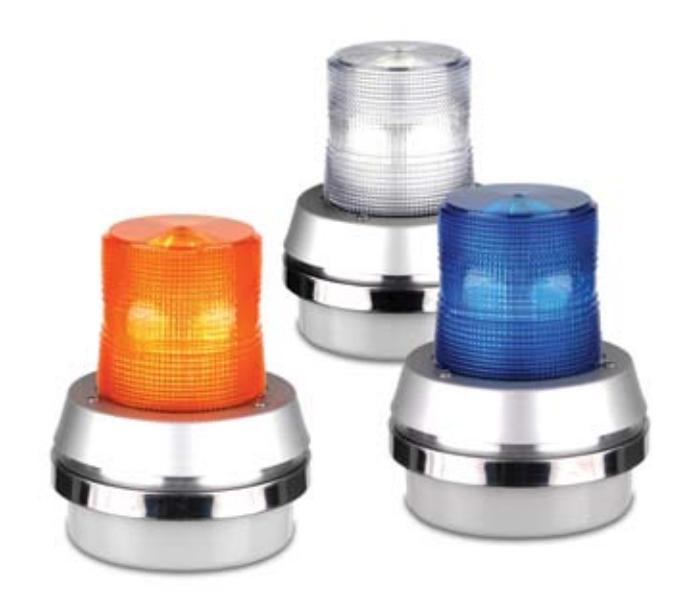

51XBR XTRA-BRITE™ LED Beacon with Horn
The 51XBR superbright LED signal is a combination audible and visual signal providing two levels of sensory notification. The integrated horn is synchronized with the flashing LED. The units are designed for indoor or outdoor applications and are available in 24V DC or 120V AC. The polycarbonate double fresnel lens is designed to magnify the superbright LED inside, while maintaining a high level of scratch and impact resistance.
The 51XBR cast base can be used as a junction box and allows for surface mounting, mounting on ½" NPT conduit or mounting on a 4" (102mm) octagonal box. A hardware kit is included for direct surface mounting applications. For outdoor applications, the unit must be mounted vertically with the lens facing up.
The 51XBR dual purpose beacon is designed to alert personnel in industrial, commercial, and process settings when an operation is starting or stopping or potentially malfunctioning.
51XBR Features
- 85 dB at 10 feet cULus listed
- Five lens colors 24V DC or 120V AC
-
Audible and flashing visual signal Operating temperature -31°F to 150°F (-35°C to 66°C)
51XBR XTRA-BRITE™ LED Beacon with Horn
| Operating | Lens | Median LED | Replacement | |||||
|---|---|---|---|---|---|---|---|---|
| Description |
Cat. No.
Voltage |
Current | Color | Life (L70)** | Lens | Horn | Flasher | |
| Combination flashing LEDs with horns | 51XBRFA120A | 120V AC, 50/60 Hz | 0.175A | Amber | 148,000 hours | 92-LA | 123A-N5 | P-041917-0026 |
| 51XBRFB120A | 120V AC, 50/60 Hz | 0.175A | Blue | 148,000 hours | 92-LB | 123A-N5 | P-041917-0026 | |
| 51XBRFG120A | 120V AC, 50/60 Hz | 0.175A | Green | 148,000 hours | 92-LG | 123A-N5 | P-041917-0026 | |
| 51XBRFR120A | 120V AC, 50/60 Hz | 0.175A | Red | 148,000 hours | 92-LR | 123A-N5 | P-041917-0026 | |
| 51XBRFW120A | 120V AC, 50/60 Hz | 0.175A | White | 148,000 hours | 92-LW | 123A-N5 | P-041917-0026 | |
| 51XBRFA24D | 24V DC | 0.275A | Amber | 148,000 hours | 92-LA | 118-G1 | P-041917-0028 | |
| 51XBRFB24D | 24V DC | 0.275A | Blue | 148,000 hours | 92-LB | 118-G1 | P-041917-0028 | |
| 51XBRFG24D | 24V DC | 0.275A | Green | 148,000 hours | 92-LG | 118-G1 | P-041917-0028 | |
| 51XBRFR24D | 24V DC | 0.275A | Red | 148,000 hours | 92-LR | 118-G1 | P-041917-0028 | |
| 51XBRFW24D | 24V DC | 0.275A | White | 148,000 hours | 92-LW | 118-G1 | P-041917-0028 | |
** Based on LED manufacturer's projections. Refer to http://www.philipslumileds.com/pdfs/WP15.pdf.
| Signal Input Load | |
|---|---|
| Characteristics |
| Cat. No. |
Operating
Voltage |
Max. Off State Leakage
Current (mA) |
Continuous On
Current (mA) |
Surge
(inrush / duration) |
|---|---|---|---|---|
| 51XBRF*120A | 120V AC 50/60 Hz | 10 | 175 | 50 A / 260 µs |
| 51XBRF*24D | 24V DC | 10 | 275 | 10 A / 120 µs |
* Letter in this position designates lens color: A - amber, B - blue, G - green, R - red, or W - white

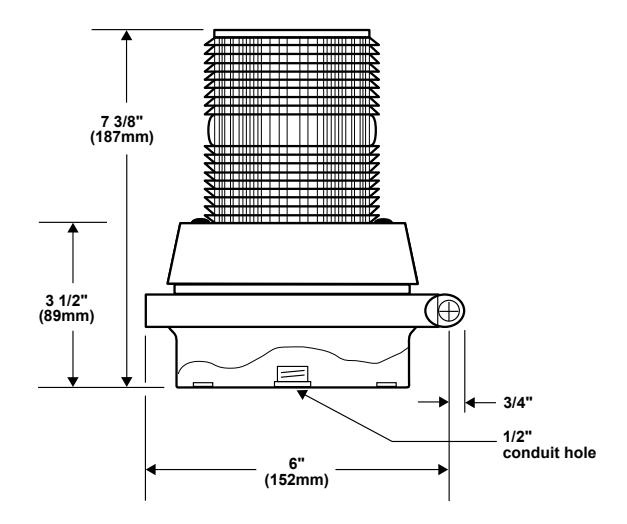

Dimensional Drawing
