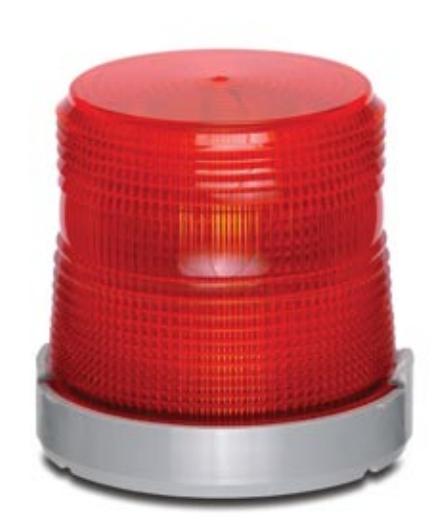

The 48XBRM Series LED Visual Indicator is a UL and cUL listed dual-mode signaling device housed in a corrosion resistant Type 4X enclosure. The 48XBRM Series XBR (XTRA-BRITE™) is suitable for indoor or outdoor installations, and can be panel or conduit mounted. The base is manufactured from a polycarbonate/ABS blend, and the lens is made of shatter resistant polycarbonate. The 48XBRM Series LED is available in AC and DC models with a gray base, and an amber, blue, green, red or white lens.
The 48XBRM Series XTRA-BRITE™ LED beacons are well suited for areas with high ambient noise levels, especially where ear protection must be worn. These LED beacons are also ideal for high-vibration applications and areas where long lamp life is a must. 48XBRM LED beacons are "dual-mode" devices that ship from the factory in steady-on mode and can be readily transformed by changing the dipswitch setting to 65 FPM "flashing" mode.
Designed for indoor or outdoor installation. May be direct or 1/2" conduit mounted. For weatherproof installation, units must be mounted vertically with the lens facing up. Use Cat. No. GSK-KIT gasket kit for weatherproof surface installation of AC models. May be corner mounted using the Cat. No. CBR, corner mount bracket, or wall mounted using the Cat. No. WBR, wall mount bracket.
48XBRM Series LED Features
- Rated for use in indoor and outdoor applications Snap-on high impact polycarbonate/ABS base
- Dual-mode beacons: Steady-On or Flashing LED
- Available in 24V DC or 120V AC Shatter resistant polycarbonate lens
- Available with gray base Available with amber, blue, green, red or clear lens
- Option for panel or conduit mounting -31°F to 150°F (-35° to 66°C) operating temperature
| 48XBRM Series | |||||||
|---|---|---|---|---|---|---|---|
| Description | Cat. No. | Base | LED Colors |
Projected LED
Life (L70)** |
Operating Voltage | Current | Replacement Lens |
|
LED Dual-Status Beacon
in NEMA 4X Enclosure |
48XBRM*24D | Gray |
Red, Green, Amber,
Blue, White |
148,000 hours | 24 VDC | 0.215 A | 96-L* |
| 48XBRM*120A | Gray |
Red, Green, Amber,
Blue, White |
148,000 hours | 120 VAC 50/60 Hz | 0.108 A | 96-L* |
* Letter in this position designates lens color: A - amber, B - blue, G - green, R - red, or W - white
PLC Output to Meet Input Parameter Specifications
| Cat. No. |
Operating
Voltage |
Max. Off State Leakage
Current (mA) |
Continuous On
Current (mA) |
Surge
(inrush / duration) |
|---|---|---|---|---|
| 48XBRM*24D | 24 VDC | 5 | 215 | 37.5 A / 164 µseconds |
| 48XBRM*120A | 120 VAC 60 Hz | 5 | 108 | 37.5 A / 164 µseconds |

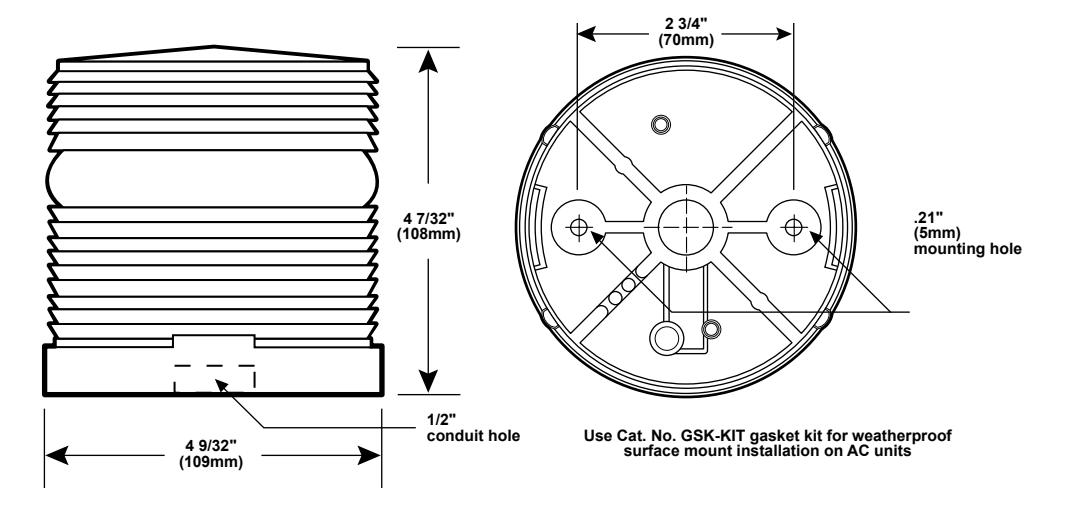

Dimensional Drawing
Agency Approvals
** LED Manufacturer's Median Projected LED Life for LUXEON Rebel LEDs (L70 at 85ºC and Tjunction 98ºC). Actual LED life will vary inversely with ambient temperature, voltage, driver current, junction temperature and duty-cycle at which the signaling device is operated. Please refer to http://www.philipslumileds.com/pdfs/WP15.pdf.
