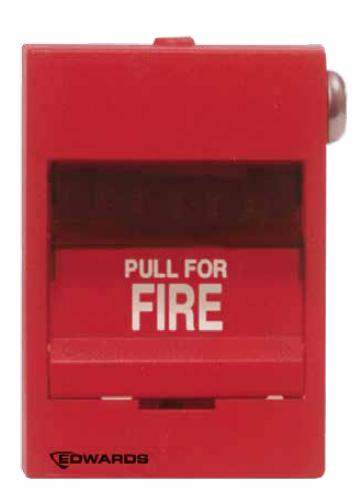

The Edwards 276B/277B series non-coded, single-action fire alarm stations are UL listed, contemporary-styled Lexan stations. The 276B series feature terminals for field wiring connections, and the 277B series use 6" (150mm) wire leads for field wiring connections.

All types are available with single pole alarm contacts that can be normally open, normally closed or a combination of both. Either a key or tool (depending on station selected) is required to reset mechanism. Where a manual station is installed on a circuit that also includes smoke detectors, a resistor can be added in series with the alarm initiating contacts on the station so the operation of the station does not extinguish alarm LEDs on operated detectors.The 276-R resistor kits permit field installation of the series resistor on applicable stations.

For semi flush mounting, use a standard North-American 4 inch square box with single gang plaster cover having an overall minimum depth of 2-1/4 inches (57mm). For surface mounting use a 276B-RSB surface back box.

Features and Specifications

• Single action models
• Single pole contacts
• Terminals or wire leads for field connections
• Key lock or tool reset
• Break glass operation
• Surface or semi flush mounting
• Red finish
• Contemporary styling
• Rugged Lexan construction
• Latch action until reset
• Operating temperature range: 32°F to 120°F (0°C to 49°C)

Ordering Information

		Contact Ratings
Description	Cat. No.	Voltage	Amps	Field Connections	Switch Contacts	Station Reset
Single-Action Pull Station	276B-11101	30V AC	3.0	Screw Terminals	Single-pole Alarm, Open Circuit	Tool Operated
		28V DC	1.0
	276B-11201	30V AC	3.0	Screw Terminals	Single-pole Alarm, Open Circuit	Key Operated
		28V DC	1.0
	277B-1110	30V AC	3.0	6" Wire Leads	Single-pole Alarm, Open Circuit	Tool Operated
		28V DC	1.0

¹ Suitable for optional resister kit, 276-R.

Accessories
Description	Cat. No.
Optional Resistor Kit	276-R2
Replacement Glass Rods	276-GLR
Station Reset Key (supplied with all Key Reset Stations)	276-K1
Surface Back Box, Red	276B-RSB

² For use in stations connected to smoke detector circuits. 560 Ohms, +/-5%; 2W.

Conventional Fire Alarms Pull Stations 270 Series

Weights and Dimensions

Cat. No.	Approx. Shipping Weight (lb.)
276B-1110	1.0
276B-1120	1.0
277B-1110	1.0

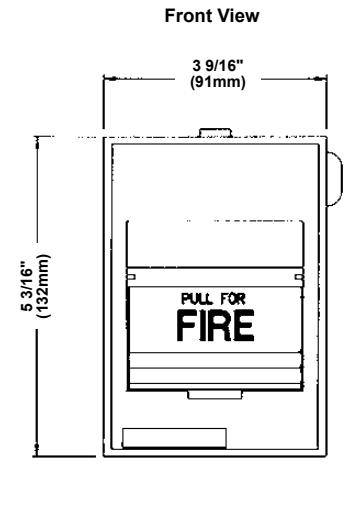

Cat. No's. 276B and 277B Series

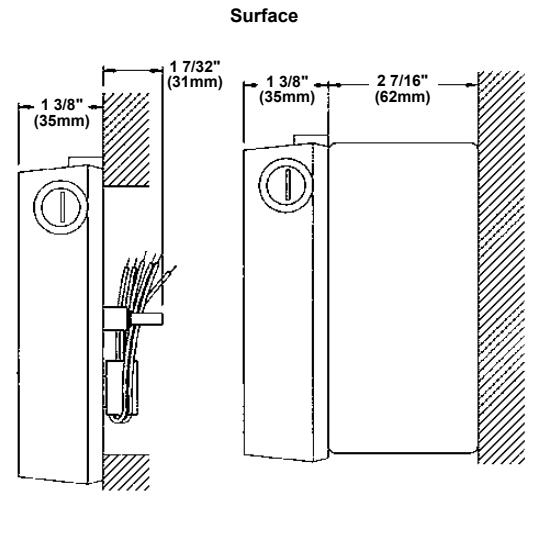

Semi-Flush

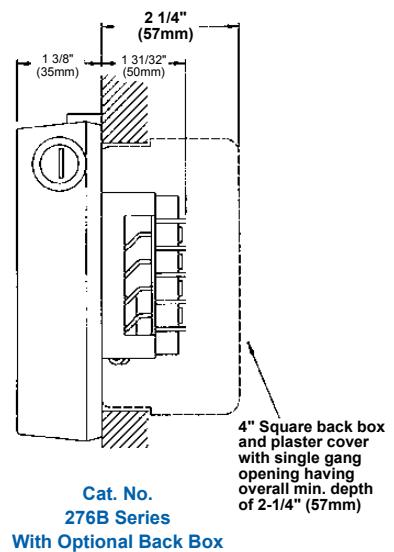

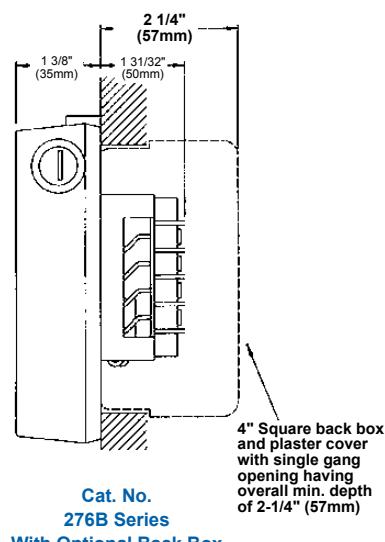

Cat. No. Cat. No's. 277B Series 276B & 277B Series Without Back Box With 276B-RSB Back Box

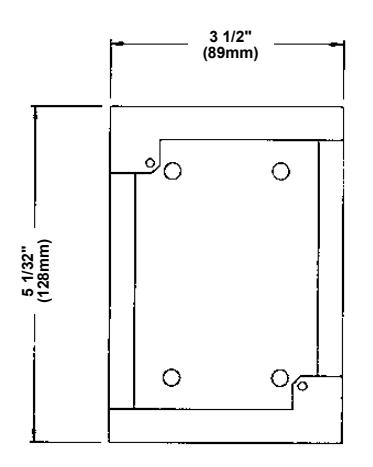

Cat. No. 276B-RSB
