Description

The 2300 Series is designed for use with sectional/panel overhead doors that use metal roller tracks. The contact fits roller tracks up to 3 inches wide.

Selecting a Location

Use the following guidelines to select a location for the contact:

• Mount the switch high enough so the cable is off the floor. If other track-mounted devices interfere, mount the switch under them.
• Locate the magnet away from handles and latches to prevent it from being used as a foothold or a handle to close the door.

Installing the Contact

• 1. Run the security system wiring to the switch location.
• 2. Place the switch over the door track. See Figure 1.
• 3. Slide the beveled edge of the L-bracket into the slot of the switch until it snaps firmly in place. Tighten the screw on the switch down firmly.

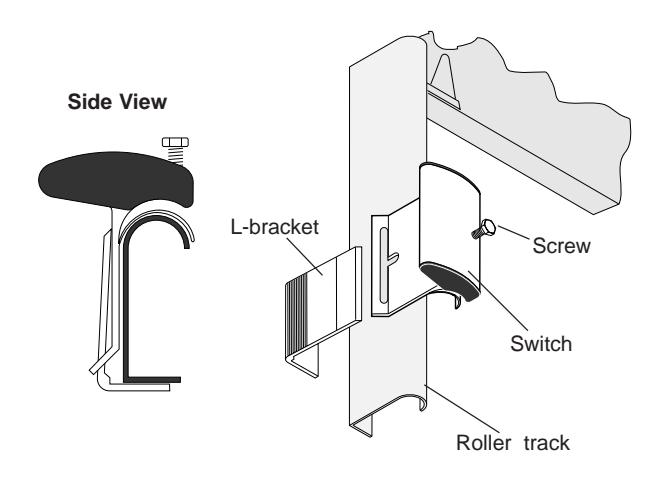

Figure 1 - Mounting the Switch

• 4. Align the magnet with the switch and attach it to the door with the two screws provided as follows:
• The magnet must be 1/4 to 1/2 inch away from the switch. See Figure 3.
• The magnet can be attached at two different elevations from the door. See Figure 3.

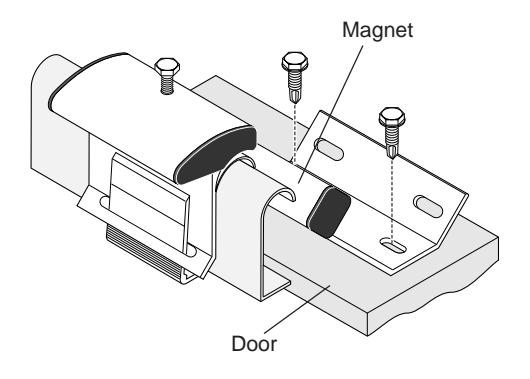

Figure 2 - Attaching Magnet to Door

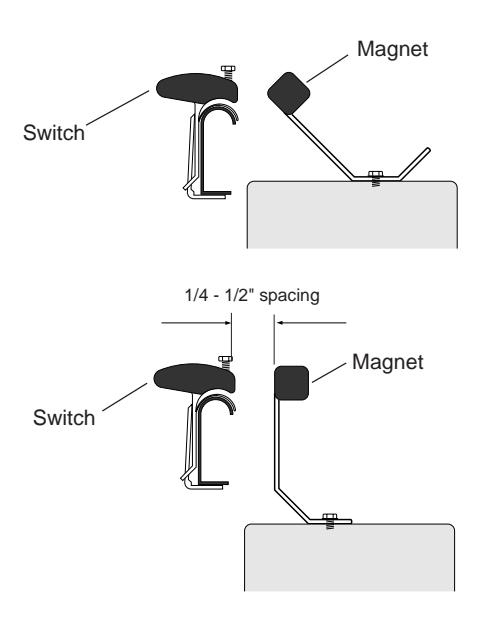

Figure 3 - Magnet Mounting Options

5. Connect the switch wires to the security system wiring and verify the switch works properly.

Specifications

Gap (make) distance ±20%3" (7.5 cm) max.
Break distanceapprox. 1.1 to 1.5 times make distance
Lead type2' (0.61 m) stainless steel armored cable
Magnet/switch housingextruded aluminum
Operating temperature40° to 150°F (-40° to 65°C)
Switch dimensions
Length3.25" (8.26 cm)
Depth 3.75" (9.53 cm)
Width2.73" (6.93 cm)
Magnet dimensions
Length3.51" (8.92 cm)
Depth1.70" (4.32 cm)
Width3.10" (7.87 cm)
ListingUL 634 pending

Electrical Specifications/Ordering

Model Number	Electrical Configuration	Loop Type	Voltage	Current	Power
2 325A	N O	d C lose	1 00 VAC/DC max	0 .5A max	7.5 W max
2 327A	S PD T	O pen or Close d	3 0 VAC/DC max	0 .25A max	3 W max
