200 CLASS 70mm PIEZO ELECTRIC and MAGNETODYNAMIC ACOUSTIC

INSTALLATION AND INSTRUCTION SHEET - NOTICE D'INSTALLATION - HOJA DE INSTALACIÓN

TECHNICAL CHARACTERISTIC – CARACTERISTIQUES TECHNIQUES – CARACTERÍSTICAS TÉCNICAS
	270 PZO		270 MDA
Power supply voltage Tension d'alimentation Voltaje de alimetación		12 - 24 - 48V AC/DC 120 - 240V AC		12/24V AC/DC 120V AC 240V AC
Sound frequency Fréquence du son Frecuencia del sonido		2800 Hz (± 100 Hz)		See table on the back page Voir tableau au verso Ver tabla trasera
Temperature ratings Température de fonctionnement Temperatura funcionamiento	12÷48V AC/DC 120, 240V AC/DC	60°C / 140°F 56°C / 132.8°F	12/24V AC/DC 120, 240V AC	60°C / 140°F 50°C / 122°F
IP Rating Degré de protection Grado de protección		IP 54

270 PZO
VDC			24	48
VAC	12				120		240
Power Consumption Consommation Absorpción	3 mA		6 mA	13 mA	4 mA		10 mA
dB(A) max	72 - 79		77 - 85	79 - 89	75 - 81		78 - 87

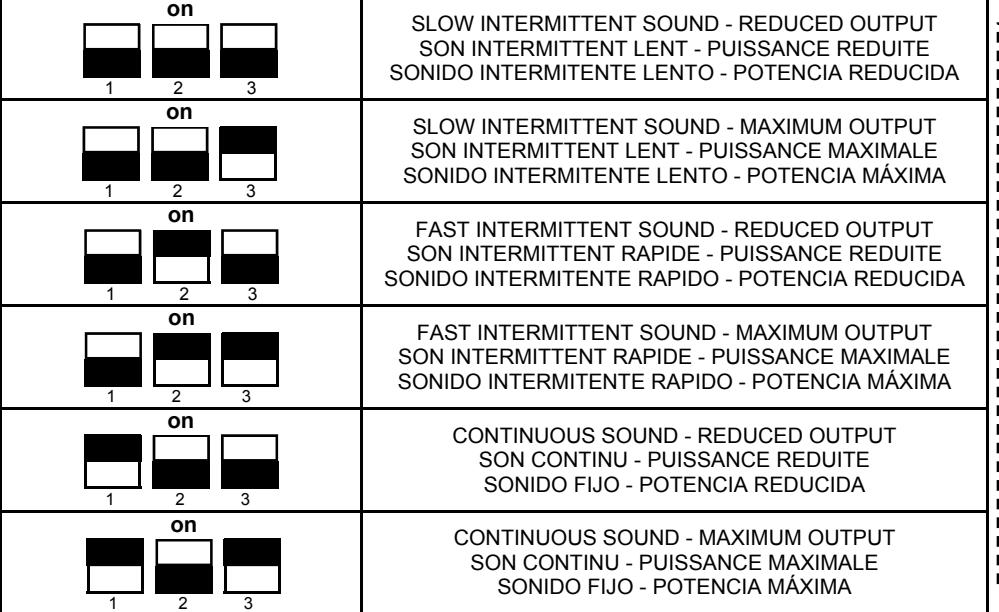

on 1 2	SLOW INTERMITTENT SOUND - REDUCED OUTPUT SON INTERMITTENT LENT - PUISSANCE REDUITE SONIDO INTERMITENTE LENTO - POTENCIA REDUCIDA 3		EXAMPLE OF SOUND SETTING
on					EXEMPLE DE PROGRAMMATION DU SON

FAST INTERMITTENT SOUND - REDUCED OUTPUT SON INTERMITTENT RAPIDE - PUISSANCE REDUITE EJEMPLO DE PROGRAMACIÓN SONIDO

SONIDO INTERMITENTE RAPIDO - POTENCIA REDUCIDA

270 MDA

VDC		12	24
VAC				120	240
Power Consumption Consommation Absorpción	VAC VDC	0.12 - 0.95 A 30 - 335 mA	0.17 - 1.06 A 45 - 450 mA	40 - 105 mA	25 - 60 mA
dB(A) max		86.5 - 103.5	91 - 107	93 - 103	93 - 103.5

NOTICE: TRIMMER A - Adjustment of the maximum sound level (volume)

TRIMMER B - Adjustment of the time progressively reaching the maximum sound level set by trimmer A

ATTENTION: TRIMMER A - Réglage du niveau acoustique (volume) maximum

TRIMMER B - Réglage du temps de la progression pour atteindre la valeur maximale fixée par le trimmer A

ATENCIÓN: TRIMMER A - Regolación presión acústica (volumen) máximo

TRIMMER B - Regolación del tiempo de la progresión para alcanzar el nivel máximo establecido con el trimmer A

on 1 2 3 4 5	Linear 1000Hz Linéaire 1000Hz Lineal 1000Hz	on 1 2 3 4 5	Intermittent 970Hz Intermittent 970Hz Intermitente 970Hz
on 1 2 3 4 5	Bi-tone 600/700Hz Bitonal 600/700Hz Bitonal 600/700Hz	on 1 2 3 4 5	Intermittent 660Hz Intermittent 660Hz Intermitente 660Hz
on 1 2 3 4 5	Multi-tone 1000-1700Hz Multitonal 1000-1700Hz Pluritonal 1000-1700Hz	on 1 2 3 4 5	Slow intermittent 660Hz Intermittent lent 660Hz Intermitente lento 660Hz
on 1 2 3 4 5	Modulated 1000-1700Hz Modulé 1000-1700Hz Modulado 1000-1700Hz	on 1 2 3 4 5	Linear 500Hz Linéaire 500Hz Lineal 500Hz
on 1 2 3 4 5	Evacuation 440/560Hz Evacuation 440/560Hz Evacuación 440/560Hz	on 1 2 3 4 5	Bi-tone 440/554Hz Bitonal 440/554Hz Bitonal 440/554Hz
on 1 2 3 4 5	Fast Bi-tone 800/970Hz Bitonal rapide 800/970Hz Bitonal rápido 800/970 Hz	on 1 2 3 4 5	Intermittent 660Hz Intermittent 660Hz Intermitente 660Hz
on 1 2 3 4 5	Fast multi-tone 800-970Hz Multitonal rapide 800-970Hz Pluritonal rápido 800-970Hz	on 1 2 3 4 5	Fast Intermittent 2850Hz Intermittent rapide 2850Hz Intermitente rápido 2850Hz
on 1 2 3 4 5	Slow multi-tone 800-970Hz Multitonal lent 800-970Hz Pluritonal lento 800-970Hz	on 1 2 3 4 5	Multi-tone (buzzer) 800-970Hz Multitonal (buzzer) 800-970Hz Pluritonal (zumbador) 800-970Hz
on 1 2 3 4 5	Linear 2850Hz Linéaire 2850Hz Lineal 2850Hz	on 1 2 3 4 5	Multi-tone (buzzer) 2400-2850Hz Multitonal (buzzer) 2400-2850Hz Pluritonal(zumbador) 2400-2850Hz
on 1 2 3 4 5	Fast Multi-tone 2400-2850Hz Multitonal rapide 2400-2850Hz Pluritonal rápido 2400-2850Hz	on 1 2 3 4 5	Fast Intermittent 2850Hz Intermittent rapide 2850Hz Intermitente rápido 2850Hz
on 1 2 3 4 5	Slow multi-tone 2400-2850Hz Multitonal lent 2400-2850Hz Pluritonal lento 2400-2850Hz	on 1 2 3 4 5	Linear 300Hz Linéaire 300Hz Lineal 300Hz
on 1 2 3 4 5	Intermittent Multi-tone 500-1200Hz Multitonal intermittent 500-1200Hz Pluritonal intermitente 500-1200Hz	on 1 2 3 4 5	Bi-tone with pause 600/700Hz Bitonal avec pause 600/700Hz Bitonal pausado 600/700Hz
on 1 2 3 4 5	Descending Multi-tone 1200-500Hz Multitonal descendant 1200-500Hz Pluritonal descendiente 1200-500Hz	on 1 2 3 4 5	Bi-tone with pause 1200/1700Hz Bitonal avec pause 1200/1700Hz Bitonal pausado 1200/1700Hz
on 1 2 3 4 5	Bi-tone 2400/2850Hz Bitonal 2400/2850Hz Bitonal 2400/2850Hz	on 1 2 3 4 5	Bi-tone with pause 2400/2850Hz Bitonal avec pause 2400/2850Hz Bitonal pausado 2400/2850Hz
on 1 2 3 4 5	Slow intermittent 970Hz Intermittent lent 970Hz Intermitente lento 970Hz	on 1 2 3 4 5	Bi-tone 600/700Hz Bitonal 600/700Hz Bitonal 600/700Hz
on 1 2 3 4 5	Bi-tone 800/970Hz Bitonal 800/970Hz Bitonal 800/970Hz	on 1 2 3 4 5	Modulated 1400-1600Hz Modulé 1400-1600Hz Modulado 1400-1600Hz

Installation must be carried out by qualified personnel - L'installation doit être effectuée par du personnel qualifié - Personal calificado debe realizar la instalación

TYPE 1 ENCLOSURE

Edwards Signaling: Edwards, A division of UTC Fire & Security Americas Corporation, Inc. 8985 Town Center Parkway, Bradenton, FL

34202, USA

REGULATORY INFORMATION - REINSEGNEMENTS RÉGLEMENTAIRES - INFORMACIÓN ADMINISTRATIVA :
