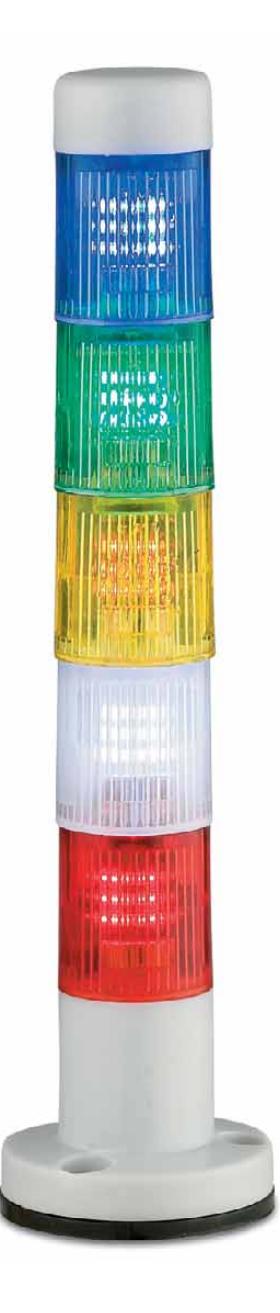

200 Class 18mm Stacklight™

The 200 Class 18mm Stacklight™ is a versatile signaling device that may contain up to five light modules in a single, integrated stack. The lens modules are available with an LED light source, and in red, amber, green, blue, yellow and white. The 18mm is available as a Steady Burn LED device. The lenses are made from a self-extinguishing polycarbonate material and are scratch and impact resistant. There is no sound module available on the 18mm Stacklight™.

The 200 Class 18mm Stacklight™ features an interlocking system for quick assembly without any tools. It is available in industrial gray or basic black and provides solutions for most industrial applications while also meeting machine builder and OEM requirements.

200 Class 18mm Stacklight™ Features

• Steady Burn
• cULus Listed Available in Industrial Gray or Basic Black
• CE approved Stackable in any combination up to five total modules
• IP54 Quick and simple assembly with NO tools required
• Six lens colors Available in 24VAC/DC
• LED light source Operating Temperature -22°F to 122°F (-30°C to 50°C)

200 Class 18mm Stacklight™

Description	Cat. No.*
Base and Cover - Gray	218BC
Module Type	Cat. No.*	LED Color	Operating Voltage**	Current
200 Class 18mm Modules - Gray	218LEDSB24AD	Blue	24V AC/DC	0.015A
	218LEDSA24AD	Amber	24V AC/DC	0.015A
	218LEDSR24AD	Red	24V AC/DC	0.015A
	218LEDSG24AD	Green	24V AC/DC	0.015A
	218LEDSY24AD	Yellow	24V AC/DC	0.015A
	218LEDSW24AD	White	24V AC/DC	0.015A

^* NOTE: Add "B" to end of the catalog number for Basic Black unit.

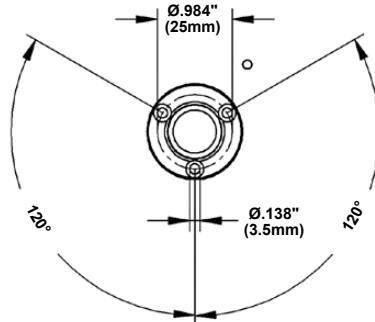

Dimensional Drawings

LED Module Base and Cover

Agency Approvals

^** AC voltage frequency is 50/60 Hz
