Edwards Signaling 116 Mounting Configuration Technical Tips

Tech Tips: 116 Series Mounting

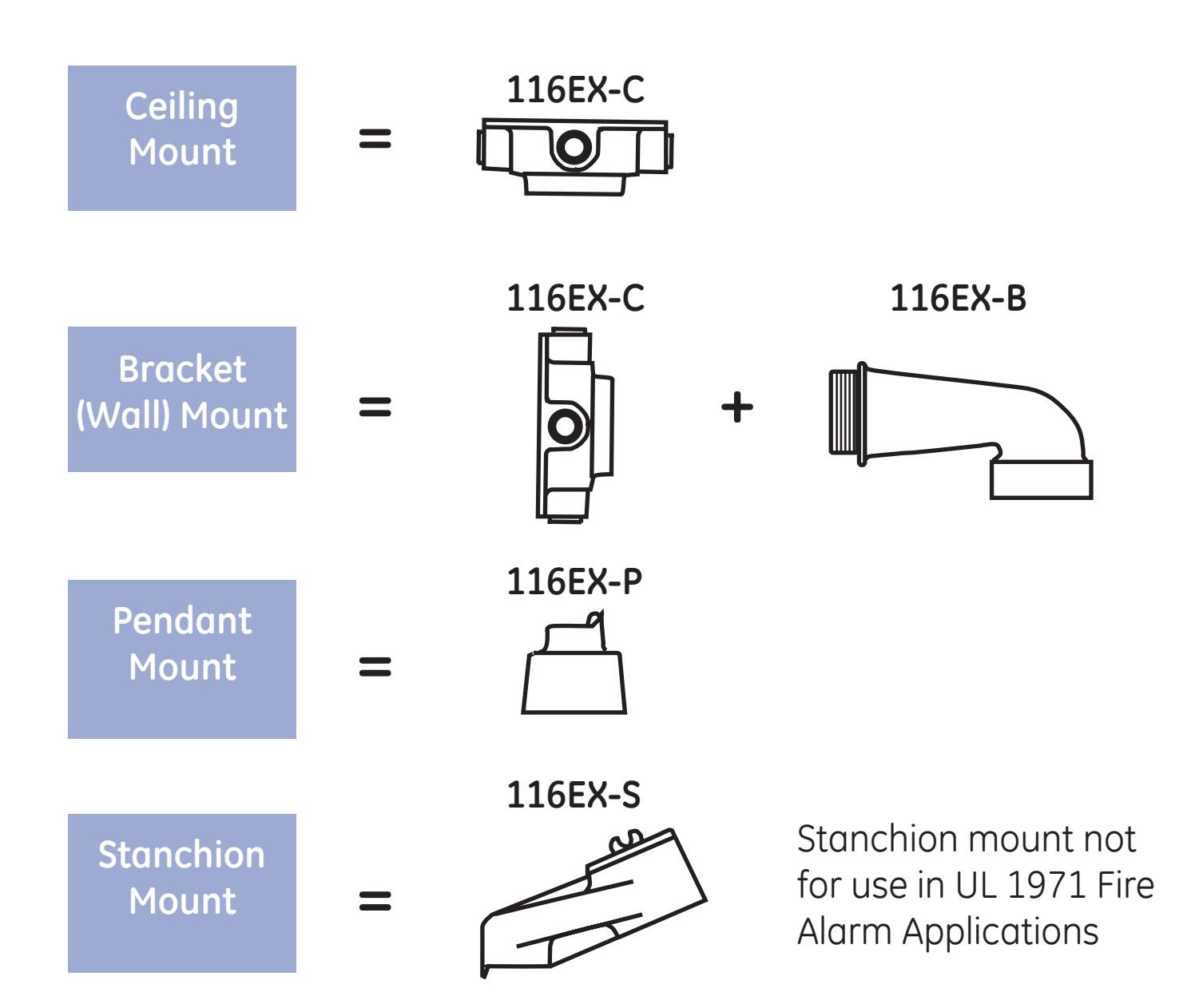

The 116 series requires the mounting option to be ordered separately. Below pictorial shows the components to order to complete the desired 116 assembly mounting.

Note specifically the bracket, or wall mount, consists of two components (shown below): 116EX-C and 116EX-B.
