116 Class Genesis Mass Notification Strobe Explosionproof

Edwards 116 Class Genesis mass notification strobes are designed for use in Class 1, Division 1 and 2 explosionproof and hazardous location (non fire alarm) applications where electrical supervision is required. The units feature two lenses, an outer clear globe, and an inner colored lens available in amber, red, green, blue or magenta.

This diode-polarized unit is UL 1638 and cUL listed for outdoor use as a NEMA Type 3R and 4X enclosure. The strobe has been evaluated to UL 1971 polar plot requirements with on axis light output values.

The 116 Class features an enhanced synchronization circuit to comply with the latest requirements of UL 1971, signaling devices for the hearing impaired, and the Canadian standard CAN/ULC S526. Synchronized operation requires a separately installed synchronization control module, compatible Edwards control panel or booster power supply. See table on page 2 for a list of compatible synchronization modules.

Mounting options are available (ordered separately) for wall, ceiling and pendant mounts. The unit is supplied with a guard installed over the clear outer globe for additional protection against impact.

116 Class Genesis Features

• Green, Blue, or Magenta synchronization module
• Three mounting options: wall, ceiling, or pendant Available in 16-33V DC/FWR
• Negligible in-rush current UL 1638 and cUL Listed
• Clear globe with dome guard Can be synchronized when connected to a compatible • Five inner lens colors available: Amber, Red, Edwards control panel, booster power supply or
  • NEMA Type 3R and 4X enclosures

116 Class Genesis Description Cat. No. Operating Voltage Current Lens Colors Flash Rate Light Output UL 1971 Replacement Dome Guard Explosionproof Mass Notification Strobe 116DEGEXA-FJ 16-33V DC/FWR 0.505A, DC, RMS 0.683A, FWR, RMS Amber 65 fpm 36 cd 116-Globe 116-GRD 116DEGEXB-FJ 16-33V DC/FWR 0.505A, DC, RMS 0.683A, FWR, RMS Blue 65 fpm 14 cd 116-Globe 116-GRD 116DEGEXG-FJ 16-33V DC/FWR 0.505A, DC, RMS 0.683A, FWR, RMS Green 65 fpm 19 cd 116-Globe 116-GRD 116DEGEXM-FJ 16-33V DC/FWR 0.505A, DC, RMS 0.683A, FWR, RMS Magenta 65 fpm 9 cd 116-Globe 116-GRD 116DEGEXR-FJ 16-33V DC/FWR 0.505A, DC, RMS 0.683A, FWR, RMS Red 65 fpm 6 cd 116-Globe 116-GRD

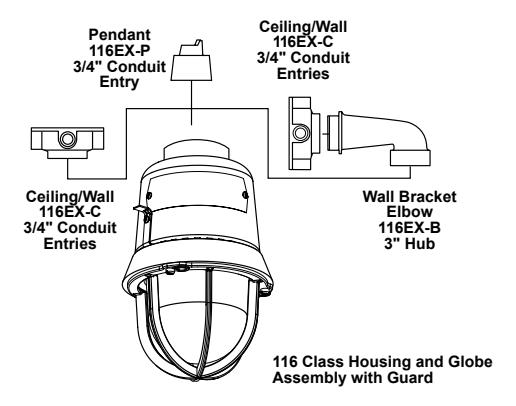

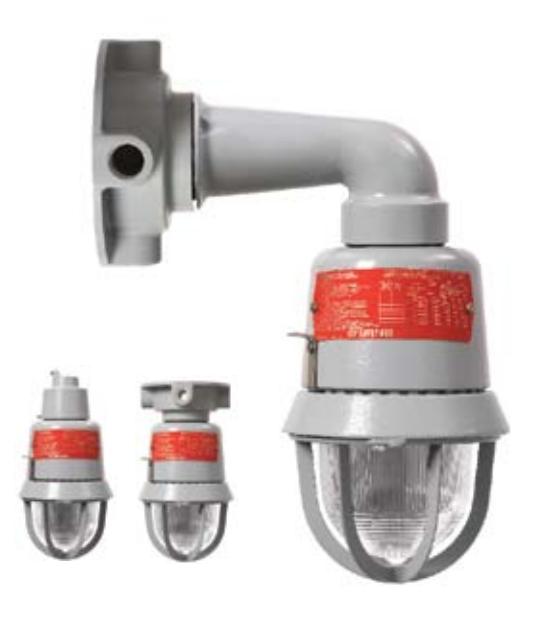

Accessories
Description	Cat. No.	Conduit Size
Wall Bracket Mounting Elbow	116EX-B*	N/A
Ceiling/Wall Mounting Module	116EX-C	3/4" NPT
Pendant Mounting Module	116EX-P	3/4" NPT

^* Note: Wall mount requires both 116EX-B and 116EX-C.

Hazardous

Compatible Synchronization Modules
Description	Cat. No.
Auto-sync Output Module	SIGA-CC1S
	SIGA-CC1S-LG
	SIGA-MCC1S
	SIGA-MCC1S-LG
Genesis Signal Master - Remote Mount	ADTG1M-RM
	EG1M-RM
	G1M-RM
	G1M-RM-LG
	MG1M-RM
	XLSG1M-RM
	ZG1M-RM

Location Ratings 116 Class Genesis Operating Temperature Ambient Temp. Supply Wire Temp. Marking Class I, Div. 2 Groups A, B Class I, Div. 1 & 2 Groups C, D Class II & III, Div. 1 Groups E, F, G Class II & III, Div. 2 Groups F, G 40°C 75°C T2B (260°C) T6 (85°C) T4A (120°C) T4A (120°C) 55°C 90°C T2B (260°C) T6 (85°C) T4 (135°C) T4 (135°C) 65°C 105°C T2B (260°C) T6 (85°C) T3C (160°C) T3C (160°C)

NOTE: 116EX-C must be used when application requires 116EX-B

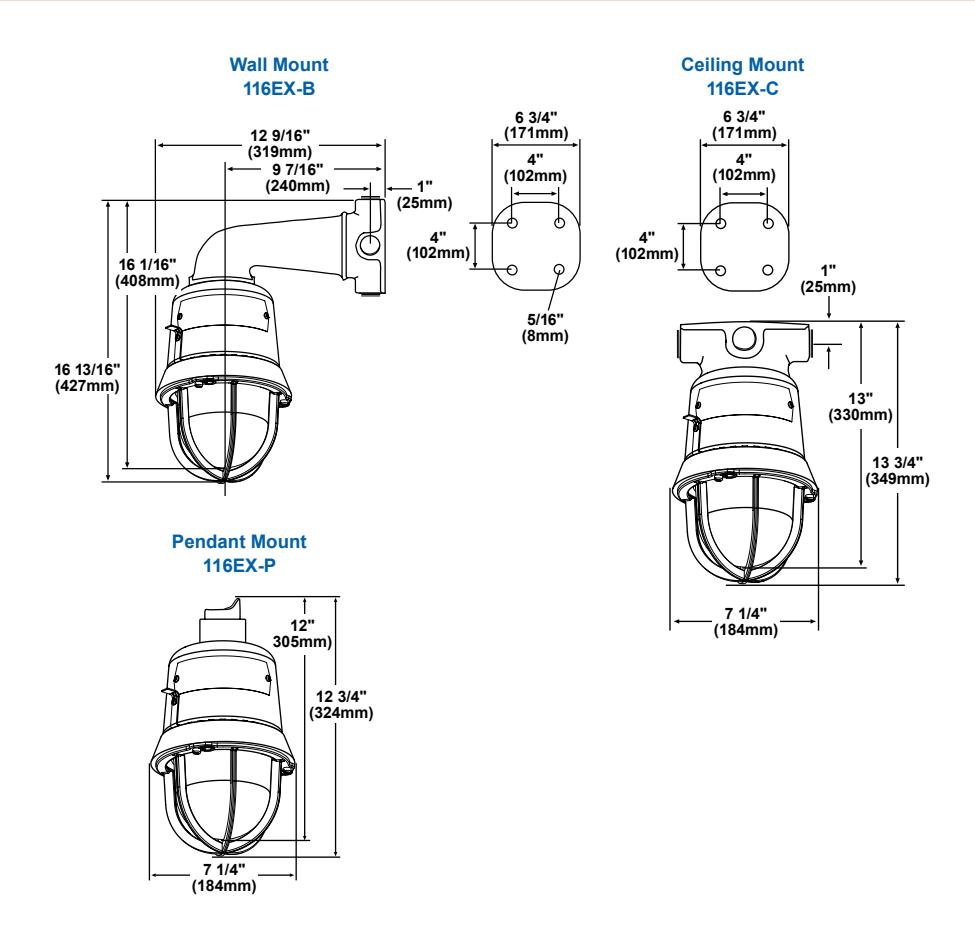

Dimensional Drawings
