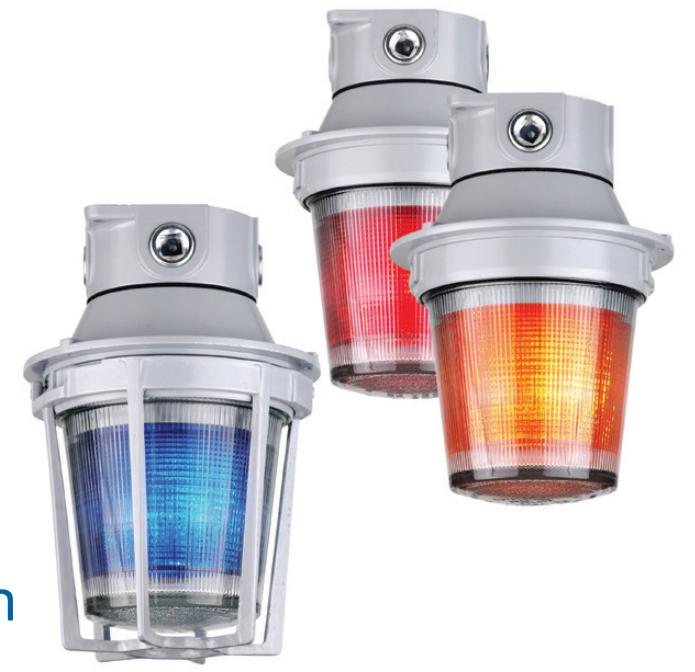

The 107XBR hazardous location XTRA-BRITE™ LED visual signals are NEMA Type 3R and Type 4 heavy-duty visual signals designed for indoor or outdoor applications. The units are available in 24V DC or 120V AC and are field configurable for steady-on or flashing (65 fpm). The inner, double fresnel lens is made of a high grade polycarbonate and is designed to magnify the super-bright LEDs inside. A clear, outer, impact-resistant glass globe also covers the lens and an optional dome guard fits over the glass dome to protect it against accidental impacts with machinery or falling objects.
The 107XBR has three different mounting configurations including the pendant mount, bracket mount and ceiling mount and can be mounted on ¾" NPT threaded conduit.
The 107XBR is designed for applications such as petroleum refineries, utility gas plants, dry cleaning plants, fuel servicing areas and other similar applications.
Features
- Available in 24V DC or 120V AC
- Five Lens Colors
- Steady-on or flashing in every unit
- ¾" NPT threaded conduit
- High level of immunity to shock and vibration
- Three mounting options: pendant, bracket or ceiling
- Bracket and Ceiling Mount: Class I, Div 2, Groups A, B, C, and D; Class II, Div 2, Groups F and G, Class III
- Pendant Mount: Class I, Div 2, Groups A, B, C, and D; Class II, Div 2, Groups F and G, Class III, Class II, Div 1, Groups E, F and G
- All 107XBR units are Marine Rated (Marine rating applies to UL listing only)
107XBR XTRA-BRITE™ LED
| Description | Cat. No. |
Operating
Voltage |
Current |
Mounting
Method |
LED Colors |
Median LED
Life (L70) † |
Flash
Rate |
|---|---|---|---|---|---|---|---|
|
Hazardous Location
LED Beacon |
107XBRPM*120A |
120V AC
60 Hz |
115 mA | Pendant |
Amber, Blue,
Green, Red, White |
148,000
hours |
65 fpm** |
| 107XBRBM*120A |
120V AC
60 Hz |
115 mA | Bracket |
Amber, Blue,
Green, Red, White |
148,000
hours |
65 fpm** | |
| 107XBRCM*120A |
120V AC
60 Hz |
115 mA | Ceiling |
Amber, Blue,
Green, Red, White |
148,000
hours |
65 fpm** | |
| 107XBRPM*24D | 24V DC | 220 mA | Pendant |
Amber, Blue,
Green, Red, White |
148,000
hours |
65 fpm** | |
| 107XBRBM*24D | 24V DC | 220 mA | Bracket |
Amber, Blue,
Green, Red, White |
148,000
hours |
65 fpm** | |
| 107XBRCM*24D | 24V DC | 220 mA | Ceiling |
Amber, Blue,
Green, Red, White |
148,000
hours |
65 fpm** |
* Letter in this position designates lens color: A - amber, B - blue, G - green, R - red, or W - white **Only if activated by third yellow wire
† Based on LED manufacturer's projections. Refer to http://www.philipslumileds.com/pdfs/WP15.pdf
| Haz-Loc Approvals | ||||||||
|---|---|---|---|---|---|---|---|---|
| Operating Temperature | ||||||||
| Pendant, Bracket and Ceiling Mount | Pendant Mount Only | |||||||
| 107XBR | Ambient Temp. |
Class I, Div. 2,
Groups A, B, C and D |
Class II, Div. 1,
Groups E, F, G |
Class II, Div. 2,
Groups F, G |
Class III,
Div. 1 & 2 |
|||
| 40°C | 135°C (T4) | 85°C (T6) | 85°C (T6) | 85°C (T6) | ||||
| 55°C | 135°C (T4) | 85°C (T6) | 85°C (T6) | 85°C (T6) | ||||
| 65°C | 135°C (T4) | 85°C (T6) | 85°C (T6) | 85°C (T6) | ||||
Note: Class II and Class III only apply to Pendant Mount with clear globes

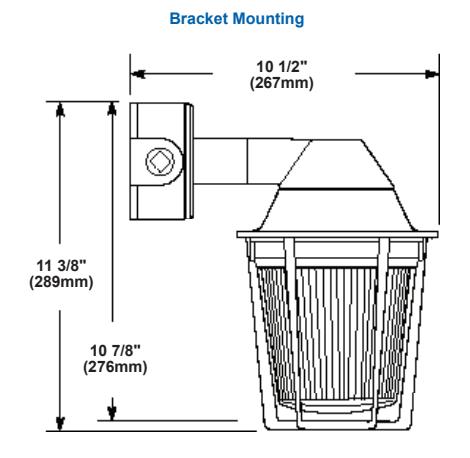

Dimensional Drawing
Pendant Mounting
9 7/8" (251mm) 10 1/4" (260mm) 7" (172mm)

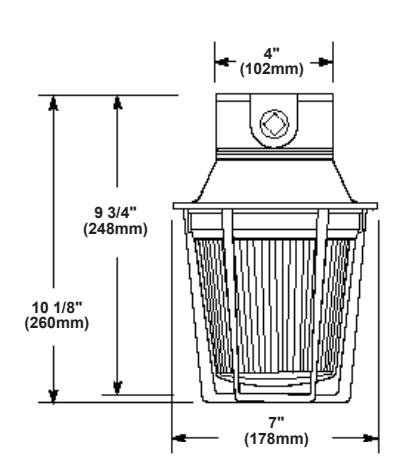

Ceiling Mounting
