Edwards Signaling 105DHISTC Series Catalog Page

Conventional and Addressable Accessories Hazardous Location Signals 105 Series

Edwards 105 Series Xenon strobe beacons are heavy-duty visual signals suitable for use in indoor and outdoor applications where a corrosion resistant Type 4X enclosure is required. Base material is gray, manufactured from glassreinforced thermoplastic polyester resin and features brass hardware. The double fresnel lens is made of shatter-resistant polycarbonate.

The 105DHISTC-FJ high intensity strobe is designed for use in compatible fire alarm system and other applications requiring electrical supervision of signaling circuit field wiring.

Features and Specifications

• • Xenon strobe light source
• • Shatter-resistant double fresnel polycarbonate lens
• • Gray base with brass hardware
• • Flash rate 65 fpm
• • Suitable for indoor, outdoor and marine applications
• • For outdoor applications, lens should face up
• • Option for panel, conduit or wall mounting
• • NEMA Type 4X enclosure
• • Class I, Div 2, Groups A, B, C and D; Class II, Div 2, Groups F and G; Class III

Ordering Information

Description	Cat. No.	Operating Voltage	Current	Lens Colors	Peak Candlepower	Lamp Ratings1	Replacement Lamp
Fire Alarm (UL 1971) 8 Joule Strobe	105DHISTC-FJ	20-30V DC	1.08 - 0.83 A	Clear	26 cd wall (dome out) 24 cd wall (dome down) 26 cd ceiling	3,000 hours	92-ST

¹ Strobe tube life at operating power to 75% efficiency.

Accessories2
Description	Cat. No.
Wall Mount Bracket	105BM3

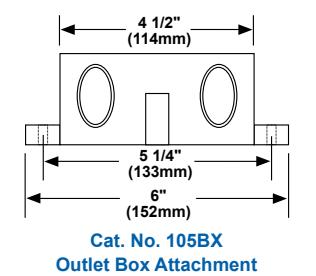

Outlet Box Attachment	105BX
Pipe Mount Attachment	105PM

³ Must be used with 105BX.

Wall Mount Bracket Outlet Box Attachment Pipe Mount Attachment

Hazardous Location Ratings

	Class	Division	Group	Operating Temperature
105DHISTC-FJ	II	2	F, G	TB3 (165°C, 329°F)

Conventional and Addressable Accessories Hazardous Location Signals

105 Series

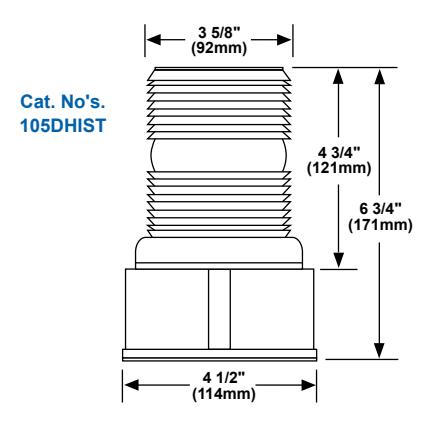

Weights and Dimensions
Cat. No.	Approx. Shipping Weight (lb.)
105DHISTC-FJ	1.63
105BM	1.00
105BX	1.00
105PM	1.00

(3/4" NPT Conduit Size)
