Edwards Signaling 105 Mounting Configuration Technical Tips

Tech Tips: 105 Series Mounting

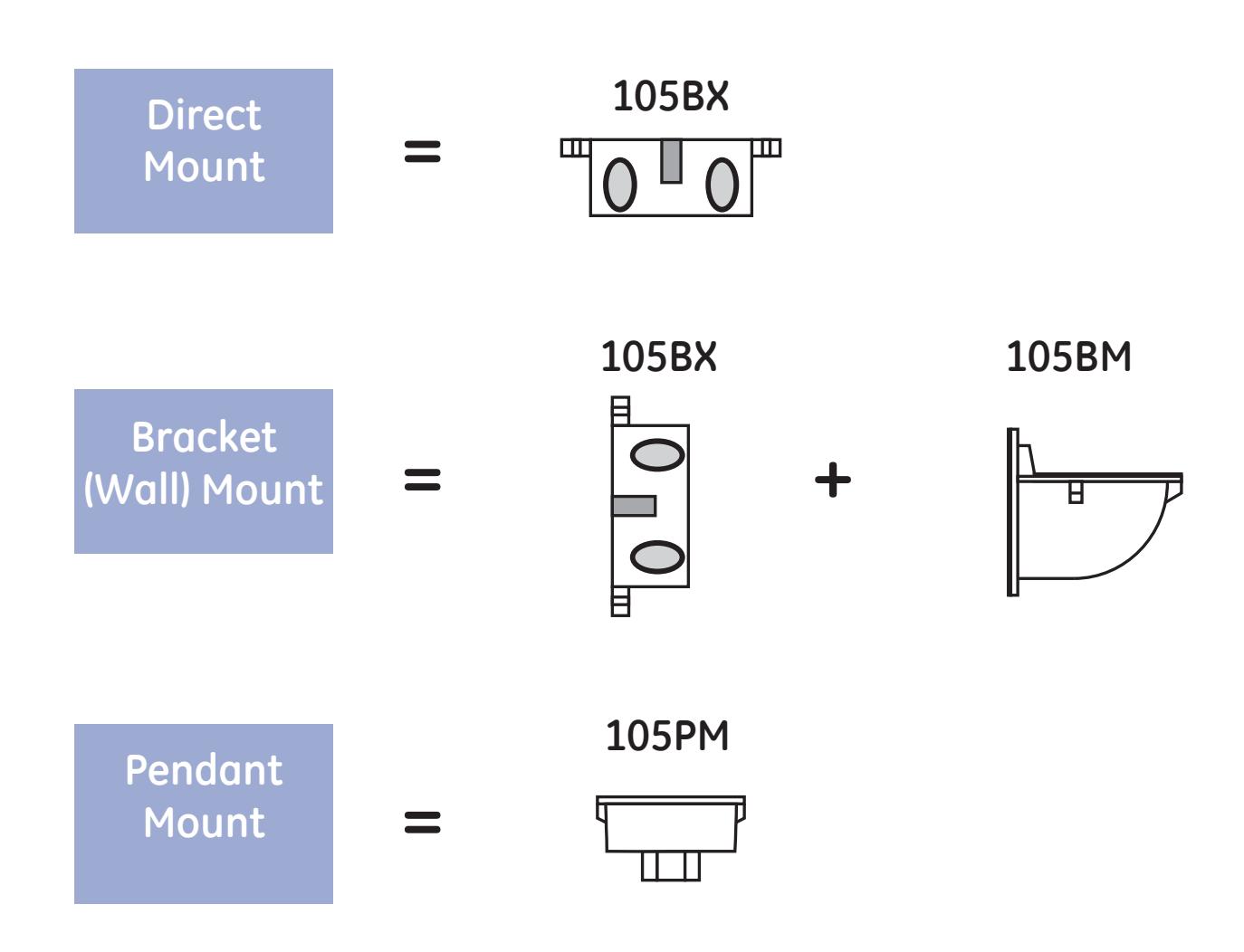

The 105 series requires the mounting option to be ordered separately. Below pictorial shows the components to order to complete the desired 105 assembly mounting.

Note specifically the bracket, or wall mount, consists of two components (shown below): 105BX and 105BM.
