102 Series Triliptical Stackable Beacon Lighting System Light Sources Installation Sheet

Description / Operation

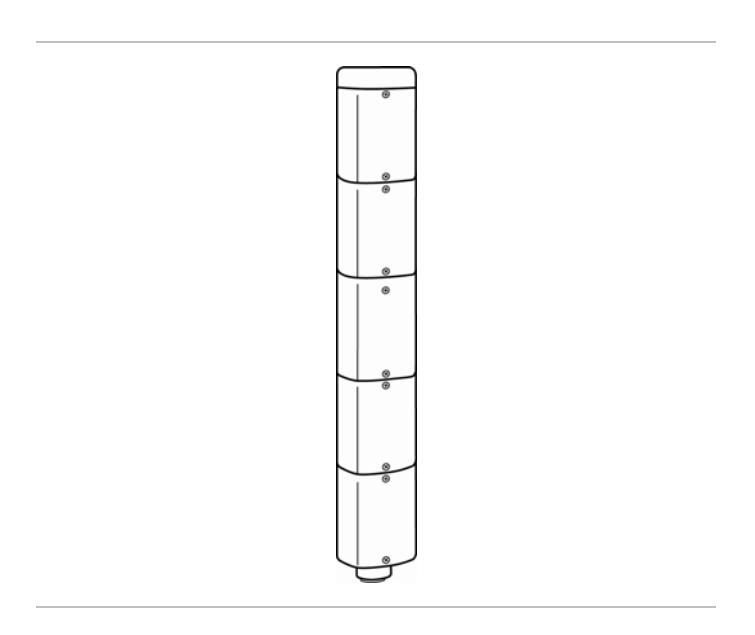

The Edwards Triliptical Stackable Beacon Lighting System is a unique audible-visual signaling device that can contain up to 5 light modules and either a single or multiple tone module in a single "stack."

All components of the Triliptical Stackable Beacon Lighting System are UL and cUL listed subassemblies. The units, when assembled, are UL and cUL listed for indoor and outdoor applications.

The enclosures are NEMA 3R, 4X, and IP65 rated. Each light source module contains a removable cover to allow for easy relamping. The light module cover features a molded-in gasket for dust tight reliability.

Installation

WARNING: To prevent electrical shock, do not connect power until instructed to do so.

Installation must be in accordance with local codes.

• 1. Assemble the stackable beacon lighting system (Figure 1).
  • a. Loosen captive screws and remove cover of affected lens module.

b. Insert the appropriate light source into board grooves at bottom of lens ensuring that the four prongs on the PC board are aligned with the plug located in the back of the lens assembly.

NOTE: When using LED light sources, ensure that the color of the LED light source and the color of the lens assembly match.

WARNING: To prevent leakage, ensure the magnifier ring on the lens cover and the magnifier ring on the lens module are aligned (Figure 1).

• c. Place the lens module cover on the front of the lens module and secure using two captive screws.
• d. Repeat steps a through c for any remaining modules (up to 5).
• e. Once the last module has been assembled, place the cap on top and secure the cap with the captive screw.
• 2. Apply power to the unit and verify proper operation.

NOTE: For further installation details, see the instructions supplied with the lens modules, P/N 3100700, or the instructions supplied with the base, P/N 3100669.

Maintenance

WARNING: To prevent electrical shock, disconnect power to all modules. Wait 5 minutes for stored energy in strobe modules to dissipate before working on unit.

Light Source Replacement

• 1. Loosen captive screws and remove cover of affected lens module.
• 2. Remove the light source assembly from the lens module.
• 3. Install new light source assembly ensuring that the four prongs on the PC board are aligned with the plug located in the back of the lens module.

WARNING: To prevent leakage, ensure the magnifier ring on the lens cover and the magnifier ring on the lens module are aligned (Figure 1).

4. Replace lens cover and secure using two captive screws.

Cleaning

The lens surfaces should be periodically dusted and cleaned with a dry soft clean cloth to maintain optimum light visibility. If necessary, the outside of the lens may be cleaned with water and a mild detergent on a well rung-out, soft, clean cloth.

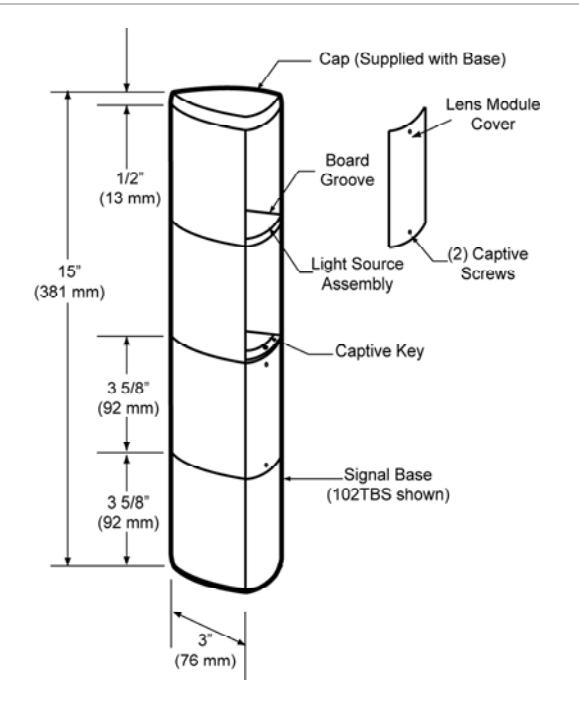

Figure 1: Assembling the stackable beacon lighting system

Specifications

Voltage	24 VDC (-G1)	120 VAC (-N5)
Current
Light Modules
102LS-SINH	0.32 A	0.11 A
102LS-SIN	0.32 A	0.08 A
102LS-FINH	0.32 A	0.11 A
102LS-FIN	0.32 A	0.08 A
102LS-ST	0.30 A	0.30 A
102LS-SLED	0.062 A	0.022 A
102LS-FLED	0.062 A	0.022 A
Replacement Lamp
102LS-SINH	50LMP-9WH**	50LMP-12WH
102LS-SIN	Ind. Trade 303	50LMP-10W
102LS-FINH	50LMP-9WH**	50LMP-12WH
102LS-FIN	Ind. Trade 303	50LMP-10W

^* Currents shown are for a stackable indicator with 5 light modules.

Regulatory information

Edwards Signaling	Edwards, A Division of UTC Fire & Security
	Americas Corporation, Inc. 8985 Town Center Parkway, Bradenton, FL 34202, USA

Table 1: Lamp Life (Hours)

Light Source	Calculated*	Projected**
102LS-SINH-G1	12,000
102LS-SINH-N5	20,000
102LS-SIN-G1	10,000
102LS-SIN-N5	2,500
102LS-FINH-G1	12,000	15,000
102LS-FINH-N5	20,000	25,000
102LS-FIN-G1	10,000	12,500
102LS-FIN-N5	2,500	3,000
102LS-ST-G1	3,000***
102LS-ST-N5
102LS-SLED	100,000
102LS-FLED

^* At nominal operating voltage.

Table 2: Part numbers

Description
Light module, steady-on, 9W halogen
Light module, steady-on, 12W halogen
Light module, steady-on, 10W incandescent
Light module, flashing, 9W halogen
Light module, flashing 12W halogen
Light module, flashing, 10W incandescent
Light module, 3 Joule strobe
Light module, steady-on LED
Light module, flashing LED
Optional Extension Pipe, 4 in.
Optional Extension Pipe, 10 in.
Optional Extension Pipe, 15 in.

^* Signifies lens module color (A – amber/orange, B – blue, C – clear, G – green, R – red, Y – yellow)

Contact information

For contact information, see www.edwardssignaling.com.

^** A non-halogen lamp, Ind. Trade 303, may be used in place of the halogen lamp.

^** Projected lamp life based on manufacturer's calculated lamp life @ 65 fpm and 50% duty cycle.

^*** Strobe tube life @ operating power to 75% efficiency.

^** Signifies lens and LED module color (A – amber/orange, B – blue, G – green, R – red). NOTE: LED light sources must be used with the corresponding color lens module (e.g., a blue LED light source, 102LS-SLEDB-G1, must be used with a blue lens, 102LM-B).

P/N 3100701 OFFSET

INSTALLATION INSTRUCTIONS FOR 102 SERIES TRILIPTICAL STACKABLE STATUS INDICATOR LIGHT SOURCES

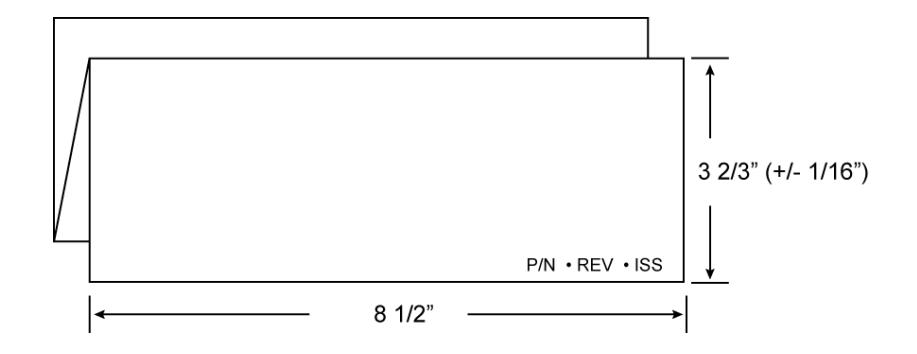

(1) 8 1/2" x 11" SHEET PRINTED BOTH SIDES. FOLD TWO TIMES TO DIMENSIONS SHOWN ON DETAIL WITH PART NUMBER ON THE OUTSIDE.
