101 Series AdaptaLight® Stackable Beacon

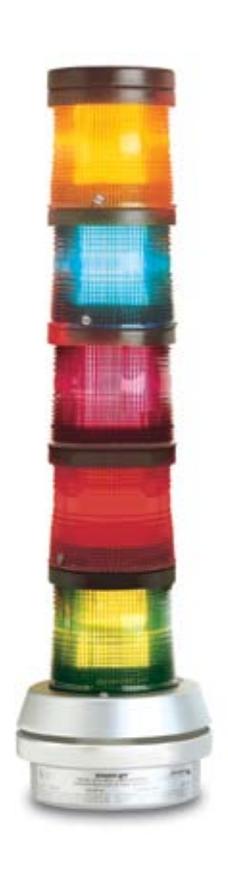

The 101 Series AdaptaLight Stackable Beacon is a unique audible-visual signaling device that can contain up to 5 light modules and a pulsating horn in a single "stack." It is for heavy-duty use in locations where visibility over longer distances is required. All modules are gasketed. The base of the AdaptaLight Stackable Beacon contains a pulsating horn rated at 85 dB at 10 feet. The horn can be operated as a sixth independent signal or in conjunction with any one of the light modules. The steady-on modules provide a constant visual signal. They are ideal for start/stop functions, on/off process or continuous duty visual signaling applications.

The flashing modules command immediate attention, while the steady-on module is ideal for indicating a normal status. Applications include signaling of equipment malfunction.

The strobe modules are ideal for high ambient light areas. They can effectively signal urgent status changes when used in conjunction with the incandescent or LED light modules. The LED modules are best for applications where long life is a requirement.

The 101XBRM (XTRA-BRITE™) LED beacons are supplied in steady-on mode, and offer field-selectable flash patterns that include Ultra-Flash (random flash pattern) or 65 flashes per minute modes.

The AdaptaLight can be direct or ½" NPT conduit pipe mounted in non-hazardous dust and weatherproof applications. For indoor applications, it may be vertically mounted with lenses facing either up or down. For weatherproof installation, the unit must be mounted vertically with lenses facing up. They may also be corner mounted using the Cat. No. CBR, corner mount bracket, or wall mounted, using the Cat. No. WBR, wall mount bracket.

101 Series AdaptaLight® Features

  • Available in 12V DC*, 24V DC or 120V AC Stackable in any combination or color
  • steady-on or flashing incandescent screw terminals in base for field wiring
  • dual-mode steady-on/Ultra-Flash (random) or flashing LED
  • strobe

  • Option for panel or conduit mounting Base unit comes with 85 dB pulsating horn
  • PLC Compatible LED modules immune to shock and vibration
  • Six gasketed modules: Module rearrangement requires no wiring;
  • steady-on or flashing halogen Electrical interconnection between modules is through solid copper busses

* Incandescent and strobe modules only

101 Series AdaptaLight<sup>®</sup> Stackable Beacon

Module odule Operating Projected LED Flash Replacement
Description Type Cat. No. Voltage Current Lens/LED Colors Life (L70)† Rate Horns Lamps
101 Series AdaptaLight
Stackable Beacon 		Base Unit
with Horn
(85 dB
@ 10 ft.) 		101BS-E1 12V DC 0.05 A _ _ _ P-047570-0743 _
101BS-G1 24V DC 0.05 A _ _ _ P-047570-0743 _
101BS-N5 120V AC
50/60 Hz 		0.05 A _ _ _ 123A-N5 _
Steady-On
Incandescent 		101SIN*-E1 12V DC 1.0 A Red, Green, Amber,
Blue, Magenta, Clear 		_ _ _ Industry Std.
No. 94
Steady-On
Halogen 		101SINH*-G1 24V DC 0.32 A Red, Green, Amber,
Blue, Magenta, Clear 		_ _ _ 50LMP-
9WH-D
101SINH*-N5 120V AC
50/60 Hz 		0.11 A Red, Green, Amber,
Blue, Magenta, Clear 		_ _ _ 50LMP-
12WH-D
Flashing
Incandescent 		101FIN*-E1 12V DC 1.0 A Red, Green, Amber,
Blue, Magenta, Clear 		_ 65 fpm _ Industry Std.
No. 94
Flashing
Halogen 		101FINH*-G1 24V DC 0.32 A Red, Green, Amber,
Blue, Magenta, Clear 		_ 65 fpm _ 50LMP-
9WH-D
101FINH*-N5 120V AC
50/60 Hz 		0.11 A Red, Green, Amber,
Blue, Magenta, Clear 		_ 65 fpm _ 50LMP-
12WH-D
Strobe 101ST*-E1 12V DC 0.5 A Red, Green, Amber,
Blue, Magenta, Clear 		_ - _ 91B-ST
101ST*-G1 24V DC 0.3 A Red, Green, Amber,
Blue, Magenta, Clear 		_ _ _ 91B-ST
101ST*-N5 120V AC
50/60 Hz 		0.12 A Red, Green, Amber,
Blue, Magenta, Clear 		_ _ _ 91B-ST
Dual-Mode
XBR LED 		101XBRM**24D 24V DC 0.220 A Red, Green,
Amber, Blue, White 		148,000
hours 		65 fpm _ _
101XBRM**120A 120V AC
50/60 Hz 		0.115 A Red, Green,
Amber, Blue, White 		148,000
hours 		65 fpm _ _

* Letter in this position designates lens color: A - amber, B - blue, G - green, R - red, C - Clear, or M - Magenta **Letter in this position designates lens/LED color: A - amber, B - blue, G - green, R - red, or W - White

PLC Output to Meet Input Parameter Specifications

Cat. No. Operating
Voltage 		Max. Off State Leakage
Current (mA) 		Continuous On
Current (mA) 		Surge
(inrush / duration)
101BS-G1 24V DC 1.2 20 2 A / 1 millisecond
101BS-N5 120V AC 50/60 Hz 25 50 2 A / 1 millisecond
101SINH*-G1 24V DC 25 320 .36 A / 1 nSecond
101SINH*-N5 120V AC 50/60 Hz 25 110 .5 A / 8 nSecond
101FINH*-G1 24V DC 25 320 1.2 A / 100 nSeconds
101FINH*-N5 120V AC 50/60 Hz 25 110 1.15 A / 8 nSeconds
101ST*-G1 24V DC 1.5 300 .33 A / 1 nSecond
101ST*-N5 120V AC 50/60 Hz 5 120 2.1 A / 1 nSecond
101XBRM**24D 24V DC 10 215 10 A / 85 microseconds
101XBRM**120A 120V AC 50/60 Hz 10 108 10 A / 170 microseconds

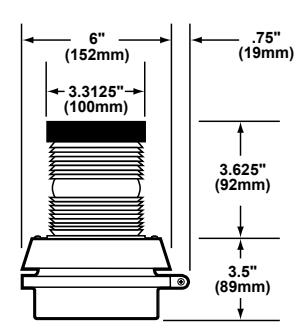

Dimensional Drawings

† LED Manufacturer's Median Projected LED Life for LUXEON Rebel LEDs (L70 at 85°C and T<sub>junction</sub> 98°C). Actual LED life will vary inversely with ambient temperature, voltage, driver current, junction temperature and duty-cycle at which the signaling device is operated. Please refer to http://www.philipslumileds.com/pdfs/WP15.pdf.
