IDCA528 Edge Guard with 1 Lip Only

IDCA538C Full Edge Guard

IDCA548T Full Edge Guard With Astragal

DOOR EDGE GUARDS

• Standard lengths 78-3/4", 83-1/8", 85", 96", 118-3/4"
• Special lengths available
• For bevel edge door (Suffix B) or square edge door (Suffix S)
• For 1-3/4" door

• Material 16 Gauge, 304 Stainless Steel
• For high traffic, high abuse doors
• Standard cutouts available
• Custom Cut-outs available as required
• Non-handed (except with cutouts)

IDCA528

EDGE GUARD

• 3/4" door edge lip, one side
• Bevel and square edge available

A528B 316 MIN. CLEARANCE 13 8 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1

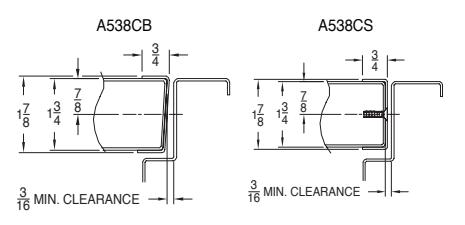

IDCA538C

EDGE GUARD

• 3/4" door edge lip, both sides
• Bevel and square edge available

IDCA548T

EDGE GUARD WITH ASTRAGAL

• 3/4" door edge lip, both sides with astragal one side
• Bevel and square edge available

A548TB

STANDARD CUTOUTS

161 Latch 86 Mortise

West: 800-544-4422 • East: 800-225-6737

4-7/8" ASA Strike

Other cutouts or order forms available online (www.intldoorclosers.com) or contact factory
