EXARREXKIT-ED

I N S E R T I n s t r u c t i o n s

The Command Access EXARREXKIT-ED is a field-installable Request to Exit switch for the Adams Rite EX series exit devices.

D. B. C.

REX SWITCH WIRING

Green: Common Blue: Normally Open Grey: Normally Closed

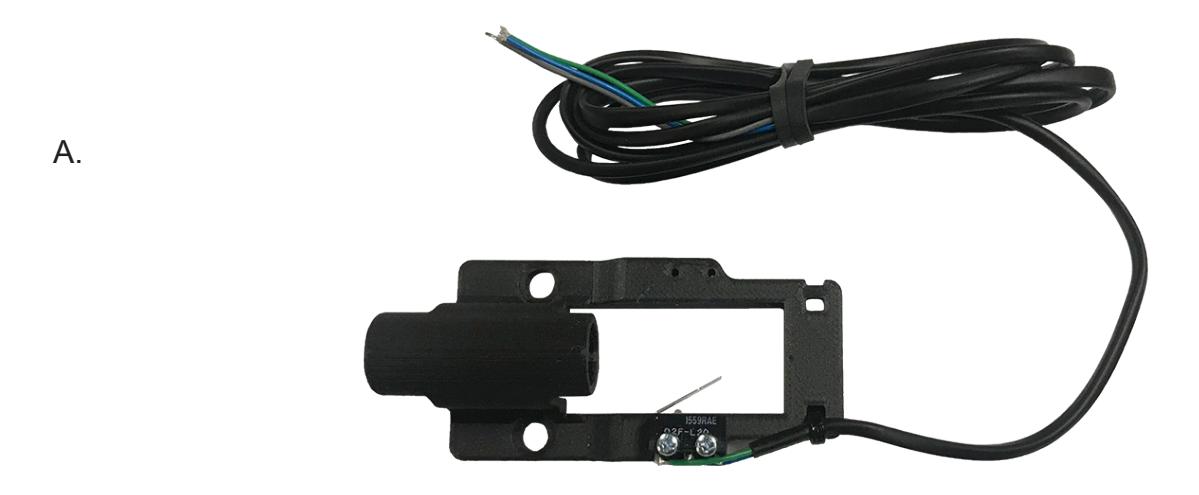

a. 60506 - EXARrexkit-eD #2 phillips screwdriver

d. 20060 - cable tie

b. 40775 - 6-32 x 1/4 Screw (2)

e. 20015 - rex switch label

c. 20059 - cable tie mount

Kit Includes Tools Required

more information

SPECIFICATIONS:

• • Single Pole Double Throw (SPDT)
• • Rating: .5A @24VAC

E.

• Configuration: Green - Common (C)

Blue - Normally Open (NO) Gray - Normally Closed (NC)

Installation instructions

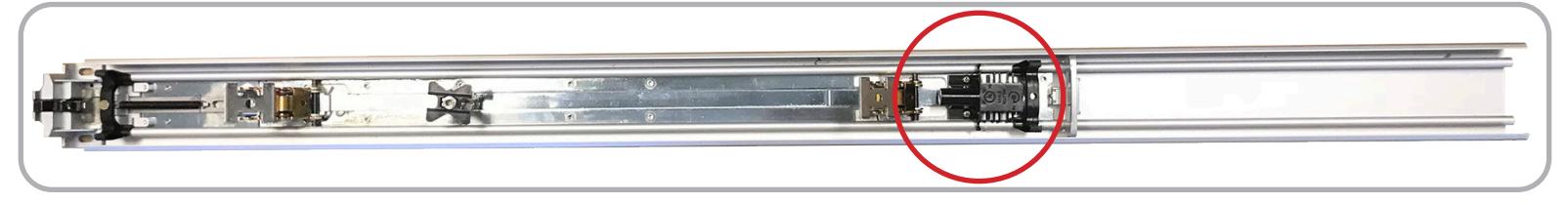

Remove the end caps and push pad to expose the base rail and activating brackets. You will find a Plunger Assembly behind the Rear Activating Bracket . 1

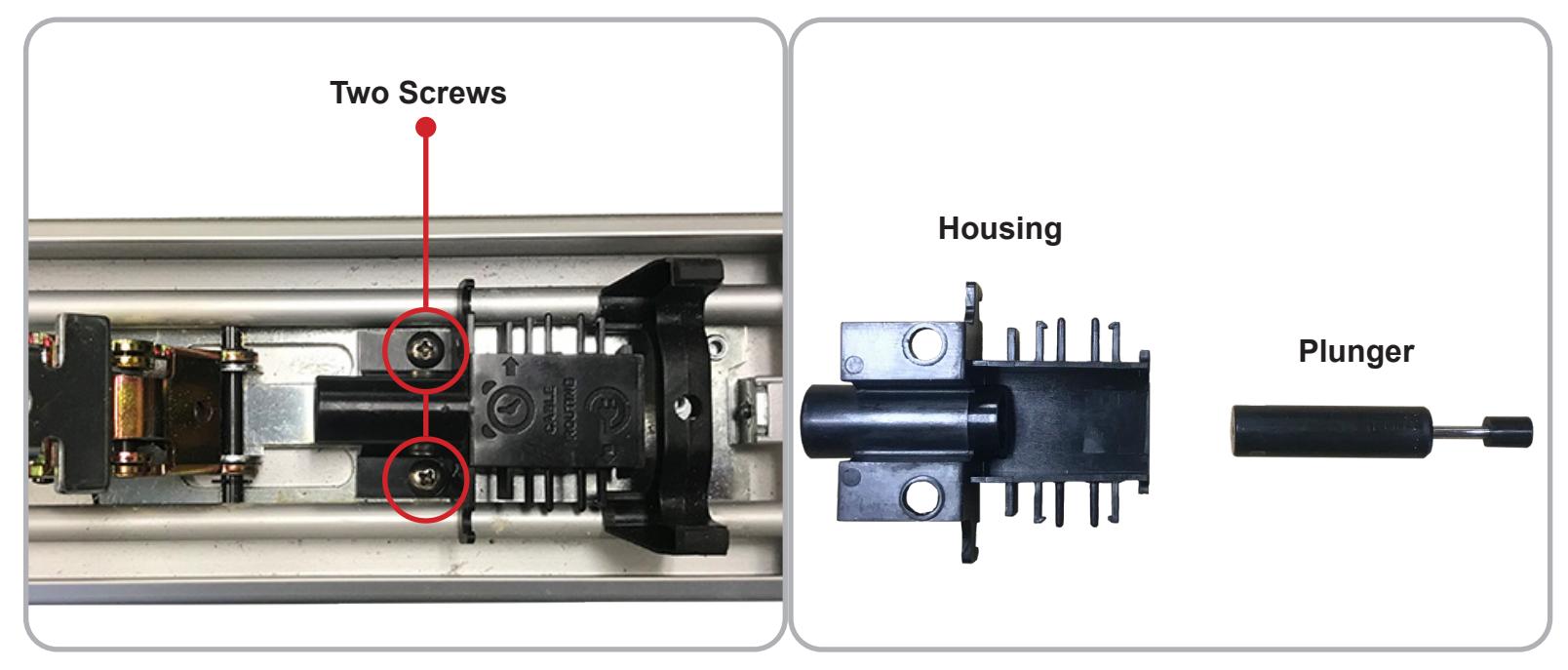

Remove the Two Screws holding down the Plunger Assembly . Once removed, remove the Plunger 2 from its Housing .

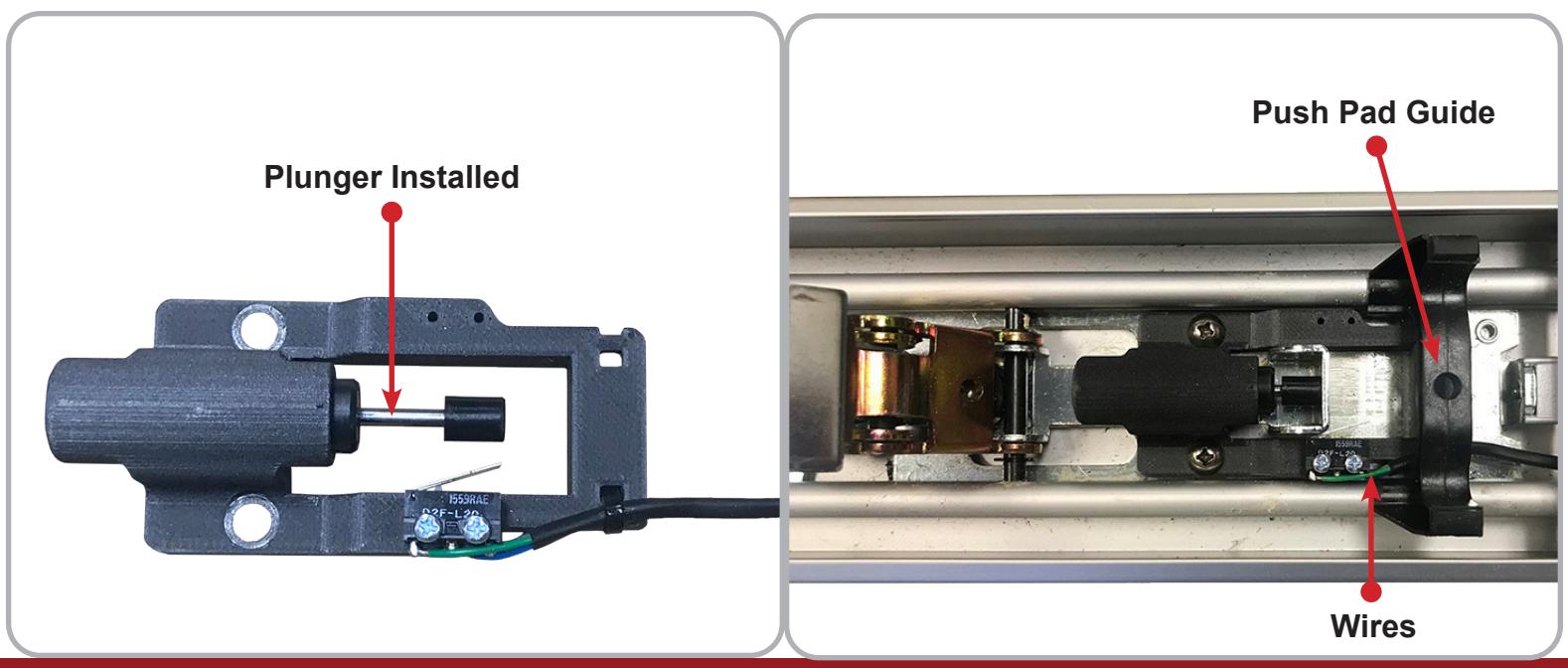

3 Install the Plunger in the EXARREXKIT-ED as shown. Mount the kit using the supplied screws in the same two holes the Plunger Assembly used, then route the Wires under the Push Pad Guide.
