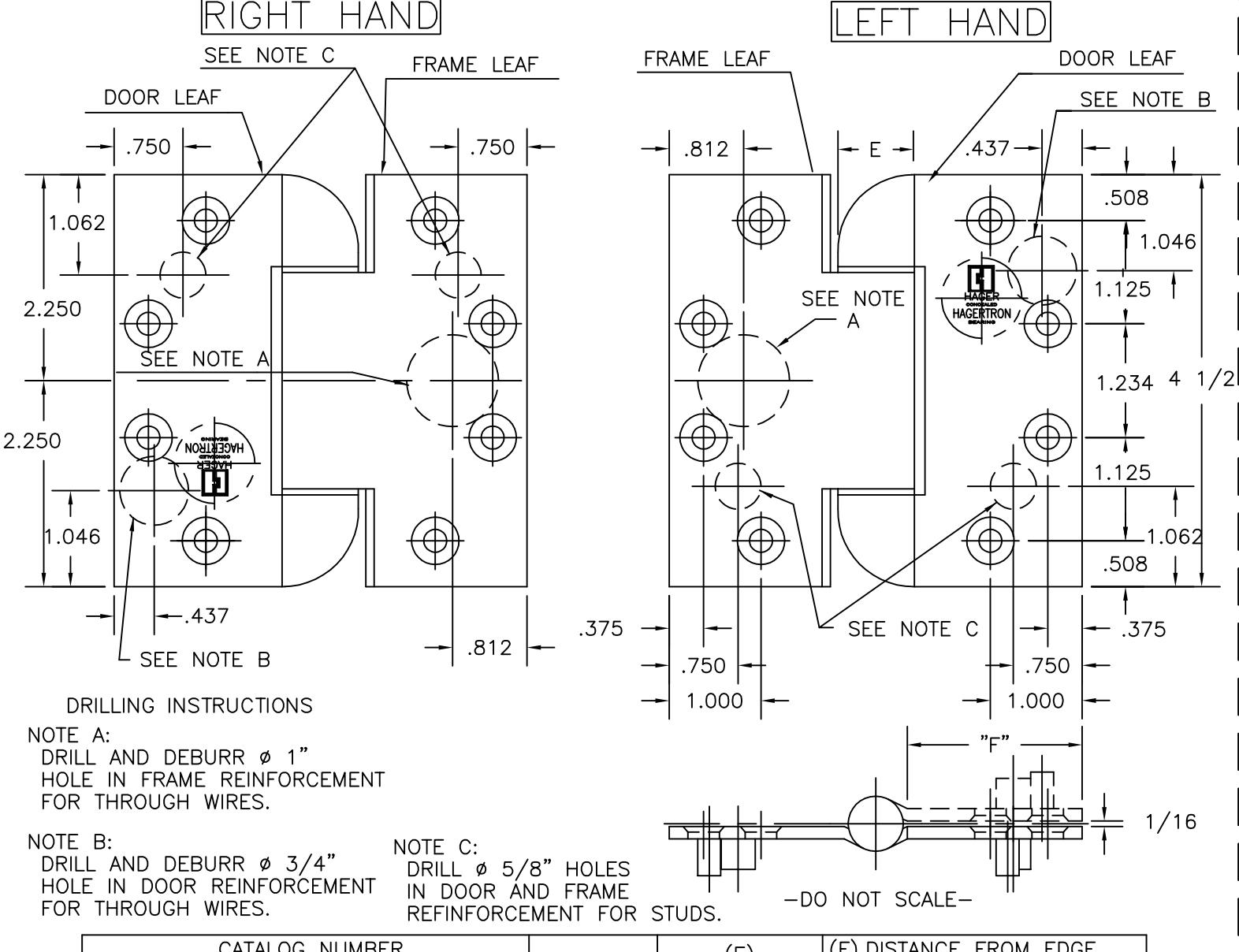

SPECIAL HEAVY WEIGHT FULL MORTISE REVERSE SAFETY STUD TEMPLATE HINGES ELECTRIC THROUGH WIRE TYPE ETW
SIZES: 4 1/2 x 4 1/2
T554 Template No. REVISION BY DATE No. ECO CT08039 DW 11.10.08 ADDED LH 05.28.09 SLJ MIR ELEC COS SLJ 07.26.10 CORRECT LEAF ID'S SLJ 08.18.11 ECO CT12001 DW 08.13.12 ECO CT12001 SLJ 08.14.12
| CATALOG NUMBER | (E) | (F) DISTANCE FROM EDGE | |
|---|---|---|---|
| STAINLESS STEEL HINGES |
METAL
GAUGE |
KNUCKLE
DIAMETER |
OF LEAF TO SWAGE LINE 4 1/2 x 4 1/2 |
| HB953RSS-ETW | .187 | 7/8 | 1 13/16 |
| AB750RSS-ETW | .180 | 45/64 | 1 7/8 |
| AB850RSS-ETW | .180 | 45/64 | 1 13/16 |
ALL DIMENSIONS ARE IN INCHES.
Machine Screw Size- " F.H.
NOTE: This hinge is intended to be used in the center position. Hospital type template hinges conform to the above screw size and location. They are designated by "HT" to catalog number. Hager template hinges are made in size and with screw holes located
to conform to ANSI-A156.7.
HAGER RESERVES THE RIGHT TO MAKE DESIGN CHANGES WITHOUT NOTICE. CALL HAGER ENGINEERING AT 1-800-325-9995 FOR LATEST REVISION DATE OF TEMPLATE.
HAGER COMPANIES 139 VICTOR STREET P.O. BOX 12300 ST. LOUIS, MISSOURI 63157-0300
