FULL MORTISE TEMPLATE HINGE ELECTRIC THROUGH WIRE TYPE ETW

Template No. T629

ORIG. 10-2-00 RAM

SIZE: 5"

3/32

FOR SQUARE EDGE DOORS

ETW MAXIMUM ELECTRICAL RATING CONTACT THROUGH WIRE VOLTS 48V DC/AC AMPERES

3.5A CONTINUOUS CURRENT 16.0A CURRENT INRUSH (300 MILLISECONDS)

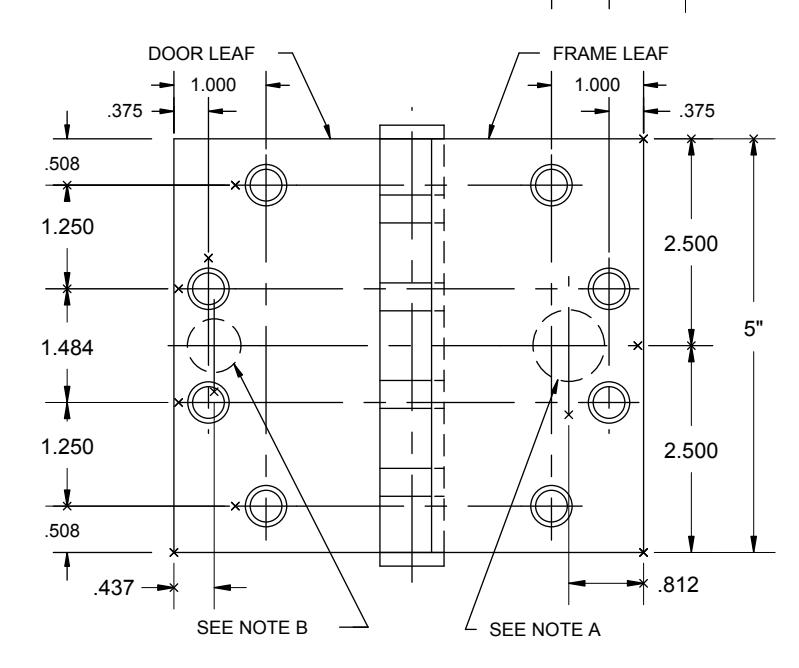

DRILLING INSTRUCTIONS

NOTE A:

DRILL AND DEBURR 1" Ø HOLE IN FRAME REINFORCEMENT FOR THROUGH WIRES.

NOTE B:

DRILL AND DEBURR 3/4" Ø HOLE IN DOOR REINFORCEMENT PLATE FOR THROUGH WIRES.

-DO NOT SCALE-

CATALOG NUMBER	METAL
STEEL HINGES	GAUGE
BB1262	.187

ALL DIMENSIONS ARE IN INCHES.

Machine Screw Size- 12-24 x 1/2" F.H. Wood Screw Size- No. 12 x 1 1/4" F.H.

Designed to swing doors completely clear of the opening when door is opened $95^\{\backslash circ\}$ . When opened $90^\{\backslash circ\}$ , door projects 11/64 (4.37) past stop of jamb.

NOTE: This hinge alters the normal pivot point of door. For door closers, friction or overhead door holders to be used in conjunction with this hinge, consult manufacturer of the device for application details.

Hospital type template hinges conform to the above screw size and location. They are designated by "HT" to catalog number.

Hager template hinges are made in gauge and with screw holes located to conform to ANSI-A156.7.

HAGER RESERVES THE RIGHT TO MAKE DESIGN CHANGES WITHOUT NOTICE. CALL HAGER ENGINEERING AT 1-800-325-9995 FOR LATEST REVISION DATE OF TEMPLATE.
