ETW – 4 1-2in x 4in and 4 1-2in x 4 1-2in Template – T522

TRICON - FULL MORTISE TEMPLATE HINGES ELETRIC THROUGH WIRE TYPE ETW

SIZES: 4 1/2 x 4, 4 1/2 x 4 1/2

Template No. T522 Rev. '96

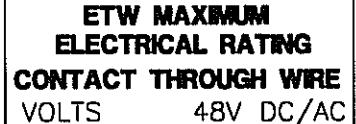

AMPERES 3.5A CONTINUOUS CURRENT 16.0A CURRENT INRUSH (300 MILLISECONDS)

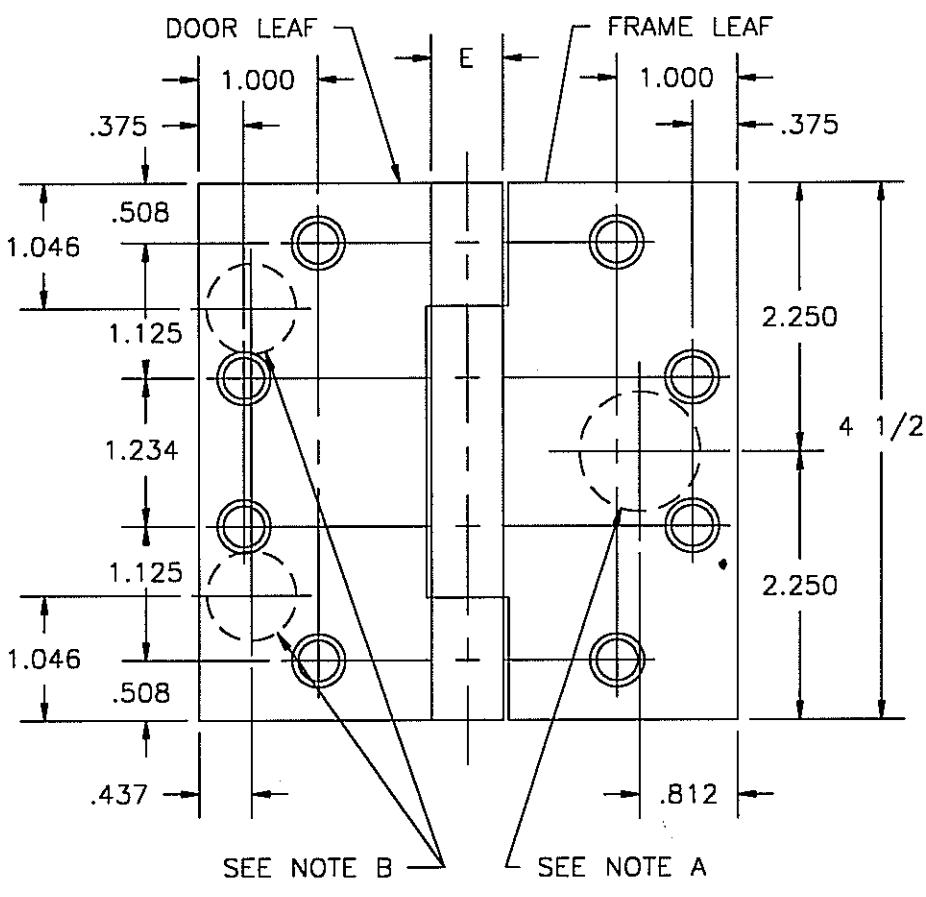

DRILLING INSTRUCTIONS

NOTE A:

DRILL AND DEBURR Ø 1" HOLE IN FRAME REINFORCEMENT FOR THROUGH WIRES.

NOTE B:

• NON-HANDED INSTALLATION-DRILL AND DEBURR TWO Ø 3/4" HOLES IN DOOR REINFORCEMENT PLATE FOR THROUGH WIRES.
• RIGHT HAND INSTALLATION— DRILL AND DEBURR Ø 3/4" HOLE FOR THROUGH WIRES IN DOOR REINFORCEMENT PLATE ON BOTTOM LEFT.
• 3. LEFT HAND INSTALLATION— DRILL AND DEBURR Ø 3/4" HOLE FOR THROUGH WIRES IN DOOR REINFORCEMENT PLATE ON UPPER RIGHT.

-DO NOT SCALE-

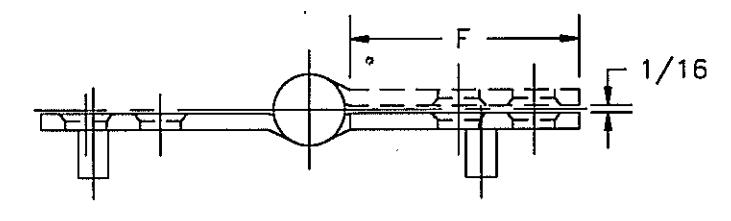

CATALOG NUMBER					EDGE OF LEAF TO
	NON-		(E)	SWAGE LINE
STEEL HINGES	FERROUS HINGES	METAL GAUGE	KNÚČKLE DIAMETER	4 1/2 x 4	4 1/2 x 4 1/2
AB700-ETW	AB800-ETW	.134	39/64	1 5/8	1 7/8
AB750-ETW	AB850-ETW	.180	45/64	1 9/16	1 13/16

ALL DIMENSIONS ARE IN INCHES.

Machine Screw Size- $12-24\; \backslash times\; 1/2$ " F.H. Wood Screw Size- No. $12\; \backslash times\; 1\; \backslash cdot\; 1/4$ " F.H.

NOTE: This hinge is intended to be used in the center position.

Hospital type and round corner template hinges conform to the above screw size and location. They are designated by "HT" and "RC" to catalog number.

Hager template hinges are made in size, gauge and with screw holes located to conform to ANSI—A156.7.

HAGER RESERVES THE RIGHT TO MAKE DESIGN CHANGES WITHOUT NOTICE. CALL HAGER ENGINEERING AT 1-800-325-9995 FOR LATEST REVISION DATE OF TEMPLATE.

HAGER COMPANIES 139 VICTOR STREET P.O. BOX 12300 ST. LOUIS, MISSOURI 63157-0300
