ETM Template for 5 Knuckle Hinges 5in in Height t528_template
Open the original PDF document
View PDF

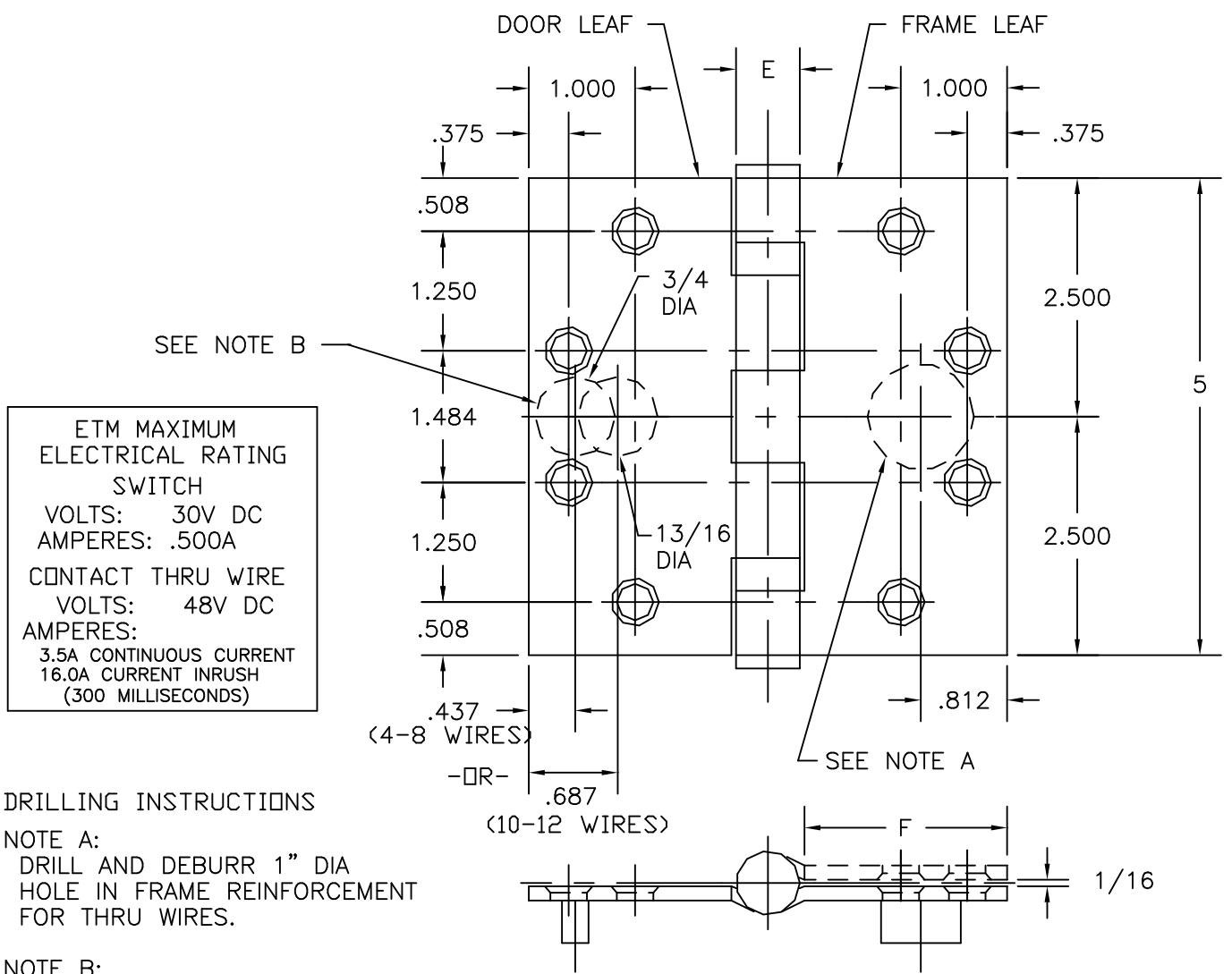

FULL MORTISE TEMPLATE HINGES ELECTRIC THRU WIRE AND MONITOR TYPE ETM
| No. | REVISION | BY | DATE | ||
| 1 | ECO CT05035 | RAM | 8-15-05 | ||
| 2 | ECO CT07016 | DW | 4.12.07 | ||
SIZES: , ,
NOTE B:
DRILL AND DEBURR A 3/4" DIA HOLE FOR 4-8 THRU WIRES -OR-A 13/16" DIA HOLE FOR 10-12 THRU WIRES IN DOOR REINFORCEMENT.
-DO NOT SCALE-
| CATALOG NUMBER | (F) DISTANCE | FROM | EDGE OF | LEAF | TO SWAGE LINE | |||
|---|---|---|---|---|---|---|---|---|
| STEEL |
NON-
FERROUS |
(E)
KNUCKLE |
, | |||||
| HINGES | HINGES | GAUGE | DIAMETER | 5 x 4 | 5 x 4 1 | /2 | 5 x 5 | |
| BB1279-ETM | BB1191-ETM | .145 | 41/64 | 1 5/8 | 1 7/8 | 2 1/8 | ||
| BB1168-ETM | BB1199-ETM | .190 | 47/64 | 1 9/16 | 1 13/1 | 6 | 2 1/16 | |
ALL DIMENSIONS ARE IN INCHES.
Machine Screw Size- 12-24 x 1/2" F.H. Wood Screw Size- No. 12 x 1 1/4" F.H.
NOTE: This hinge is intended to be used in the center position.
Hospital type and round corner template hinges conform to the above screw size and location. They are designated by "HT" and "RC" to catalog number.
Hager template hinges are made in size, gauge and with screw holes located to conform to ANSI-A156.7.
HAGER RESERVES THE RIGHT TO MAKE DESIGN CHANGES WITHOUT NOTICE. CALL HAGER ENGINEERING AT 1-800-325-9995 FOR LATEST REVISION DATE OF TEMPLATE.
HAGER COMPANIES 139 VICTOR STREET P.O. BOX 12300 ST. LOUIS, MISSOURI 63157-0300
