ETM Template for 5 Knuckle Hinges 127 mm in Height t555_template

Template No. T555

SAFETY STUD TEMPLATE HINGES Rev. '96 ELECTRIC THROUGH WIRE AND MONITOR TYPE ETM

SIZES: $4\; \backslash frac\{1\}\{2\}\; \backslash times\; 4\; \backslash frac\{1\}\{2\}$

ETM MAXIMUM ELECTRICAL RATING SWITCH VOLTS 48V DC/AC 1.0A AMPERES CONTACT THROUGH WIRE VOLTS 48V DC/AC AMPERES 3.5A CONTINUOUS CURRENT 16.0A CURRENT INRUSH (300 MILLISECONDS)

DRILLING INSTRUCTIONS

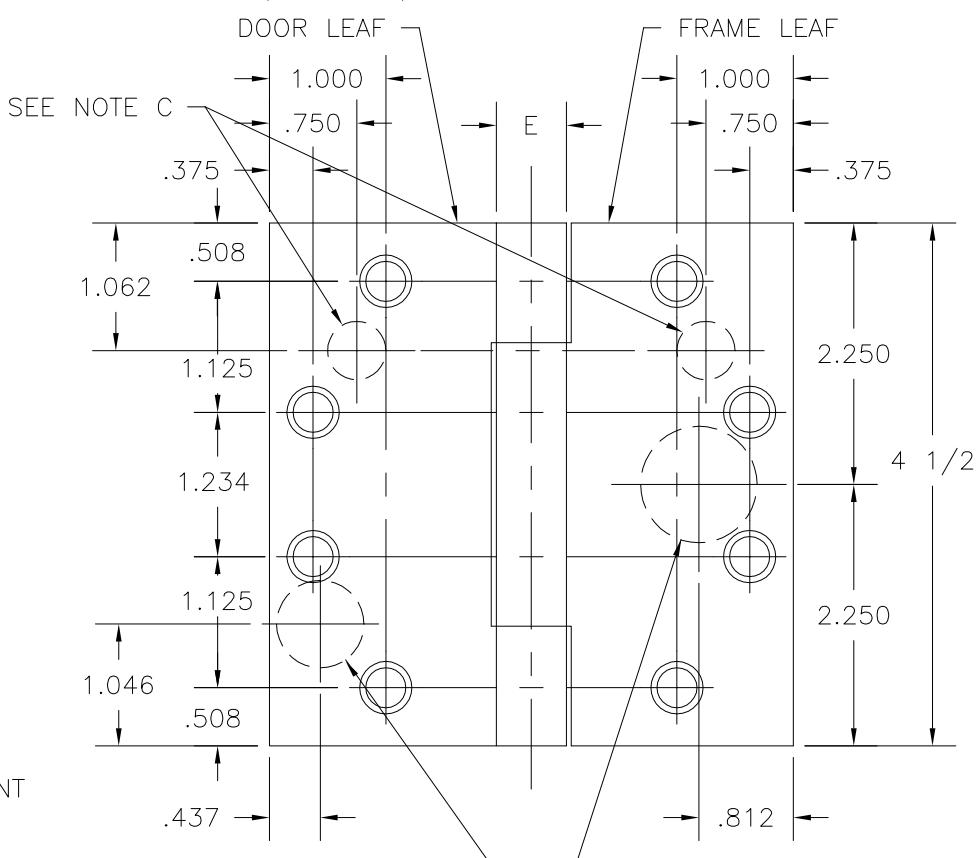

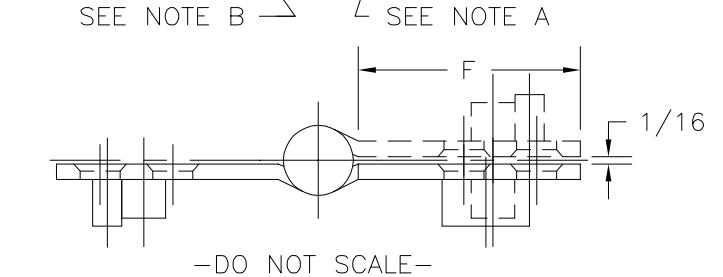

NOTE A:

DRILL AND DEBURR Ø 1" HOLE IN FRAME REINFORCEMENT FOR THROUGH WIRES.

NOTE B:

DRILL AND DEBURR Ø 3/4" HOLE IN DOOR REINFORCEMENT FOR THROUGH WIRES.

NOTE C:

DRILL Ø 1/2" HOLES IN DOOR AND FRAME REFINFORCEMENT FOR STUDS.

CATALOG NUMBER				(F) DISTANCE FROM EDGE
	STAINLESS		(E)	OF LEAF TO SWAGE LINE
STEEL	STEEL	METAL	KNŮĆKLE
HINGES	HINGES	GAUGE	DIAMETER	4 1/2 × 4 1/2
HB950RSS-ETM	HB953RSS-ETM	.187	7/8	1 13/16

ALL DIMENSIONS ARE IN INCHES.

Machine Screw Size- $1/4-20\; \backslash times\; 1/2$ " F.H.

NOTE: This hinge is intended to be used in the center position.

Hospital type template hinges conform to the above screw size and location. They are designated by "HT" to catalog number.

Hager template hinges are made in size and with screw holes located to conform to ANSI-A156.7.

HAGER RESERVES THE RIGHT TO MAKE DESIGN CHANGES WITHOUT NOTICE. CALL HAGER ENGINEERING AT 1-800-325-9995 FOR LATEST REVISION DATE OF TEMPLATE.
