ETM Template – 5 Knuckle Hinges 4-1-2in Height – T-523-Rev02

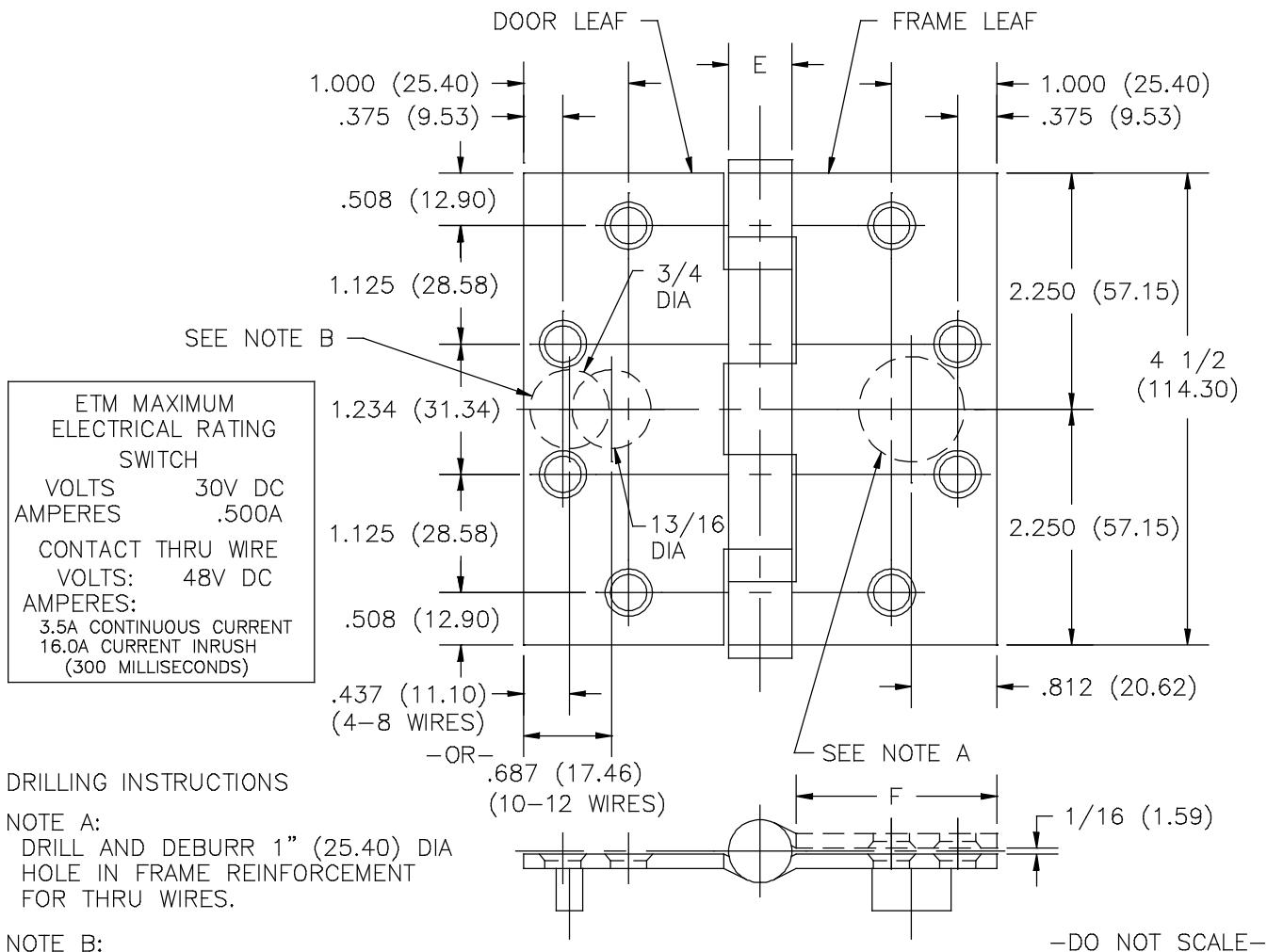

FULL MORTISE TEMPLATE HINGES ELECTRIC THRU WIRE

REVISION DATE No. BY ECO CT05035 RAM 8-12-05 ECO CTO7016 DW 4.12.07

Template No. T523

AND MONITOR TYPE ETM

SIZES: $4\; \backslash frac\{1\}\{2\}\; \backslash times\; 4\; --\; 4\; \backslash frac\{1\}\{2\}\; \backslash times\; 4\; \backslash frac\{1\}\{2\}$ $(114.30\; \backslash times\; 101.60)$ $(114.30\; \backslash times\; 114.30)$ DOOR LEAF

DRILL AND DEBURR A 3/4" (19.05) DIA HOLE FOR 4-8 THRU WIRES -OR-A 13/16" (20.64) DIA HOLE FOR 10-12 THRU WIRES IN DOOR REINFORCEMENT.

CATALOG NUMBER					EDGE OF LEAF TO
	NON-		(E)	SWAGE LINE
STEEL	FERROUS	METAL	KNŮĆKLE	$4\; 1/2\; \backslash times\; 4$	4 1/2 x 4 1/2
HINGES	HINGES	GAUGE	DIAMETER	$(114.30\; \backslash times\; 101.60)$	(114.30 x 114.30)
BB1279-ETM	BB1191-ETM	.134 (3.40)	39/64 (15.48)	1 5/8 (41.28)	1 7/8 (47.63)
BB1168-ETM	BB1199-ETM	.180 (4.57)	45/64 (17.86)	1 9/16 (39.69)	1 13/16 (46.04)

ALL NON-BRACKETED DIMENSIONS ARE IN INCHES, ALL BRACKETED DIMENSIONS ARE IN MILLIMETERS.

Machine Screw Size- 12-24 x 1/2" F.H. Wood Screw Size- No. 12 x 1 1/4" F.H.

NOTE: This hinge is intended to be used in the center position.

Hospital type and round corner template hinges conform to the above screw size and location. They are designated by "HT" and "RC" to catalog number.

Hager template hinges are made in size, gauge and with screw holes located to conform to ANSI-A156.7.

HAGER RESERVES THE RIGHT TO MAKE DESIGN CHANGES WITHOUT NOTICE. CALL HAGER ENGINEERING AT 1-800-325-9995 FOR LATEST REVISION DATE OF TEMPLATE.

HAGER COMPANIES 139 VICTOR STREET P.O. BOX 12300 ST. LOUIS, MISSOURI 63157-0300
