COMMAND ACCESS TECHNOLOGIES

Energy Transfer Monitor

  • · UL-F LISTED
  • · EASY INSTALLATION
  • 4' LEAD AT NO ADDITIONAL CHARGE
  • Non-conductive wire access cap
  • · 3 YEAR NO HASSLE WARRANTY

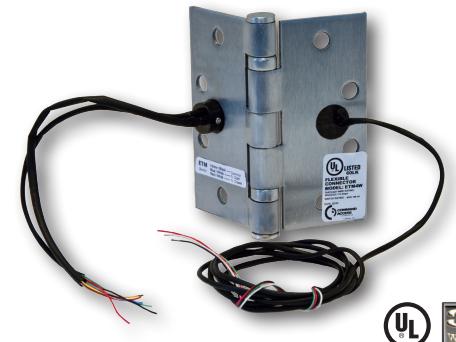

The Energy Transfer Monitor Hinge (ETM) like the ETH hinge is the ideal way to pass low voltage power from the hinge jamb to the lockset. There are no exposed wires, cables or switches that can be tampered with and the hinge maintains the same appearance of a conventional non-power transfer hinge. What distinguishes it from the ETH hinge is that it has a concealed switching magnetic or mechanical monitor switch that signals the position of the door. We can modify almost any hinge and we maintain a large inventory of most major hinge brands in various sizes and finishes. These can be ordered as a hinge with monitor switch only (ETM only) or as an electrified hinge with a monitor switch. Contact us if you don't see what you need listed.

SPECIFICATIONS

Monitor Model:

ETM - - - - |
cton ETM2W 2 20 4.0 16.0
ETM4W - ETM6W 4-6 26 1.0 N/A
ETM8W - ETM12W 8-12 28 1.0 N/A
ETM2WH 2 18 5.0 16.0
ETM4WH - ETM6WH 2 18 5.0 16.0
2-4 26 1.0 N/A
ETM8WH 2 20 4.0 16.0
6 28 1.0 N/A

Switch Ratings:

Electrical: 50-100 mA, 30VDC In-rush Current: NC & NO: 0.5 A max

Product Details:

Weight: 1-2 Lbs

Accessories: Additional Charge

Molex Connectors to Match Assa Electrolynx system or Allegion CON system

Notes: Can be ordered as a hinge with monitor switch only (ETM only) or as an electrified hinge with a monitor switch.

Not all configurations are available on all hinge sizes.

Stainless Steel & Brass base hinges will be supplied with our Magnetic Monitor switch.

All hinges are made to Command Access standardized templating unless otherwise requested.

U.S. Customer Support 1-888-622-2377

Visit our website for more details www.CommandAccess.com

Canada Customer Support 1-855-823-3002

HINGES & POWER TRANSFER

Command Access Energy Transfer Monitor Hinge

Model No. Notes:
Customer: Job No./Name: Date: Provided by:
